SPECIFICATIONS

Battery type: 48V Lead acid or lithium battery

Brand Name: PowMr

Certification: CE

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Function: Single phase/split phase

High-concerned chemical: None

Is Smart Device: Yes

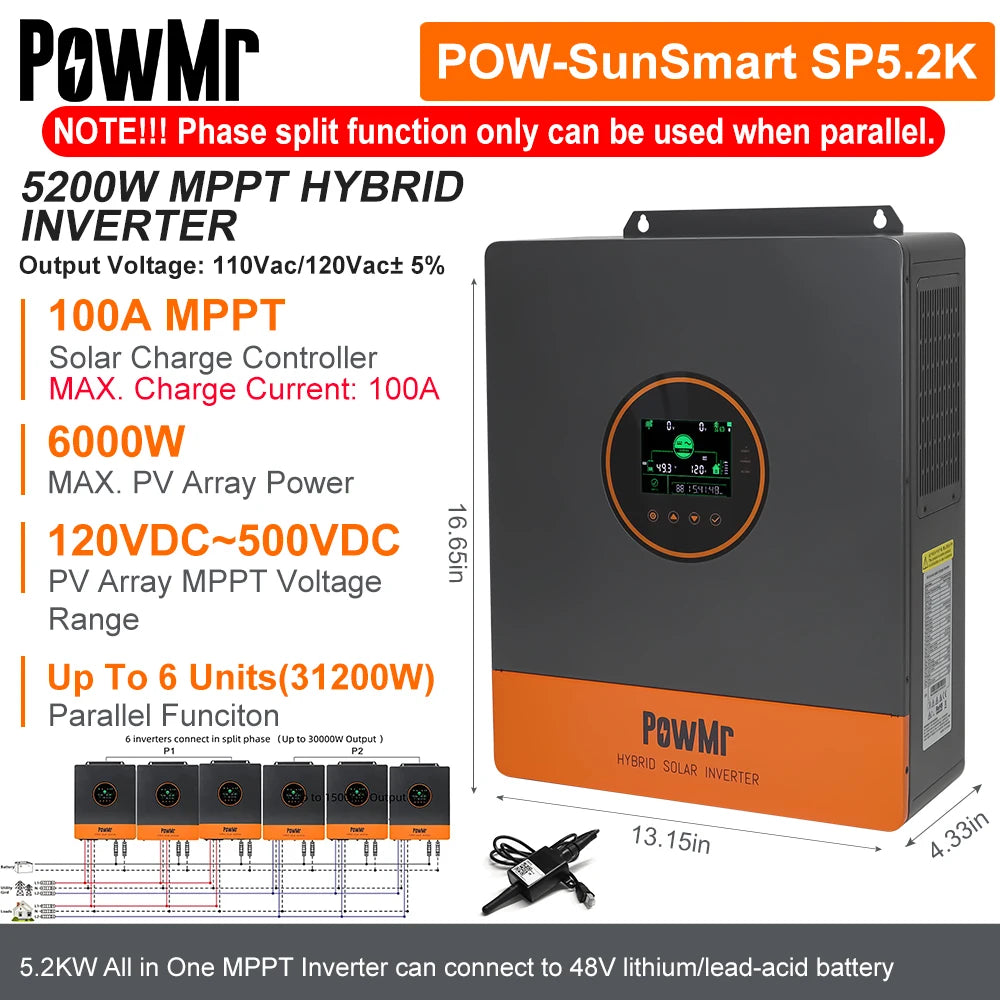

Model Number: POW-SunSmart SP5.2K

Note: Phase split function can only be used when parallel

Origin: Mainland China

Output Current: MPPT 100A

Output Frequency: 5200W

Output Type: Multiple

PV operating voltage range: 120-500Vdc

Parallel operation: Up to 6 Units

Peak power: 10400VA

Rated input voltage: 110Vac 120Vac

Rated output power: 5200W/5200VA

Size: 446.9*350*133 mm

Type 1: DC/AC Inverters

Type 2: Pure sine wave inverter

Weight: 14KG

is_customized: Yes

Reading before ordering!

①About Shipping：

When the item is in stock in US warehouse, the package will be shipped directly from the US warehouse, and the package will arrive in 3-7 days.

②About returns:

Please check the product information and description carefully before placing an order, especially the output voltage and input voltage, and consider carefully before purchasing the right product. We do not accept returns and refund disputes that are not related to product quality!

When you have questions before order, please leave messages and I will reply you within 24 hours.

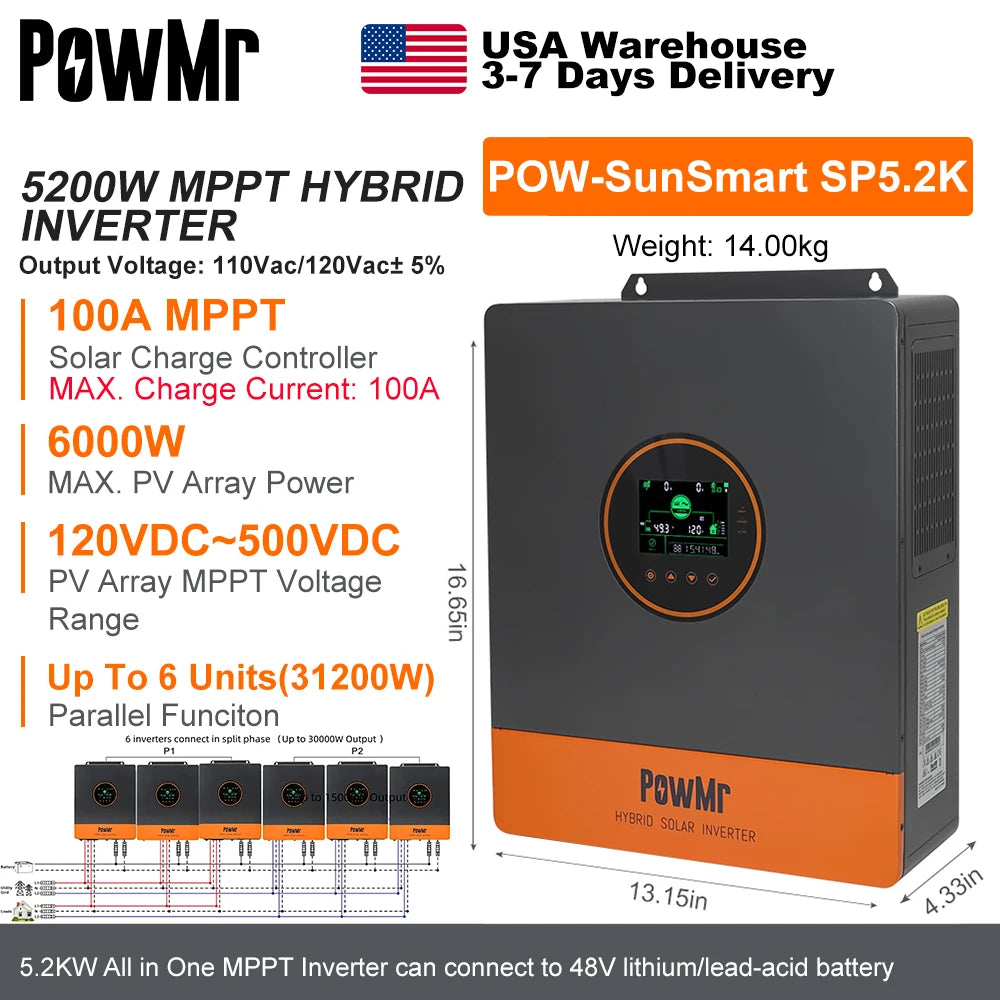

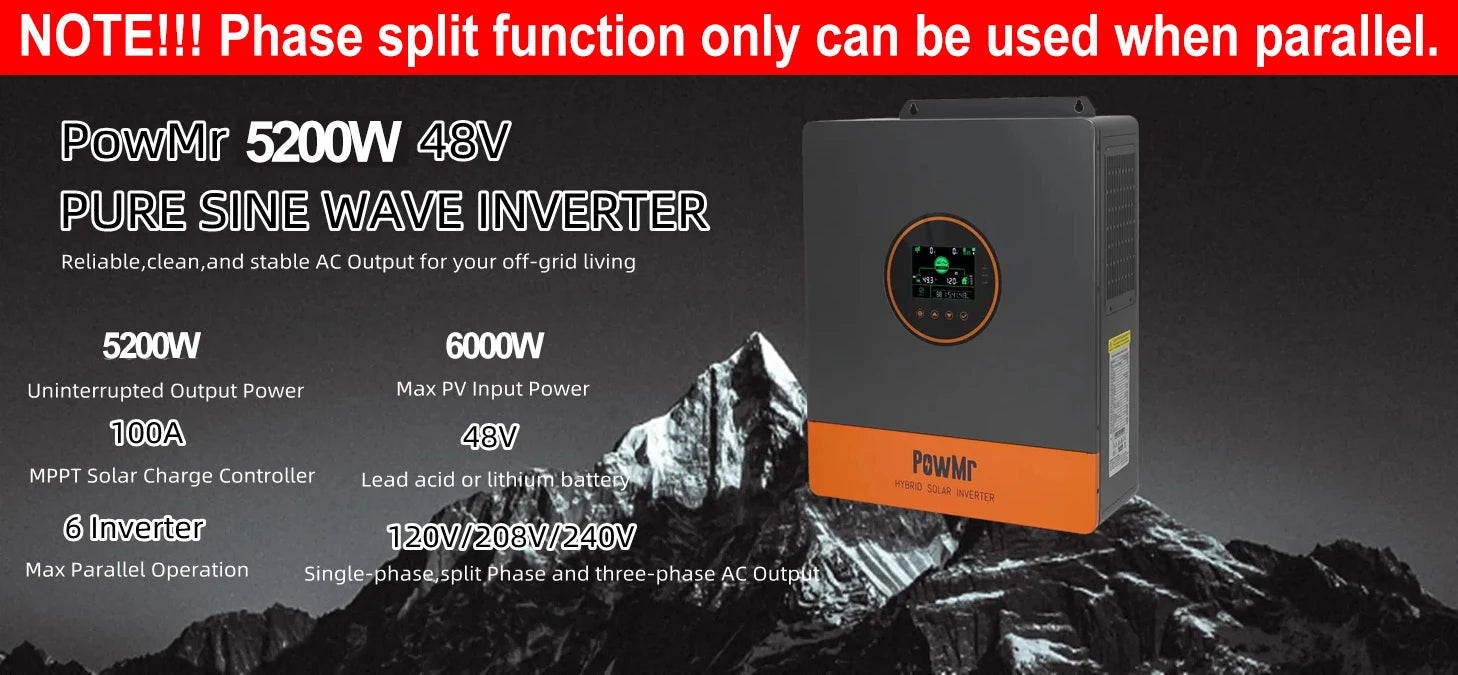

PowMr USA 5.2KW 48V 110Vac Hybrid Solar Inverter Can Split Phase 220Vac Output When Parallel Pure Sine Wave MPPT 100A PV 500Vdc

Introduction:

POW-SunSmart series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output.

Function:

⚫ Single phase/split phase

⚫ 120/220V AC output

⚫ Off-grid & on-grid

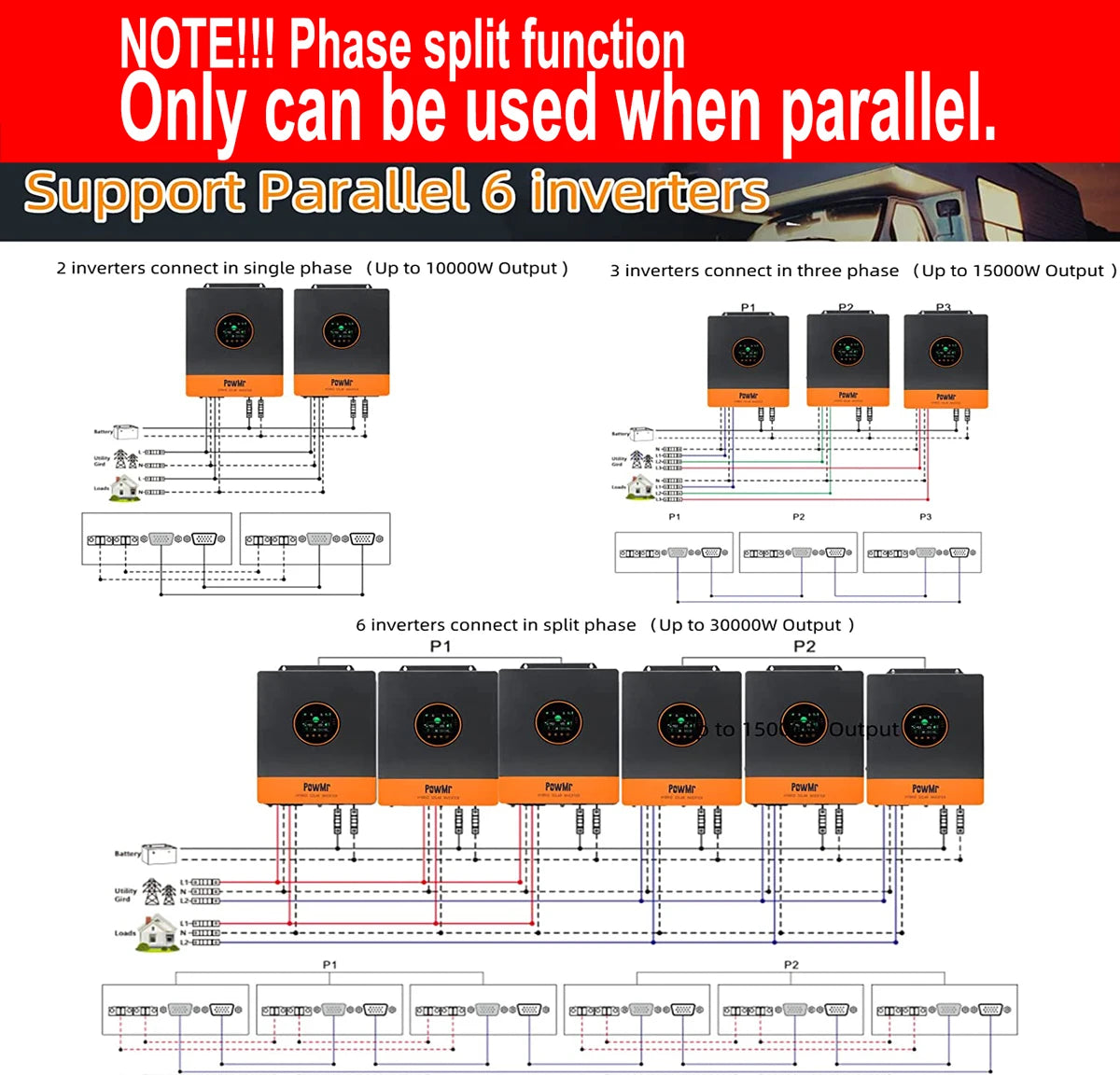

⚫ Parallel operation

If you need split phase function, you need to buy 2 units.

Because when working in parallel, this inverter can use the phase splitting function to output 220VAC~240VAC.

But when working separately, this inverter cannot use the split-phase function and can only output 110VAC in a single phase.

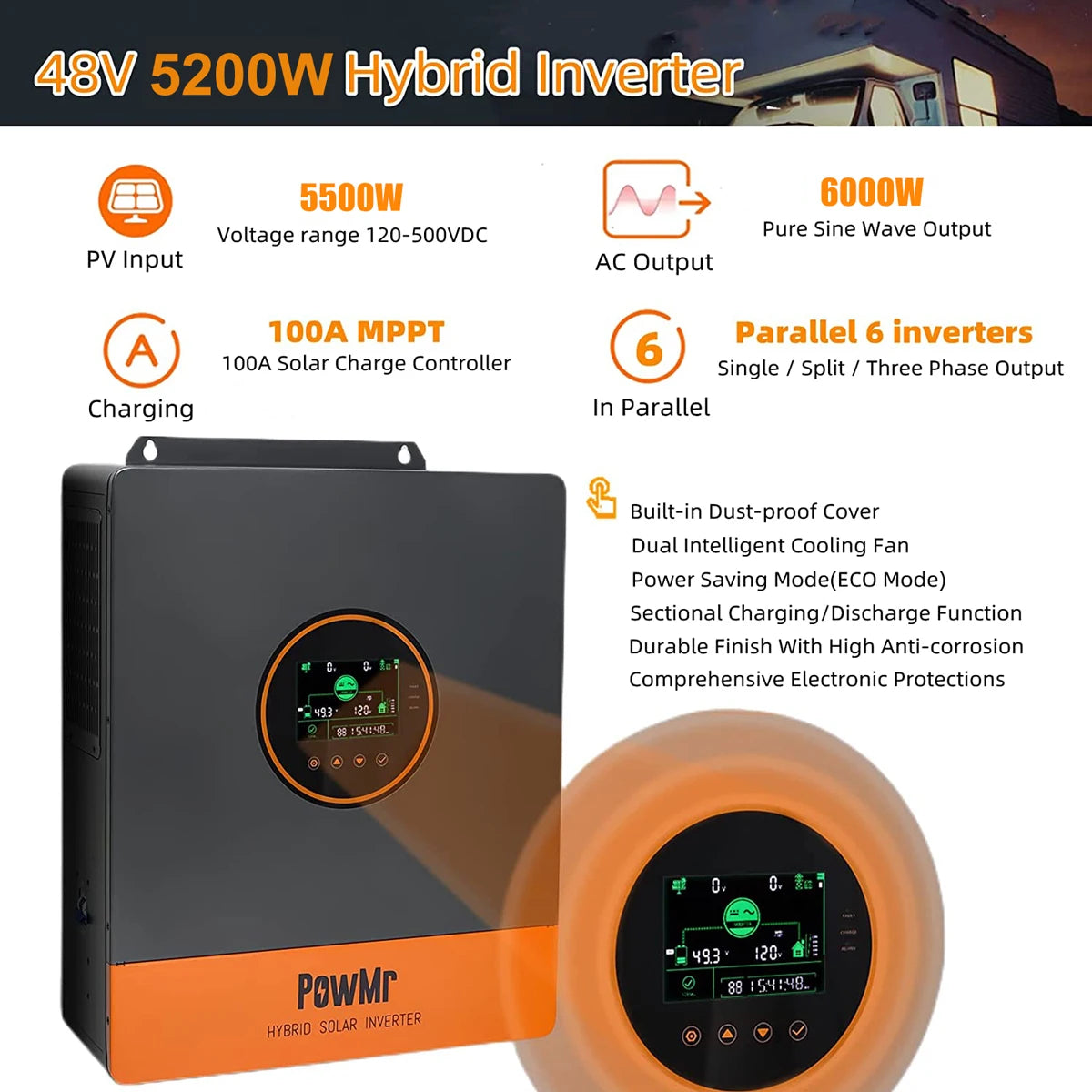

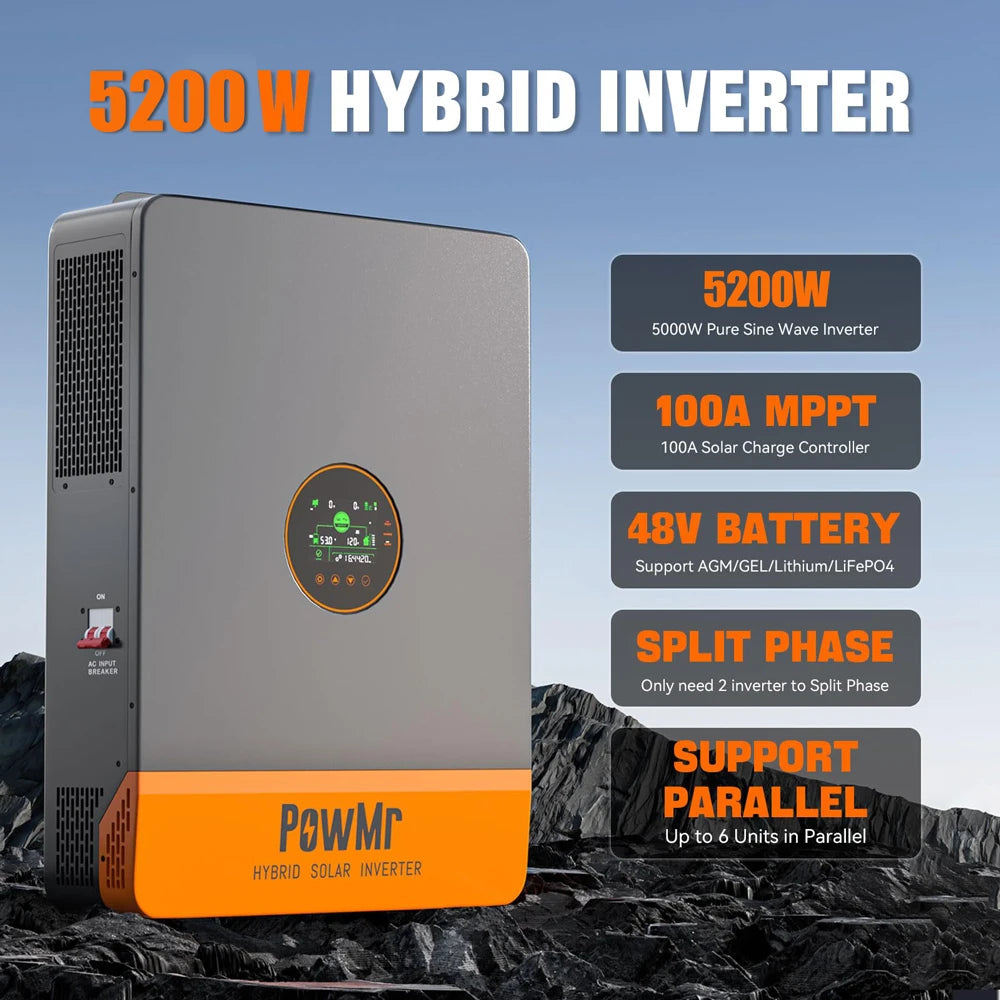

Features:

1.Off-grid & on-grid pure sine wave inverter.

2. Maximum number of parallel connections is 6pc.

3. Higher output power up to 5200W.

4. 110Vac±5% output.

5. Supports single-phase/split-phase/three-phase devices.

6. Fast switching time of 10ms.

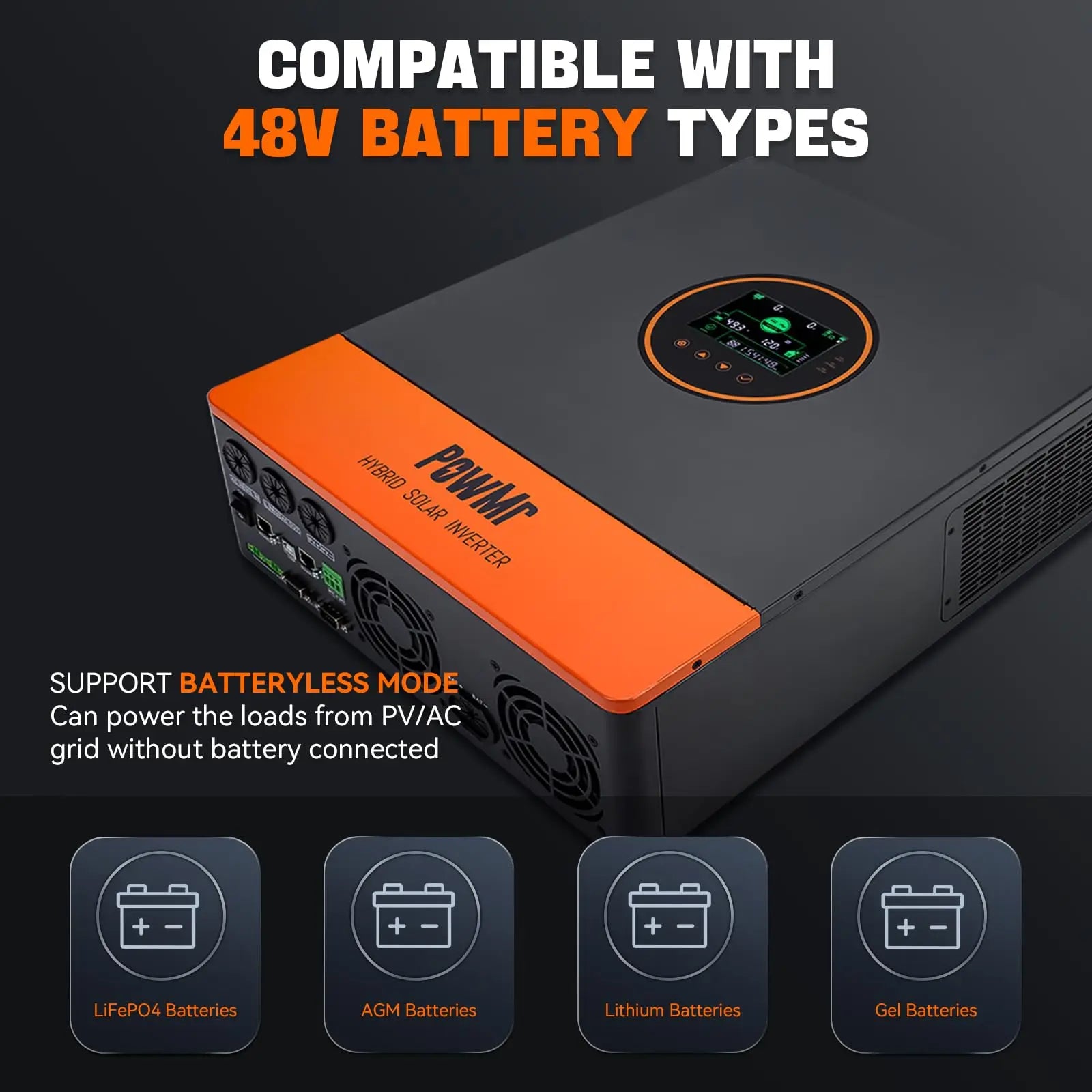

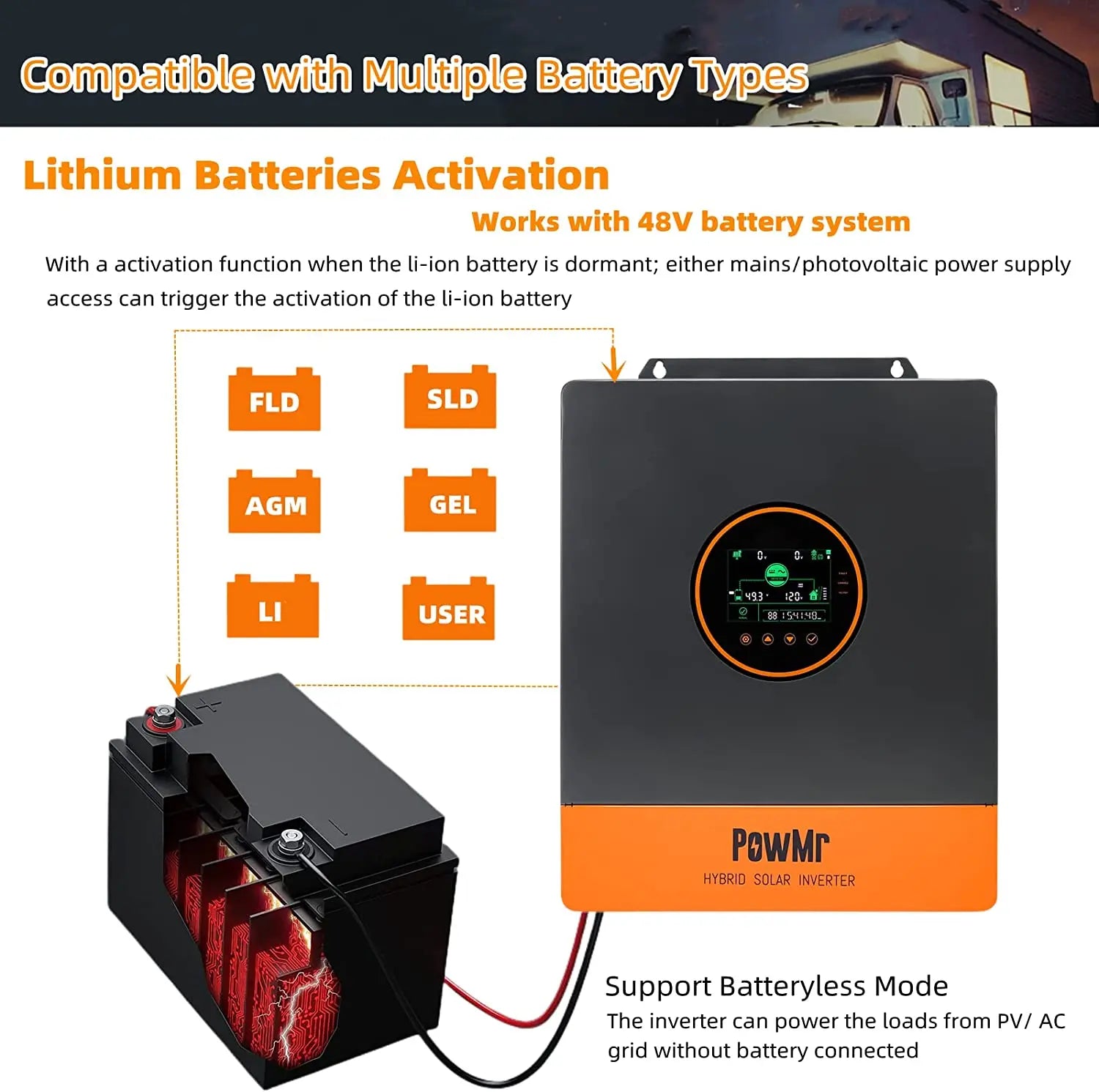

7. Compatible with 48V lithium-ion and lead-acid battery, support user-define.

8. Max. PV charging current up to 100A.

9. Max. AC charging current up to 40A.

10. Max. hybrid charging current up to 100A.

11. 90~140Vac AC input voltage range.

12. 120~500Vdc wide voltage range for PV access.

13. Higher input DC current up to 22A in a single circuit.

14. Energy saving mode function to reduce no-load energy losses.

15. Configure multiple communication interfaces (RS485/USB/Dry contact).

16. Durable finish with high anti-corrosion.

17. Effective forced air cooling to ensure that the equipment runs stably.

Specification:

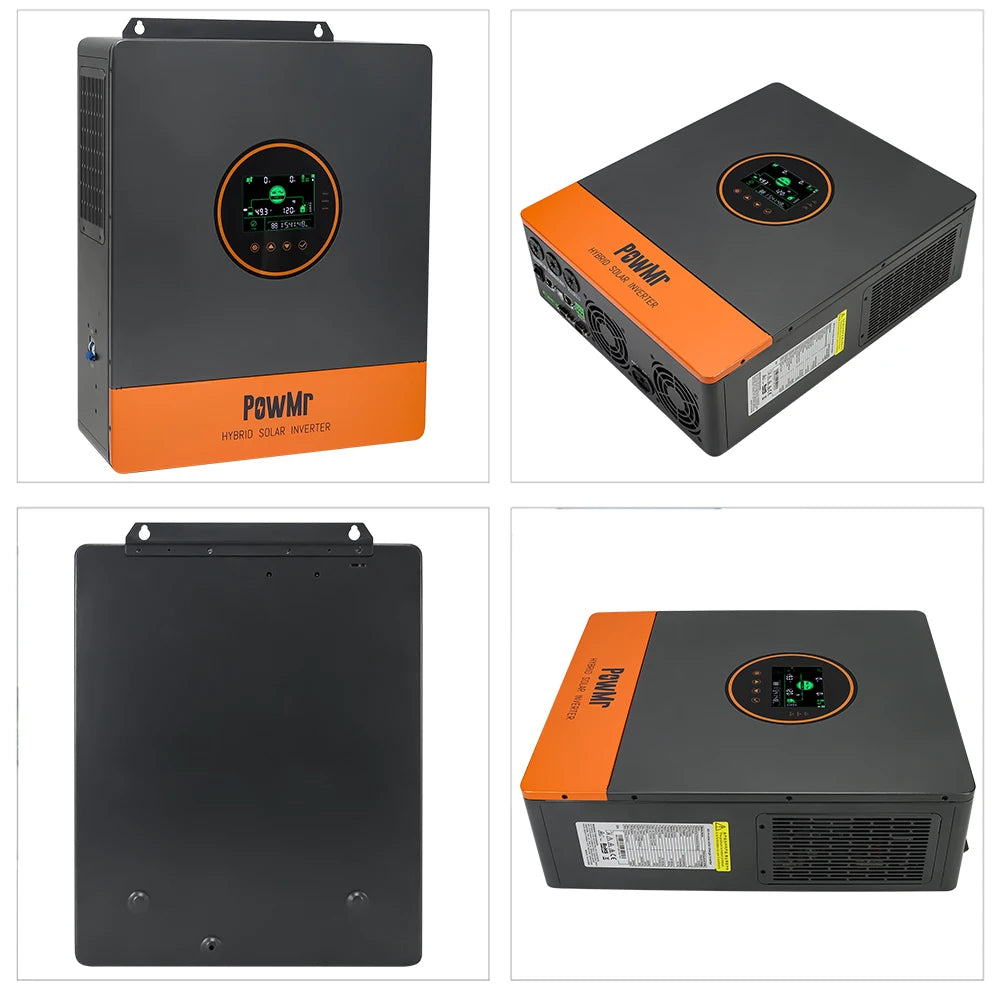

Product Overview:
