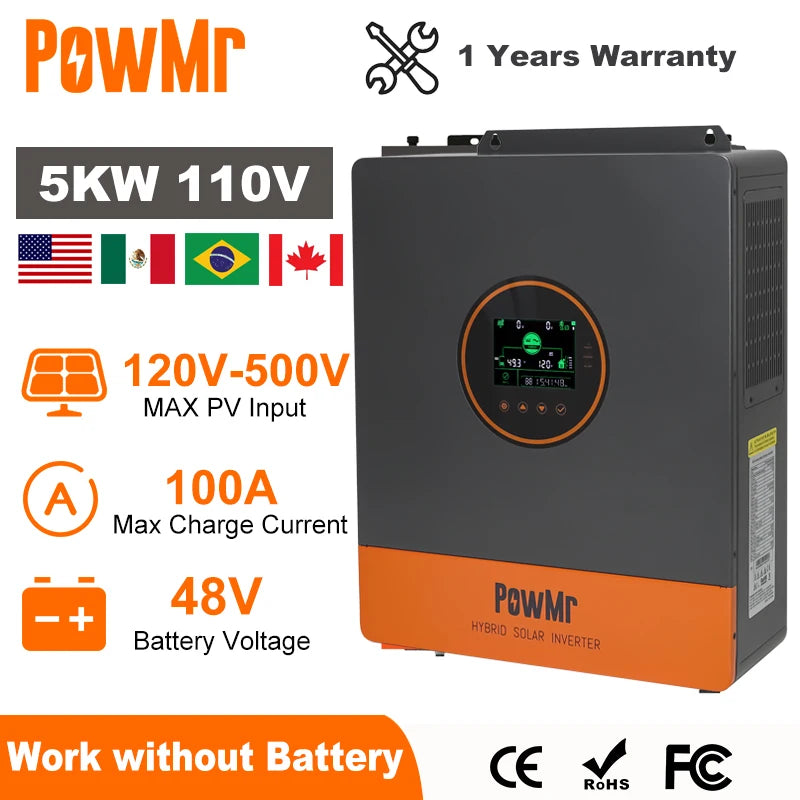

PowMr 5KW Split Phase Inverter 48V 110V Off Grid Pure Sine Hybrid Solar Inverter with MPPT 100A Battery Charger Parallel Up to 6
SPECIFICATIONS
Battery Type: 48V Lead Acid or Lithium Battery
Brand Name: PowMr
Certification: CE
Communication Interface 1: USB/RS485(WiFi/GPRS)
Communication Interface 2: Dry Contact
High-concerned chemical: None
Is Smart Device: Yes
Maximum PV Input Power: 5500W
Model Number: POW-SunSmart SP5K
Origin: Mainland China
Output Current: MPPT 100A
Output Frequency: 50Hz/60Hz
Output Power: 1 - 200 KW
Output Type: SINGLE
Output Voltage Waveform: Pure Sine Wave
Parallel Function: Up to 6 Units
Rated Input Voltage: 110/120VAC
Size: 450*353*133 cm
Weight: 15KG
is_customized: Yes
PowMr Split Phase Inverter 110V 48V 5KW Off Grid Pure Sine Wave Hybrid Solar Inverter with MPPT 100A Battery Charger
Models |
POW-SunSmart SP5K
|
AC Mode | |
Rated input voltage |
110/120Vac |
Frequency |
50Hz/ 60Hz (Auto detection) |
Overload/short circuit protection |
Circuit breaker |
Efficiency |
>95% |
AC reverse protection |
Available |
Maximum bypass overload current
|
63A |
Inverter Mode | |
Output voltage waveform |
Pure sine wave |
Rated output power |
5000VA |
Rated output power |
5000W |
Power factor |
1 |
Rated output voltage |
120Vac Rated output voltage (100/105/110Vac Settable) |
Maximum Efficiency |
>92% |
Peak power |
10000VA |
Loaded motor capability |
4HP |
Rated battery input voltage |
48V (Minimum starting voltage 44V) |
Battery voltage range |
Undervoltage alarm/ shutdown voltage/ overvoltage alarm/
overvoltage recovery... settable on LCD screen
|
Power saving mode self-consumption |
Load ≤ 50W |
AC Output (Grid) | |
Rated Output Power |
5000W |
Max. apparent power |
5000VA |
Max. output current |
41.7A |
Rated voltage |
120Vac |
AC Charging | |
Battery type |
Lead acid or lithium battery |
Maximum charge current (can be set) |
0-40A |
Charge voltage range |
40–58Vdc |
Circuit breaker specifications |
63A |
Overcharge protection |
Alarm and turn off charging after 1 minute |
PV Charging | |
Maximum PV open circuit voltage |
500Vdc |
PV operating voltage range |
120-500Vdc |
MPPT voltage range |
120-450Vdc |
Battery voltage range |
40-60Vdc |
Maximum PV input power |
5500W |
Maximum PV input current |
22A |
PV charging current range (can be set) |
100A |
Hybrid charging Max charger current specifications (AC charger + PV charger) | |
Max charger current(can be set) |
100A |
Certified specifications | |
Certification |
CE(IEC62109-1) |
EMC certification level |
EN61000 |
Operating temperature range |
-10°C ~ 55°C |
Storage temperature range |
-25°C ~ 60°C |
Noise |
≤60dB |
Heat dissipation |
Forced air cooling, variable speed of fan |
Communication interface |
USB/RS485(WiFi/GPRS)/Dry contact control |
Dimension (L*W*D) |
446.9mm*350mm*133mm |
Weight |
15kg |

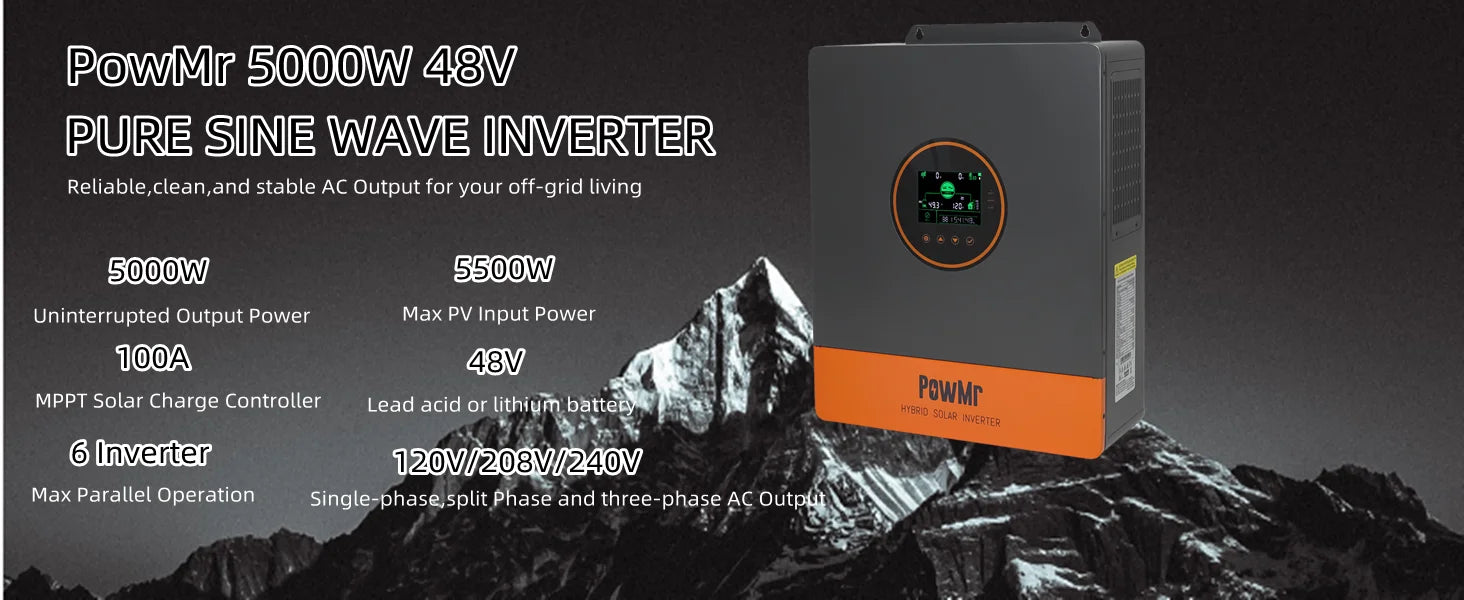

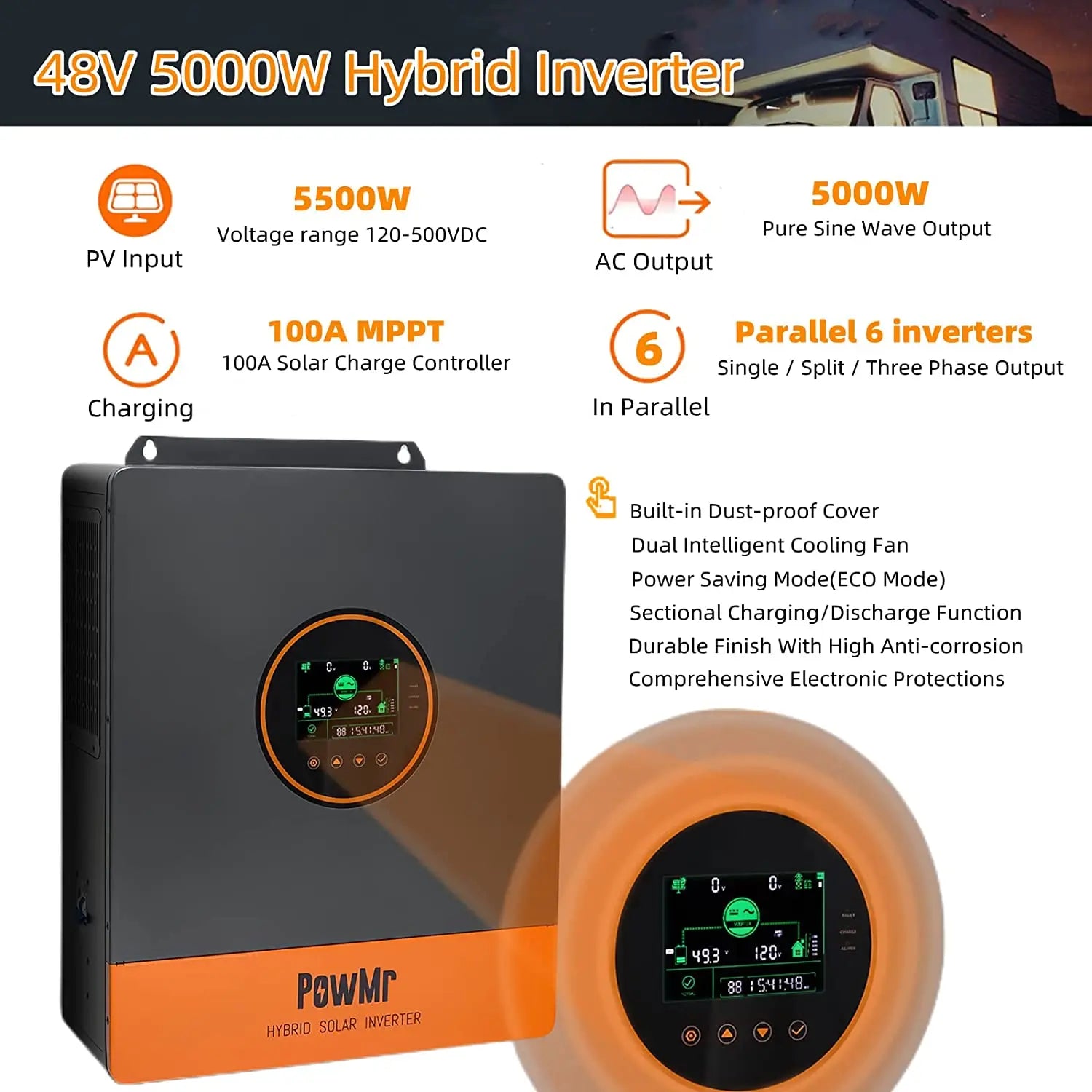

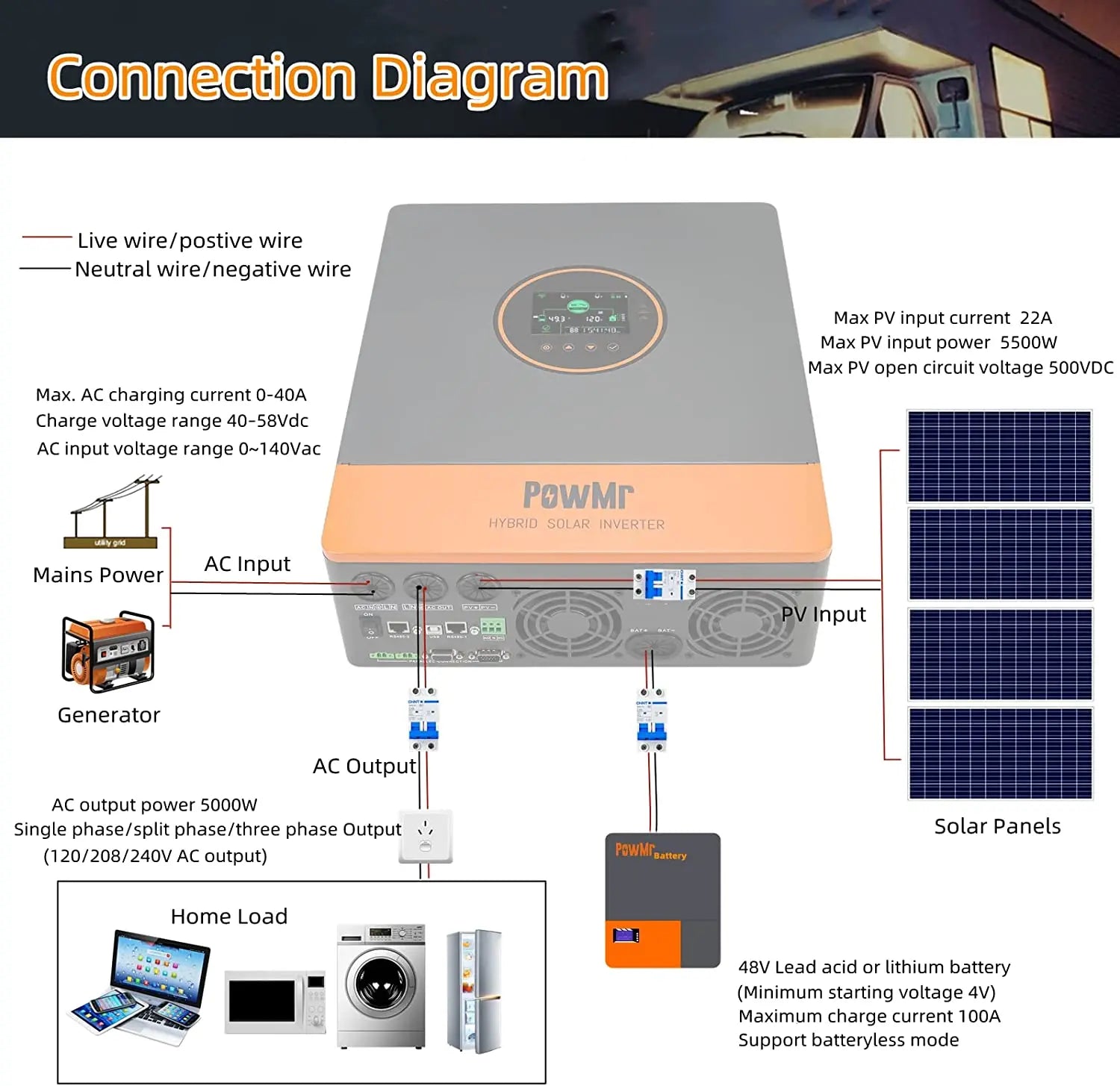

Pure sine wave All-in-One inverter5000W DC 48V hybrid solar inverter, 120/208V/240Vac Output . ( single-phase,split Phase and three-phase ), Built-in 100A MPPT solar charge controller

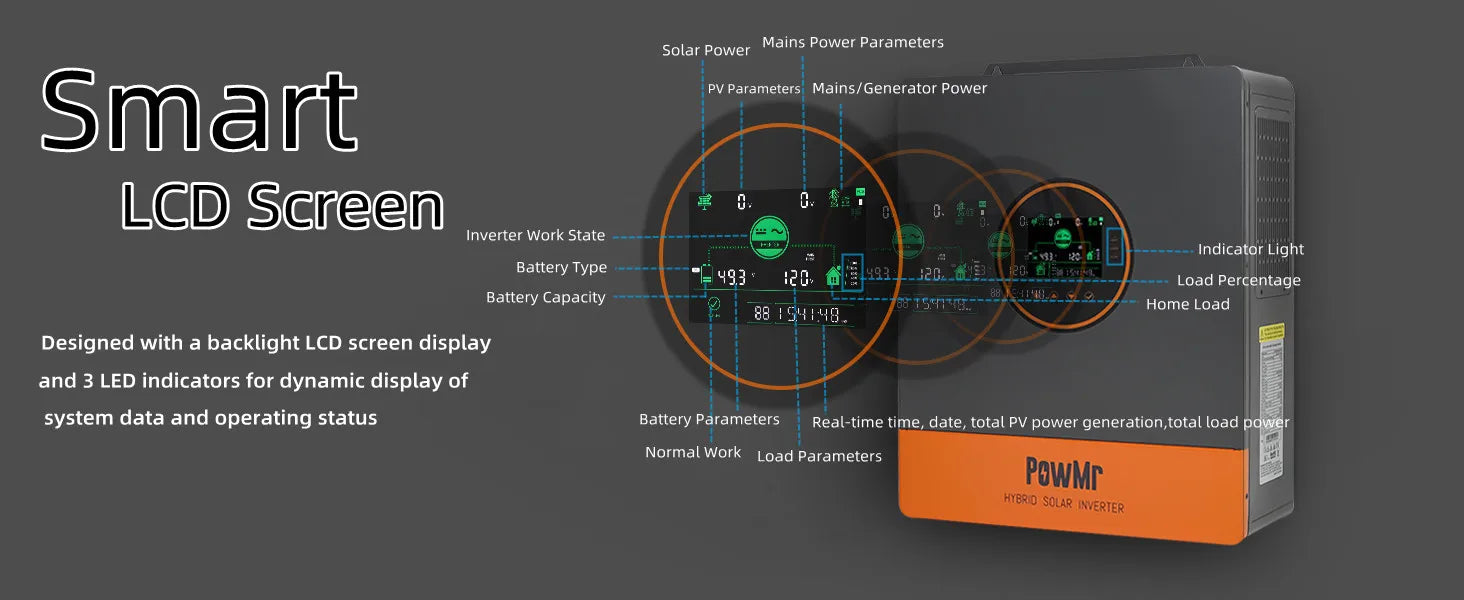

Multiple protection Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status, and complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.

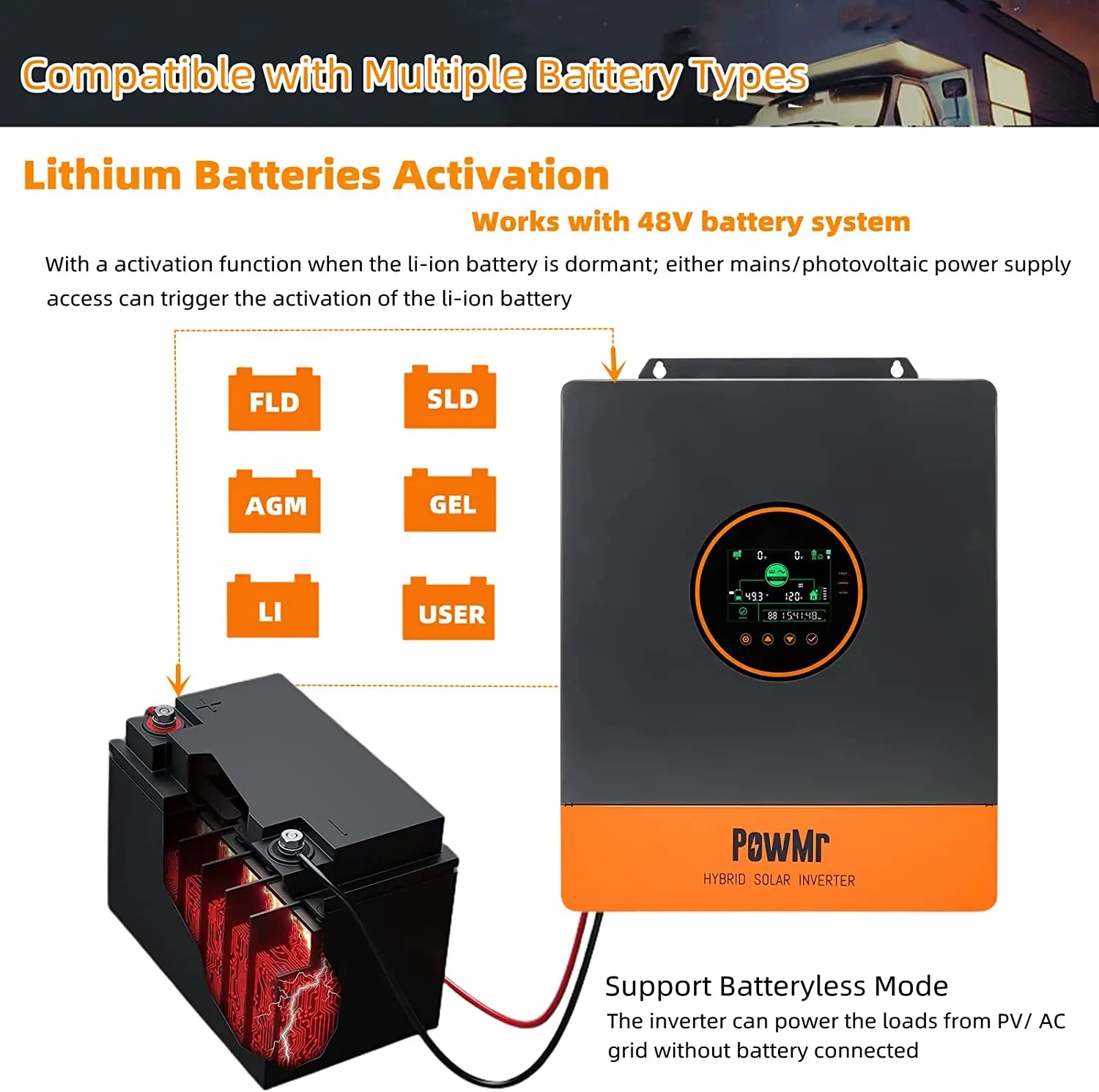

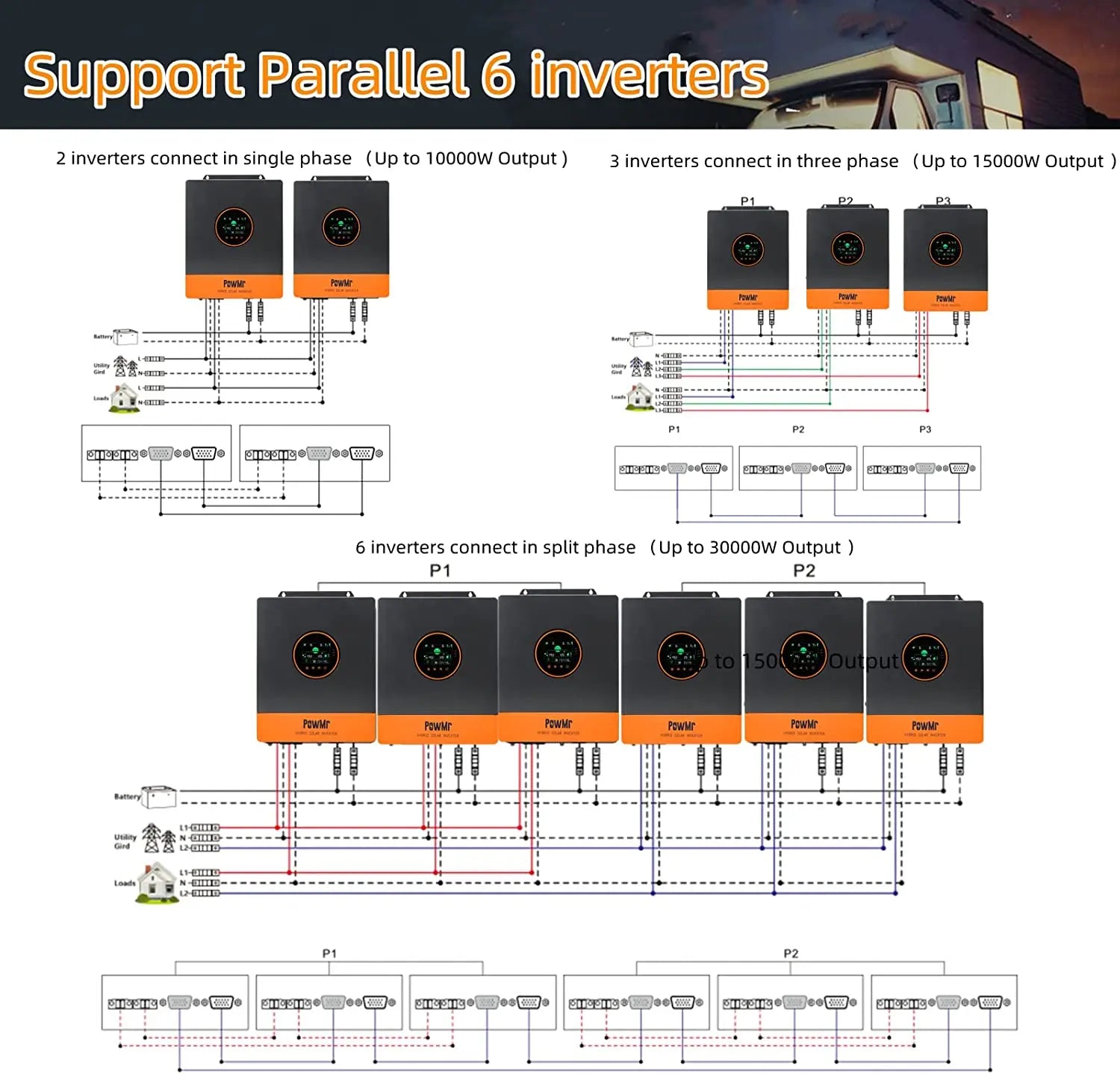

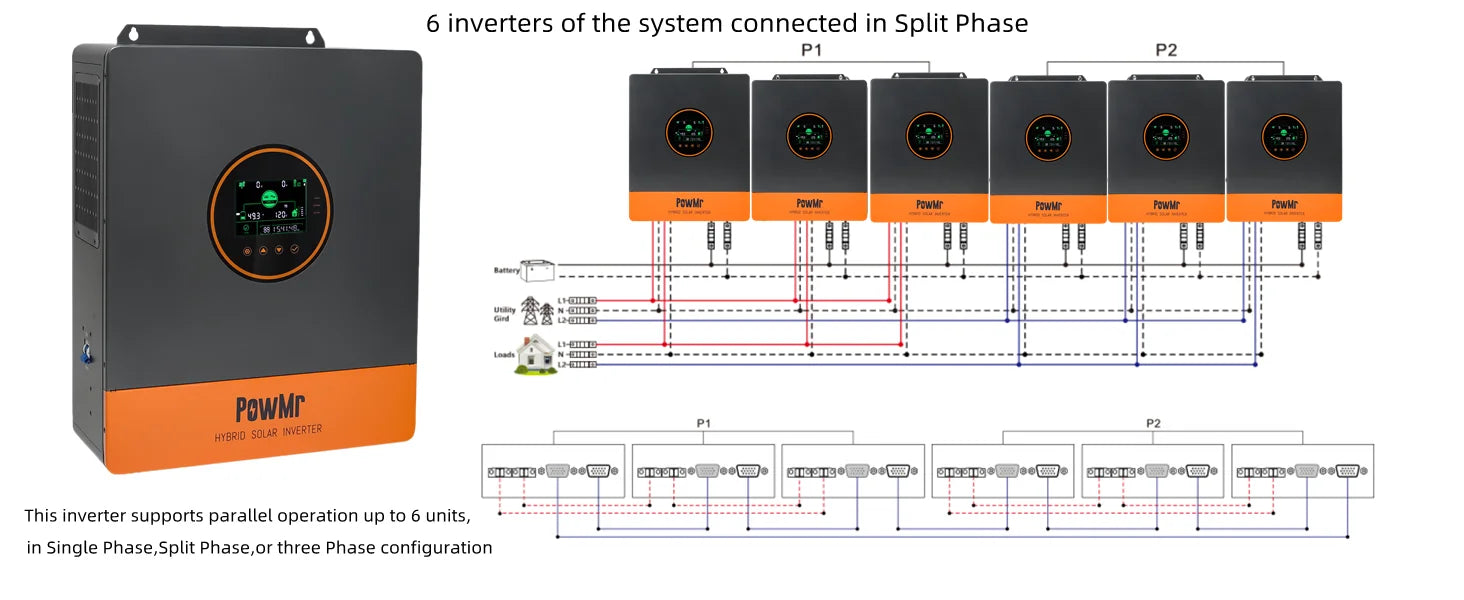

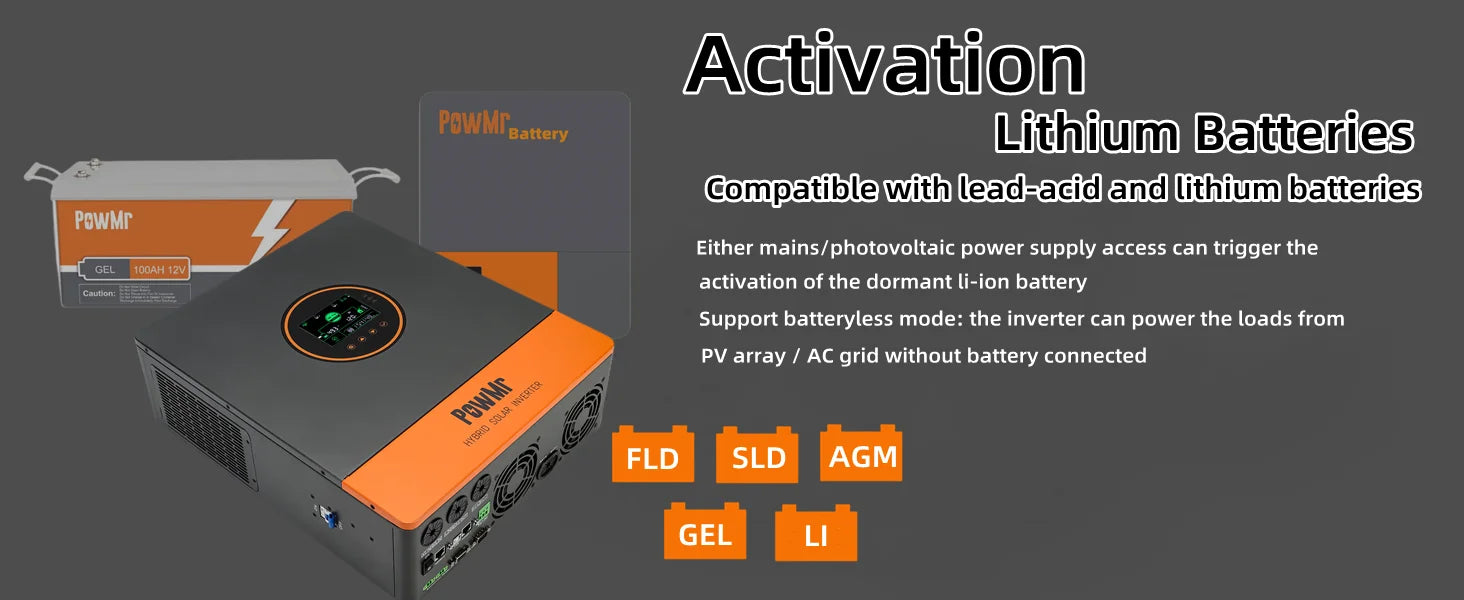

Support 48V Lead acid or lithium battery or batteryless mode, Support Parallel up to 6 inverters.

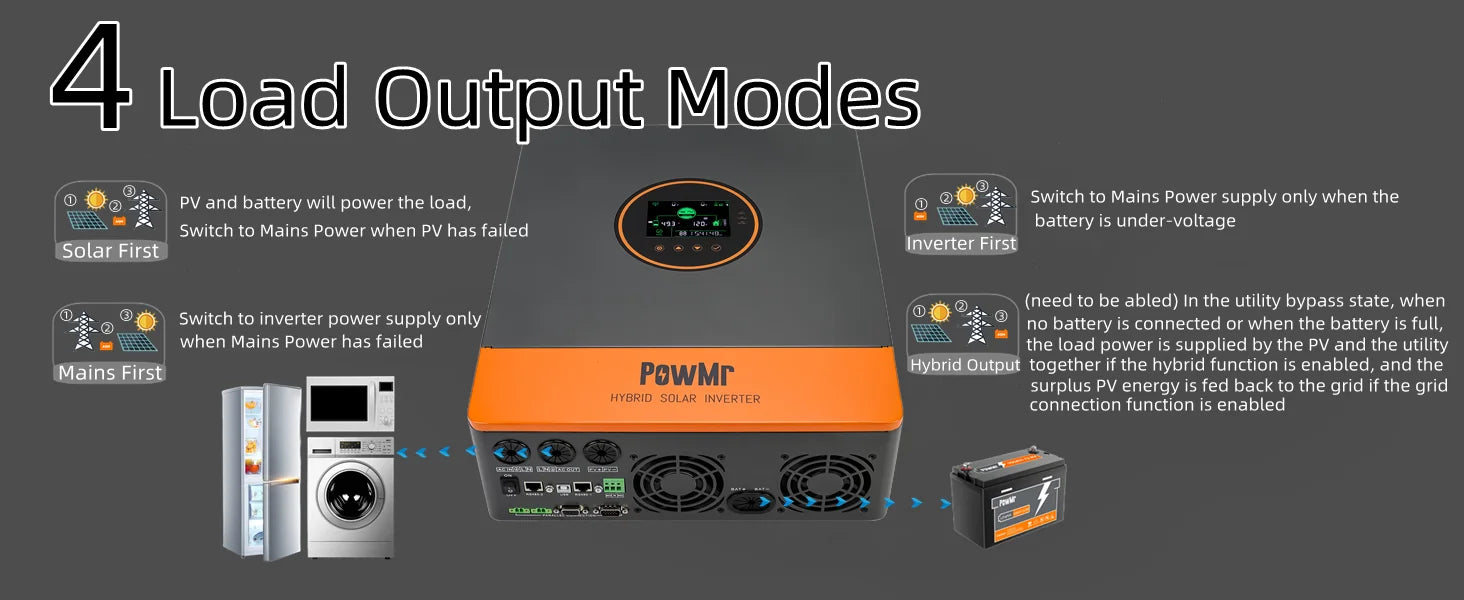

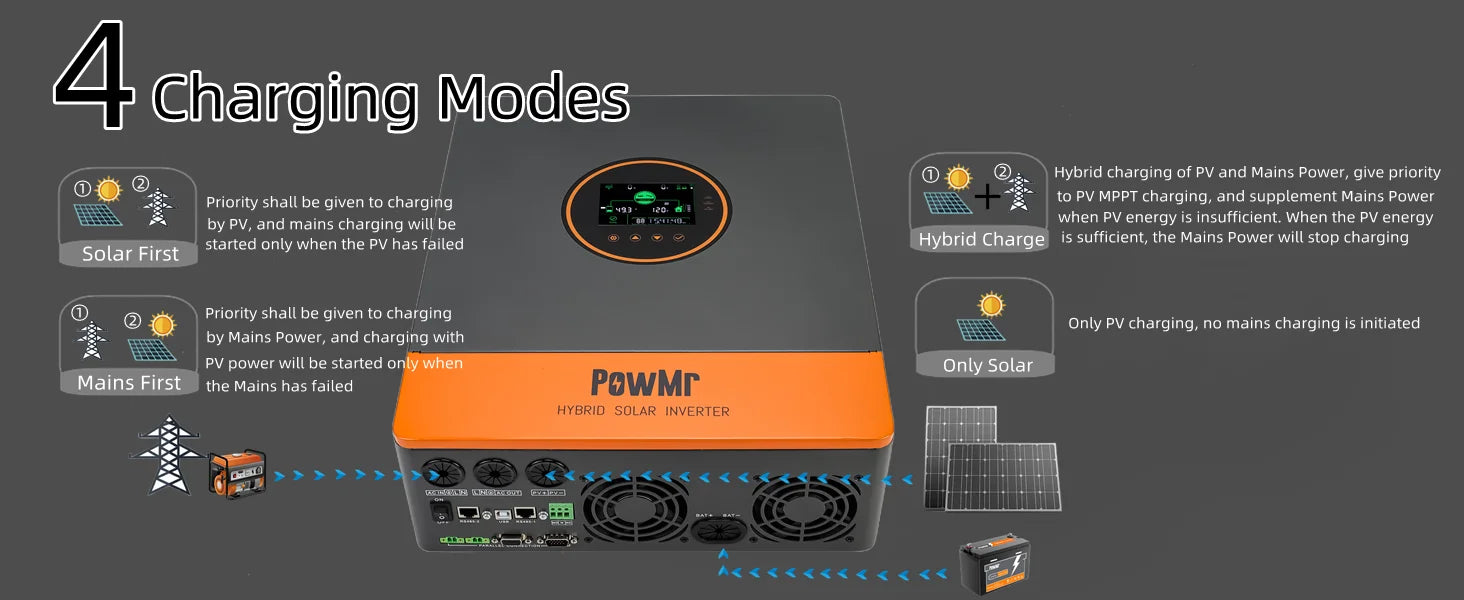

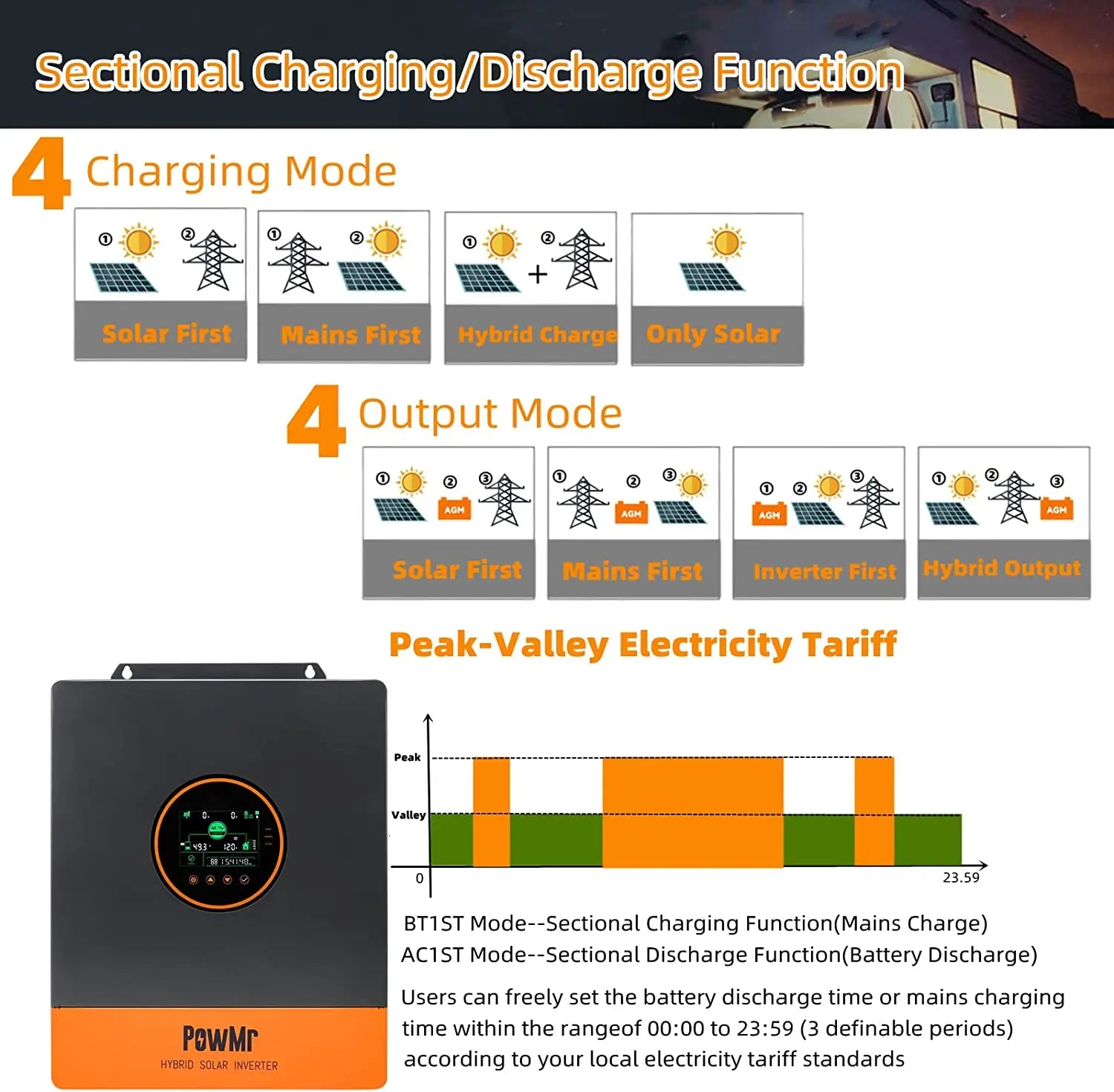

4 charge/ 2 discharge modes Support 4 charging modes:Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; mains bypass and inverter output two output mode, uninterrupted power supply; Anti-backflow grid connection function, support for use without battery, can be set up for on-grid power generation.

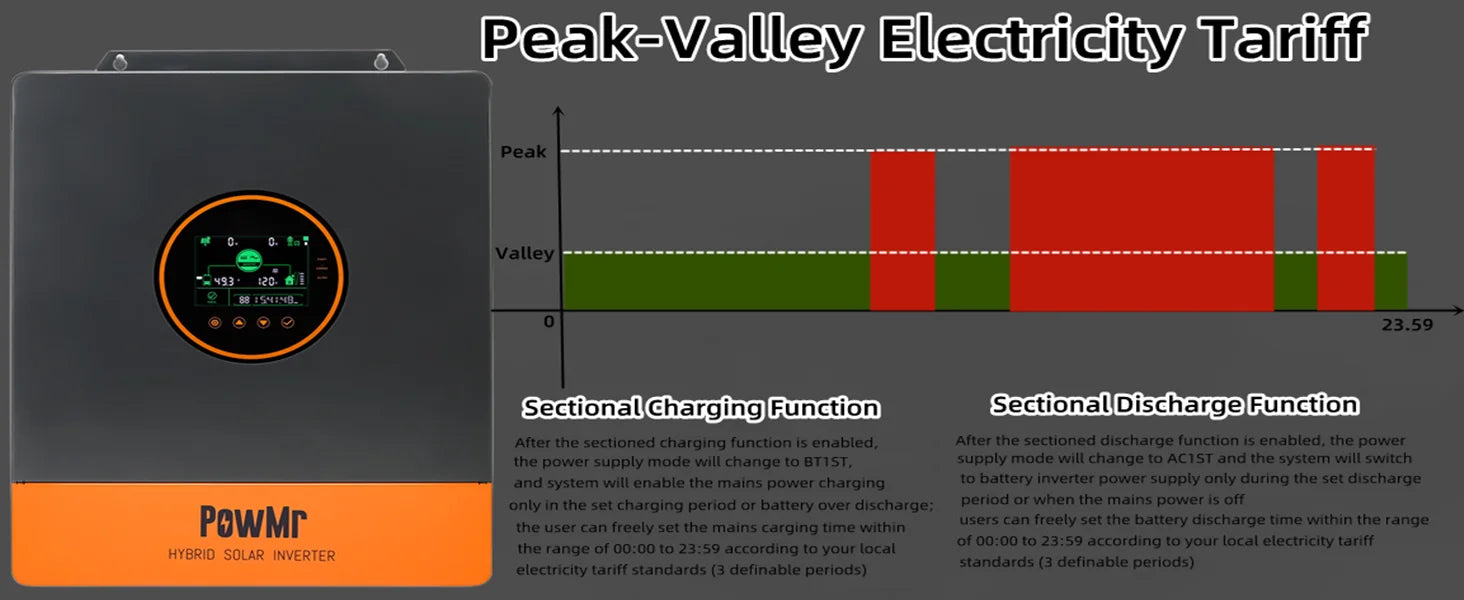

Intelligent power savingPower saving mode available to reduce no-load loss, With time slot control, you can set the priority of using the mains and battery according to the time slot in conjunction with the local peak and valley tariffs.
