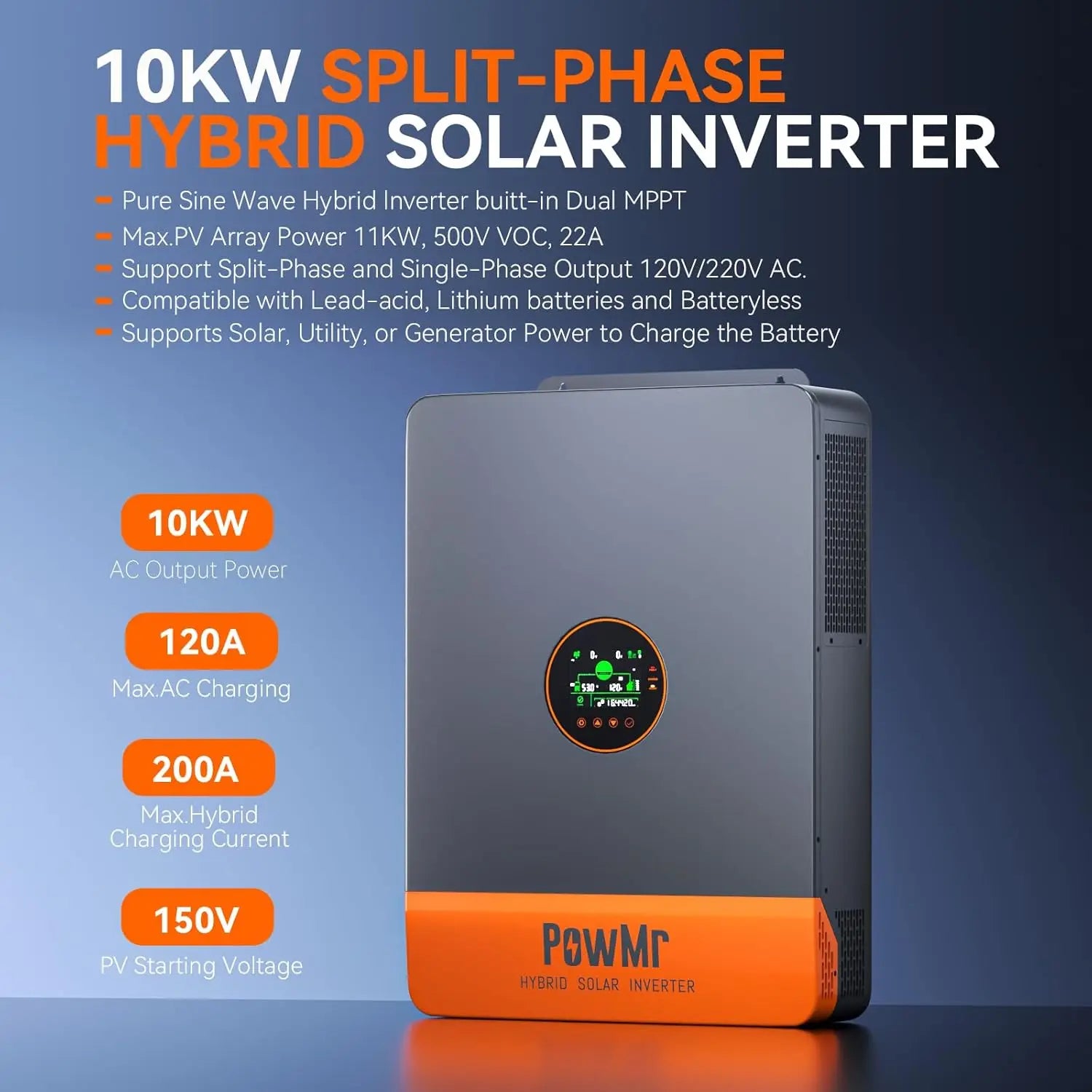

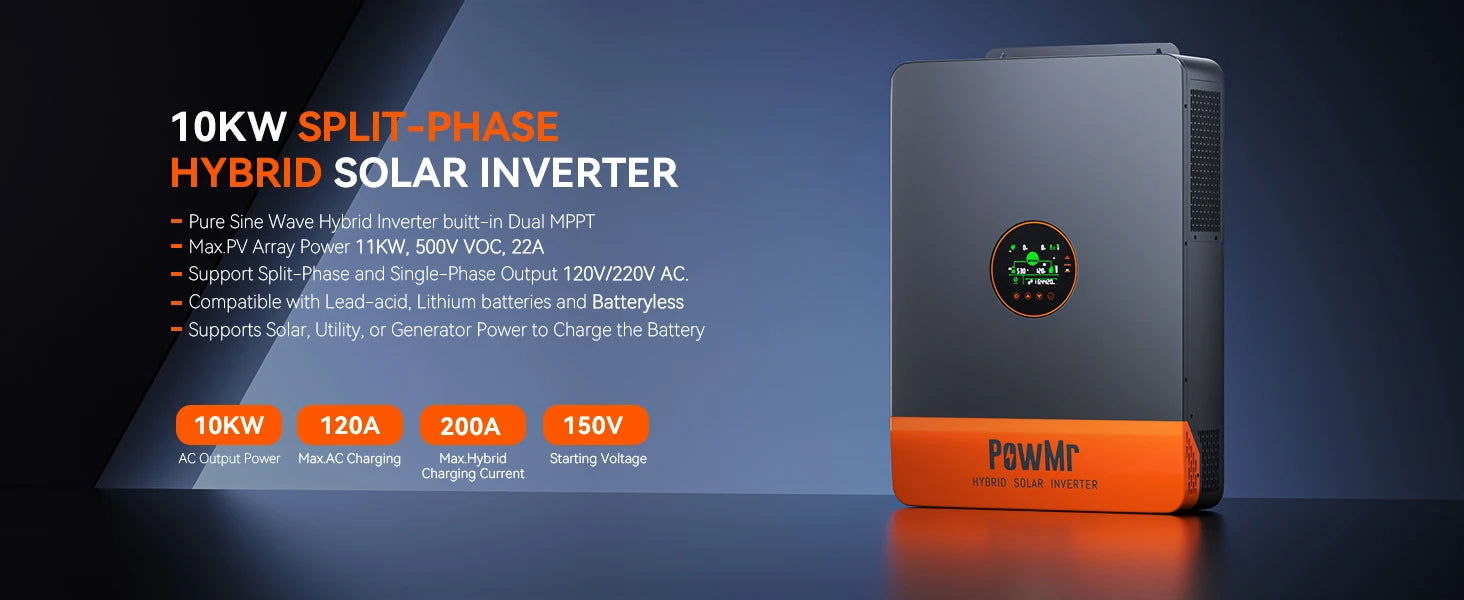

PowMr 10KW Split Phase Inverter 48V 110V 220V Hybrid Solar Inverter Dual MPPT Dual Output Off Grid with MPPT 200A Solar Charger
SPECIFICATIONS
Battery Type: Lithium-ion, lead-acid battery
Brand Name: PowMr
Certification: CE
Communication Interfaces: RS485/CAN/USB/Dry contact
High-concerned chemical: None
Is Smart Device: Yes
Max AC Charging Current: MPPT 120A
Max PV Charging Current: MPPT 200A
Max PV array power: 11,000W
Max Peak Power: 20KW
Max Voltage of Open Circuit: 500Vdc
Model Number: POW-SunSmart 10K
Origin: Mainland China
Output Current: MPPT 200A
Output Frequency: 50Hz/60Hz
Output Power: 1 - 200 KW
Output Type: DUAL
Rated Output Voltage: 120 or 240Vac
Size: 620*435*130mm
Type: Off Grid Inverter
Warranty: 1 Year
Weight: 26KG
is_customized: Yes
PowMr 10KW Split Phase Inverter 48V 110V 220V Hybrid Solar Inverter Dual MPPT Dual Output Off Grid with MPPT 200A Solar Charger
|
MODEL |
POW-SunSmart8K |
POW-SunSmart10K |
CANBESET |
INVERTER OUTPUT | |||
Rated Output Power |
8,000W |
10,000W |
|
Max. Peak Power |
16,000W |
20,000W |
|

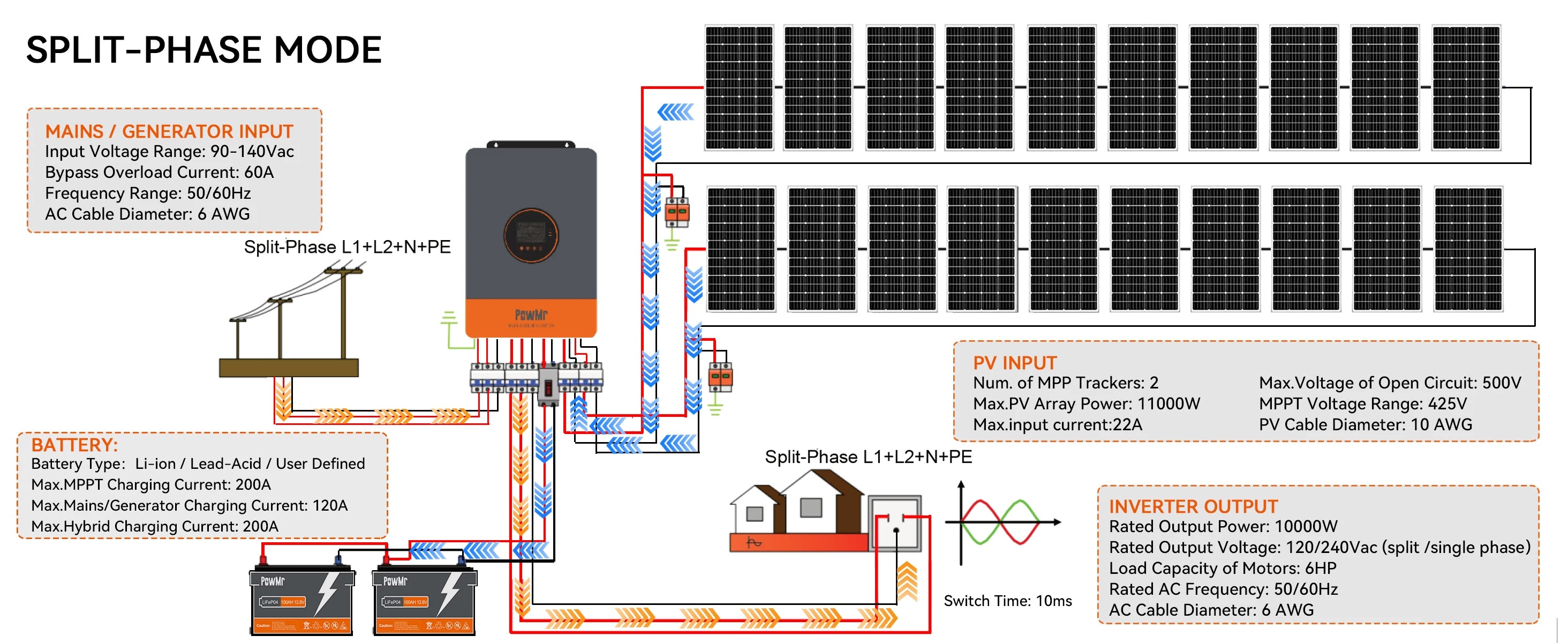

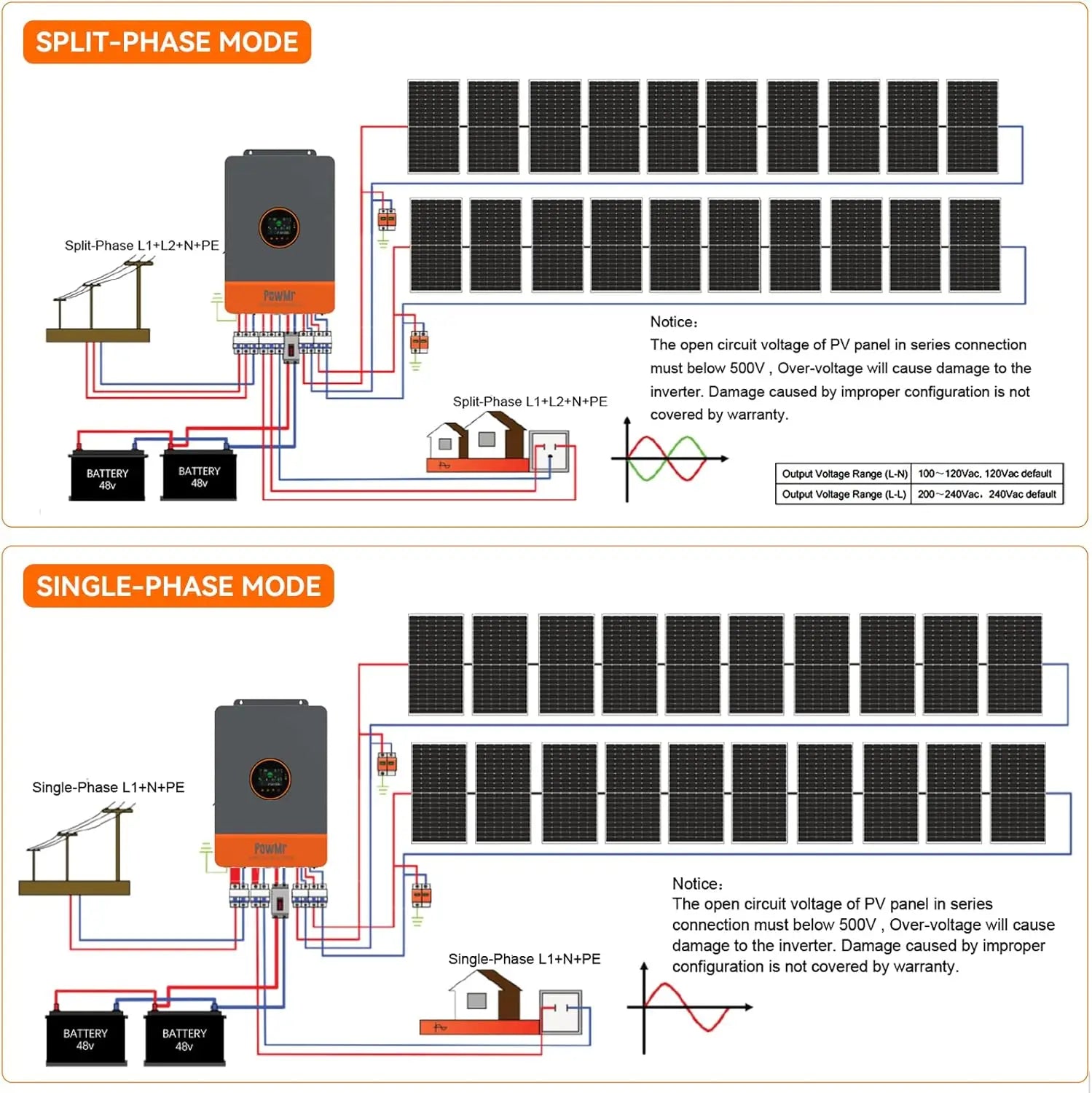

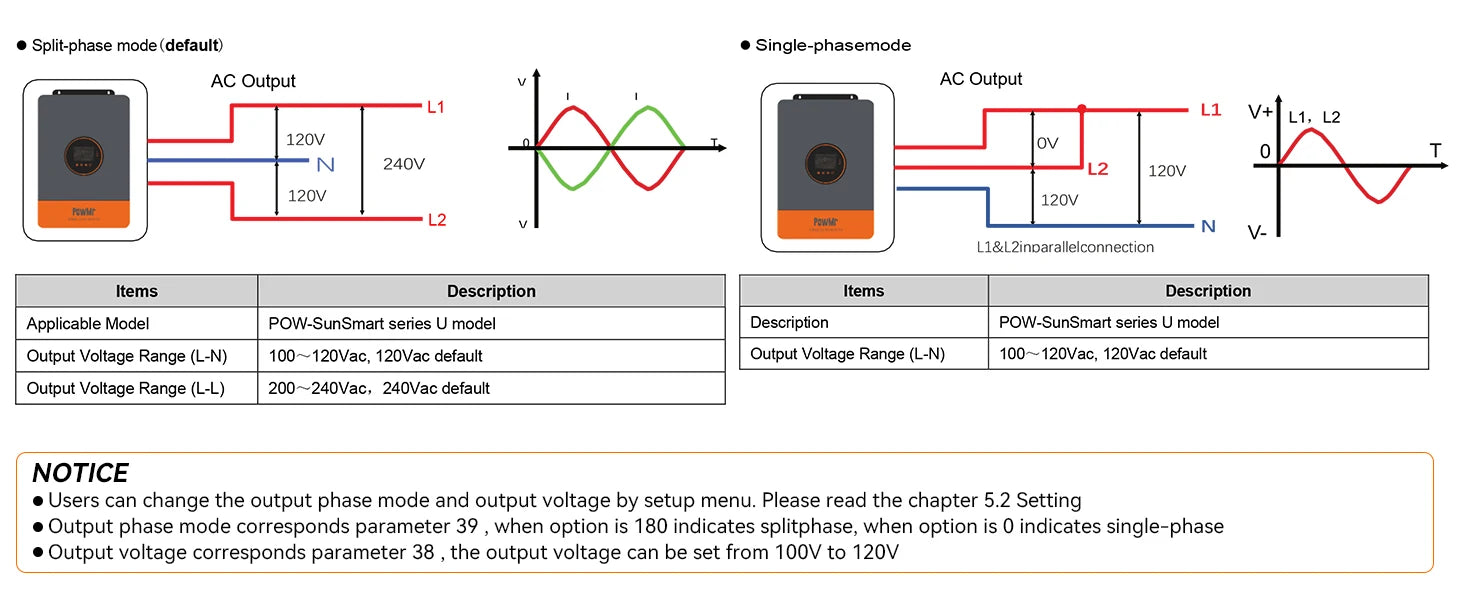

Rated Output Voltage |
120/240Vac（split phase/single phase） |
Y |
|
Load Capacity ofMotors |
5HP |
6HP |
|
Rated AC Frequency |
50/60Hz |
Y |
|
Wave form |
Pure Sine Wave |
||
Switch Time |
10ms（typical） |
||
Parallel capacity |
/ |
||
|
Overload |
After triggering the overload protection the inverter willresume output after 3 minutes, 5 consecutiveoverloads will switch off the output until the inverter isrestarted. (102%<load<110%) ±10%: error and output shutdownafter5min; (110% < load < 125%) ±10%: error and output shutdown after 10s. Load>125%±10%:errorreportedand output switchedoffafter5s. |
||

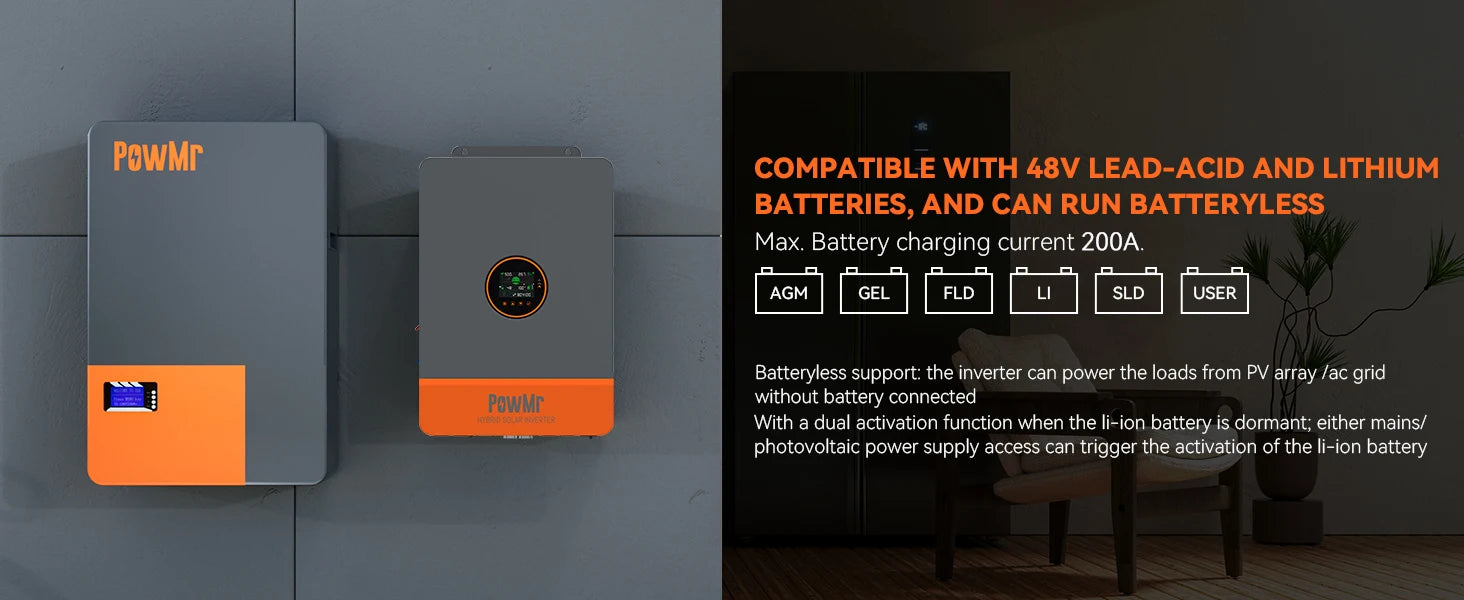

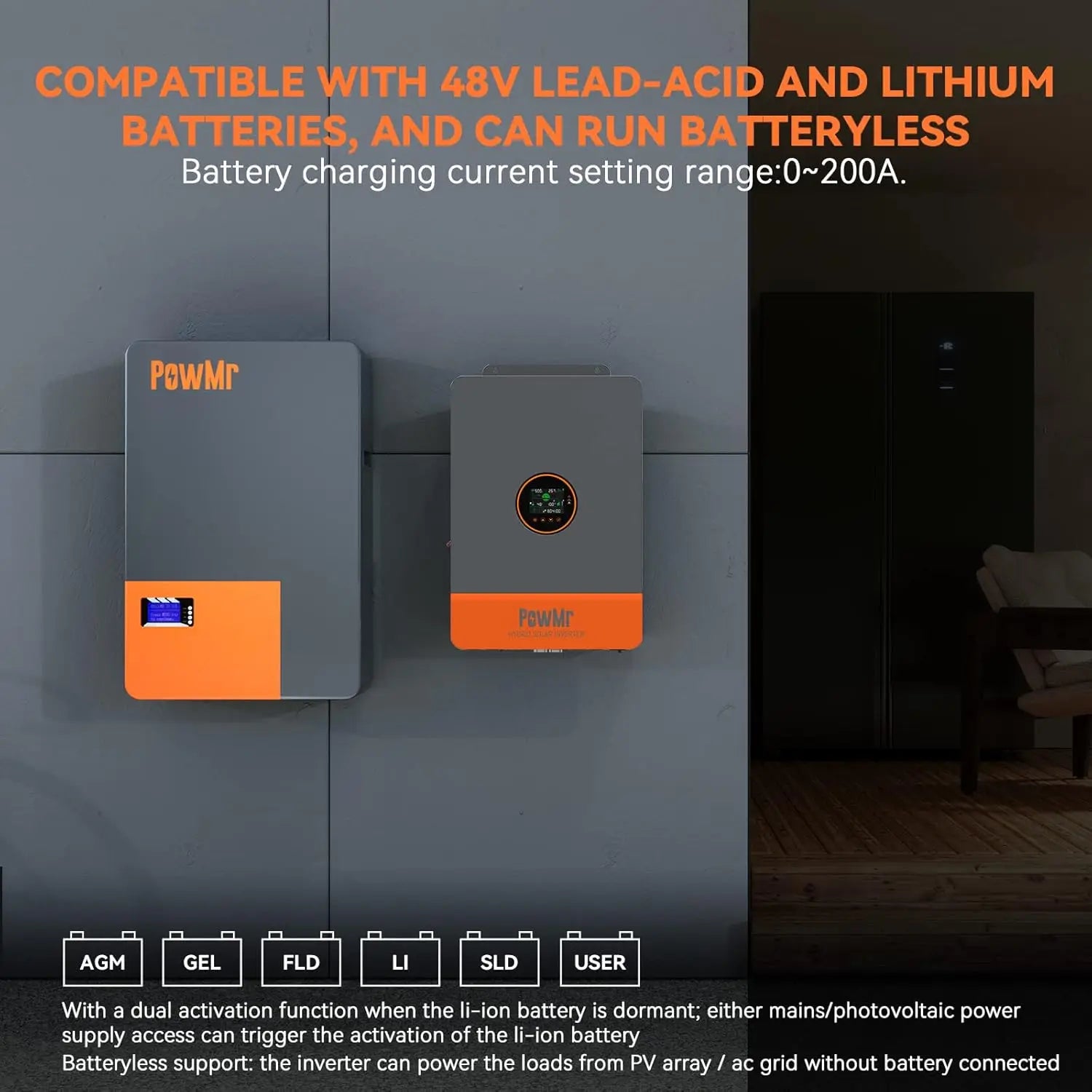

BATTERY | |||
Battery Type |
Li-ion/ Lead-Acid/User Defined |
Y |
|
Rated Battery Voltage |
48Vdc |
||
Voltage Range |
40-60Vdc |
Y |
|
Max. MPPT Charging Current |
200A |
Y |
|
|
Max. Mains/Generator Charging Current |
100A |
120A |
Y |
Max. Hybrid Charging Current |
180A |
200A |
Y |
PV INPUT | ||
Num. of MPPTrackers |
2 |
|
Max. PV array power |
11,000W |
|
Max. input current |
22/22A |
|
Max. Voltage of Open Circuit |
500Vdc |
|
MPPT Voltage Range |
125-425Vdc |
|

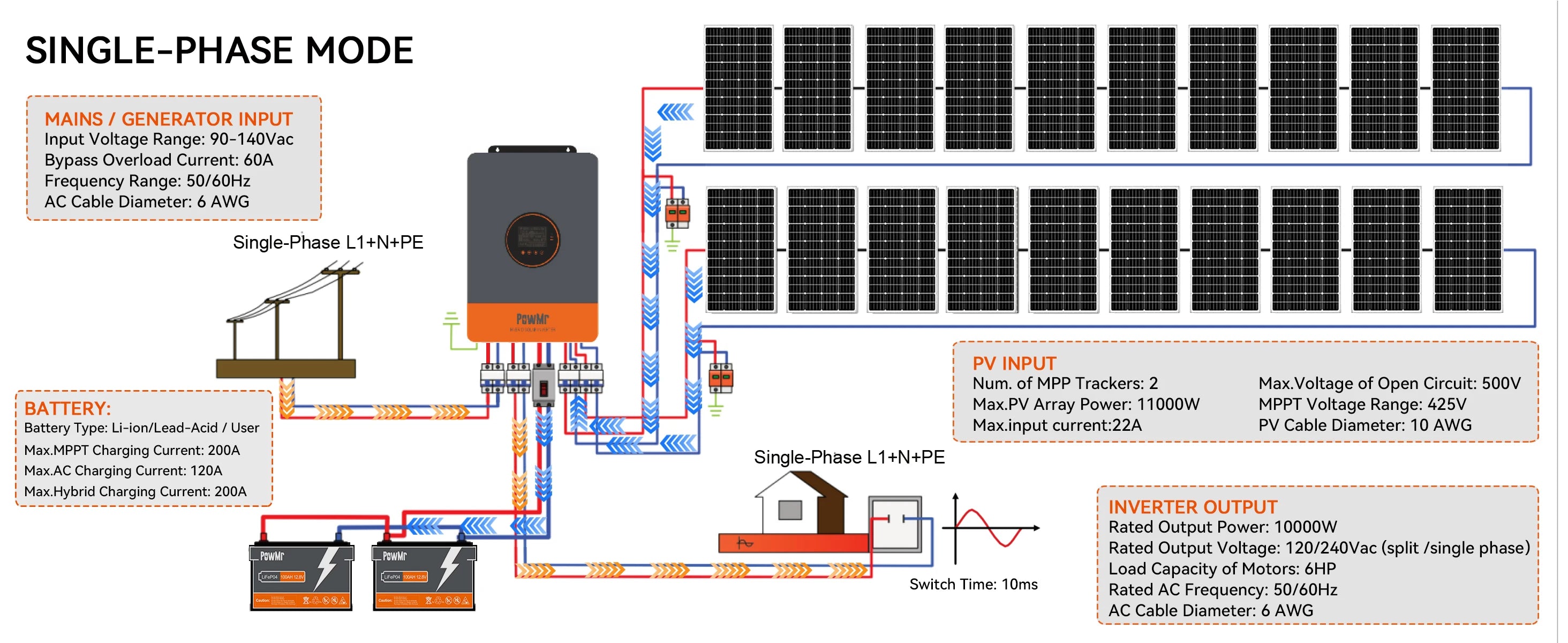

MAINS/ GENERATOR INPUT | ||
Input Voltage Range |
90-140Vac |
|
Frequency Range |
50/60Hz |
|
Bypass Overload Current |
63A |
|
EFFICIENCY | ||
MPPT Tracking Efficiency |
99.9% |
|
Max. Battery Inverter Efficiency |
92% |
|
GENERAL | ||
Dimensions |
620*445*130mm（2*1.5*0.4ft） |
|
Weight |
27kg（59.5lb） |
|
Protection Degree |
IP20，Indoor Only |
|
|
Operating Temperature Range |
-10~55℃,>45℃derated （14~131℉，>113℉derated） |
|
Noise |
<60dB |
|
Cooling Method |
Internal Fan |
|
Warranty |
2Years |
|

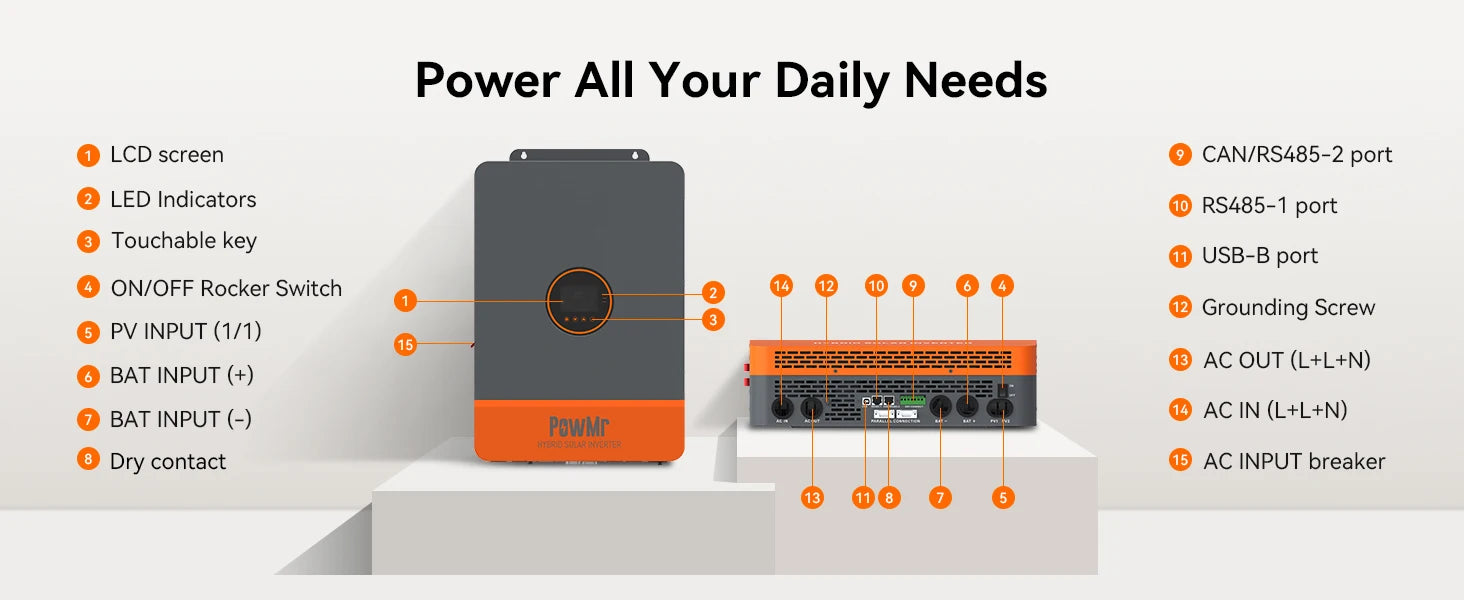

COMMUNICATION | ||
Embedded Interfaces |
RS485/CAN/USB/ Dry contact |
Y |
External Modules（Optional） |
Wi-Fi /GPRS |
Y |
CERTIFICATION | ||
Safety |
IEC62109-1,IEC62109-2,UL1741 |
|
EMC |
EN61000-6-1,EN61000-6-3, FCC15classB |
|
RoHS |
Yes |
|
Feacture:
* Pure Sine Wave inverter.
* Higher output power up to 10000W.
