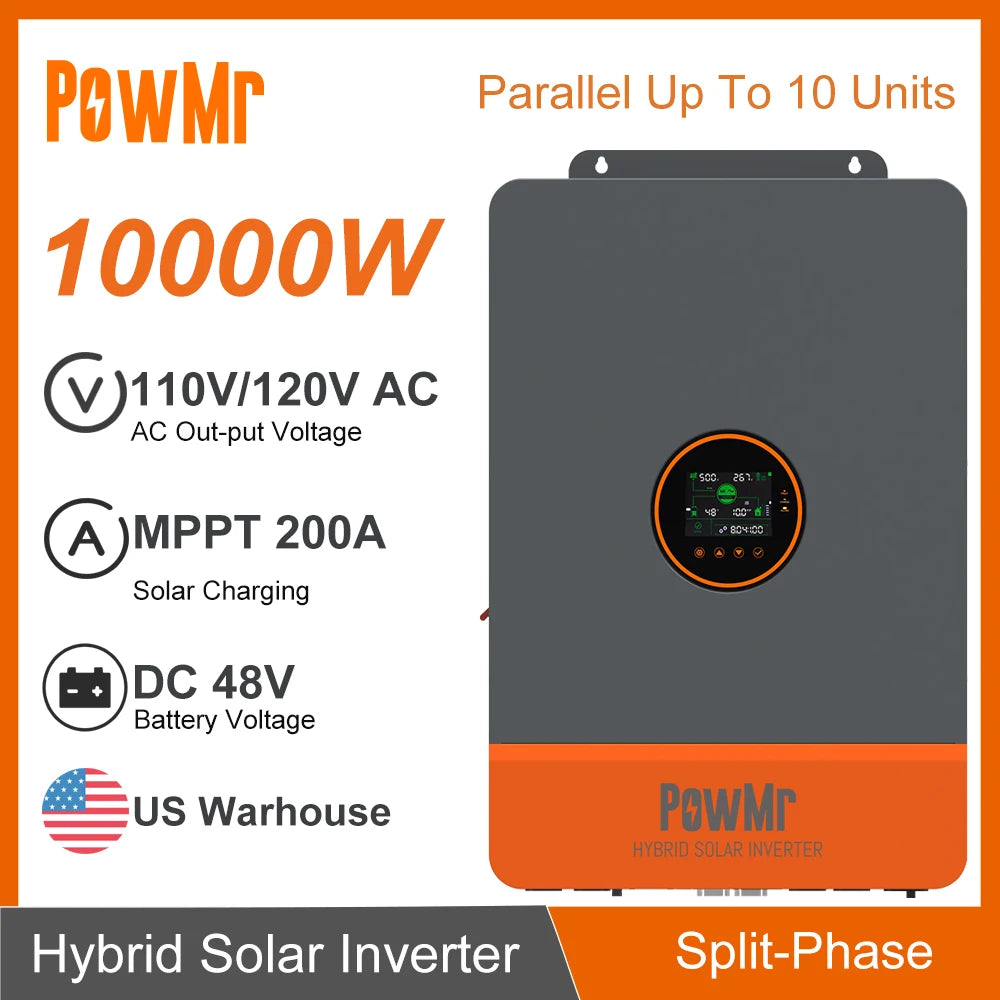

PowMr 10KW 48V DC to 120V/240V AC Split-Phase Pure Sine Wave Hybrid Inverter Built-in 200A MPPT Solar Charge Parallel Max 6 Unit

The family vendor

PowMr 10KW 48V DC to 120V/240V AC Split-Phase Pure Sine Wave Hybrid Inverter Built-in 200A MPPT Solar Charge Parallel Max 6 Unit

$1,485.00

SPECIFICATIONS

Brand Name: PowMr

Certification: CE

High-concerned chemical: None

Is Smart Device: Yes

Model Number: POW-SunSmart 10K

Origin: Mainland China

Output Current: MPPT 200A

Output Frequency: 50/60Hz

Output Power: 10KW

Output Type: SINGLE

Size: 620*445*130(mm)

Weight: 29kg

is_customized: Yes

Recommend For You

PowMr 10KW 48V DC to 120V/240V AC Split-Phase Pure Sine Wave Hybrid Inverter Built-in 200A MPPT Solar Charge Parallel Max 6 Units

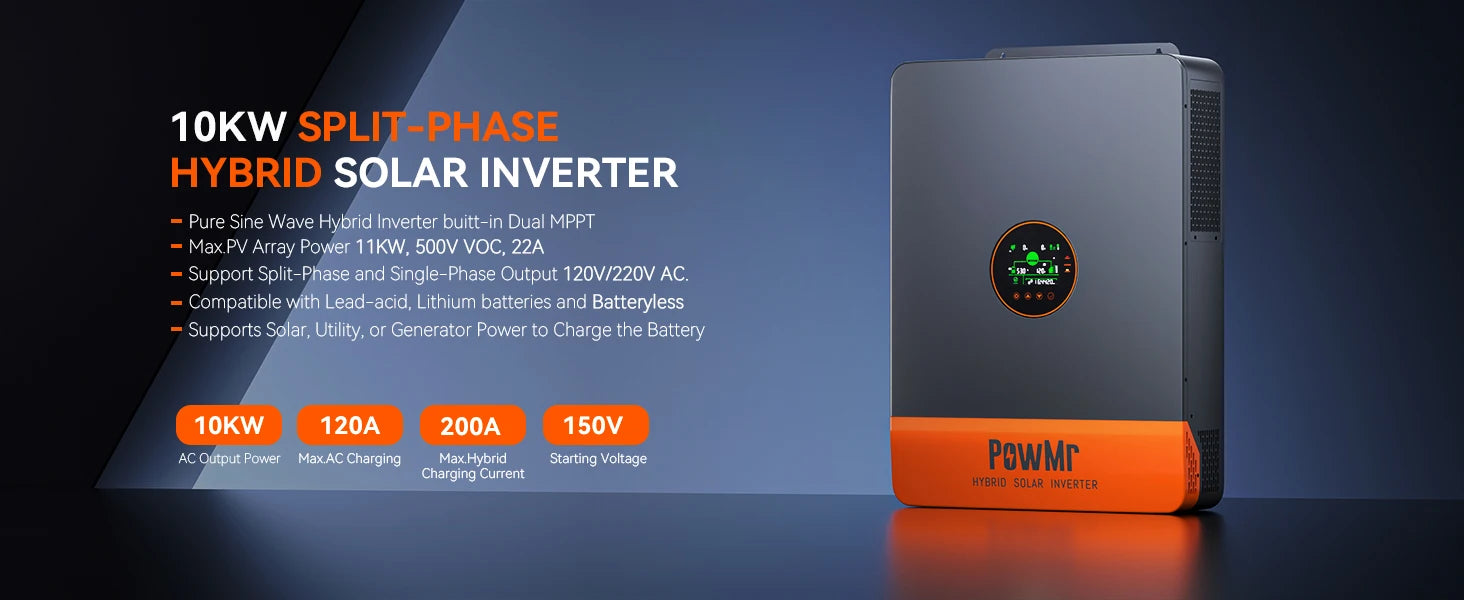

This 10KW solar inverter has two versions, Parallel version(Max parallel up to 6 units) and without parallel version.

Product Features

1.【MULTIFUNCTIONAL SOLAR INVERTER】UL1741 Standard POW-SunSmart split-phase solar inverter is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility charging and energy storage, AC sine wave output. Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high-power modules. Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.

2.【DUAL MPPT】Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high-power modules. Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions. Support split-phase and single-phase pure sine wave output.

3.【COMPATIBLE WITH VARIOUS BATTERIES】10000W 48V split phase power inverter is compatible with AGM, Gel, Lead acid, Lithium-ion, and LiFePO4 batteries, and support batteryless. Supports solar, utility, or generator power to charge the battery. It can flexibly schedule the Inverter charging and discharging time. With a dual activation function when the li-ion battery is dormant; either mains / photovoltaic power supply access can trigger the activation of the Li-ion battery.

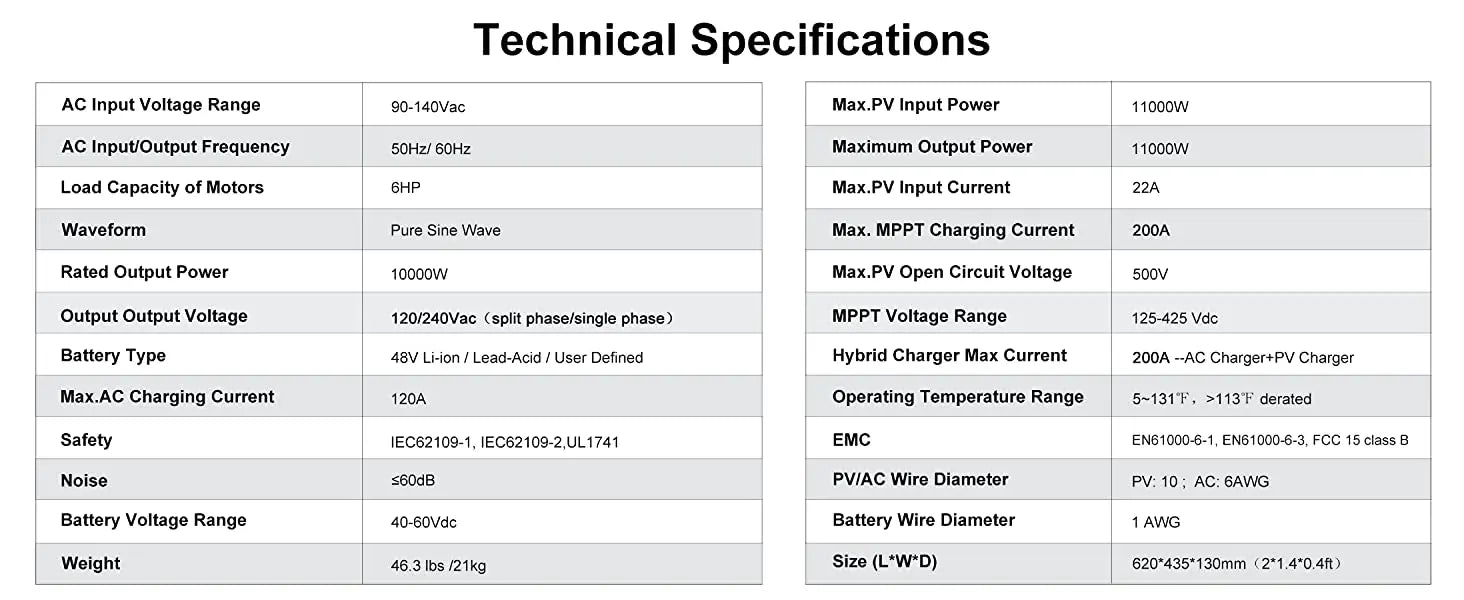

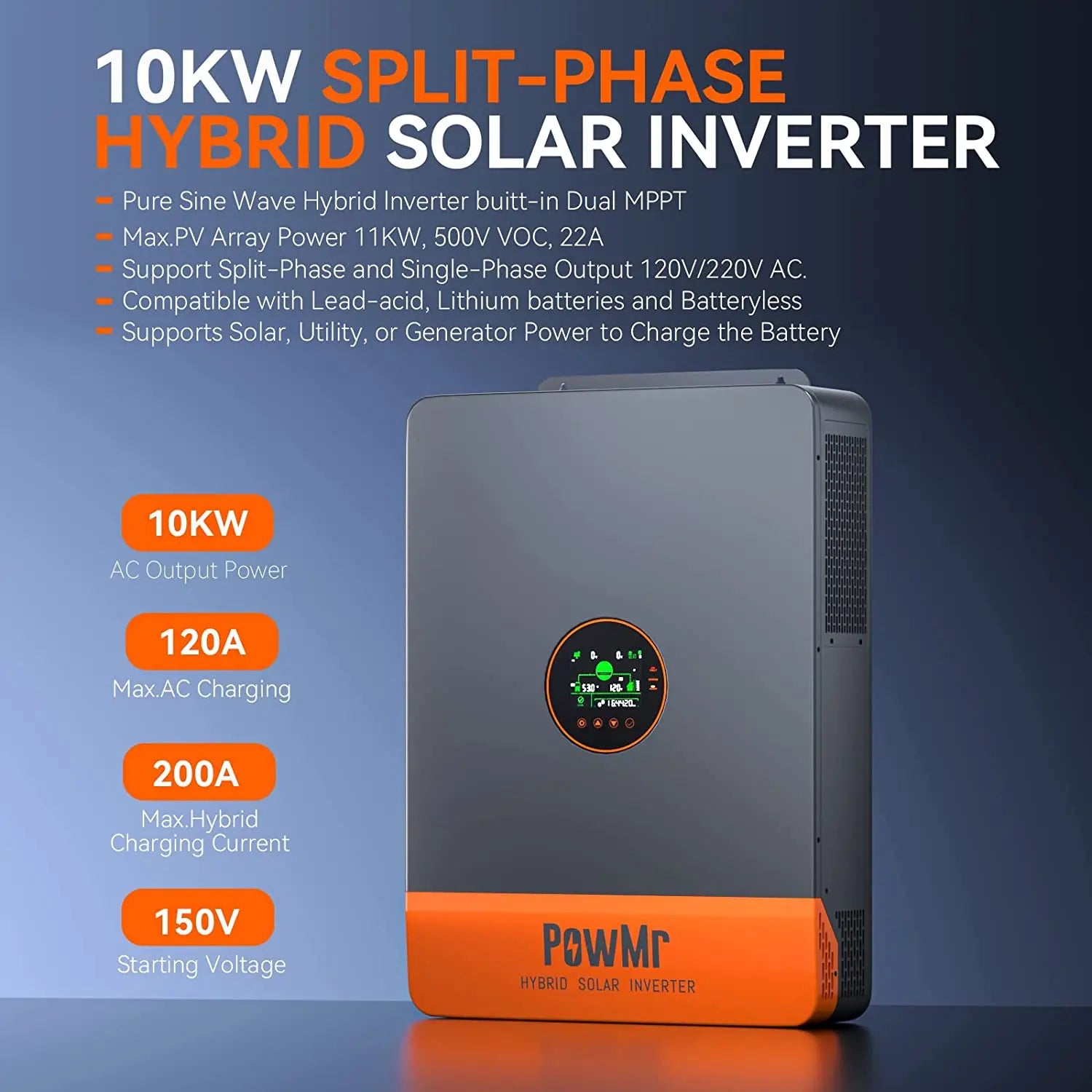

4.【TECHNICAL SPECIFICATIONS】Hybrid Solar Inverter 48V built-in 200A MPPT controller and 10KW Pure sine wave inverter. Rated Output Power: 10000W continues (Surge 20000W), Rated Output Voltage: 120/240Vac (split phase/single phase), Switch Time: 10ms, Max.PV Input Power: 11KW(5500*2), Max.PV input Voltage: 500Vdc, Max.PV input current: 22A, Starting voltage more than 150V, PV Wire:10AWG. Support CAN, USB, and RS485 communication.

5.【CHARGING MODES AND TIME CAN BE SET】Pure Sine Wave Solar Inverter has 4 charging modes that are optional, i.e. solar only, mains priority, solar priority, and mixed mains/PV charging; and with two output modes of utility bypass and inverter output, with uninterrupted power supply function.

Note: Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.

Product Specification

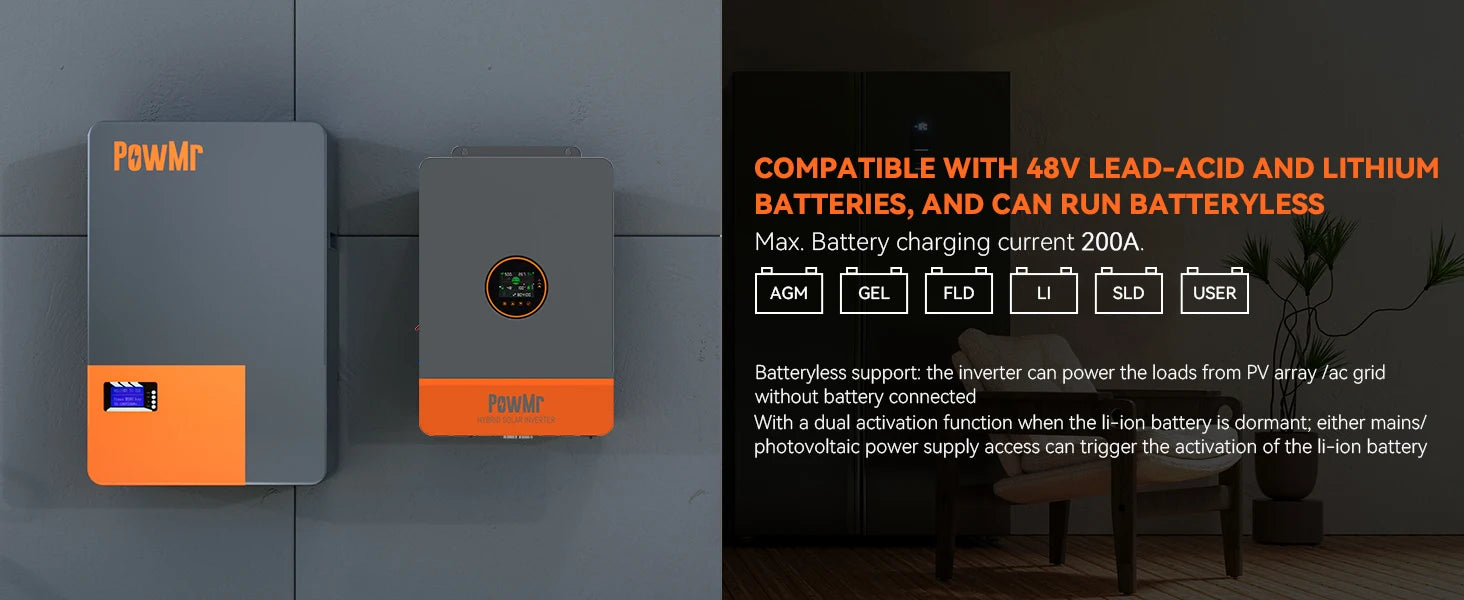

Supports Lead-acid battery and Li-ion battery connections

Supports lead acid battery and li-ion battery connections.
With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery.

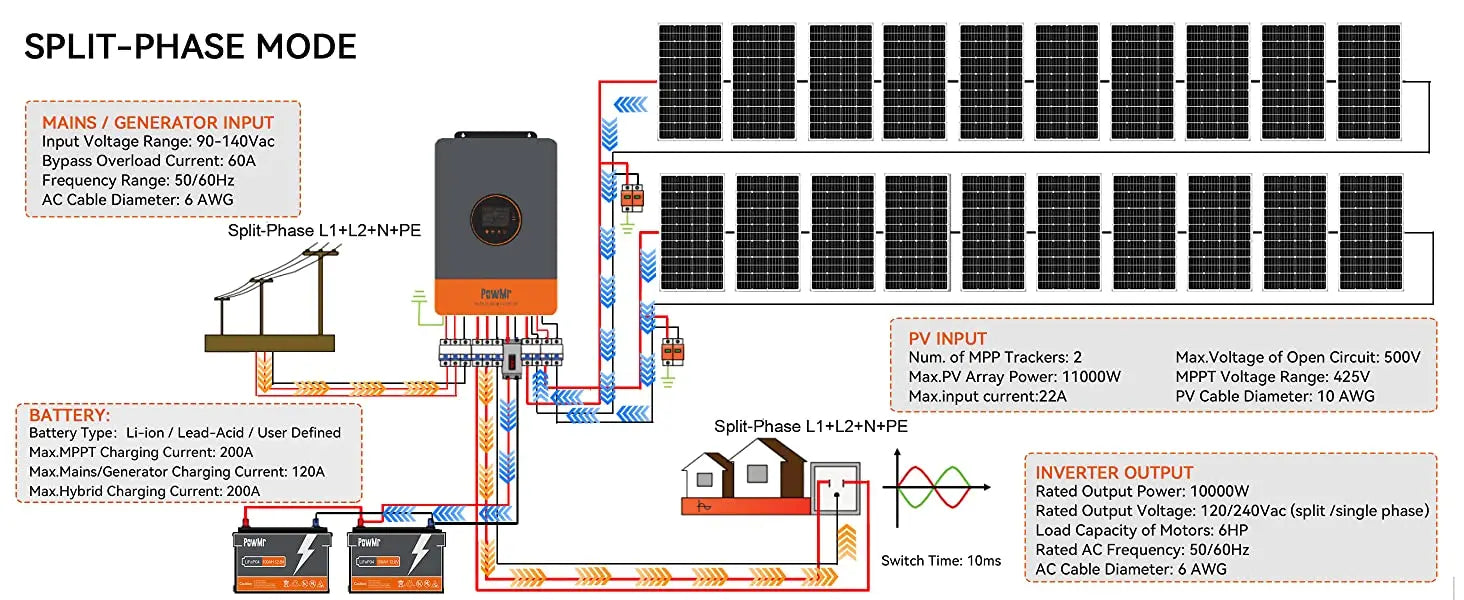

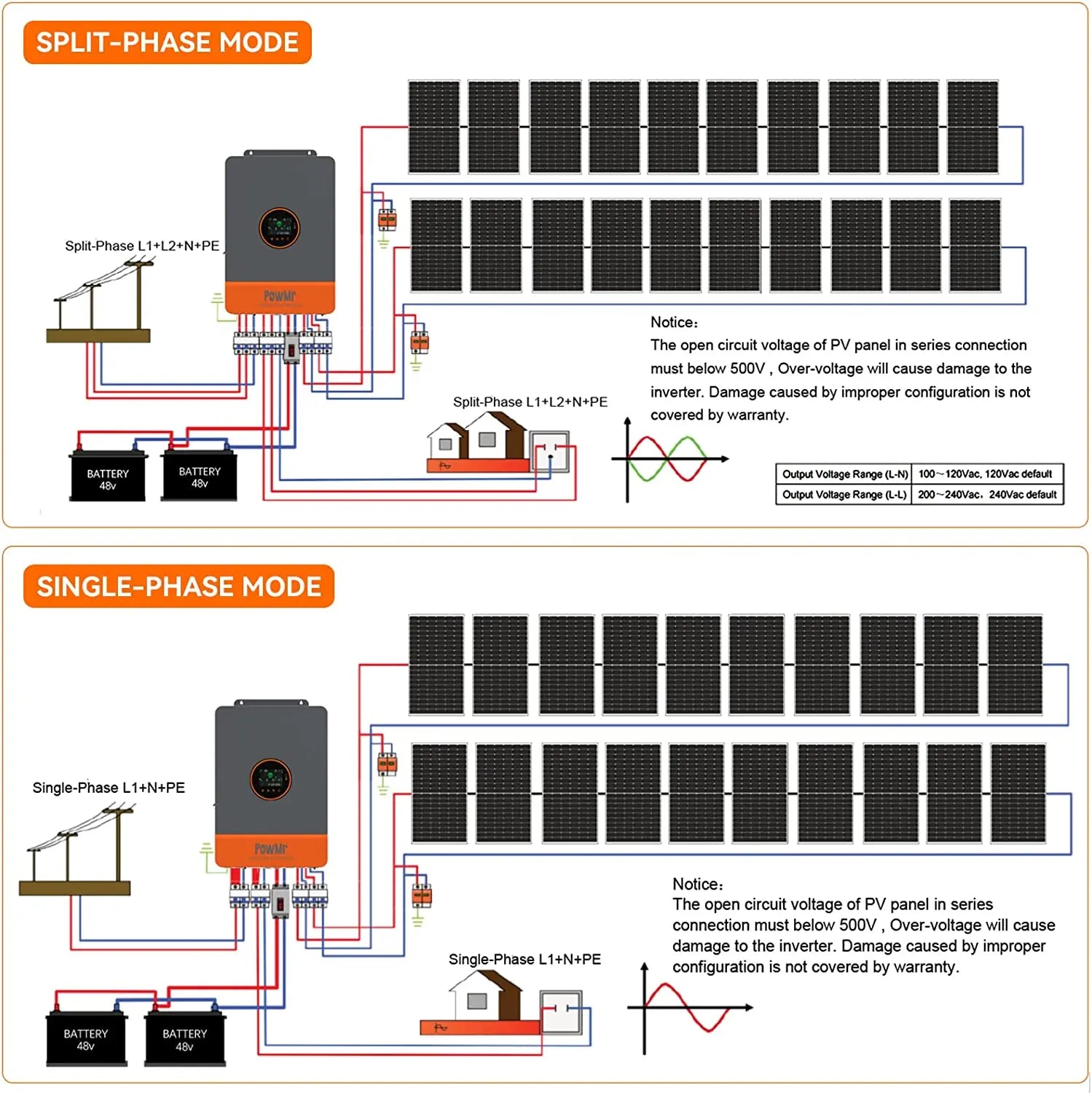

Support split-phase and single-phase pure sine wave output, and supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.
Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.
Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.
4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging. With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of mains charging and switch the time period between battery discharging and mains bypass power supply mode.

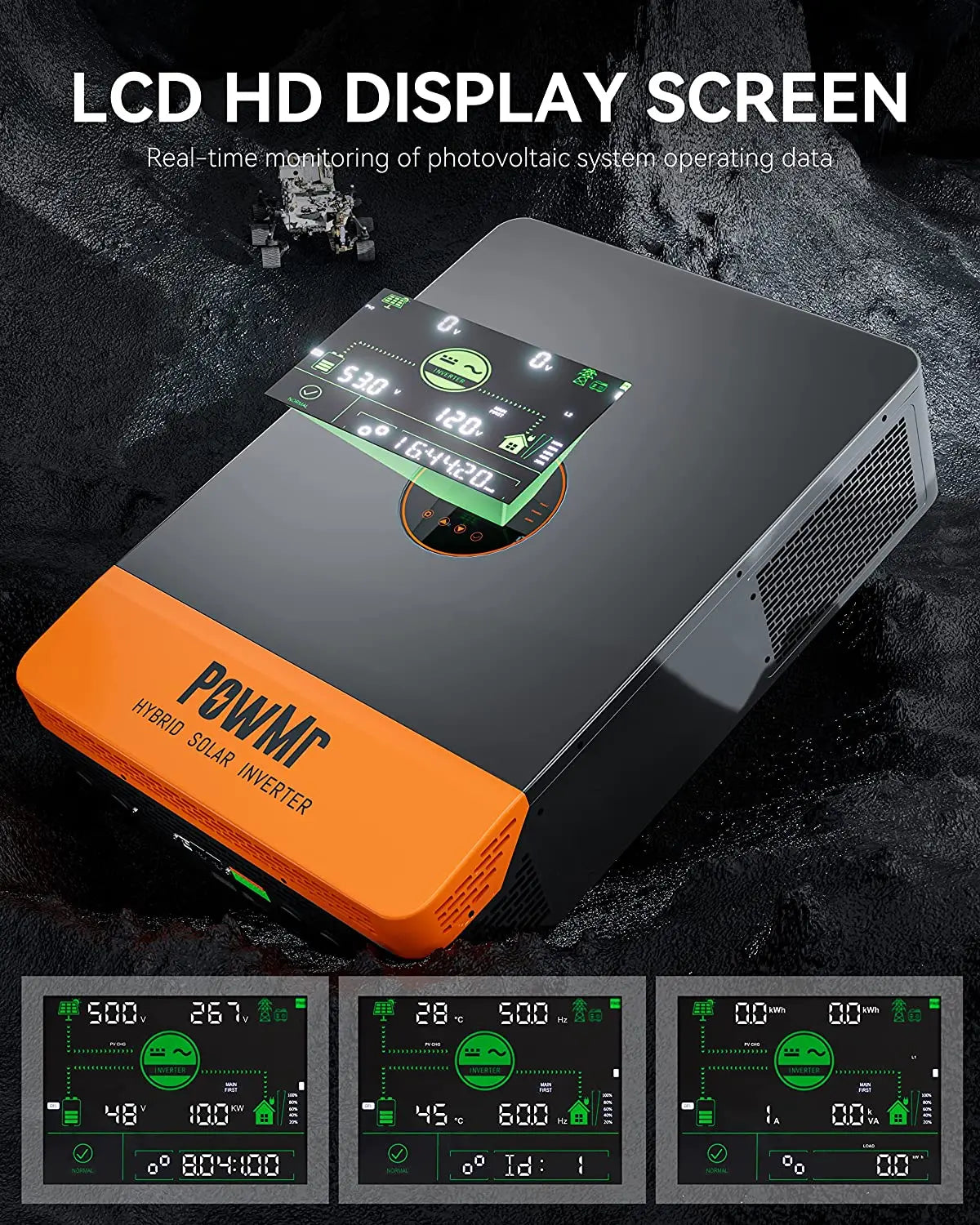

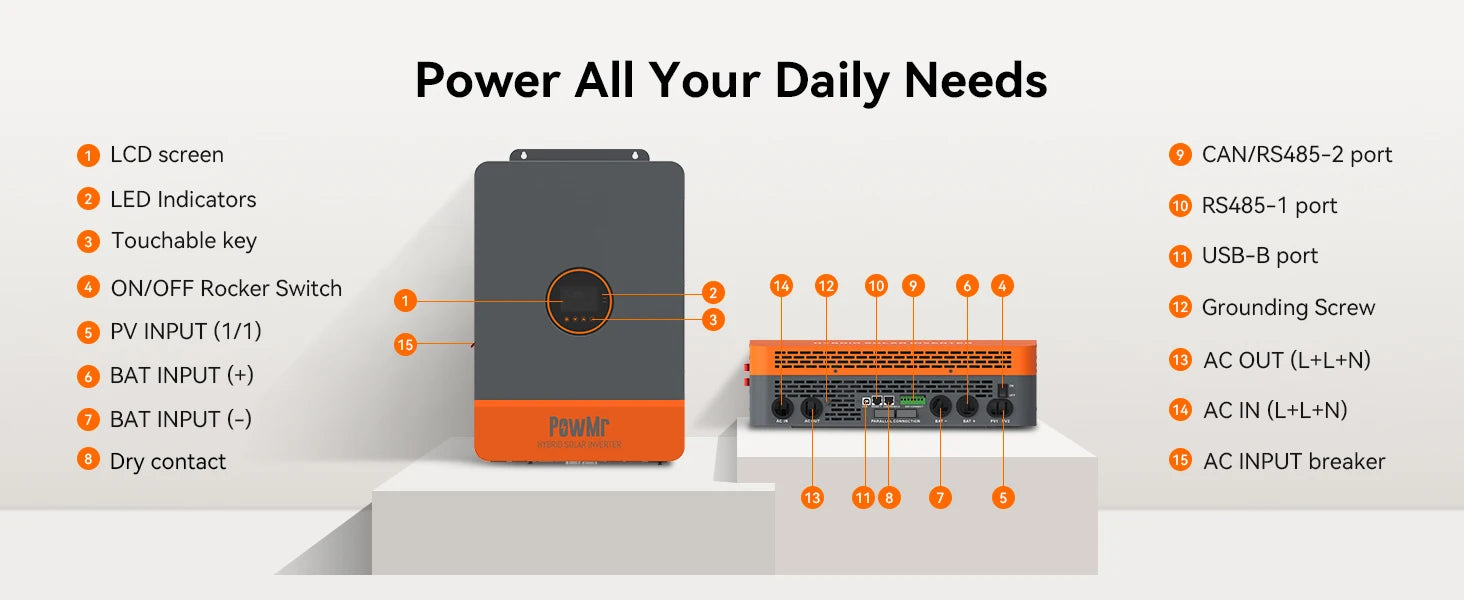

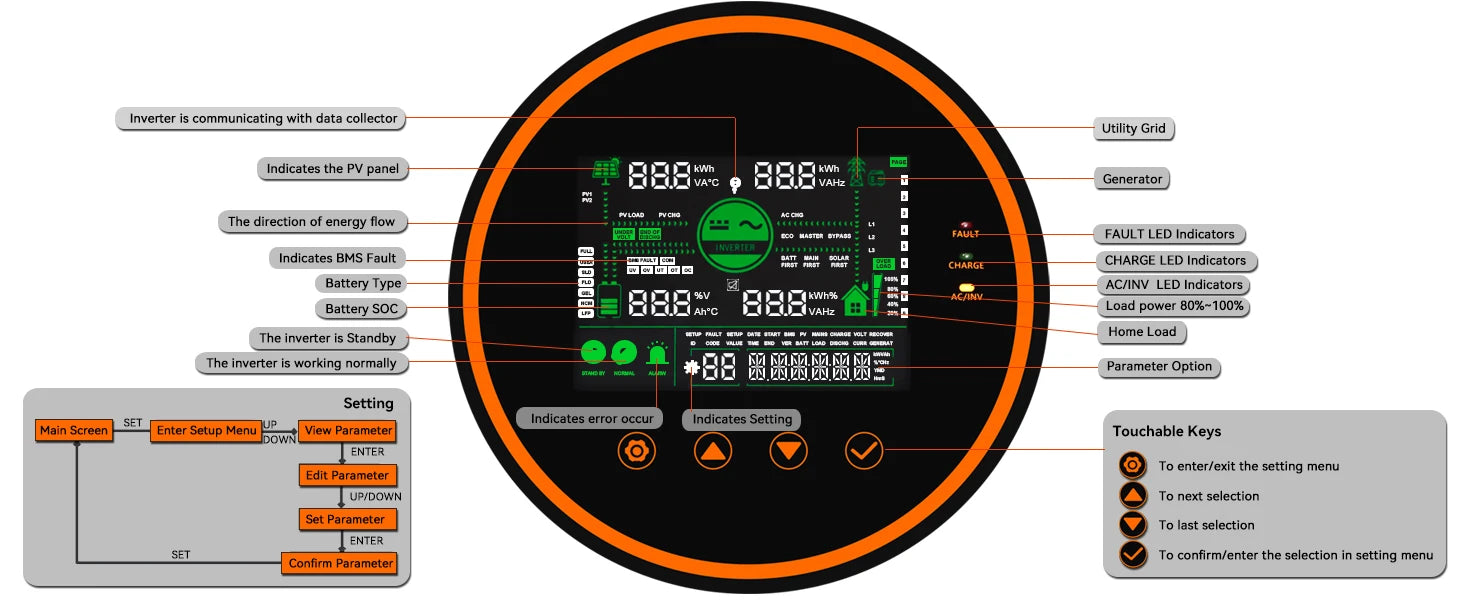

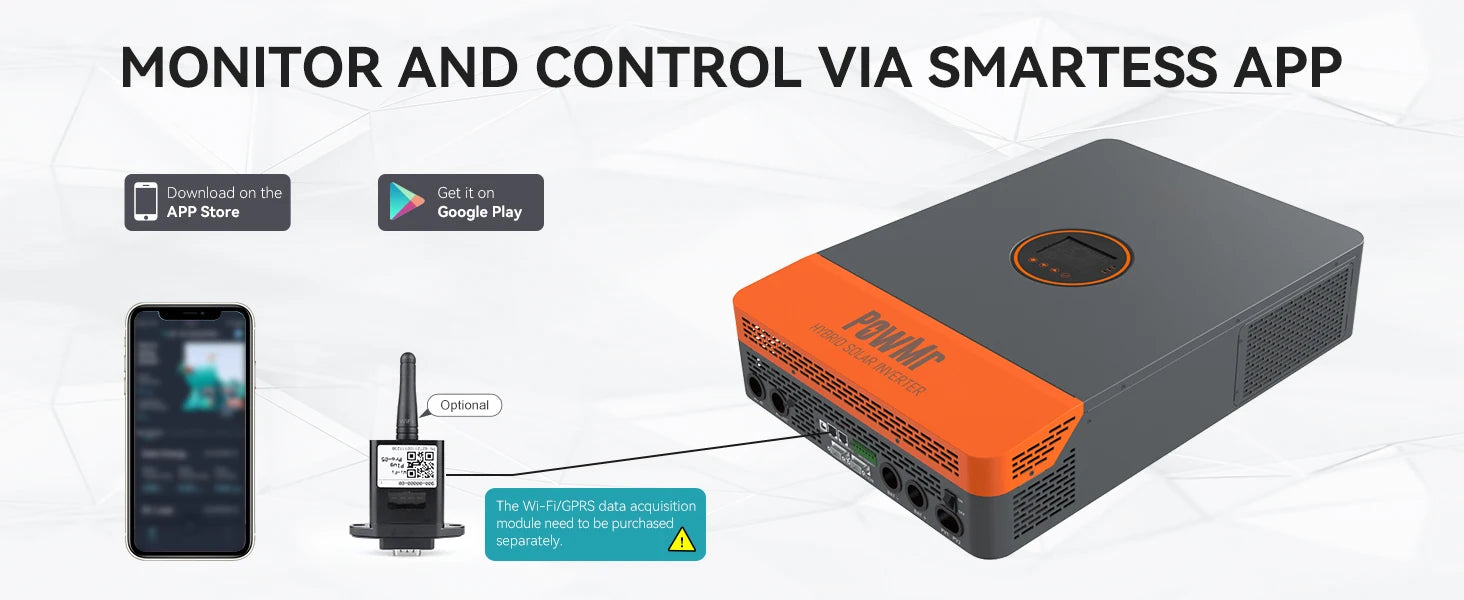

LCD large screen dynamic flow diagram design, easy to understand the system data and operation status. Support CAN, USB, and RS485 communication.

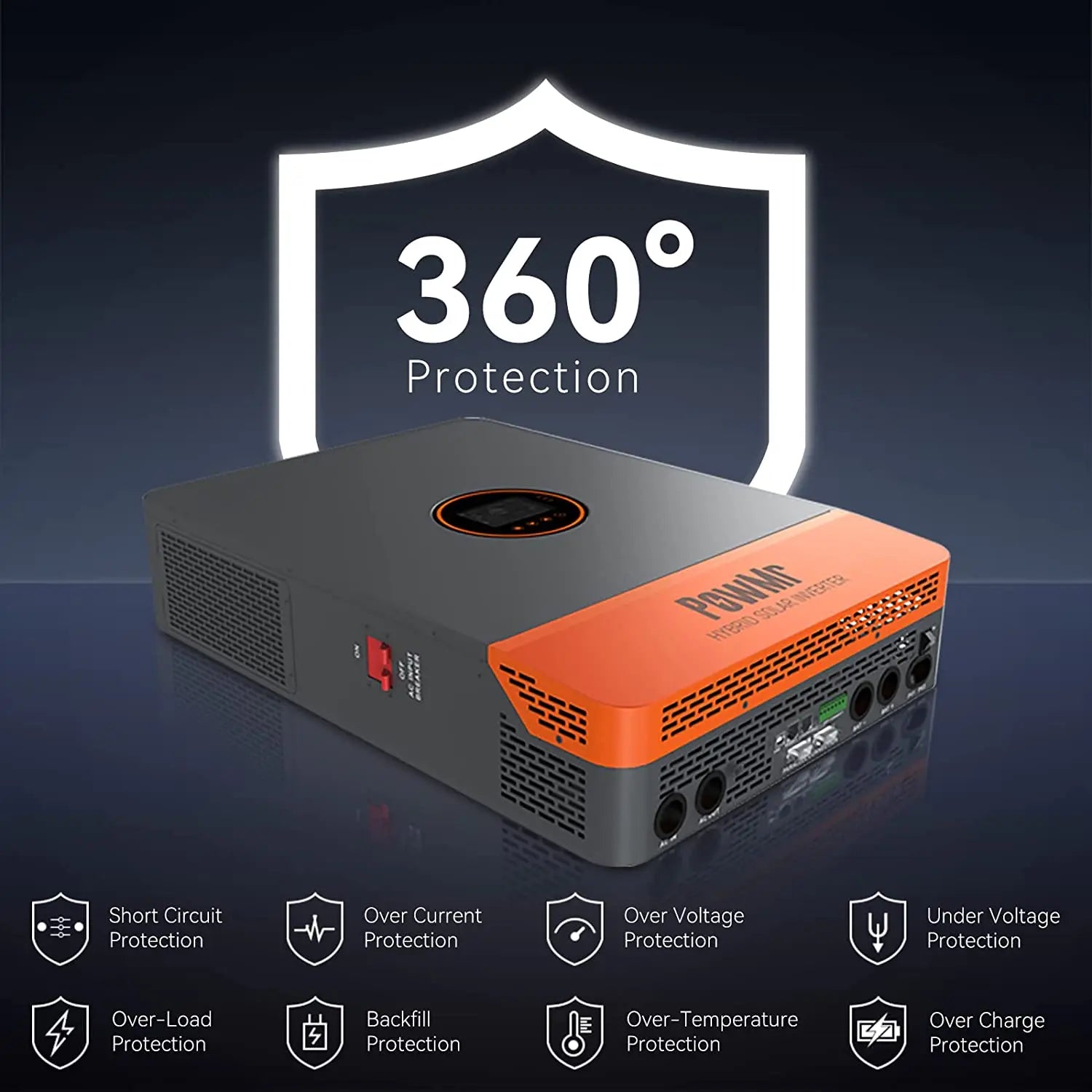

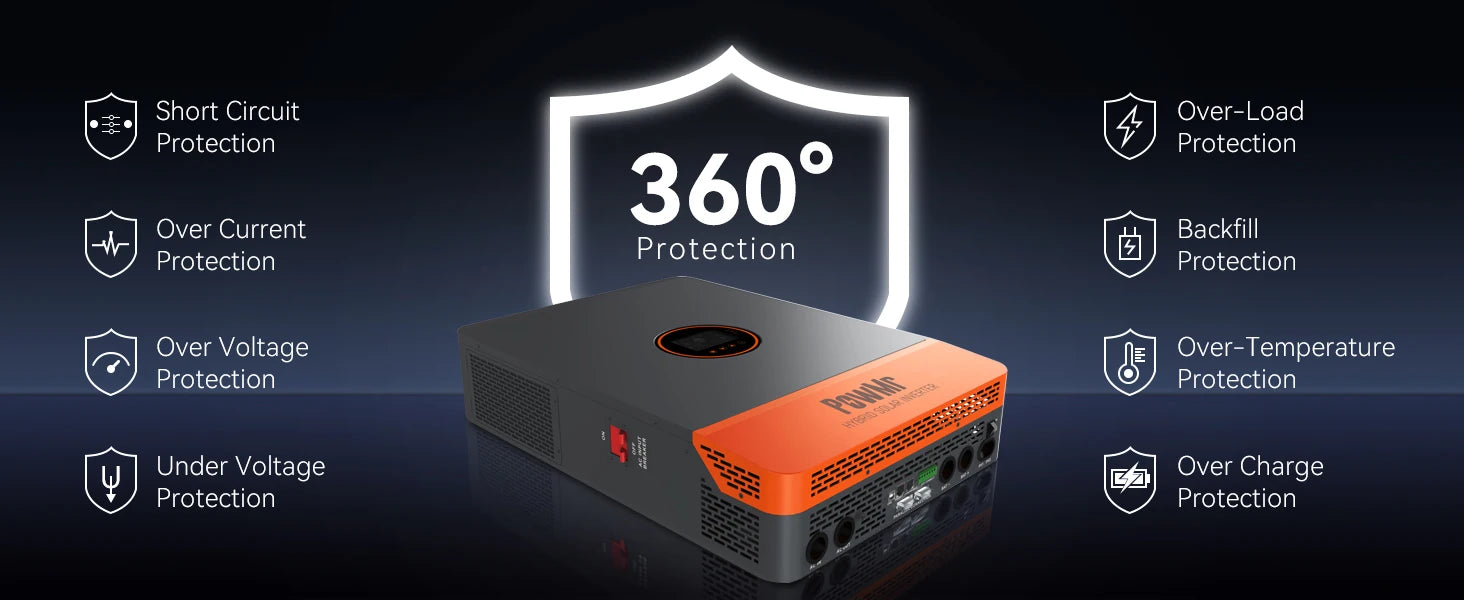

360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.
