SPECIFICATIONS

Application: Trolling Motor, RV, Solar and Off Grid

Brand Name: MOSEWORTH

Certification: CE,RoHS,weee

Connection: Others

High-concerned chemical: None

Model Number: 24V 300Ah

Nominal Capacity: 300Ah

Origin: Mainland China

Size: 640*245*220mm

Type: LiFePO4

Voltage: 24V

Weight: 50kg

Please note:

Batteries with the MOSEWORTH label are out of stock in our warehouse. We have batteries with different labels, and we will ship randomly. Please contact customer service if you have any questions.

About this item:

Brand: MOSEWORTH

Nominal Voltage: 25.6V

Nominal Capacity: 300Ah

Energy: 7680Wh

Internal Resistance: ≤20mΩ

Months Self Discharge: ≤3.5% per month at 25℃

Charge Voltage: 29.2V

Standard Charge Current: 50A(0.2-0.5C)

Standard Charge: Max.Charge Current 300A(1C)

Standard discharge Current: 100A(0.5C)

Max. Continuous Current: 200A(1C)

Discharge Cut-off Voltage: 18.4V

Charge Temperature: 0℃ to 45℃(32℉to 113℉) @60±25% Relative Humidity

Discharge Temperature: -20℃to 60℃(-4℉to 140℉) @60±25% Relative Humidity Environmental

Storage Temperature: 0℃to 45℃(32℉to 113℉) @60±25% Relative Humidity

Water Dust Resistance: IP55

Cell & Method: LFE3.2V 200Ah 8S2P

Plastic Case: ABS

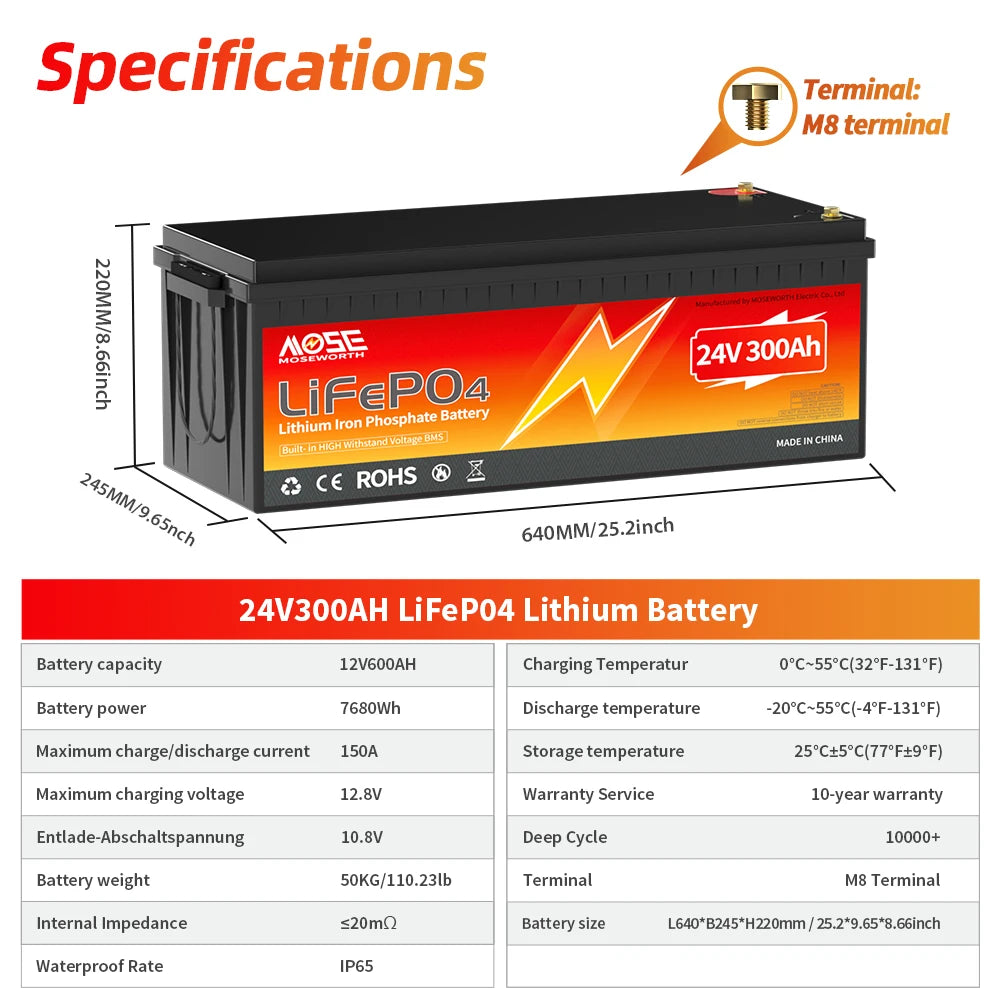

Dimension(L*W*H*TH): 640*245*220mm

Weight: Approx.50Kg

Temminal: M8

【High Capacity & Power Supply】

MOSEWORTH 25.6V 300Ah LiFePO4 Battery provides 7680Wh capacity and weighs only 110.23 lbs (50KG), which can provide enough power for your energy storage needs.

【Bulti-in 200A BMS】

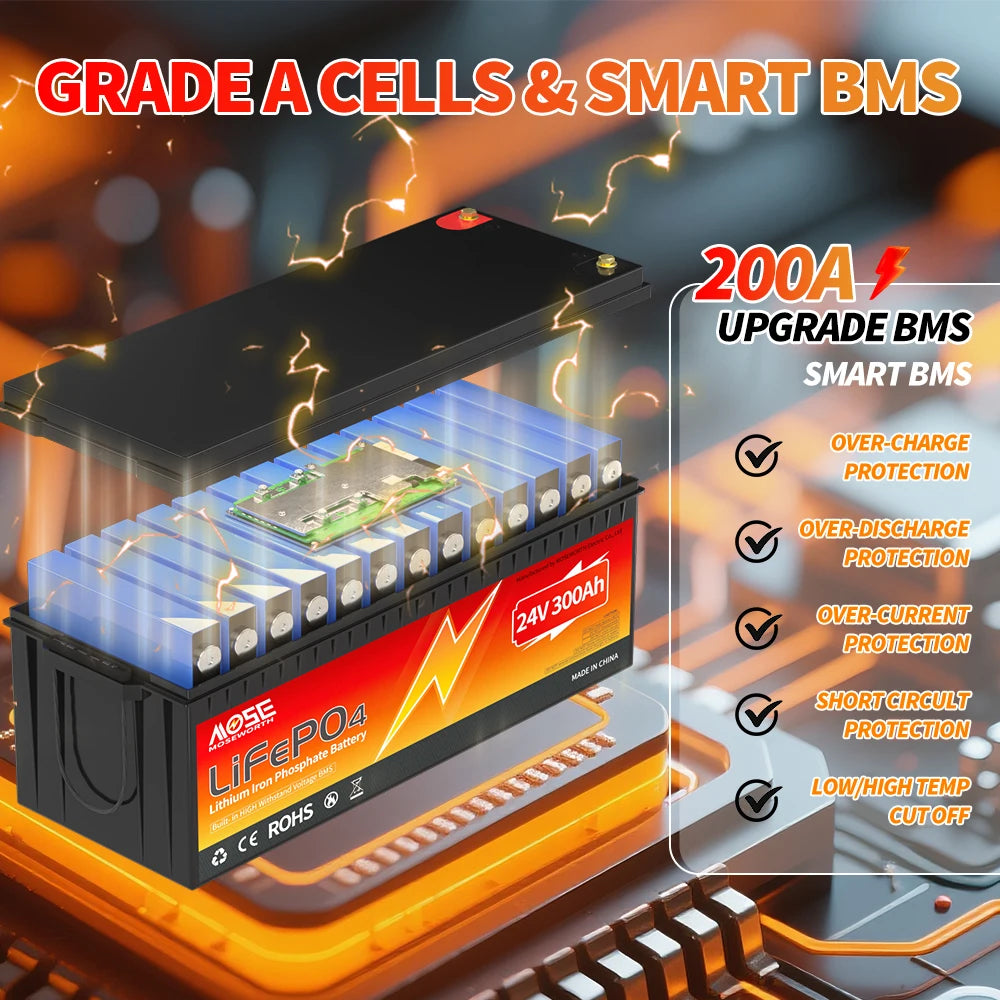

MOSEWORTH 24V 300Ah LiFePO4 battery built-in 200A BMS (Battery Management System) which can protect it from overcharge, deep discharge, overload, over-current, over-heating and short circuit.

【Max. 61.44kWh Capacity Expansion】

MOSEOWRTH 25.6V 300Ah lithium batteries can be connected in parallel and series for greater capacity and voltage. Maximum Series Capacity: Up to 2 identical batteries can be connected in series, voltage up to 48V(51.2V). Parallel: Multiple batteries can be connected, it is recommended to connect no more than 4 batteries in parallel. Allows expansion to 2S or 4P for up to 800Ah capacity or up to 48V(51.2V). The Max. energy is 61.44kWh; Max. Load power is 40.96kW.

【Wide Application】

Supply for home energy storage system, UPS backup, lighting, digital/CCTV cameras, portable TV, e-Robot, trolling motor, motorhome/RV & camper, Houseboat, Travel Trailer, Dump Trailer and more.

【Safety & 5 Years Warranty】

The LiFePO4 batteries are made of stabilized lithium iron phosphate chemical structure, which will not burn or explode even under high temperature, short circuit or impact conditions, making them safer. MOSEWORTH provides 5 years warranty on all batteries. 24 hours friendly and professional customer support, if you have any questions, please feel free to contact us.
