ECO-WORTHY UL1741 5000W 48V Solar Inverter Charger 48V DC to 120V AC,Inversor Solar Built in 100A MPPT Solar Charge Controller

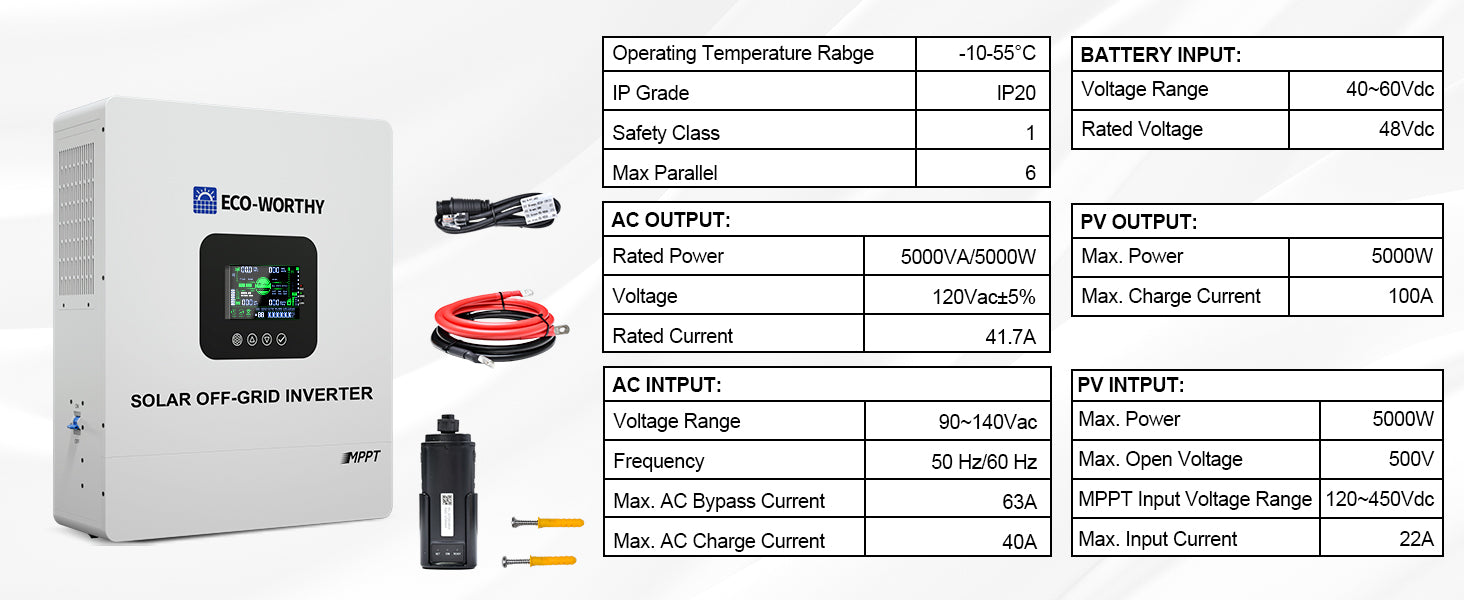

SPECIFICATIONS
Application: Agriculture/Farming, Electronics, Home/Garden, Shed

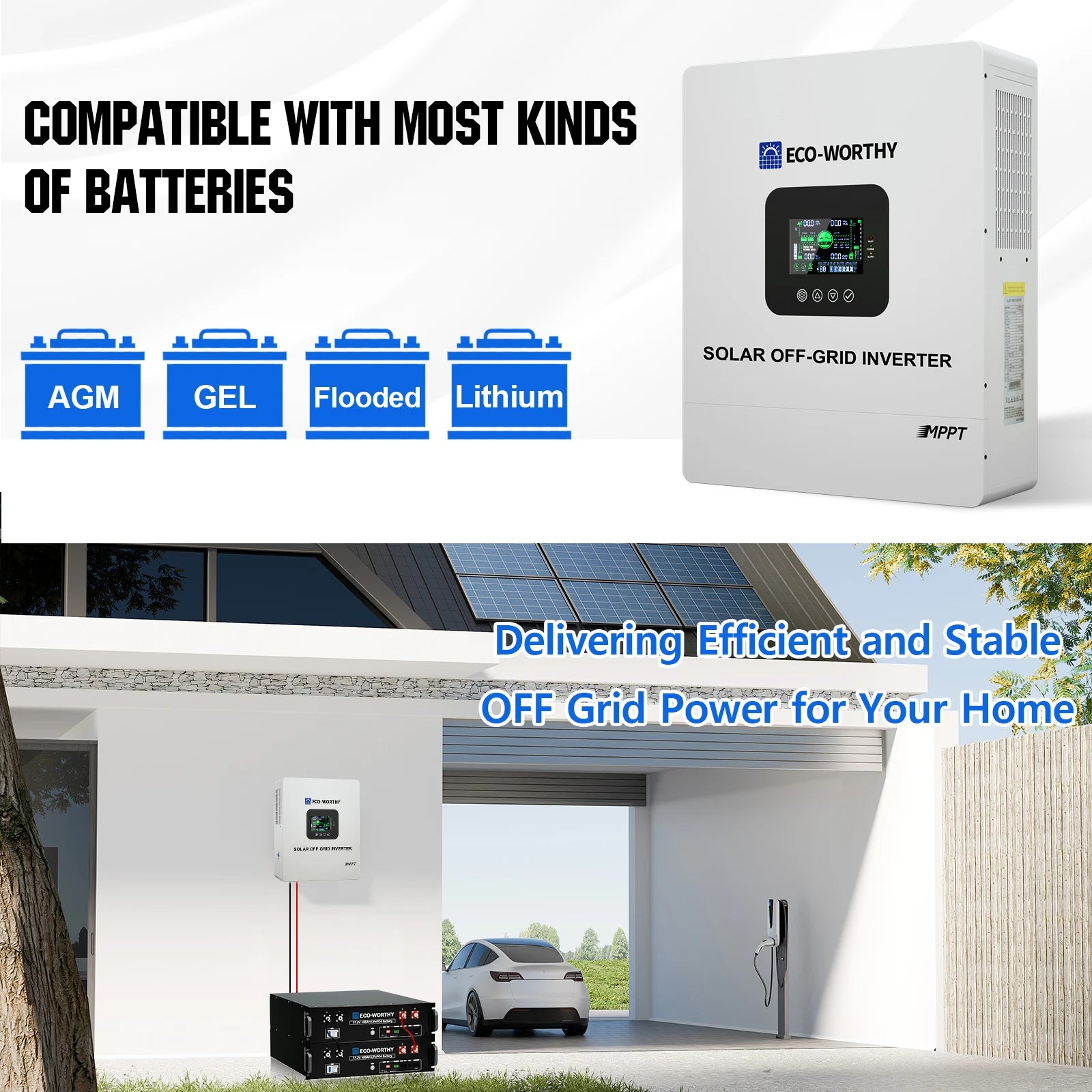

Battery Type: Lead acid or lithium battery
Brand Name: ECO－WORTHY
Certification: UL,UL1741

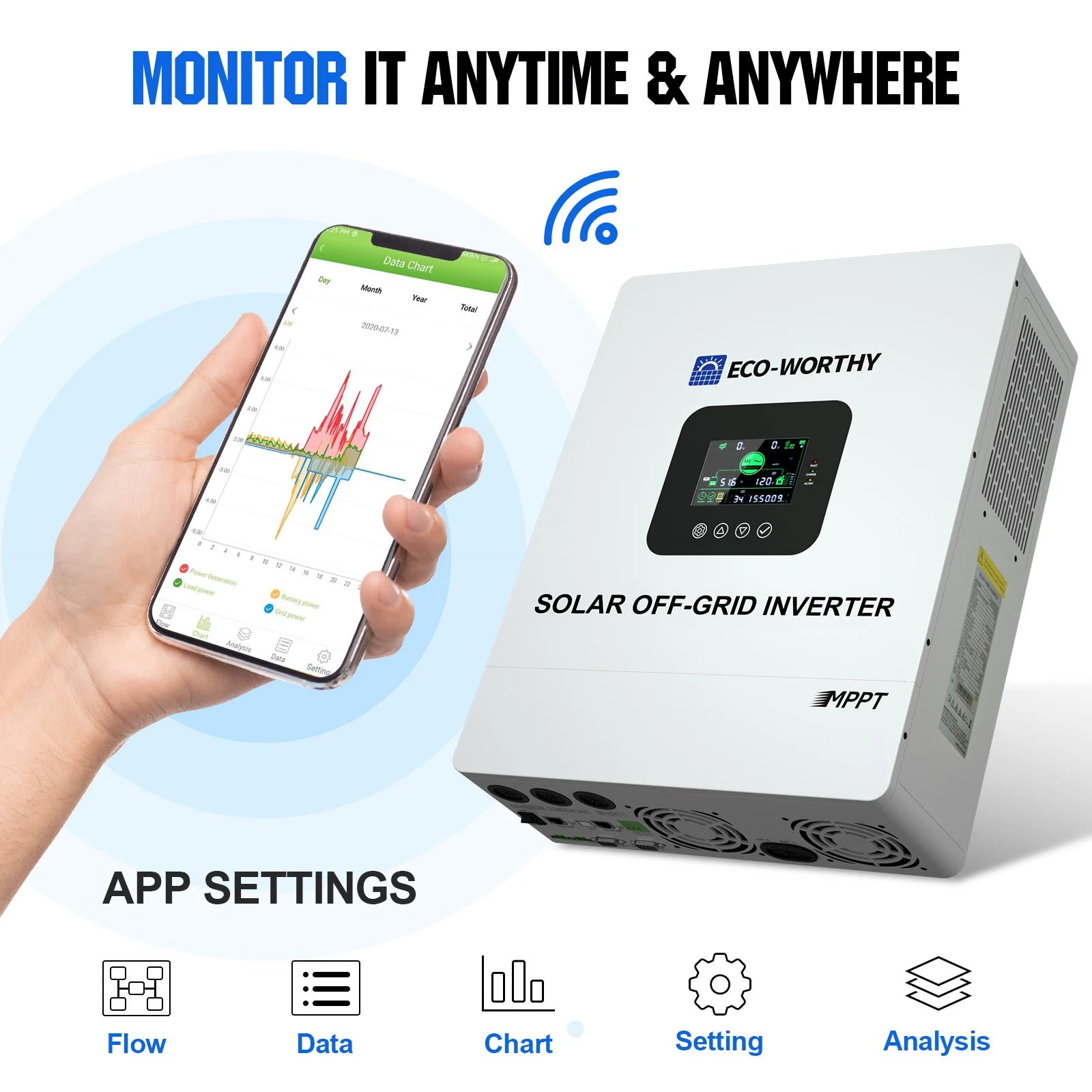

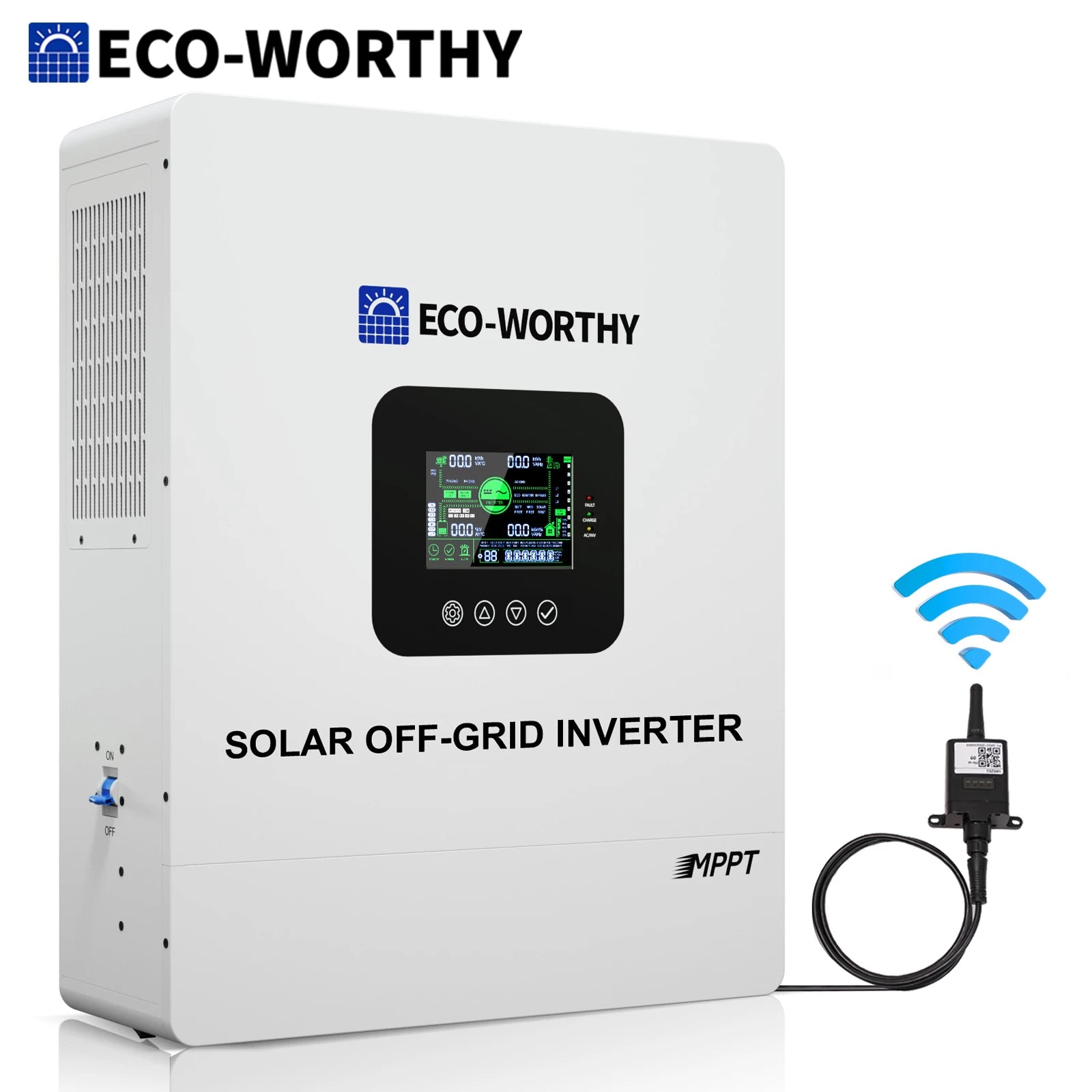

Communication Interface: USB, RS485(WiFi/GPRS), Dry contact control

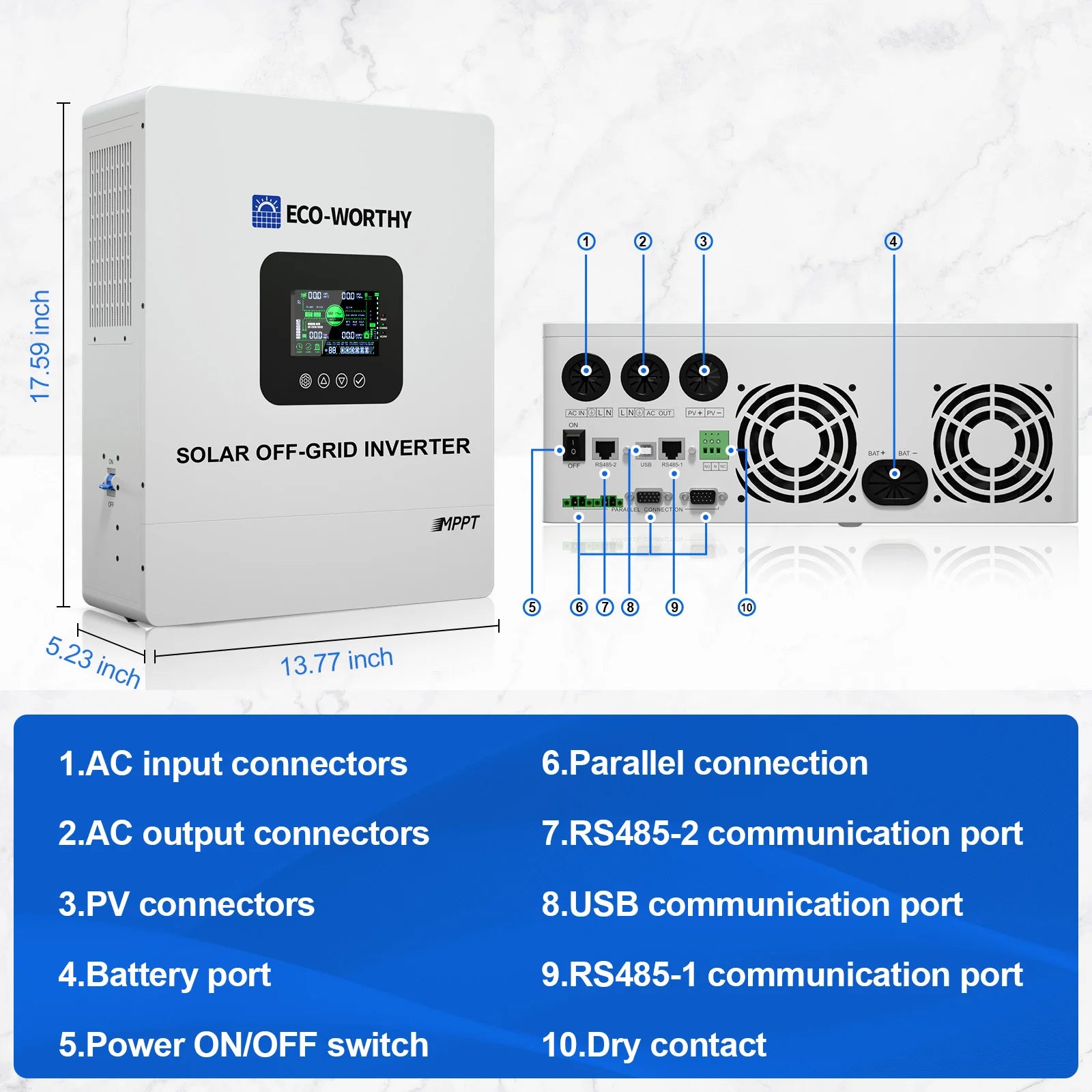

Dimension: 17.6*13.8*5.2 inch
High-concerned chemical: None
Is Smart Device: Yes
MPPT Operating Voltage Range: 100A(PV charging current range)
Maximum Hybrid Charge Current: 0-40A(AC charging), 100A(Hybrid charging)
Maximum Input Power: 5500W
Maximum Peak Power: 10000VA
Model Number: 1101850006
Origin: Mainland China
Output Current: 100A
Output Frequency: 120V-240V
Output Type: DUAL
Output Waveform: Pure Sine Wave
Parallel Number: 1~6units
Rated Battery Voltage: 48V (Min. starting voltage 44V)
Rated Output Power: 5000W
Rated Output Voltage: 120Vac(100/105/110Vac Settable)
Size: 34.98*35.5*13.2
Switching Time: 10ms
Weight: 13.24,Weight

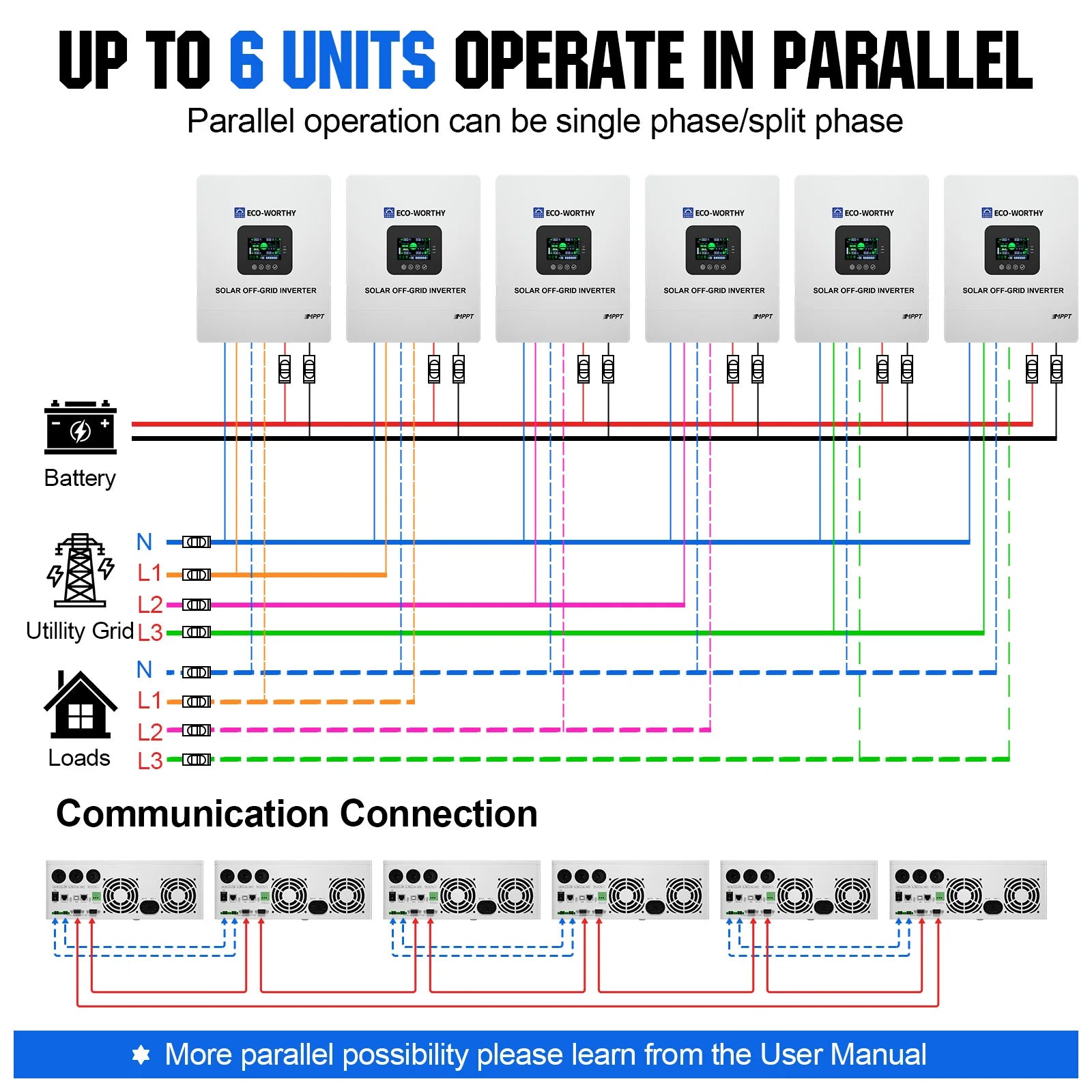

[Parallel Supportable】

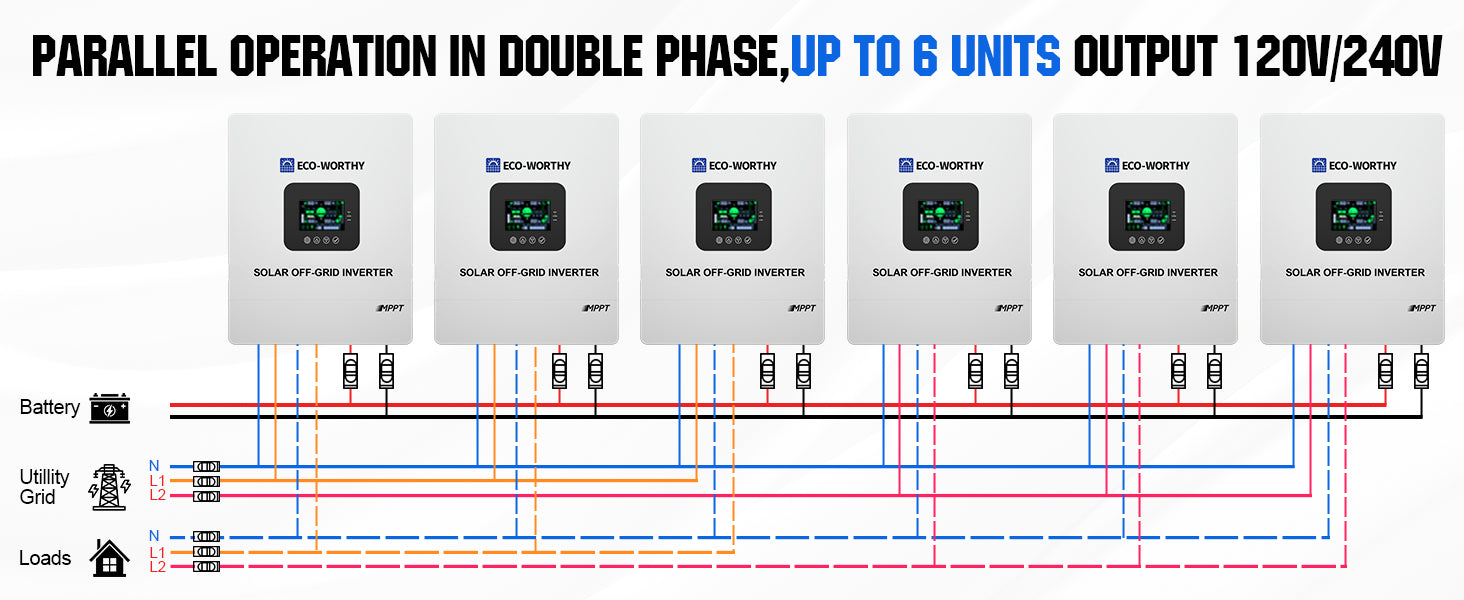

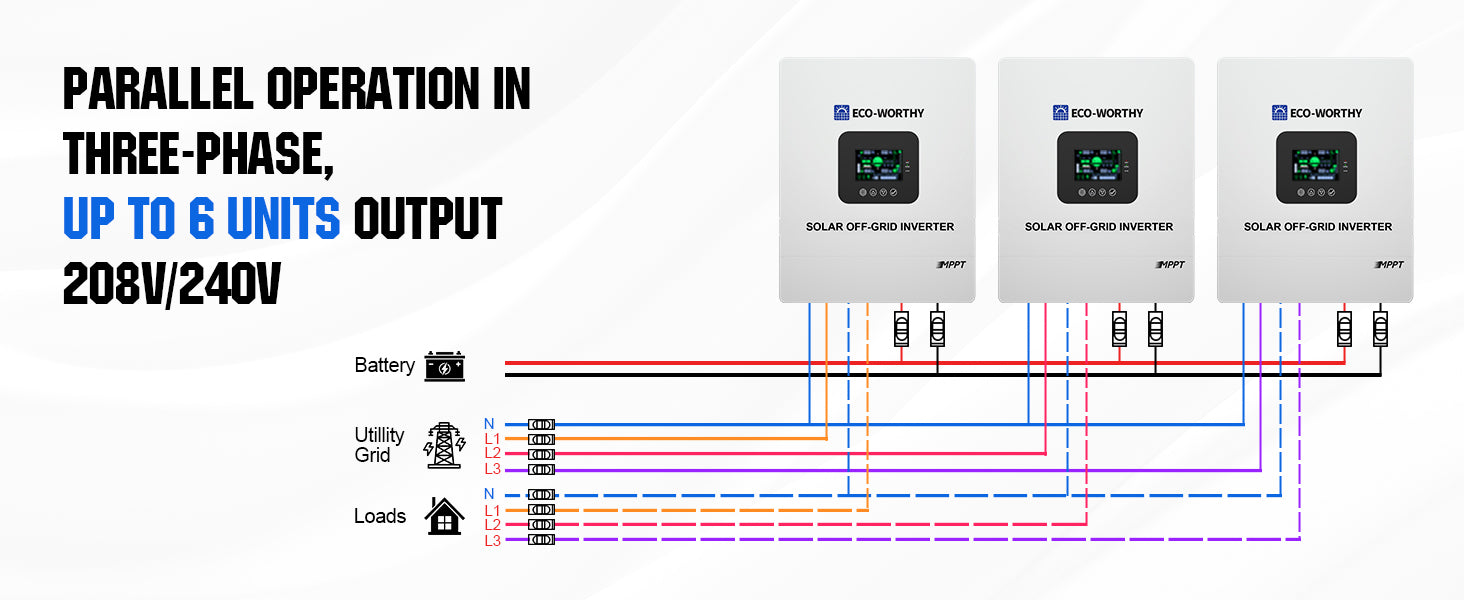

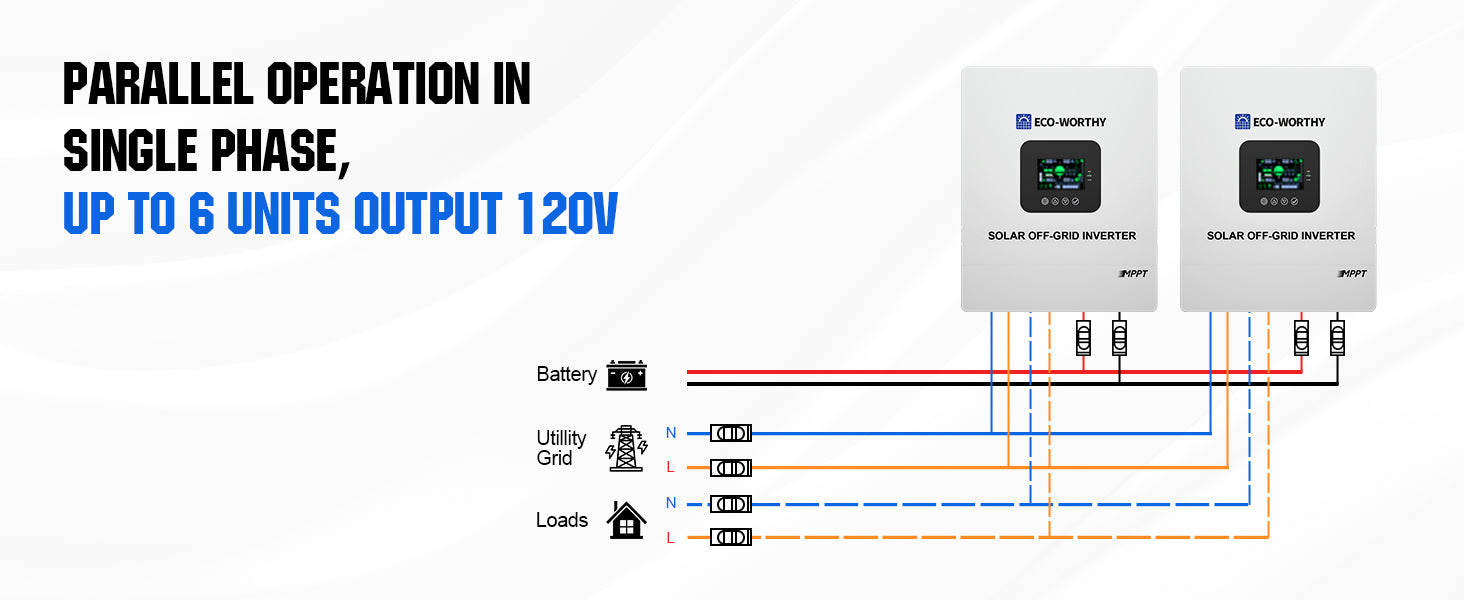

Parallel support up to 6 units-30 kw Max. It can be single phase or separate phase parallel; The output voltage of one inverter is 120 V, and more than two inverters can output 120 V/208 V/240 V in parallel
[3 in 1 inverter]

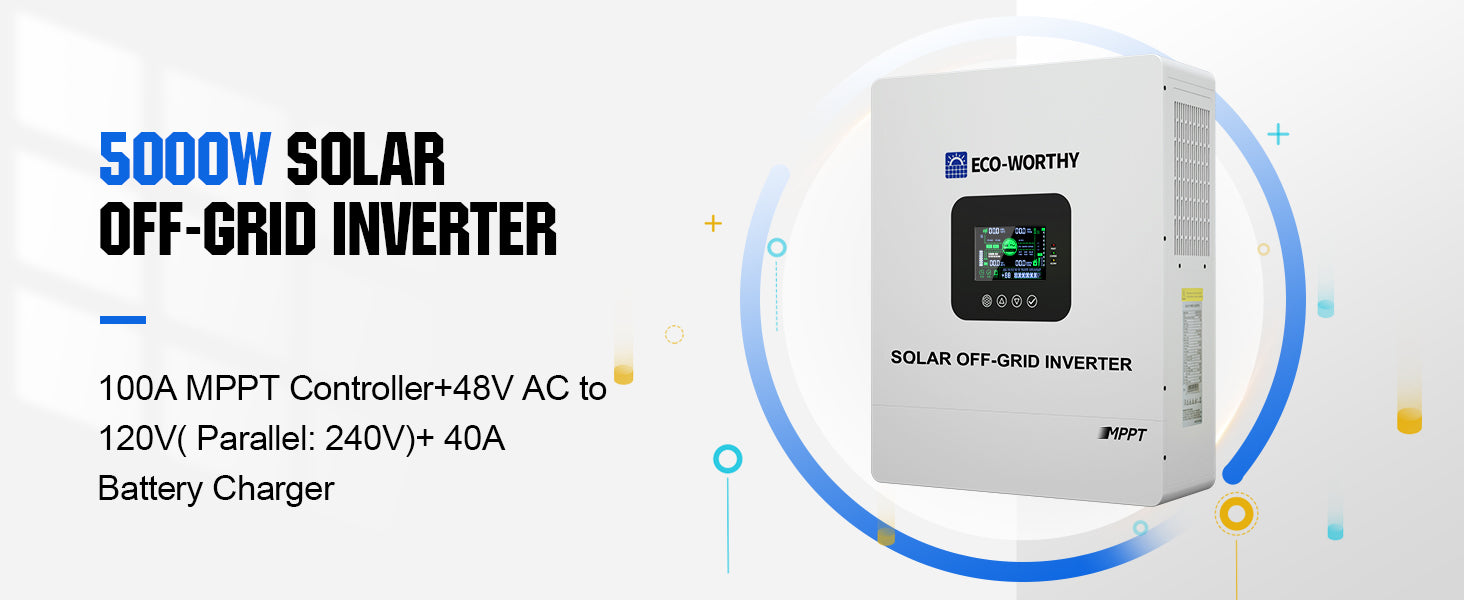

5000W Pure Sine Wave Inverter+100A MPPT Controller+Max 100A Battery Chager (AC 40A PV:100A Hybrid:100a) PV input voltage range: 120-500 V DC, Max. Rated Output Power: 5000 W, Max. Peak Power: 10000 W, Rated Output Voltage:120/240 Vac(split phase/single phase)
[Segmented Charing/Discharging]

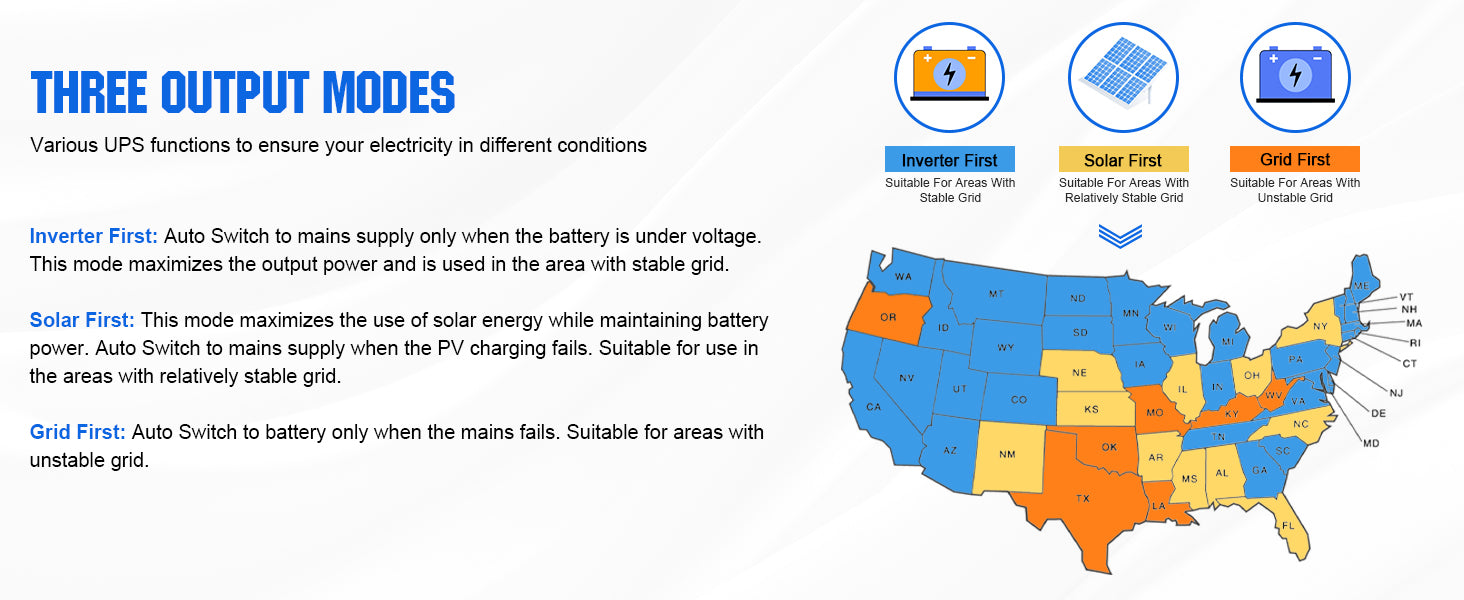

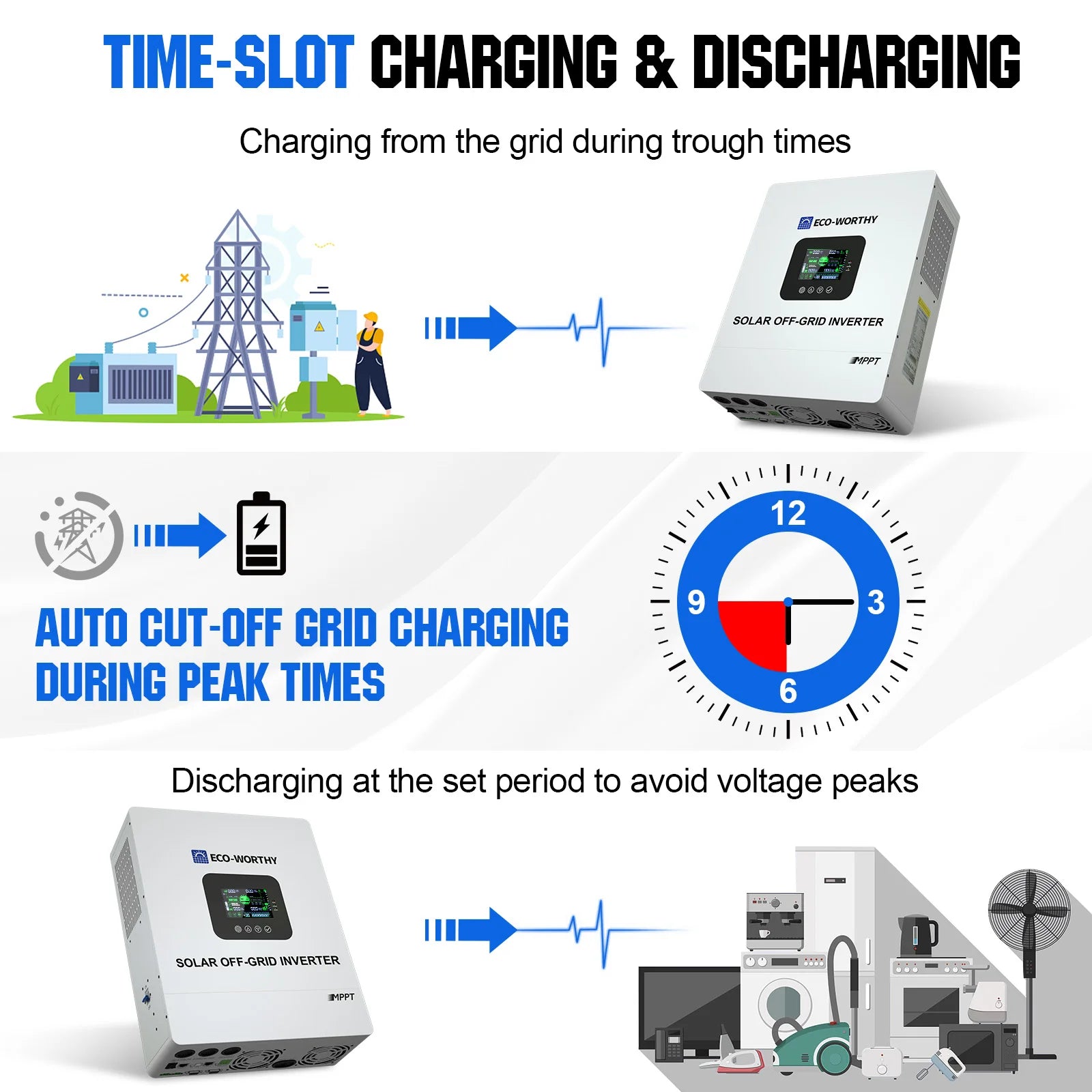

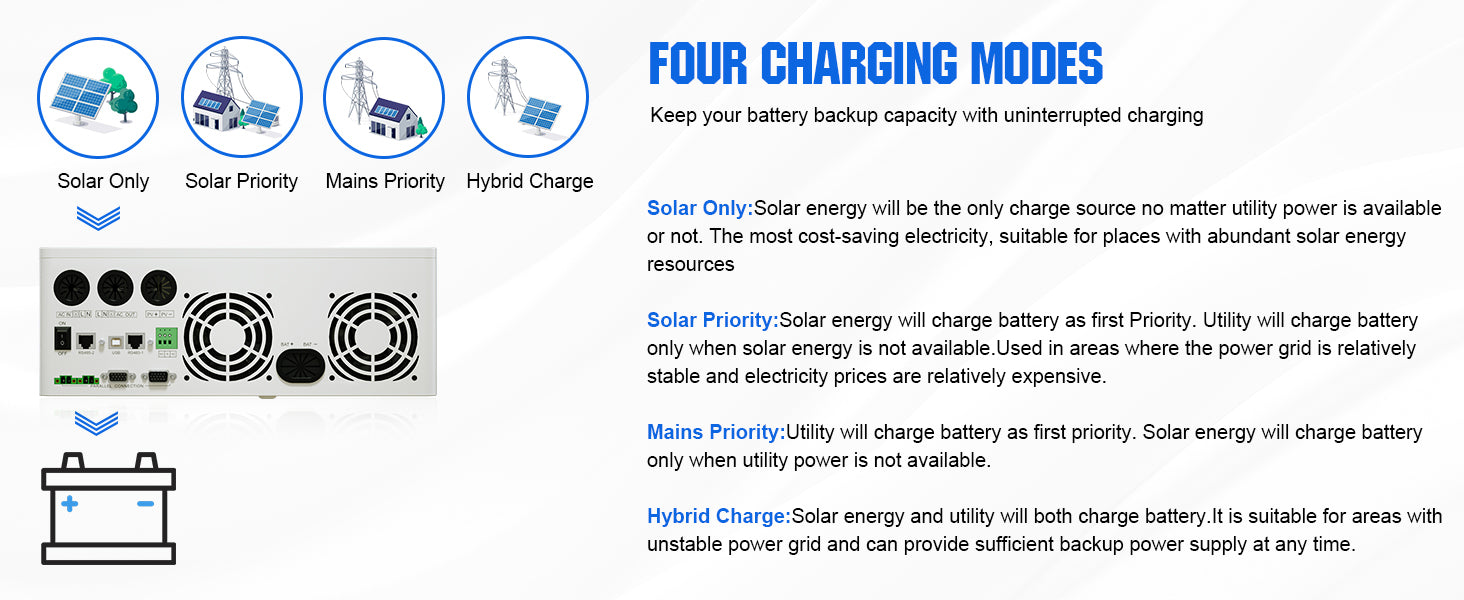

Three output modes: mains priority, battery priority, PV priority; uninterrupted power supply; Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains and Solar Hybrid charging; Set a flexible time period for mains charging/discharging according to the local mains condition, and help you save the mains
[Enhanced Energy Stability]
Enjoy reliable power through features such as Uninterruptible Power Supply and multiple output modes. Reduce dependence on traditional energy sources, thus achieving significant cost savings

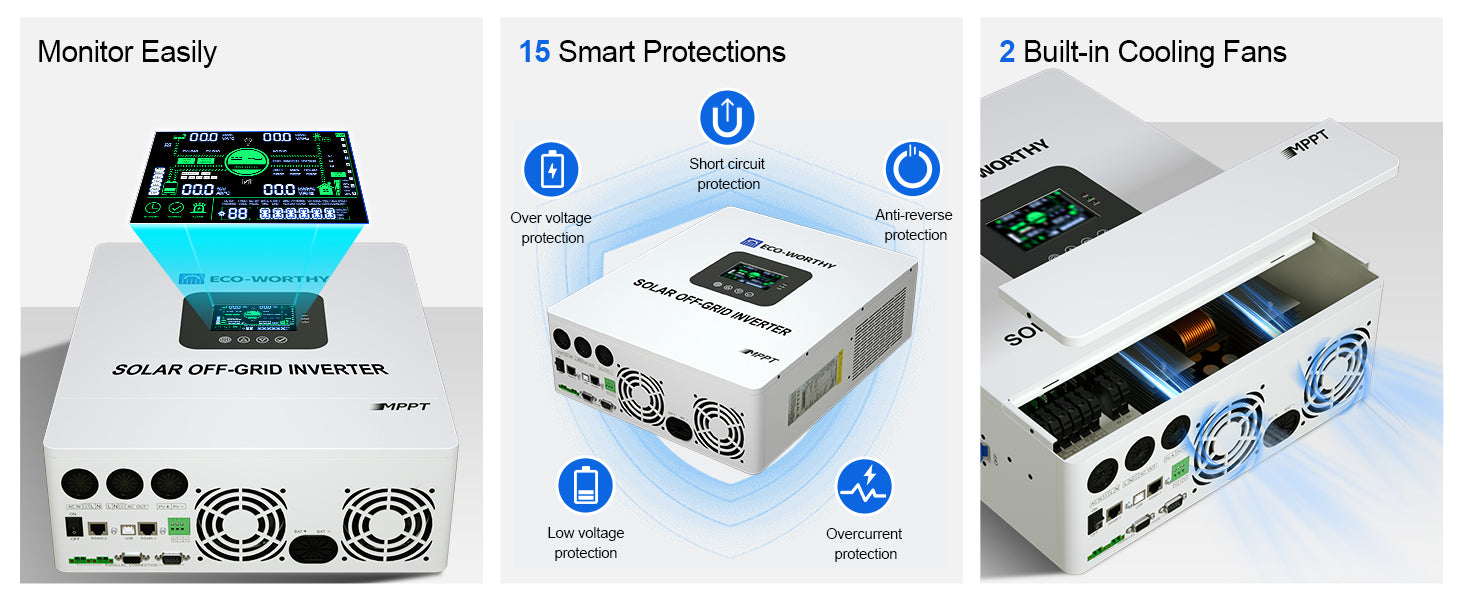

[Easy and Safe Use]
LCD display to monitor all data anytime; Multiple intelligent protections, such as PV input current/power limiting protection, PV input over-voltage, PV night reverse current protection, multiple cooling fans to prevent over-heat issue, etc
