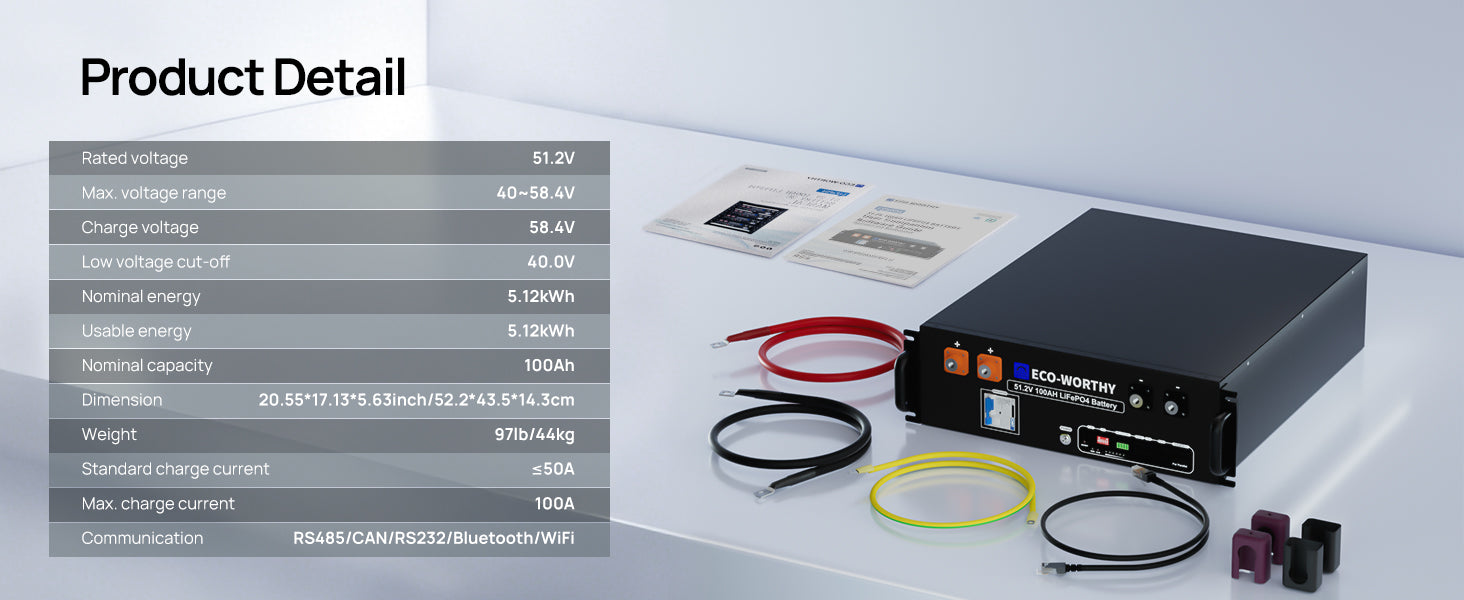

SPECIFICATIONS

Amp Hours: 100Ah

Application: Solar/Wind Devices, RV Battery, On/Off Grid Solar System

Battery Size: 51.2V

Brand Name: ECO-WORTHY

Certification: UL

Charge Over-Current Protection: 200±30A

Charging Temperature: 32~131℉/0~55 ℃

Chemical Composition: Lithium Iron Phosphate (LiFePO4)

Color: Black

Country of Origin: China

Current Type: AC/DC

Discharging Temperature: -4~131 ℉ / -20 ~55 ℃

End of charge voltage: 58.4V

Energy: 5120Wh

High-concerned chemical: None

Maximum continuous charge: 100±5A

Maximum continuous discharge: 100±5A

Maximum operational current: 1C

Maximum operational voltage: 58.4V

Model Number: L02NK50USL4800CNZH-1

Nominal Voltage: 51.2V

Origin: Mainland China

Power Source: Solar

Rated Capacity: 100Ah

Short circuit protection: Yes

Standard charge: 25±1A

System Configuration: Off-Grid

Temperature Protection: Yes

Type: Lithium Battery

Voltage: 48V,48 V

Weight: 94.8 Ibs

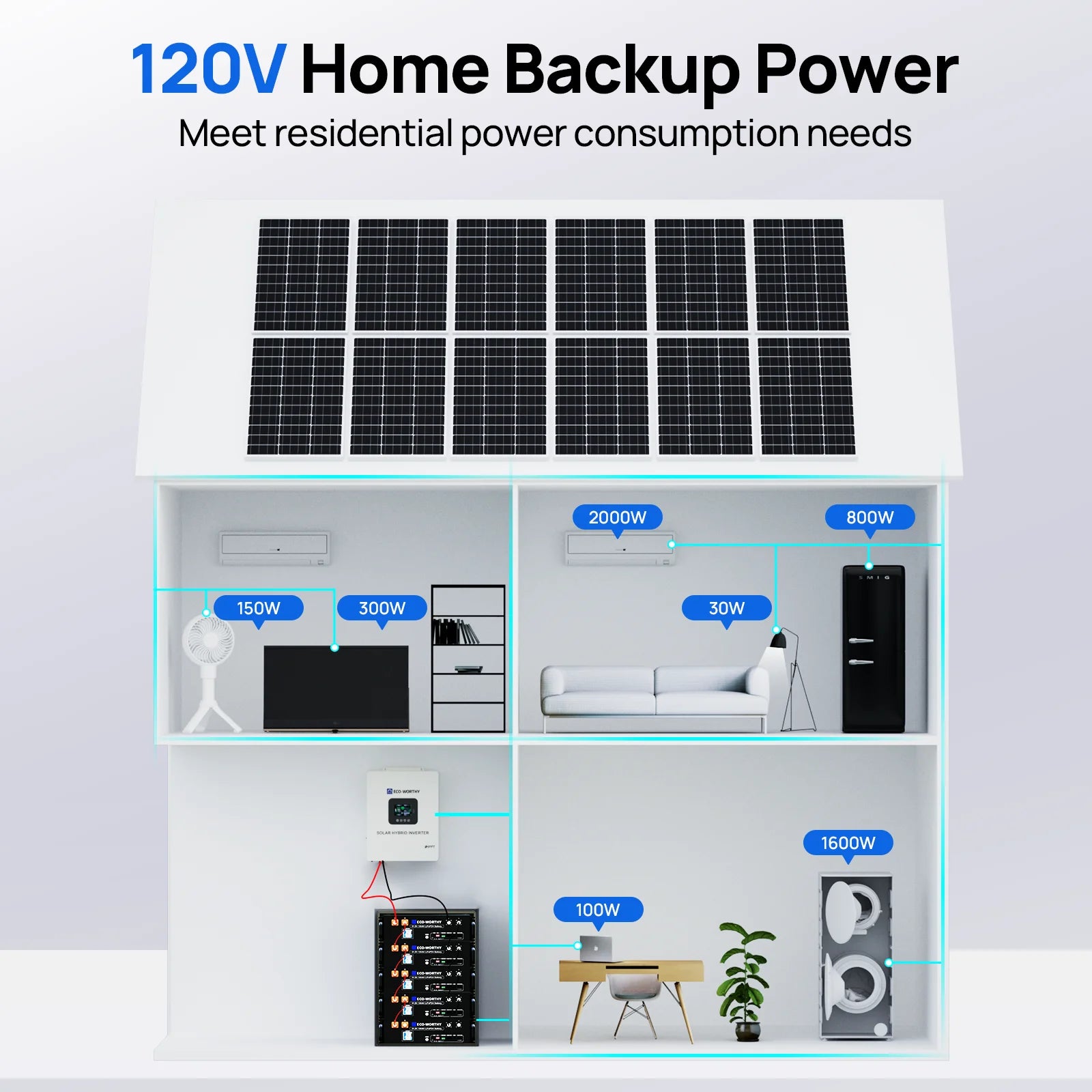

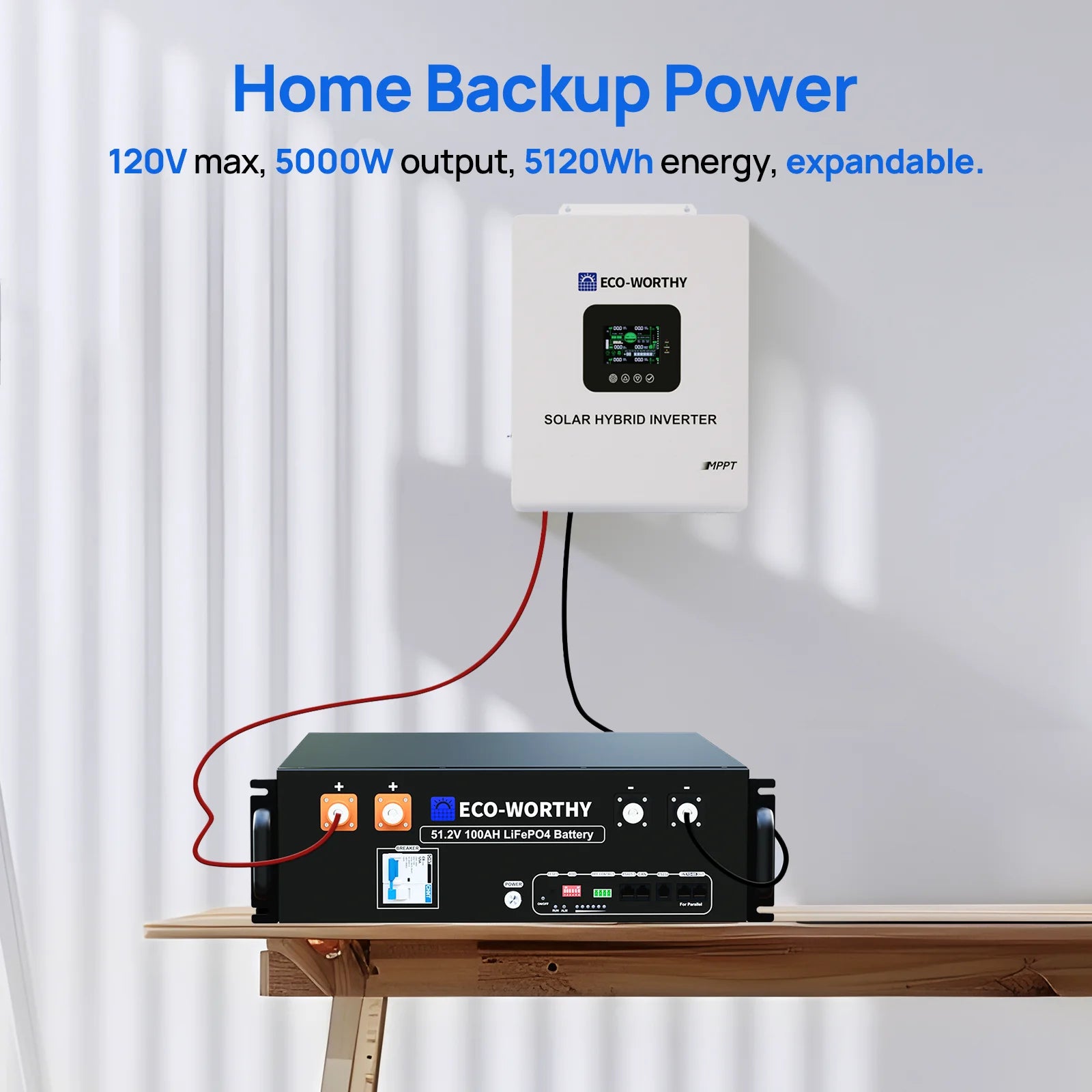

[Perfect Home Power Station］

The setup includes an MPPT off-grid inverter and one battery. One inverter supports 120V and has an outstanding 5000W output, allowing you to run almost any heavy - duty household appliance. For more power, up to 6 off-grid inverters can be paralleled to unlock 30kW of AC output. The batteries can be paralleled with up to 15 batteries to expand the capacity, unlocking 76.8KWh of storage.

[Dual Battery Certifications]

Our battery has obtained CEC (California Energy Commission) listing certification, meeting the strict performance, efficiency, and safety standards set by the California Energy Commission. Additionally, it has passed UL safety certification, having undergone rigorous testing in accordance with UL1973 and UL9540A—two benchmark safety standards in North America. Equipped with a full-metal robust shell, 100A BMS (Battery Management System) with multi-layer protection, and an integrated 125A circuit breaker.

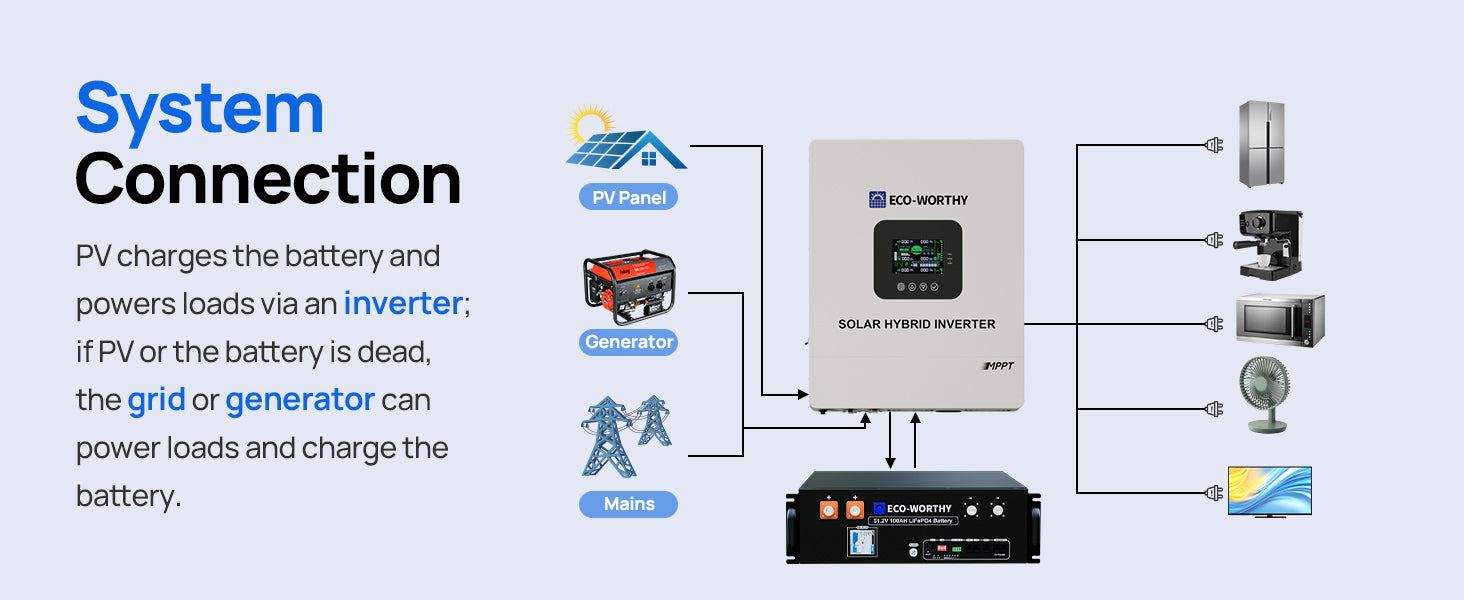

[Multiple Charging Methods]

If you have installed a solar photovoltaic system at home, you can prioritize charging the batteries using the off - grid system. You can also choose to charge the batteries via AC mains. Charging speed: up to 40A for AC charging, with a full charge in 2.5H; up to 100A for PV charging, with a full charge in 1H. It charges faster than any other 5kWh backup energy source.

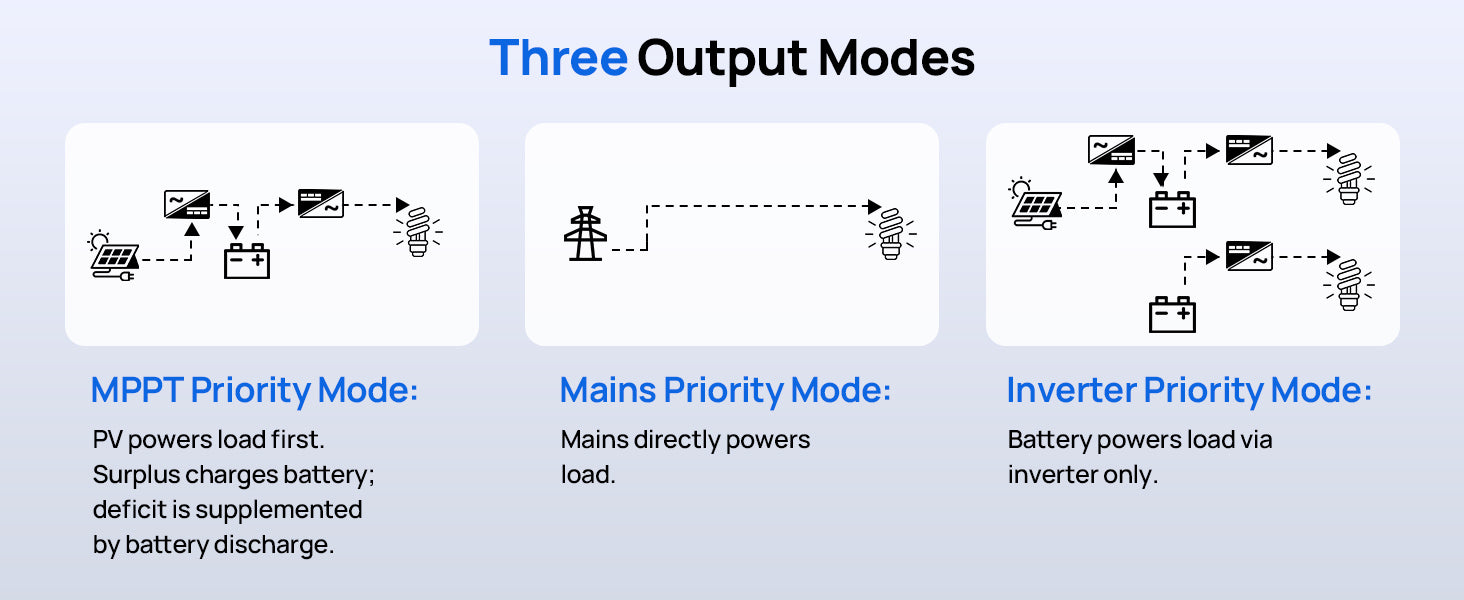

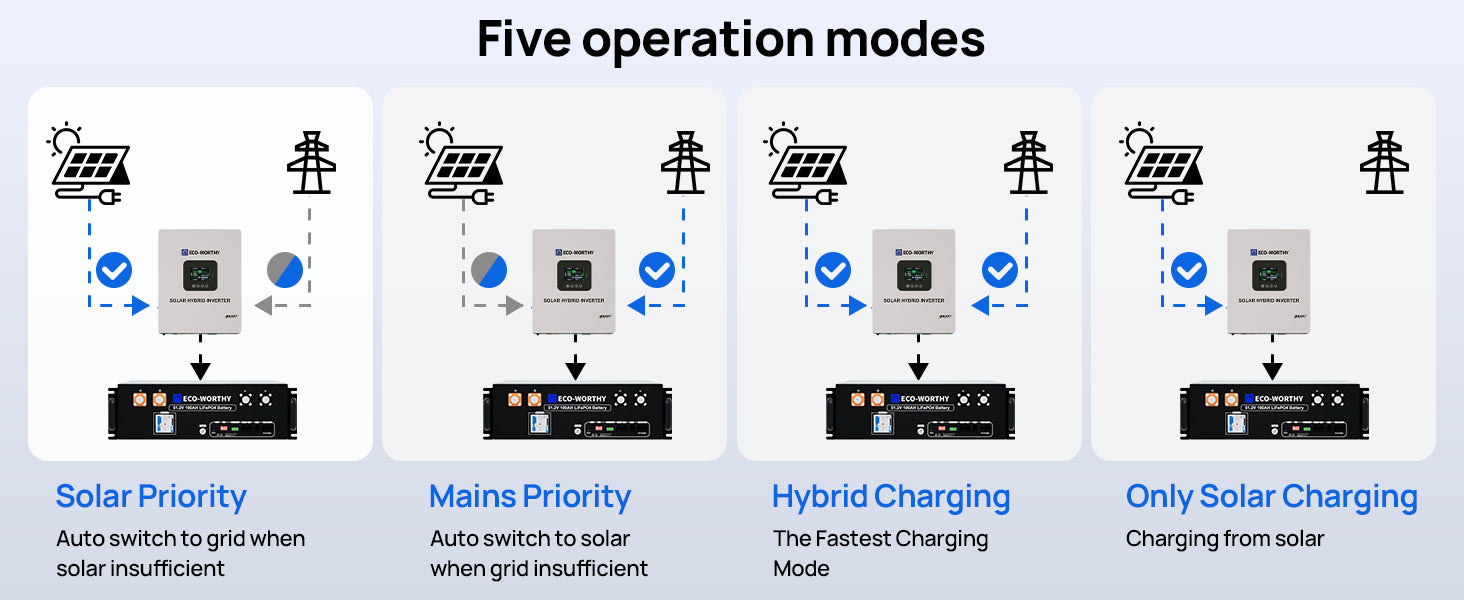

[UPS Automatic Switching]

It has a backup power (UPS) function. You can set the priority for switching between the grid mode and the inverter mode, easily charge the batteries and power the load. When the grid fails, it automatically switches the grid power to the battery to provide uninterrupted power to the load. Keep your home powered and embrace the power of uninterrupted supply.

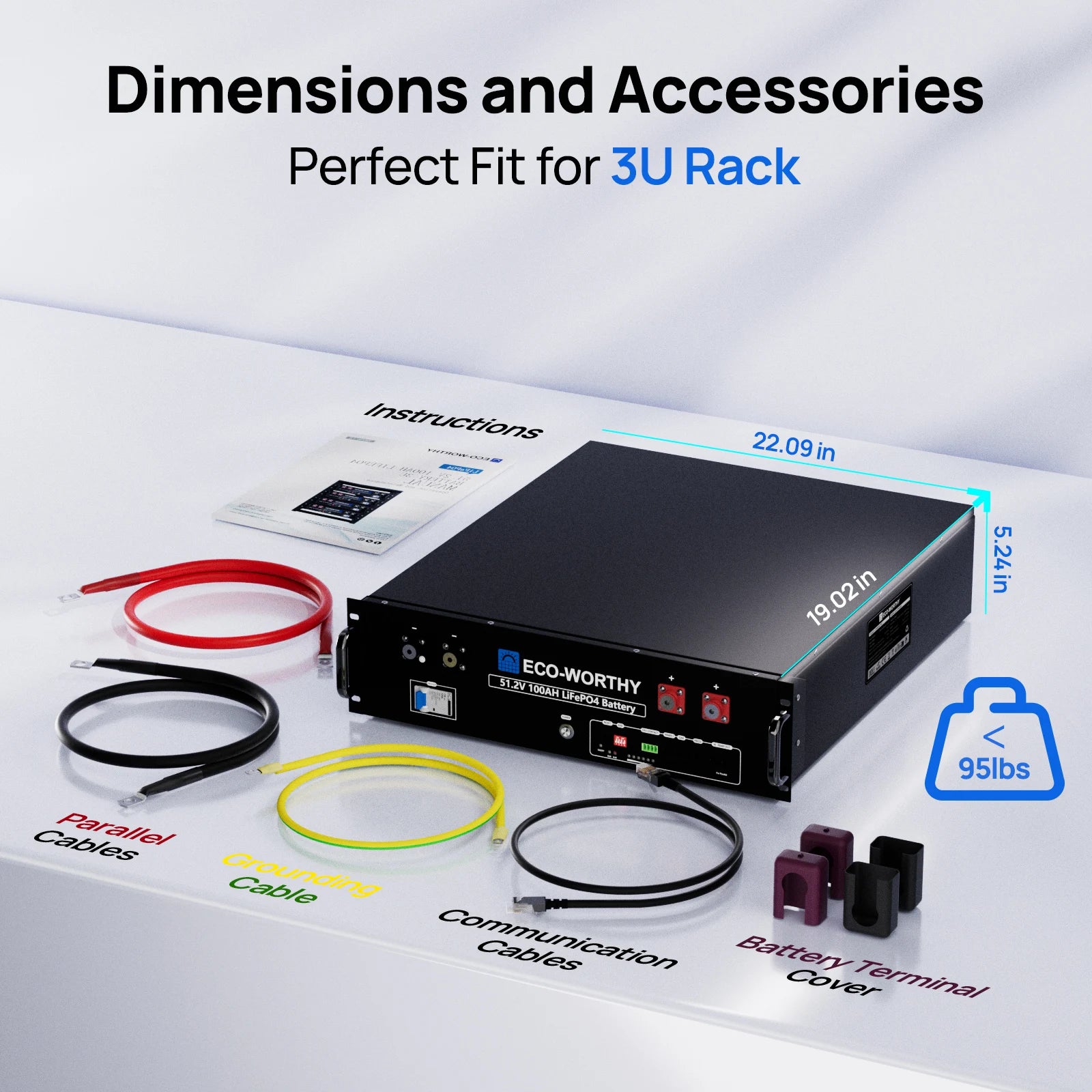

[Package Contents]

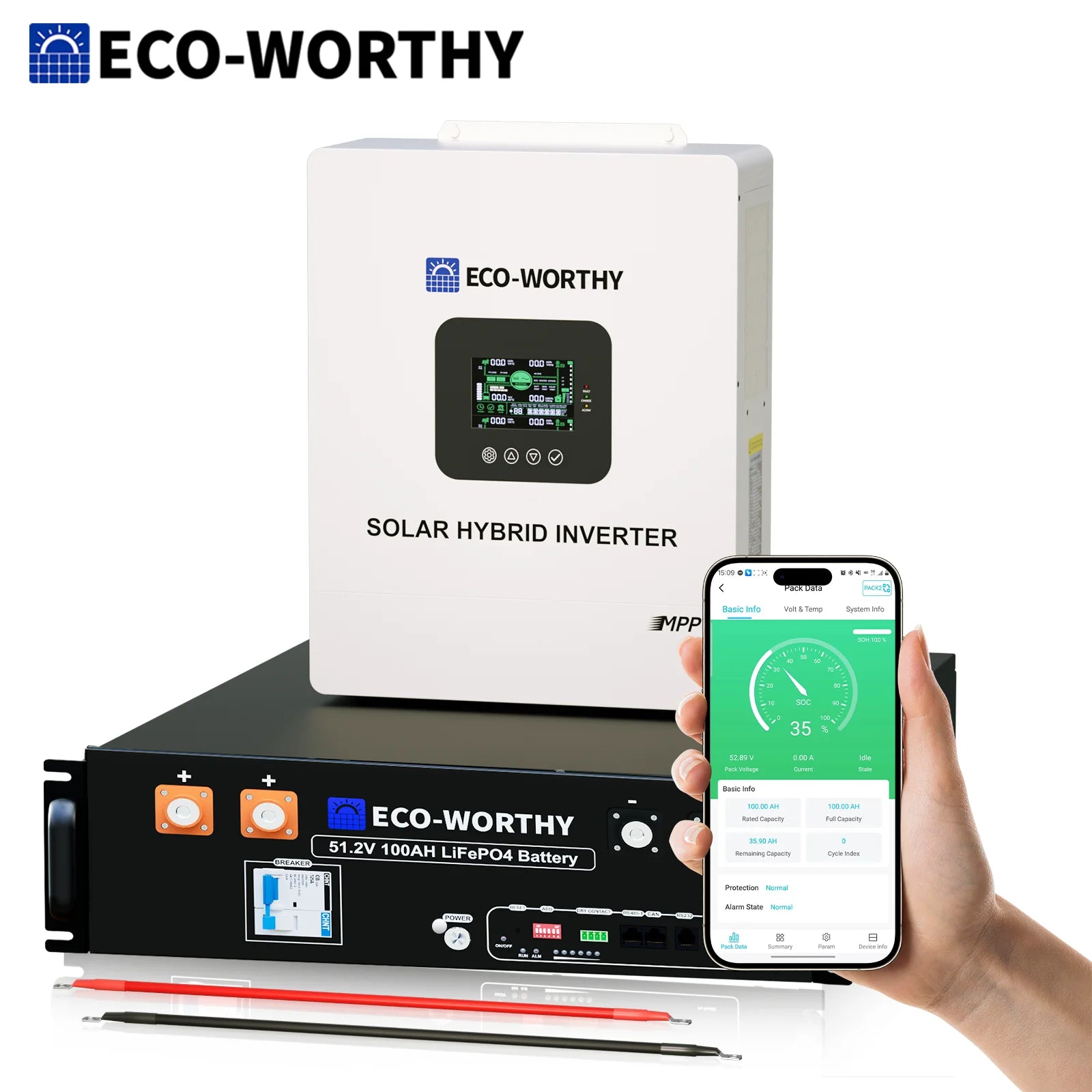

This Home power station includes one 5000W off-grid inverter, one 48V 100Ah lithium battery with necessary accessories. Please note the product ships in multiple packages and ensure all components are received.
