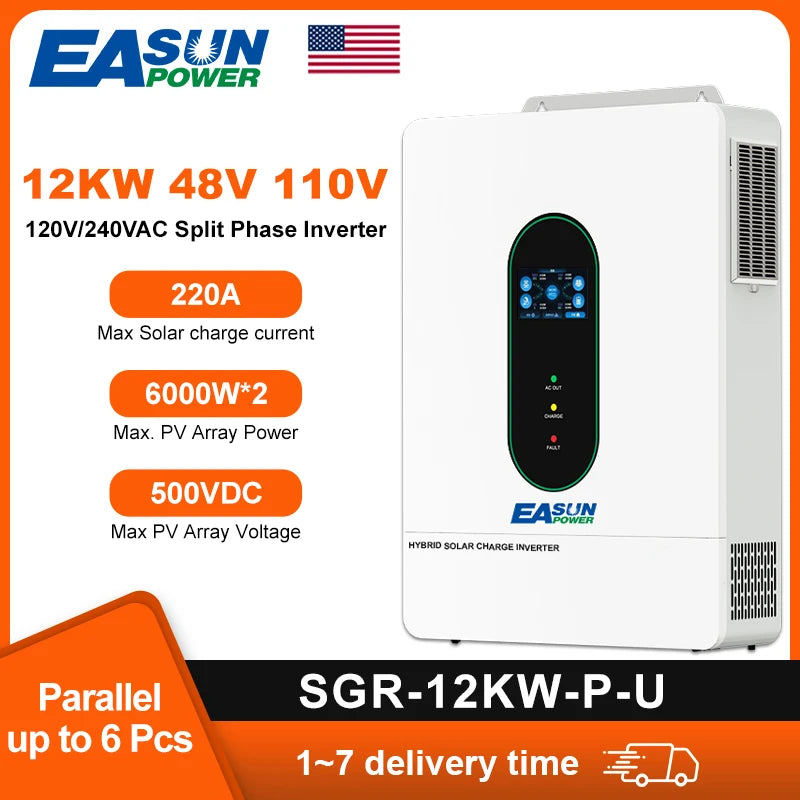

EASUN POWER 12KW Split Phase Inverter 48V 110V Hybrid Solar Inverter 220A MPPT Paralleled With WiFi Solar Controller Inversores

The family vendor

EASUN POWER 12KW Split Phase Inverter 48V 110V Hybrid Solar Inverter 220A MPPT Paralleled With WiFi Solar Controller Inversores

$1,163.26

SPECIFICATIONS

48v inverter: split phase inverter

Battery type: Lead acid or lithium battery

Brand Name: EASUN POWER,EASUN POWER

Certification: CE

Communicati on interface: USB/RS485/WiFi

EANCode: 8710009990006

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature 1: Parallel version with CT

High-concerned chemical: None

Is Smart Device: Yes

Max MPPT Voltage: 500VDC

Maximum PV Array Power: 6000W*2

Model Number: 12KW

Noise: ≤60dB

Origin: Mainland China

Output Current: 2pole, 60A/60A(L1/L2)

Output Frequency: 50/60HZ,50HZ/60HZ

Output Type: DUAL

Output voltage waveform: Pure sine wave

Permitted parallel number: 1-6pcs

Rated input voltage: 120(L1/N, L2/N)/240Vac(L1/L2)

Size: 80*56*22cm

Weight: 28KG

communication interface: RS485/CAN

free energy: inversor split phase 120/240v

hybrid inverter 48v: hybrid inverter solar

hybrid solar inverters 48v: 12kw hybrid solar inverters 48v for usa

inversores hybridos solares 48v salida 110: usa warehouse

is_customized: Yes

off grid: inversores hybridos solares

solar panel: 12000W

solar system: split phase inverter 48v 110v

split phase inverter: mppt

EASUN POWER 12KW Split Phase Inverter 48V 120V 240V Hybrid Solar Inverter Dual MPPT Paralleled With WiFi 2 MPPT Solar Controller

Description:sumry Sumry 4kw eco worthy ecoworthy

EASUN POWER 12KW 48V Solar Hybrid Inverter 120V/220V Pure Sine Wave Power Inverter Split Phase 200A/220A Charger System

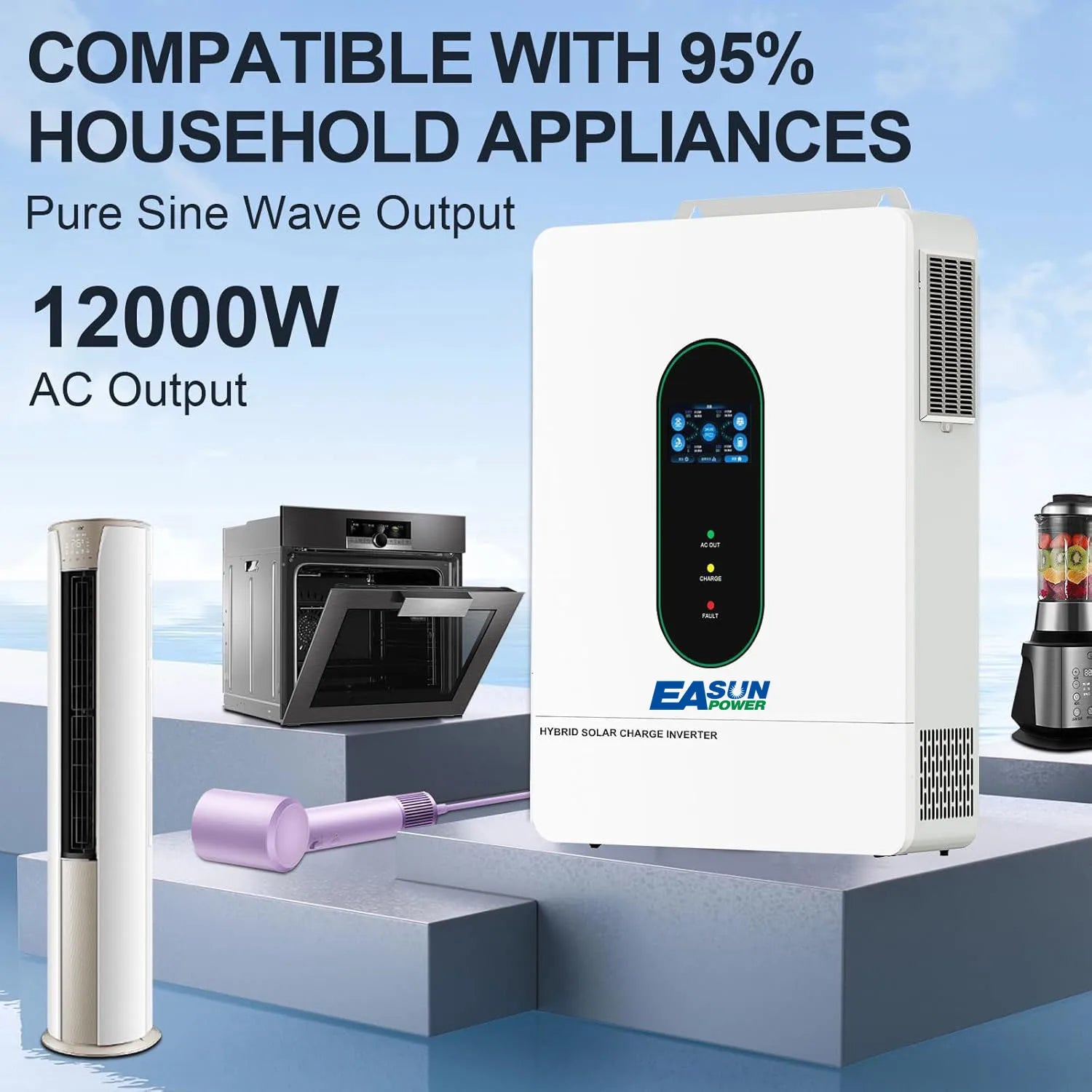

1.Pure sine wave

2.Output 120VAC (L1/N,L2/N) / 240VAC (L1/L2)

3.Power factor 1.0

4.Photovoltaic input voltage 90-500Vdc

5.Built-in MPPT 220A

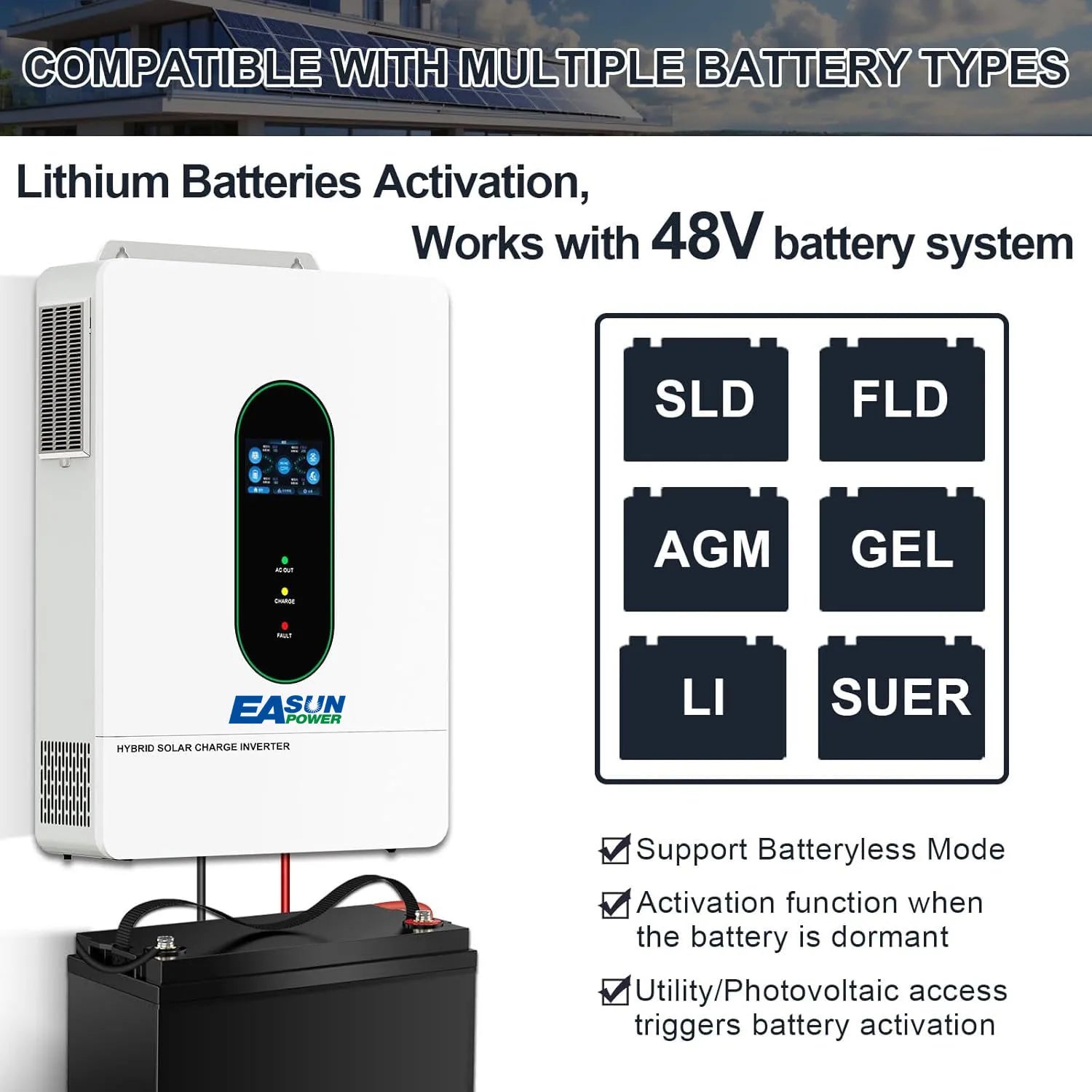

6.Works compatible with LifePO4 batteries

7.Dual PV input

8.WiFi remote monitoring

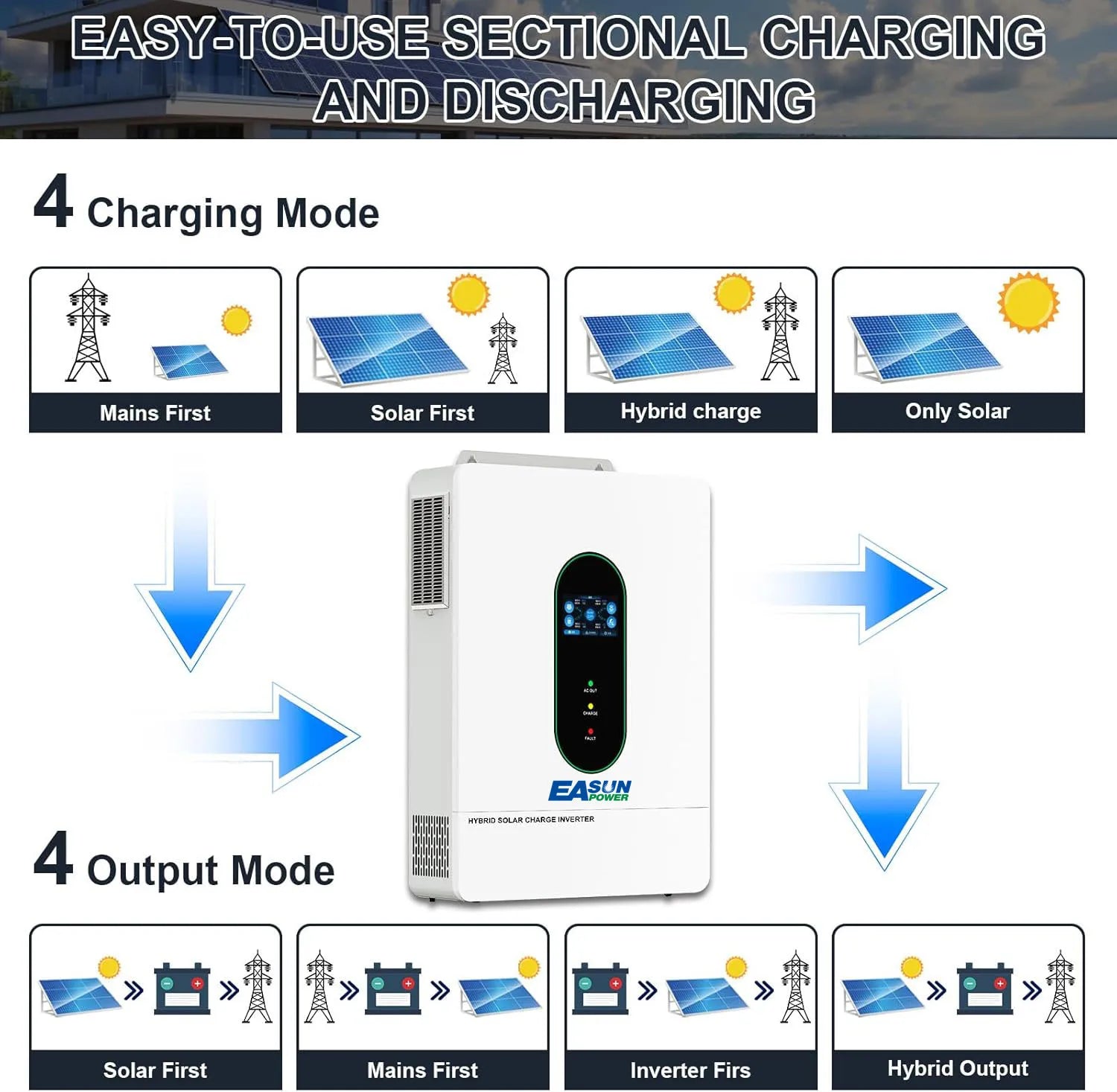

9.Supports multiple output priorities to optimize battery performance and extend life cycle

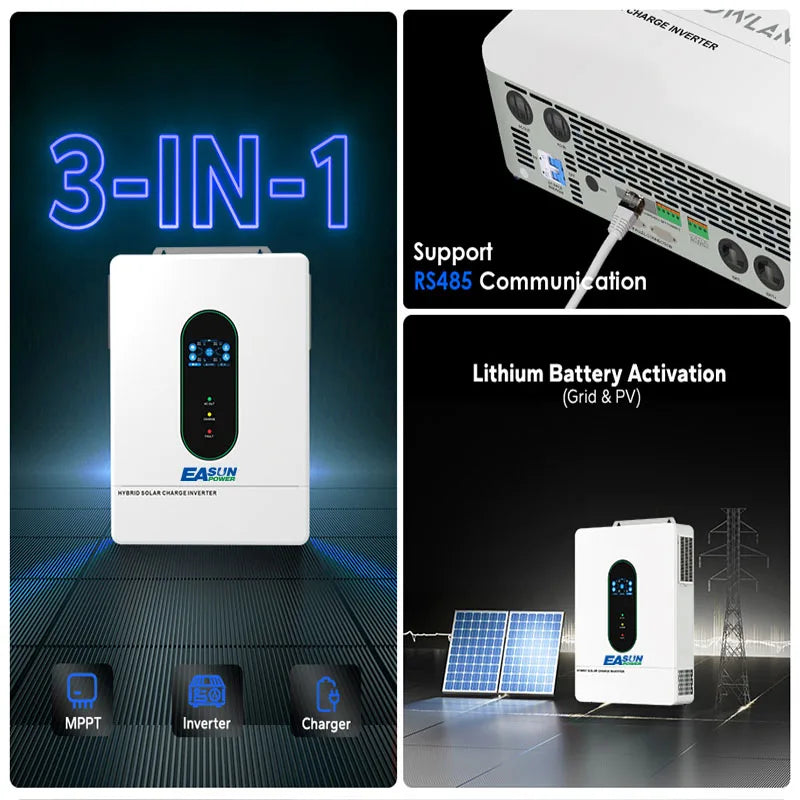

10.Supports RS485 communication protocol with dry node interface

11.Parallel function (optional)

12.Supports working without battery

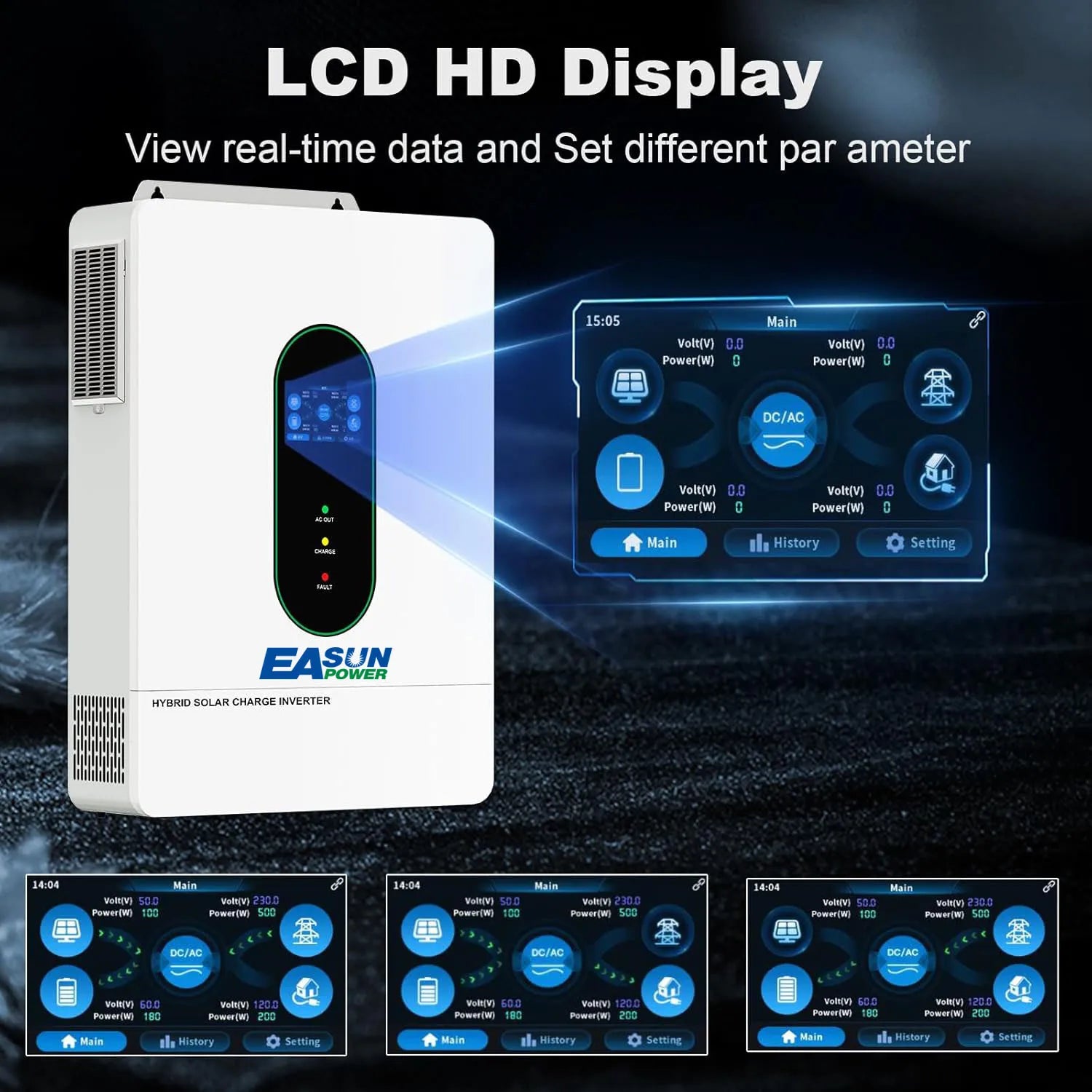

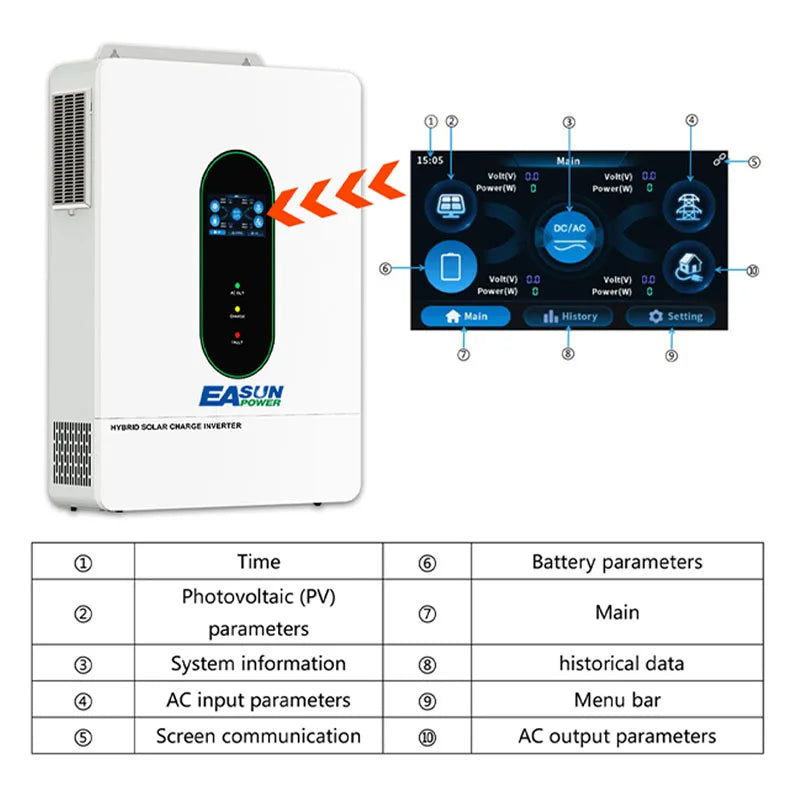

13.LCD touch display

14.Supports feeding power to the grid function

15.Bring PC software to set all functions of the inverter

16.Dual PV input and output

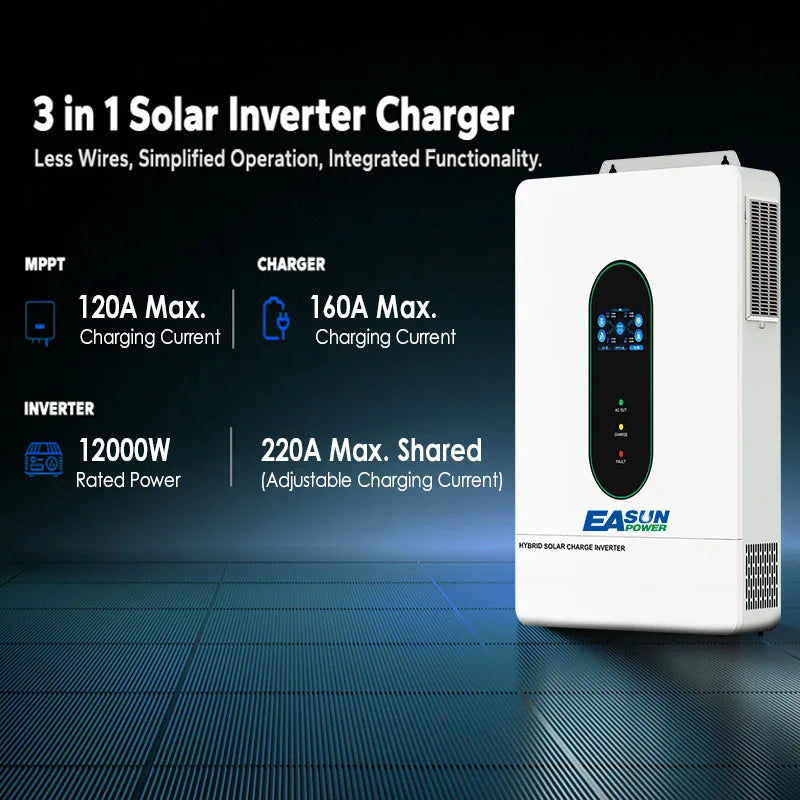

17.The maximum charging current of the mains power is 160A, but the maximum charging current of the battery is 220A

Models

SGR-12KW

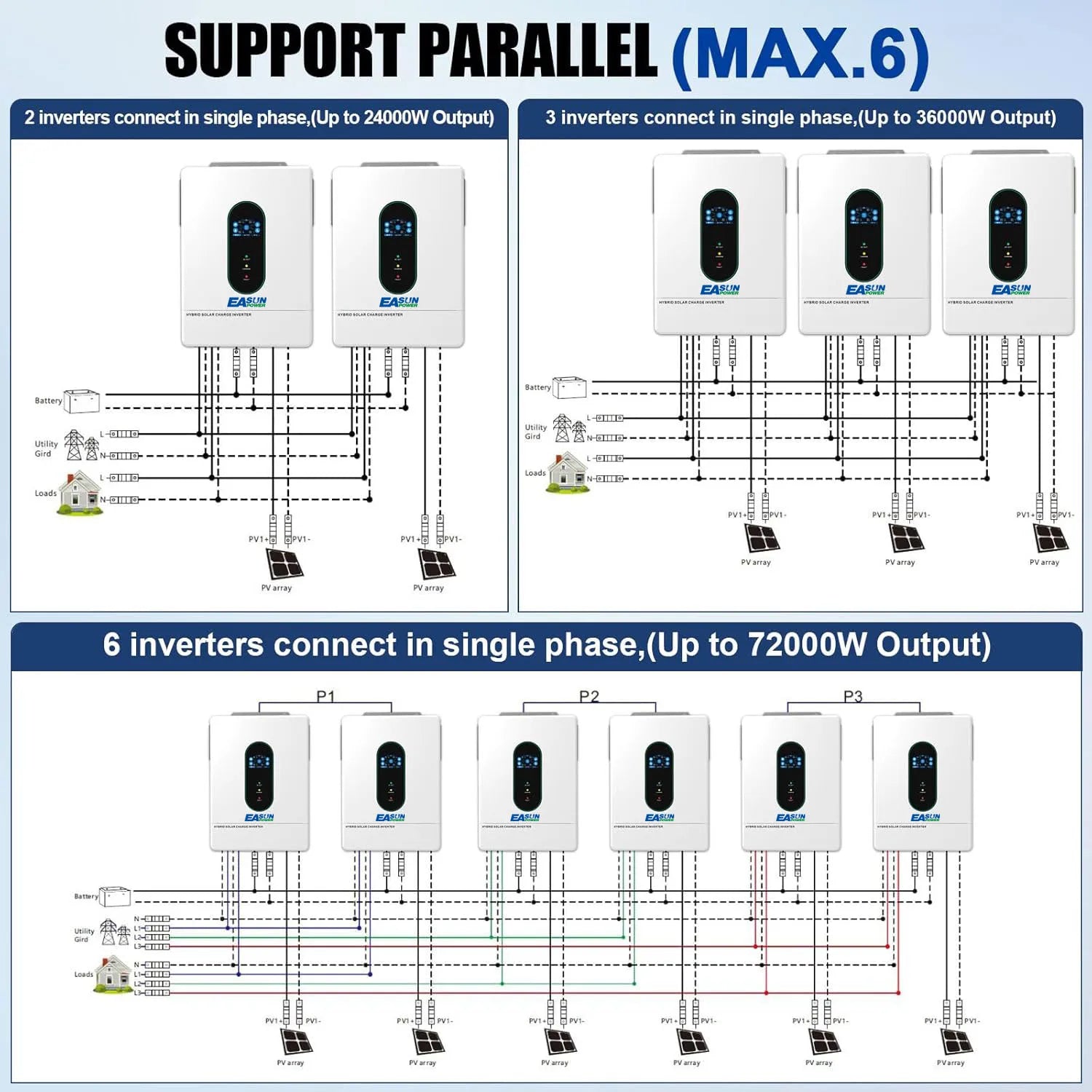

Parallel mode

Permitted parallel number

1~6

AC mode

Rated input
voltage

120(L1/N, L2/N)/240Vac(L1/L2)

Input phase
voltage range

(85Vac~140Vac)±2%

Frequency

50Hz/60Hz (Auto detection)

Frequency
Range

47±0.3Hz~55±0.3Hz (50Hz)
57±0.3Hz~65±0.3Hz (60Hz)

Overload/
short circuit
protection

Circuit breaker

Efficiency

>95%

Conversion
time (bypass
and inverter)

10ms (typical)

AC reverse
protection

Yes

Maximum
bypass phase
overload
current

2pole, 60A/60A(L1/L2)

Inverter mode

Output
voltage
waveform

Pure sine wave

Rated output
power (VA)

Split phase: 12000

Rated output
voltage (Vac)

120Vac (L1/N, L2/N)/240Vac(L1/L2)

Output
voltage error

±5%

Maximum
Efficiency

>91%

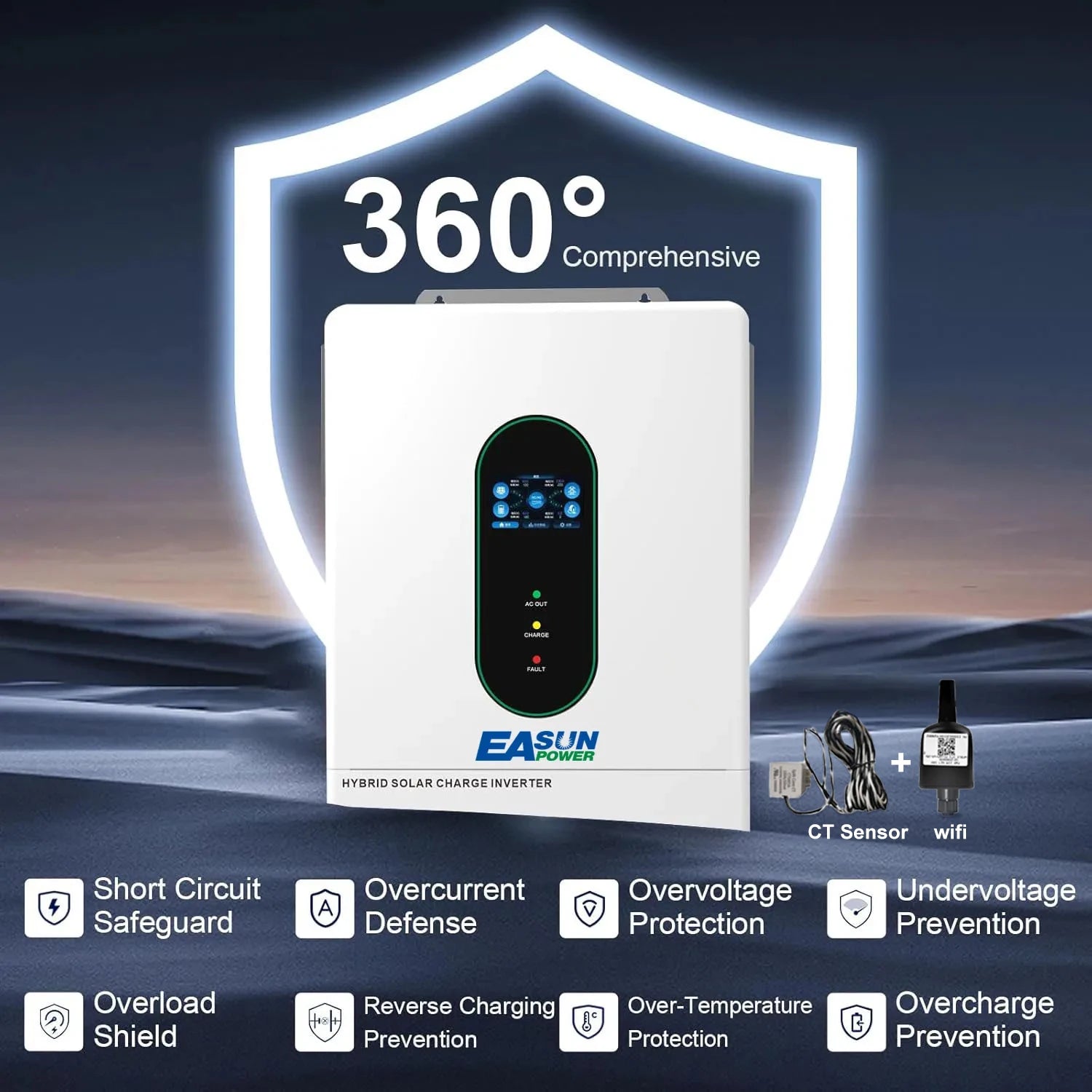

Overload
protection

(105% < load <110%) ±5%: report error and turn off the output after 5 minutes;
(110% < load < 125%) ± 5%: report error and turn off the output after 10 seconds;
Load >125% ±5%: report error and turn off the output after 5 seconds;

Output short
circuit
protection

Can protect, after continuous short circuit for 1 second

AC charging

Battery type

Lead acid or lithium battery

Maximum
charge
current(can
be set)

160A

Charge
voltage range

40-58.6Vdc

PV charging

Number of
MPPT groups

2

Maximum PV
open circuit
voltage

500Vdc

PV operating
voltage range

90Vdc~485Vdc

MPPT voltage
range

90Vdc~450Vdc

Wiring
protection

Reverse polarity protection

Certified specifications

Humidity
range

5% to 95%（Conformal coating protection）

Noise

≤60dB

Heat
dissipation

Forced air cooling, variable speed of fan

Communicati
on interface

USB/RS485(/WiFi/GPRS)/Dry node control

Color: 12KW

Ships From: United States

United States

Input Voltage: 48V

48V

Quantity:

The family vendor EASUN POWER 12KW Split Phase Inverter 48V 110V Hybrid Solar Inverter 220A MPPT Paralleled With WiFi Solar Controller Inversores

$1,163.26

Models	SGR-12KW
Parallel mode
Permitted parallel number	1~6
AC mode
Rated input voltage	120(L1/N, L2/N)/240Vac(L1/L2)
Input phase voltage range	(85Vac~140Vac)±2%
Frequency	50Hz/60Hz (Auto detection)
Frequency Range	47±0.3Hz~55±0.3Hz (50Hz) 57±0.3Hz~65±0.3Hz (60Hz)
Overload/ short circuit protection	Circuit breaker
Efficiency	>95%
Conversion time (bypass and inverter)	10ms (typical)
AC reverse protection	Yes
Maximum bypass phase overload current	2pole, 60A/60A(L1/L2)
Inverter mode
Output voltage waveform	Pure sine wave
Rated output power (VA)	Split phase: 12000
Rated output voltage (Vac)	120Vac (L1/N, L2/N)/240Vac(L1/L2)
Output voltage error	±5%
Maximum Efficiency	>91%
Overload protection	(105% < load <110%) ±5%: report error and turn off the output after 5 minutes; (110% < load < 125%) ± 5%: report error and turn off the output after 10 seconds; Load >125% ±5%: report error and turn off the output after 5 seconds;
Output short circuit protection	Can protect, after continuous short circuit for 1 second
AC charging
Battery type	Lead acid or lithium battery
Maximum charge current(can be set)	160A
Charge voltage range	40-58.6Vdc
PV charging
Number of MPPT groups	2
Maximum PV open circuit voltage	500Vdc
PV operating voltage range	90Vdc~485Vdc
MPPT voltage range	90Vdc~450Vdc
Wiring protection	Reverse polarity protection
Certified specifications
Humidity range	5% to 95%（Conformal coating protection）
Noise	≤60dB
Heat dissipation	Forced air cooling, variable speed of fan
Communicati on interface	USB/RS485(/WiFi/GPRS)/Dry node control
