1.The IM508S is only available for 1 year of free updates in North America Countries！Other countries are free updates for 2 year！

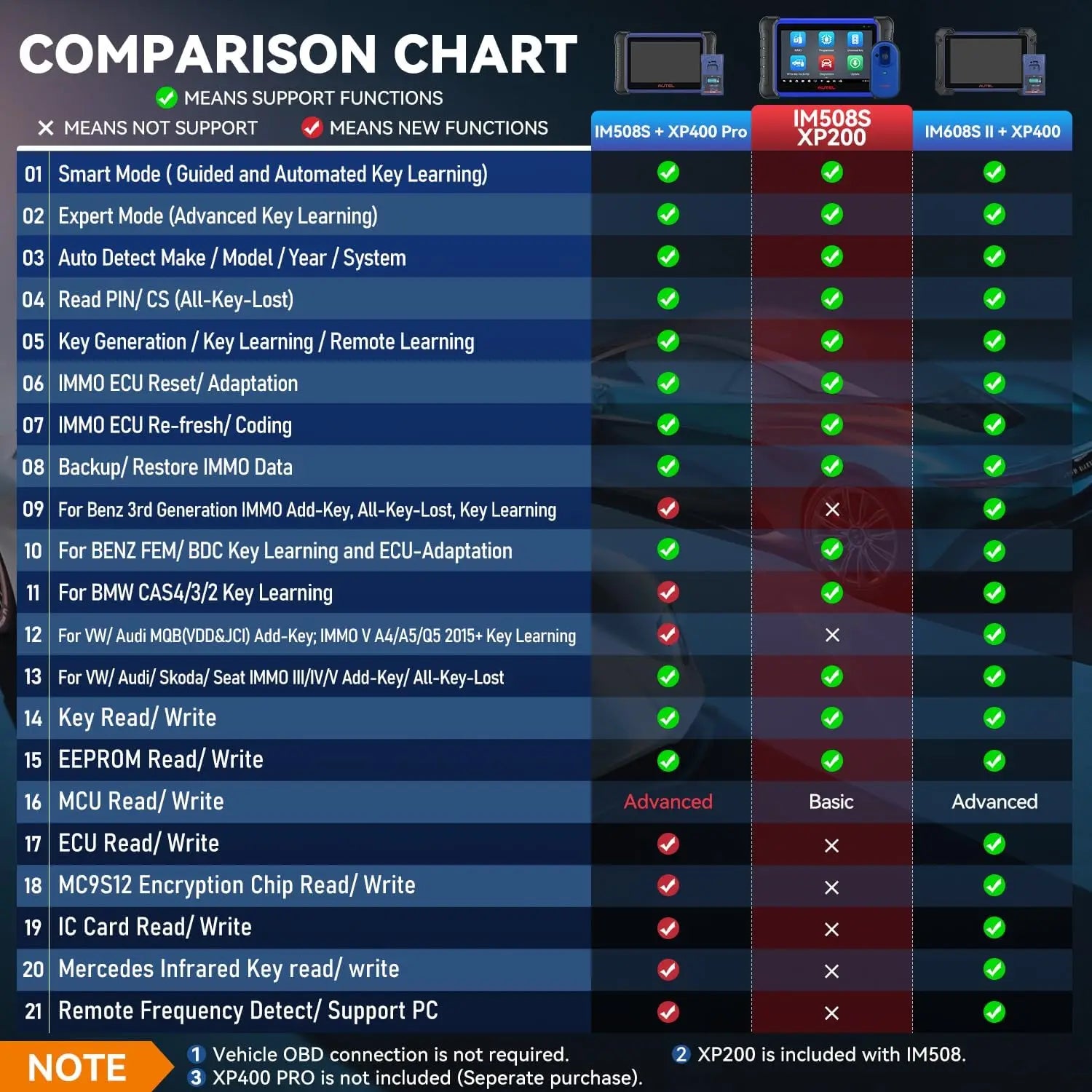

The difference of IM508S and IM508

IM508S is IM508's updated version.
IM508S Free Update Online：2 Year(Excluding the North America)
IM508S have more advanced hardware.You can check the following difference:

■ IM508S Hardware
Processor: Rockchip RK3566 Quad core, 4x 1.8GHz(A55)
RAM: 4G
ROM: 64GB
Android Version: Android 11
DB16 DLC: Support
Screen Size: 7inch

■ IM508 Hardware
Processor: Rockchip RK3188 Quad core, 4x 1.6GHz(A9)
RAM: 1G
ROM: 64GB
Android Version: Android 4.4.4
DB16 DLC: Not Support
Screen Size: 7inch

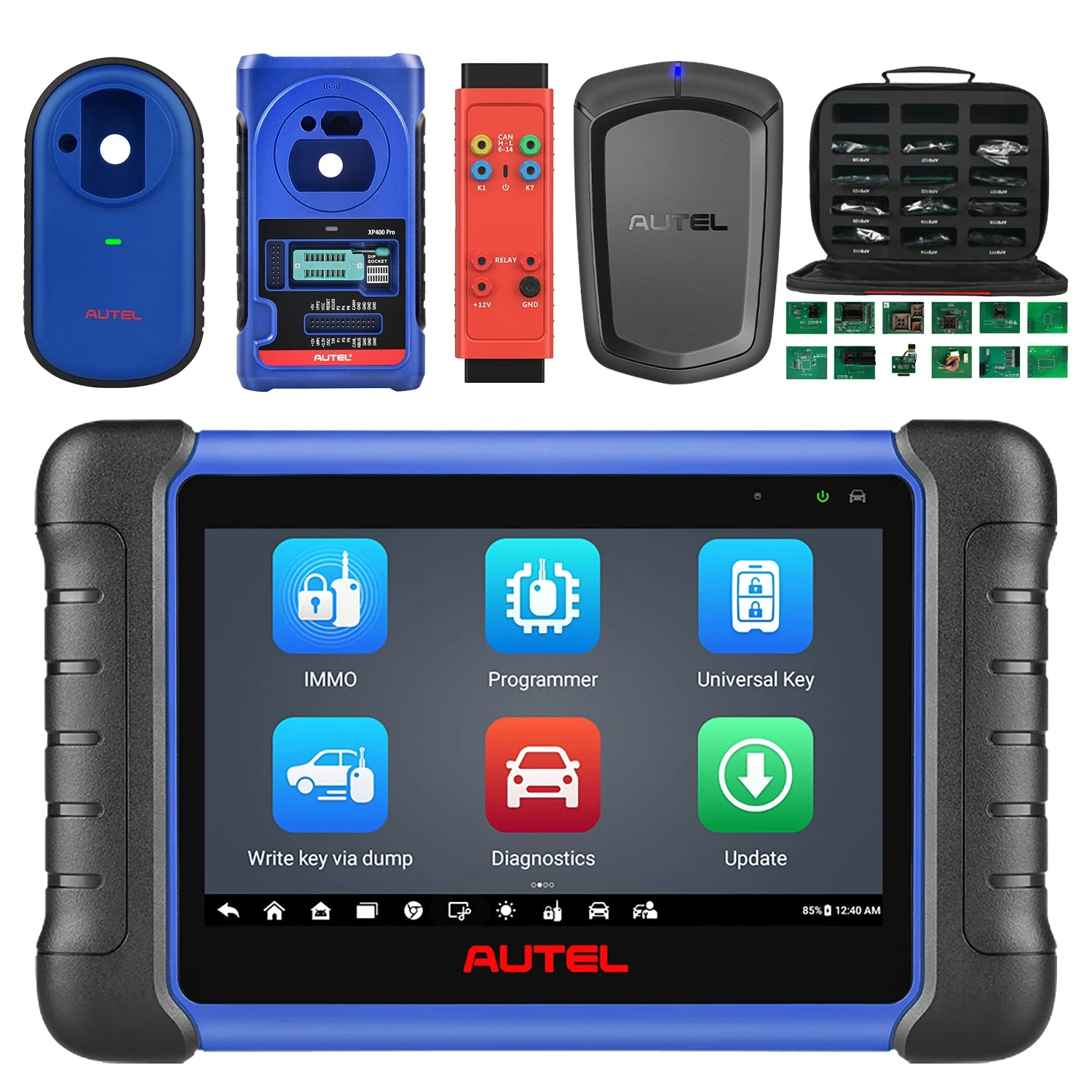

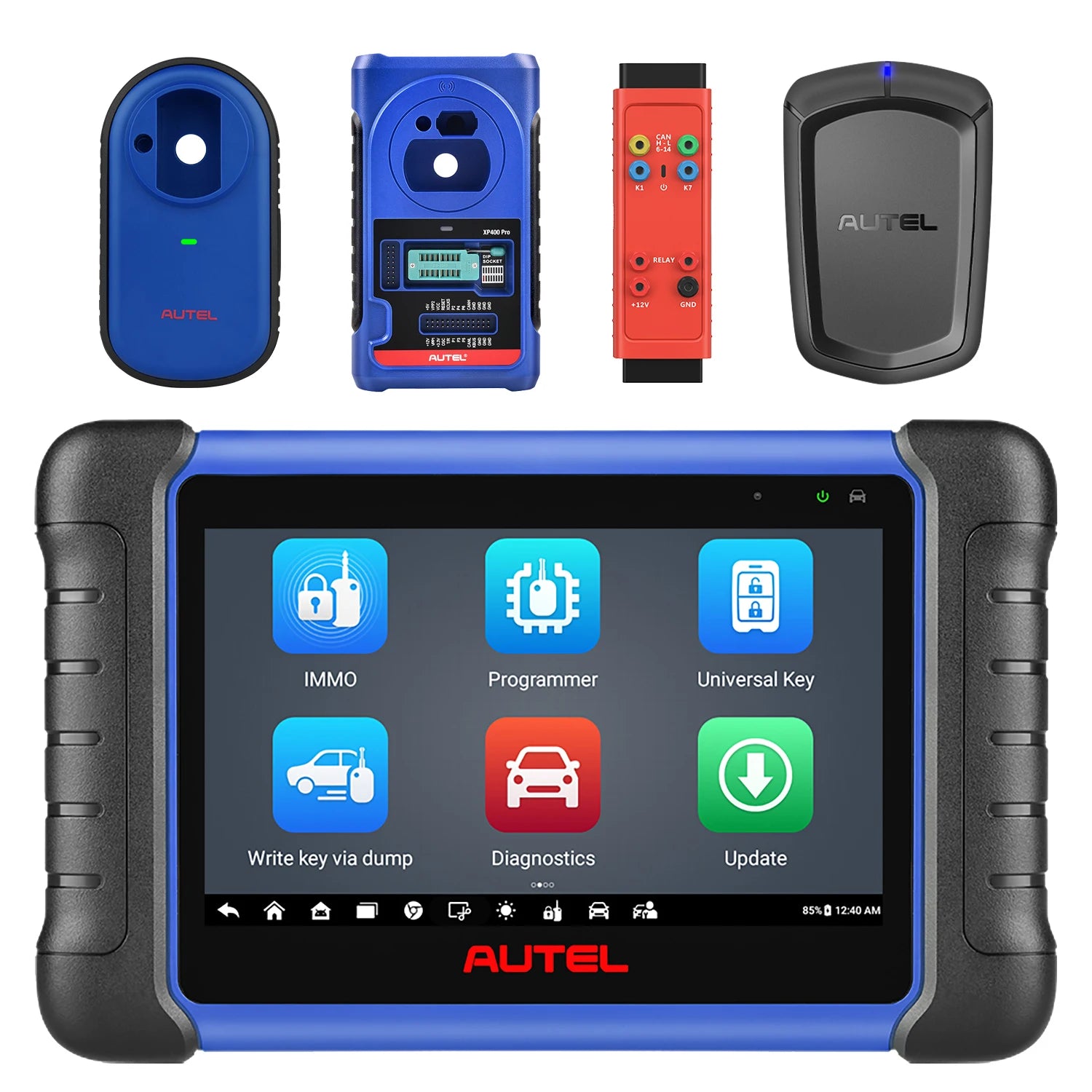

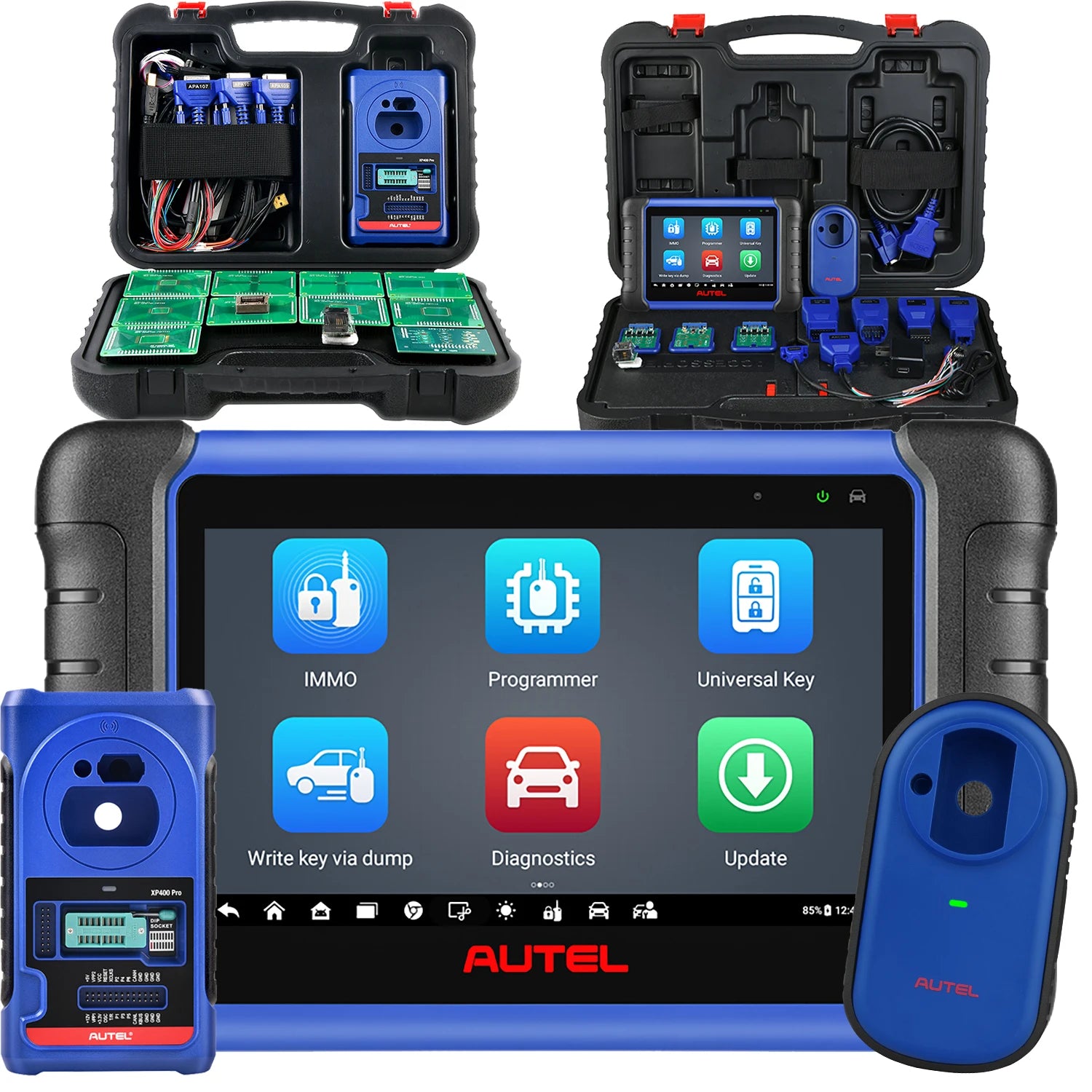

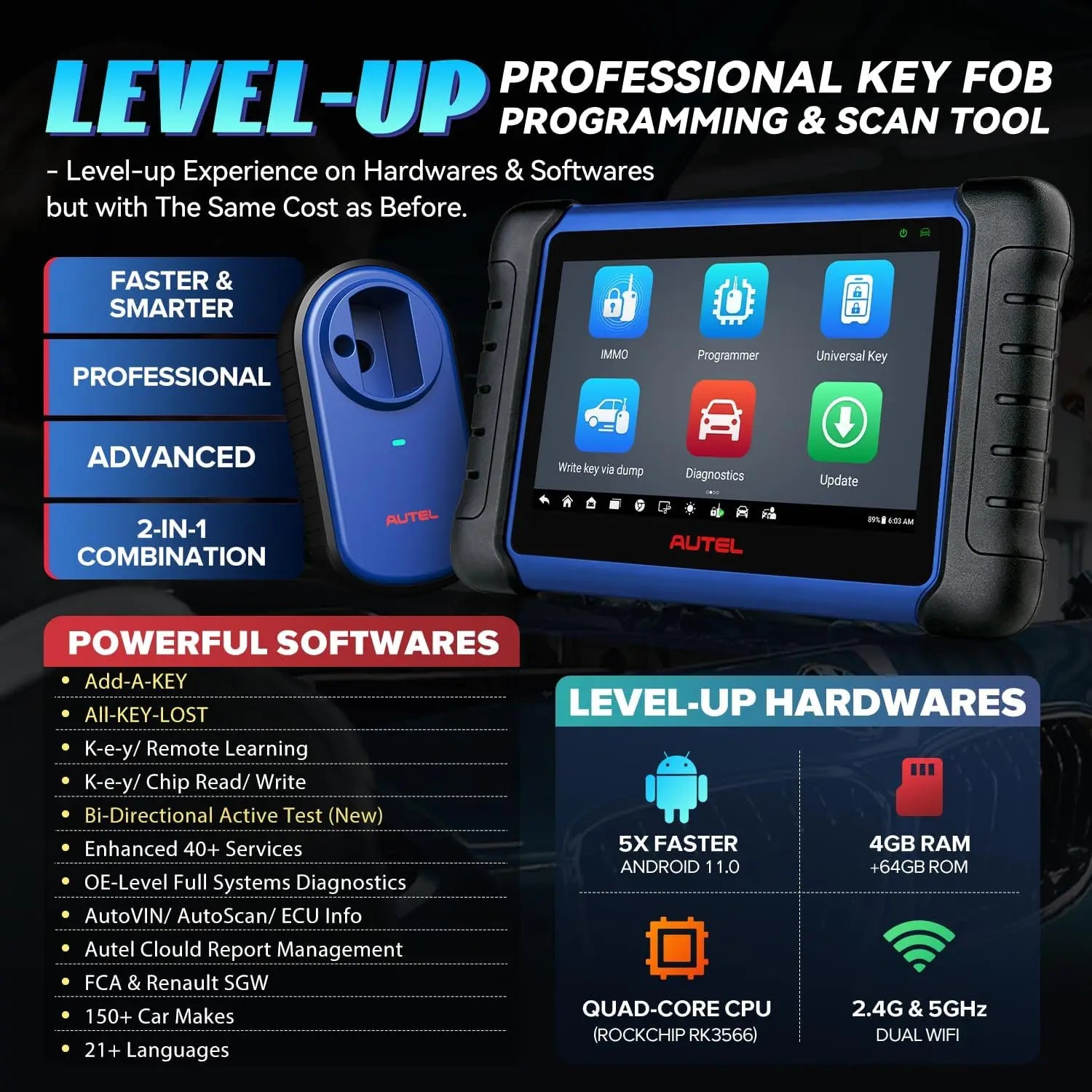

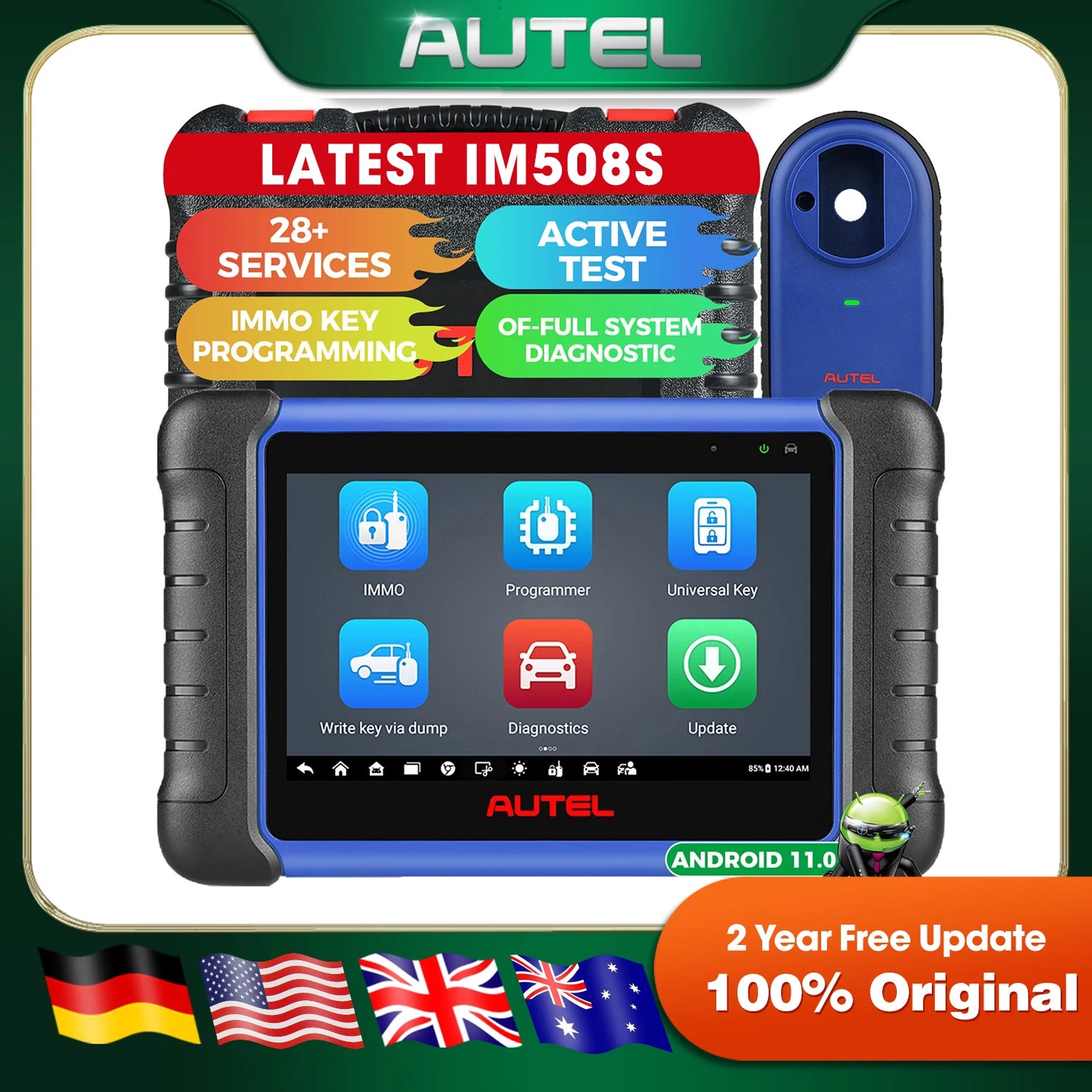

MaxiIM IM508S

MaxiIM IM508S is a 7-inch, Android-based touchscreen tablet with professional key and immobilizer programming functionality, all systems diagnostics, and an extensive service menu. The tablet, which features a quad-core processor and 64 G.B. onboard memory and runs on the powerful Android 11 operating system, offers faster bootup and operation speed. Equipped with the XP200 key programmer, the IM508S can perform key and immobilizer functions, including Key and Remote Control Learning and basic EEPROM and MCU Read and Write capabilities. The IM508S also enables technicians to complete an all-systems diagnostic scan and read and erase codes, view Freeze Frame and Live Data on U.S., Asian, and European vehicles, 1996 and newer. The tablet also features an extensive menu of the most often performed maintenance and service tasks, including oil light reset, brake bleed, battery registration, steering angle sensor reset, and occupancy seat calibration. The IM508S also offers report cloud management, making saving and sharing reports easy.

Description

• Powerful combination of key and immobilizer programming, all system diagnostics, extensive service menu
• Smart Mode for guided and automated key learning
• Expert Mode for advanced key learning
• Read PIN/CS (all keys lost) key generation, key learning, remote learning
• IMMO ECU reset/adaptation, refresh/coding
• Transpronder read/write, EEPROM/MCU read/write
• All Systems diagnostics for U.S., Asian, and European vehicles, 1996 and newer
• Extensive Service Menu, including EPB, DPF, SAS, Oil Light Reset, and BMS
• Cloud-based report management, allowing you to view device and test records anytime, anywhere
• Quad-Core processor
• Internal reliable 64GB Memory
• Android 11.0 Operating System for fast bootup and multitasking
• 7-inch LCD touchscreen with 1024 x600 resolution

Intelligent IMMO Mode - Smart Mode & Expert Mode

Smart Mode - provides step-by-step complete instruction (for DIYers & beginners & novice)

Expert Mode - selectively perform IMMO function (for skilled technicians).
You can choose the IMMO mode that suits you.

IMMO Programming

The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection. The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc.

The Programming application requires connection between the tablet and the XP200, and no vehicle connection is required. This application can access the key chip, read, retrieve and write key information, as well as other key related functions.

Bi-Directional Control(Active Test)

What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don't be in a hurry to dismantle your cars! Bidirectional control tool IM508 can perform real active test that can send commands to the vehicle’s ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues.

Note: Functions NOT universal, please send VIN(17 digits),car makes, model, year to check compatibility before purchase.

All System Diagnostics & 30+ Service Functions:

The Diagnostics application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), airbag system (SRS)......

Specifications:

1.Operating System: Android11
2. Processor:Rockchip RK3566 Quad core, 4x 1.8GHz(A55)
3.Memory: 4GB RAM & 64GB On-board Memory
4.Display:7-inch LCD capacitive touchscreen with 1024x600 resolution
5.Connectivity:Mini USB 2.0,USB 2.0,Wi-Fi,Micro SD card
6.Sensors:Ambient light sensor for brightness auto changing
7.Audio Input / Output:Input: N/A,Output: buzzer
8.Power and Battery:3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
9.Tested Battery Life:Around 4.5 hours of continuous use
10.Battery Charging Input:5 V/1.5 A
11.Power Consumption:500 mA (LCD on with default brightness, Wi-Fi on) 3.7 V
12.Operating Temp:0 to 50°C (32 to 122°F)
13.Storage Temp:-20 to 60°C (-4 to 140°F)
14.Operating Humidity:5% - 95% non-condensing
15.Net Weight:788 g (2.42 lb.)
16. DB16 DLC: Support
17.Supported Automotive Protocols：ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

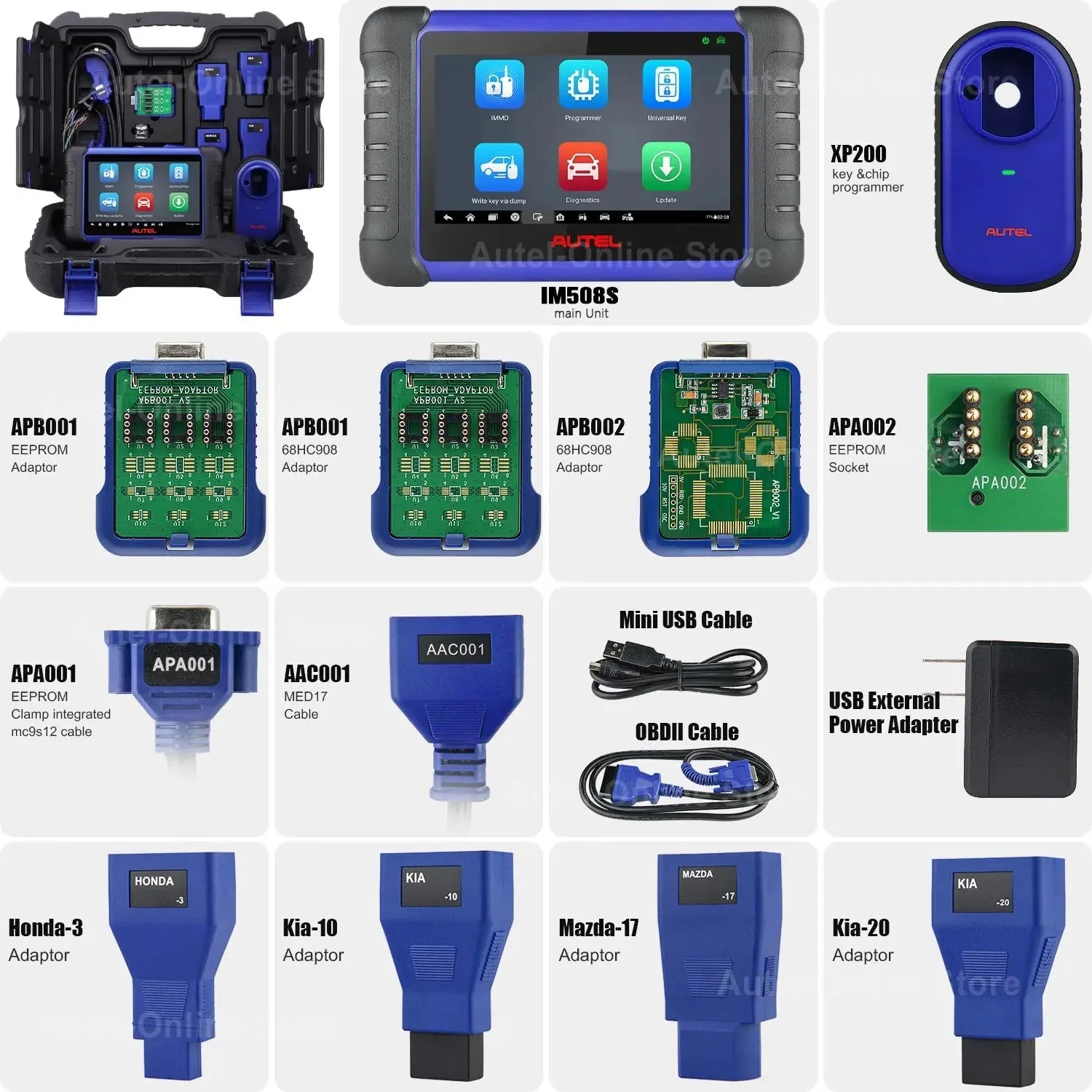

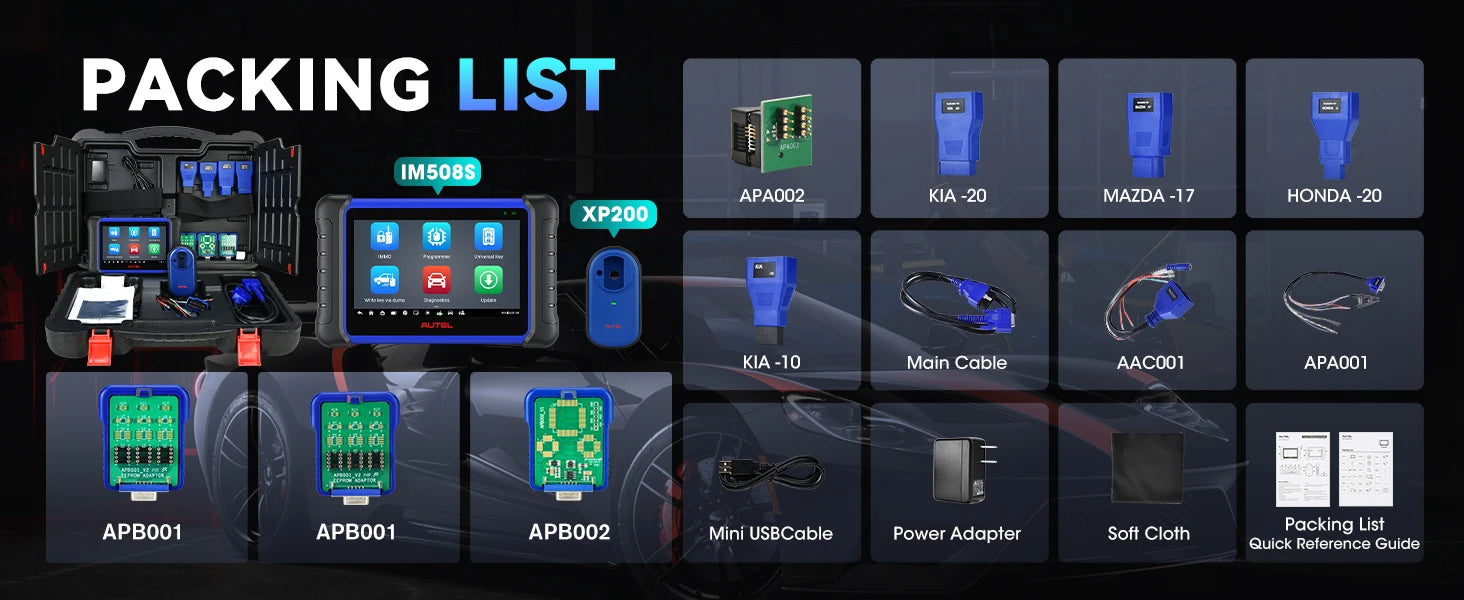

IM508S Package included:

1 X MaxiIM IM508S Tablet
1 X AAC001 – MED17 Cable
1 X KIA-20 Adaptor
1 X Mazda-17 Adaptor
1 X Carrying Case
1 X Quick guide
1 X Honda-3 Adaptor
1 X KIA-10 Adaptor
1 X XP200 Key Programmer
1 X USB External Power Adapter
1 X Main cable
1 X Mini USB Cable
