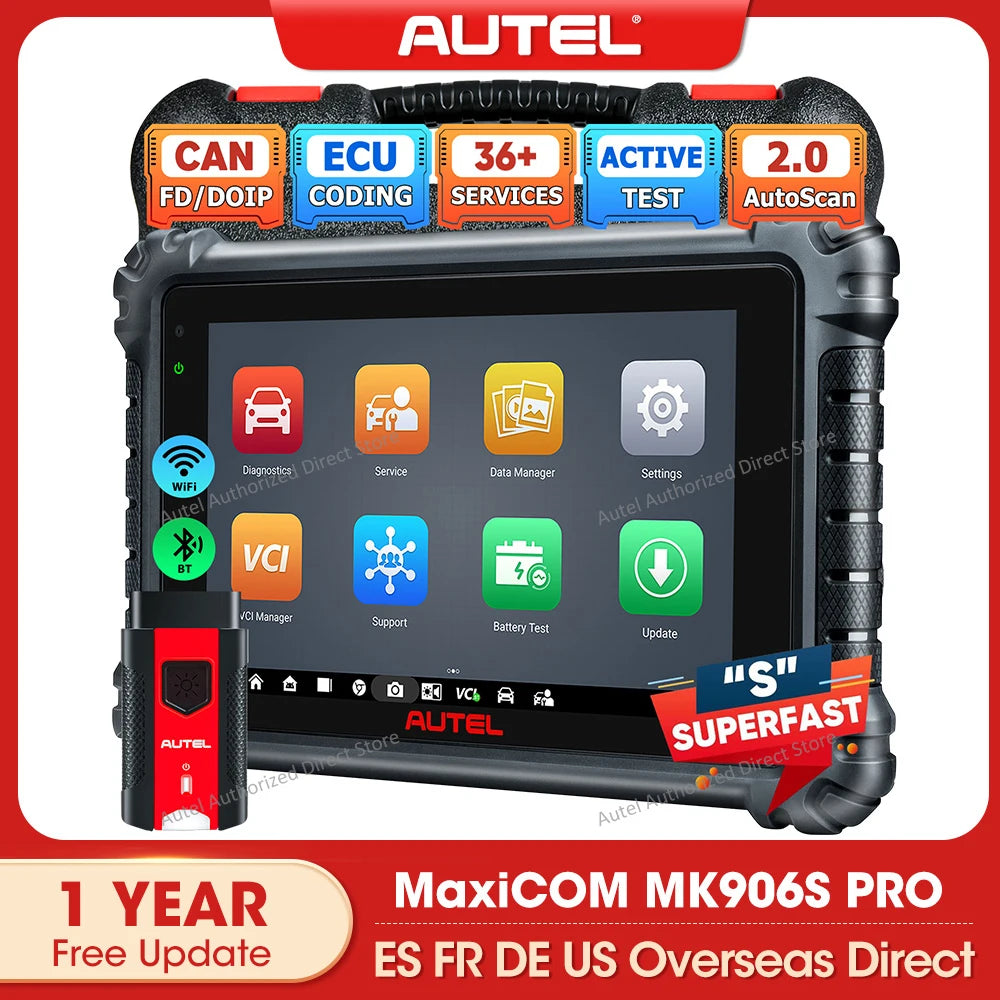

Autel MaxiCOM MK906PRO MK906S PRO Diagnostic Scan Tool, Upgraded Ver. of MK906BT/MS906BT, ECU Coding, Bi-Directional Control, 36+ Services, VAG Guided Functions, OE-Level All System Diagnostic

21+ Languages Support & 1 Year Free Update:

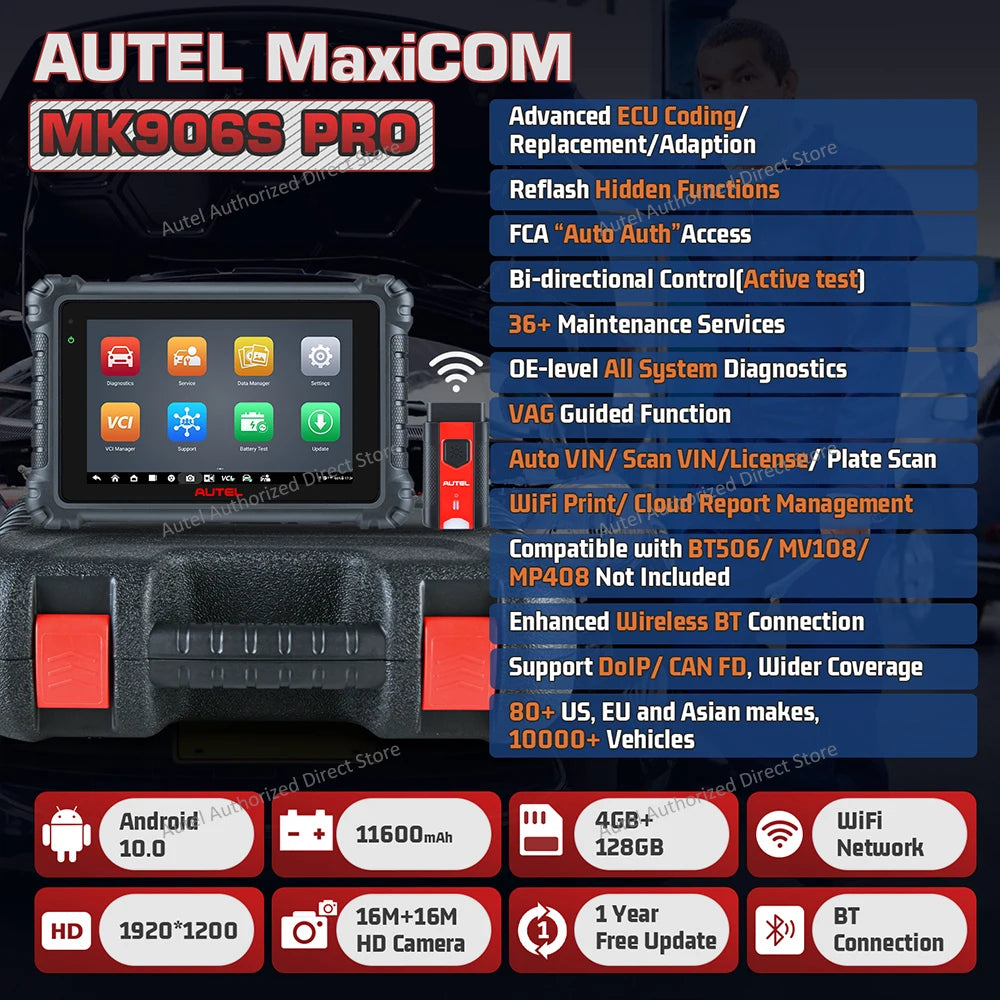

MaxiCOM MK906S PRO:

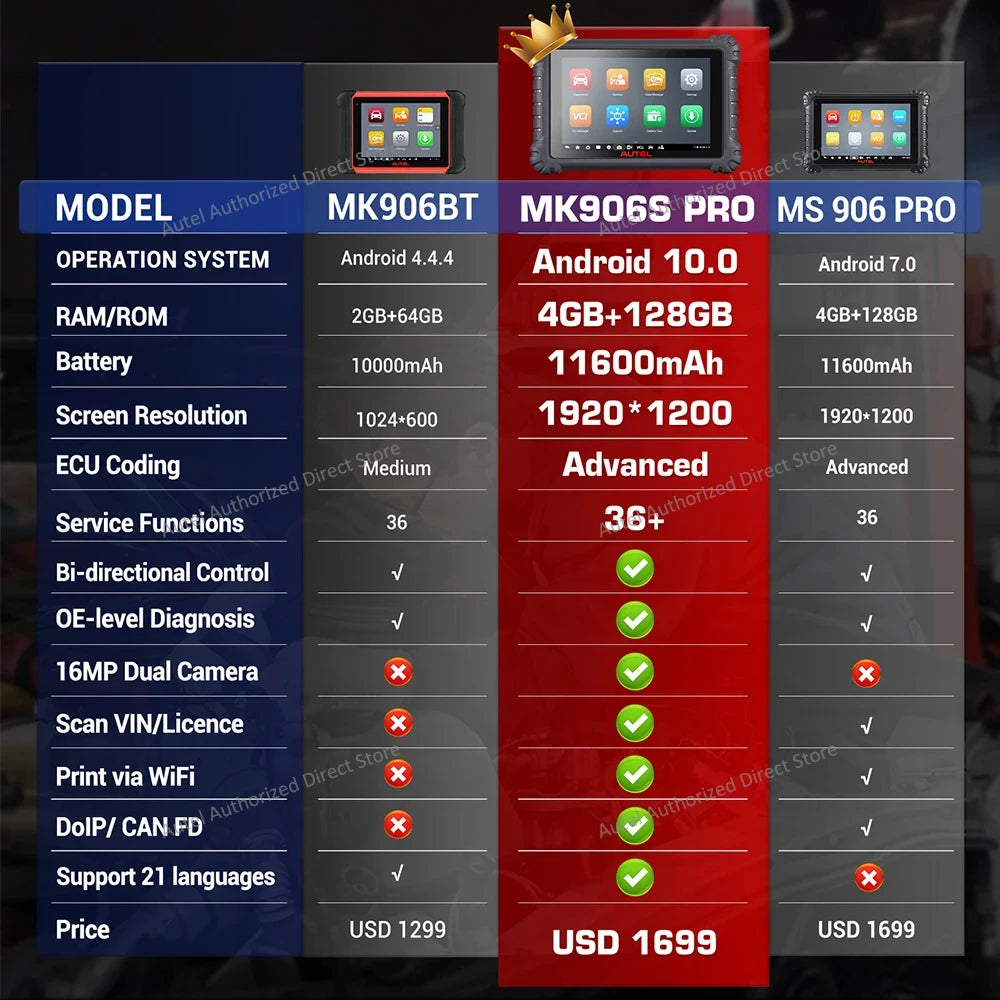

Updated from the old models MK906BT/ MS906BT/ MS906 based on Android 4.4.4, Autel MaxiCOM MK906S Pro has been directly upgraded to Android 10.0 OS which is Autel fastest OS version now, adopted Qualcomm 660 processor with 4G RAM & 128GB for super smooth operation, 8'' 1920*1200 touch screen, 16MP dual cameras enables ultra clear and detailed vehicle part info, 11600mAh battery supports 10 hours continuous work.

• 100% Original Autel diagnostic scanner
• Work for global 10000+ vehicle models, and Access FCA SGW vehicles
• Advanced ECU coding activates high-level vehicle functions
• 36+ Reset functions
• Bi-directional control/Active Test
• VAG guided functions ease the complex diagnostics for you
• Unlock Hidden Features for BMW, Audi, VW, Skoda, etc
• Auto VIN for quickly automatic vehicle identification
• OE-level system diagnostics for all available vehicle systems
• Cloud data management keeps all the reports well-organized
• Extended Functions: Videoscope(MV105/108), Battery Test(BT506)

Advanced ECU Coding:

① ECU Coding:
● Compatible with Volkswagen, BMW, Seat, Porsche, Renault, etc.
● Reprogram the adaptive data for certain components after repair or replacement.
● Flash the hidden features(auto start-stop, reverse tilt mirrors, foldable mirrors, and customizing interior lights, etc.).
● Customize the OE-settings(setting alarms, doors locking, etc.).
Enhance the vehicle performance(provide a solution for power loss, fuel efficiency, etc.).

② Online ECU Coding:
● Compatible with Volkswagen, BMW, Seat, Porsche, etc.
● Obtain the online data from the server and no need to match ECU manually.
● Code your car fast and easily via Internet to solve your car’s problems.
Restore the vehicle functional status after replacing the on-board modules.

③ ECU Module Replacement:
● Compatible with Asian cars like Honda, Nissan, Toyota, Hyundai, Kia, etc.
● Introduce the new ECU module replacement to the car system and make the cars running smoothly.

Newly Expanded Functions:

1. VAG Guided Fnctions:

Autel MaxiCOM MaxiCOM MK906S Pro provides detailed step-by-step operation guidance to simplify all the complicated functions implement. It is compatible with VW, with Audi, with Seat, with Skoda cars.

2. Pre/Post Scan Report:

Pre & Post Scan reports are now available on the MK906Pro Autel scanner. These new features make it easy to document the vehicle’s pre-repair and post-repair condition. The Pre & Post Scan reports will be combined into a single report file that can be saved to the repair shop system, printed, or mailed to the customers.

If You Are The Technician: You can create a more efficient repair plan from the start and confirm all the faults being solved after repairing.
If You Are The Customer: You can accurately know your vehicle problems and avoid the unreasonable charge

3. WiFi Printing:

Now you don’t need to find your PC and perform many operation steps for printing a report. One-click WiFi Printing, click the "Print" from your MK906S Pro Scanner and you'll get the report right away. The original printing via PC-Link is retained, and you can choose freely.

4.Autel Cloud Management:

Through Autel Cloud Service, you can uploade Data and Diagnostic Reports to Autel Cloud Management without loss and share reports with customers through QR Code/ email/ text message easily, so that customers can view the reports at cellphone anytime.

5. Expanded Functions:

● Compatible with Oscilloscope, such as Autel MP408, to test electrical system.
● Compatible with Digital Inspection Camera/Video Scope, such as Autel MV105/108 to examine difficult-to-reach areas normally hidden from sight, like the engine, fuel tank, etc.
● Compatible with Battery Tester, e.g. Autel MaxiBAS BT506, to do battery analysis.

Bi-Directional Control (Active Test)：

Autel MaxiCOM MK906S PRO scanner features full bi-directional control ability, to send commands to vehicle’s systems/components, to verify system input/output without using the vehicle's controls, e.g. turn on the radiator fan, modulate the throttle, open/close windows, operate mirrors, injector buzz test,turn on interior & exterior lights, sound horn, test door lock and such.

36+ Hot Service Functions:

This obd2 scan tool MaxiCOM MK906S Pro comes with 36+ maintenance functions, meeting all your needs for repairs and maintenance. Such us, Oil Reset / EPB Reset / TPMS Reset / ABS Bleeding / BMS Reset / DPF Reset/ Airbag Reset / IMMO Service / Injector Coding / SAS Calibration / Suspension Calibration / Throttle Adaption / WIN DR ROOF / Seats / ODO Reset / ABS SRS / Gear Learning / Sunroof Initialization / Seats Calibration / Language Change / Headlight Matching / A/F Setting / CHG Tire Size / Cylinder / VTG Learn / Speed & PTO / Turbocharging / Trans Adaption / etc.

● Oil Reset: Reset the oil life system and turn off the oil light to start a new cycle.
● ABS Bleeding: Exhaust the air of a brake system to restore ABS brake sensitivity.
● SAS Reset: Reset the steering angle to zero to keep the car running straight.
● BMS Reset: Re-match the battery control module and motoring sensor.
● Injector Coding: Write the new injector code into the car system for correcting cylinder injection quantity
● IMMO: Add new keys and match new remote control for vehicles with low-grade anti-theft systems. No key programming function.
● DPF Regeneration: Clear particulate matter from the DPF filter.
● Suspension: Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.
● Throttle Matching: Initialize the throttle actuators to the default state after replacement.

More...

OE-Level All System Diagnostic:

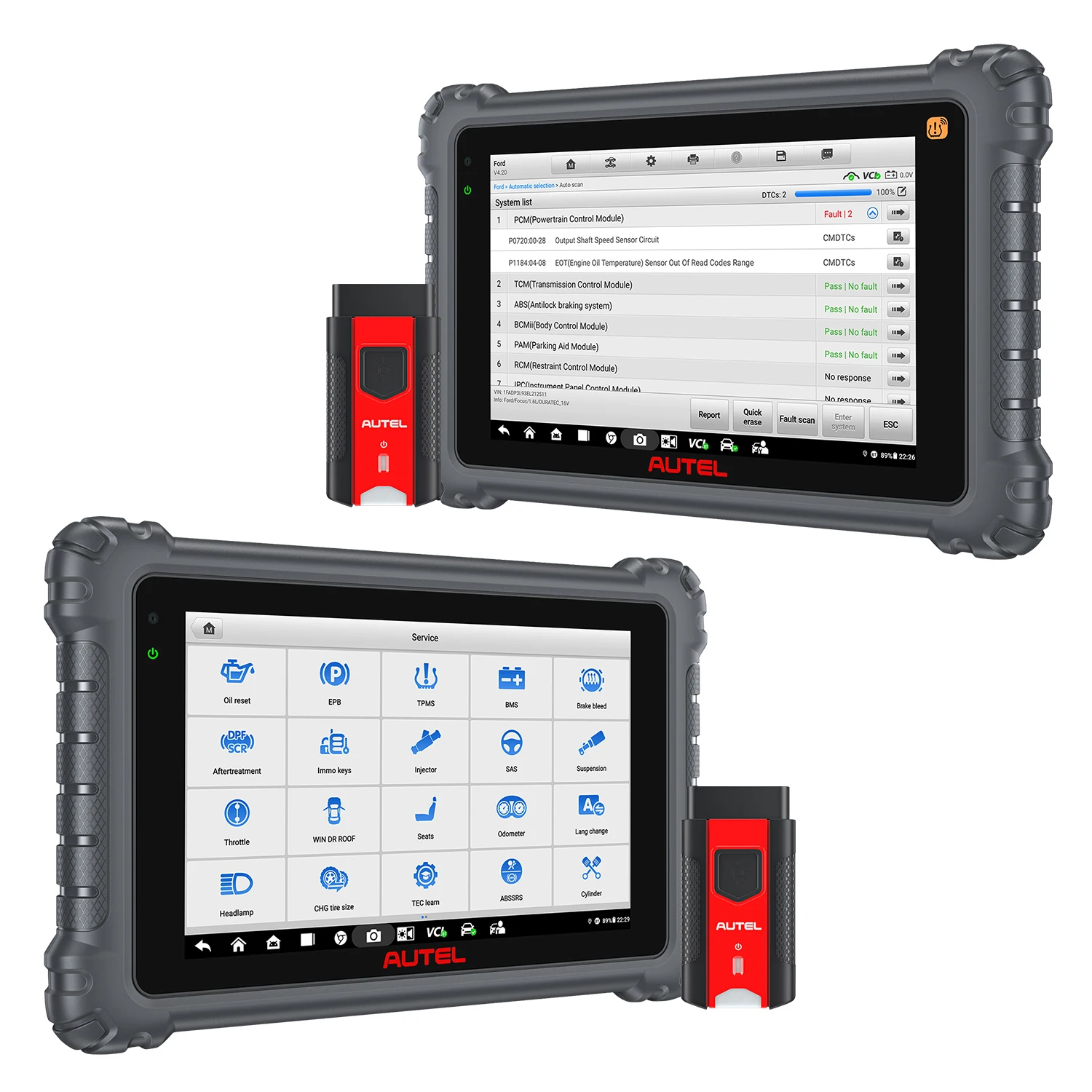

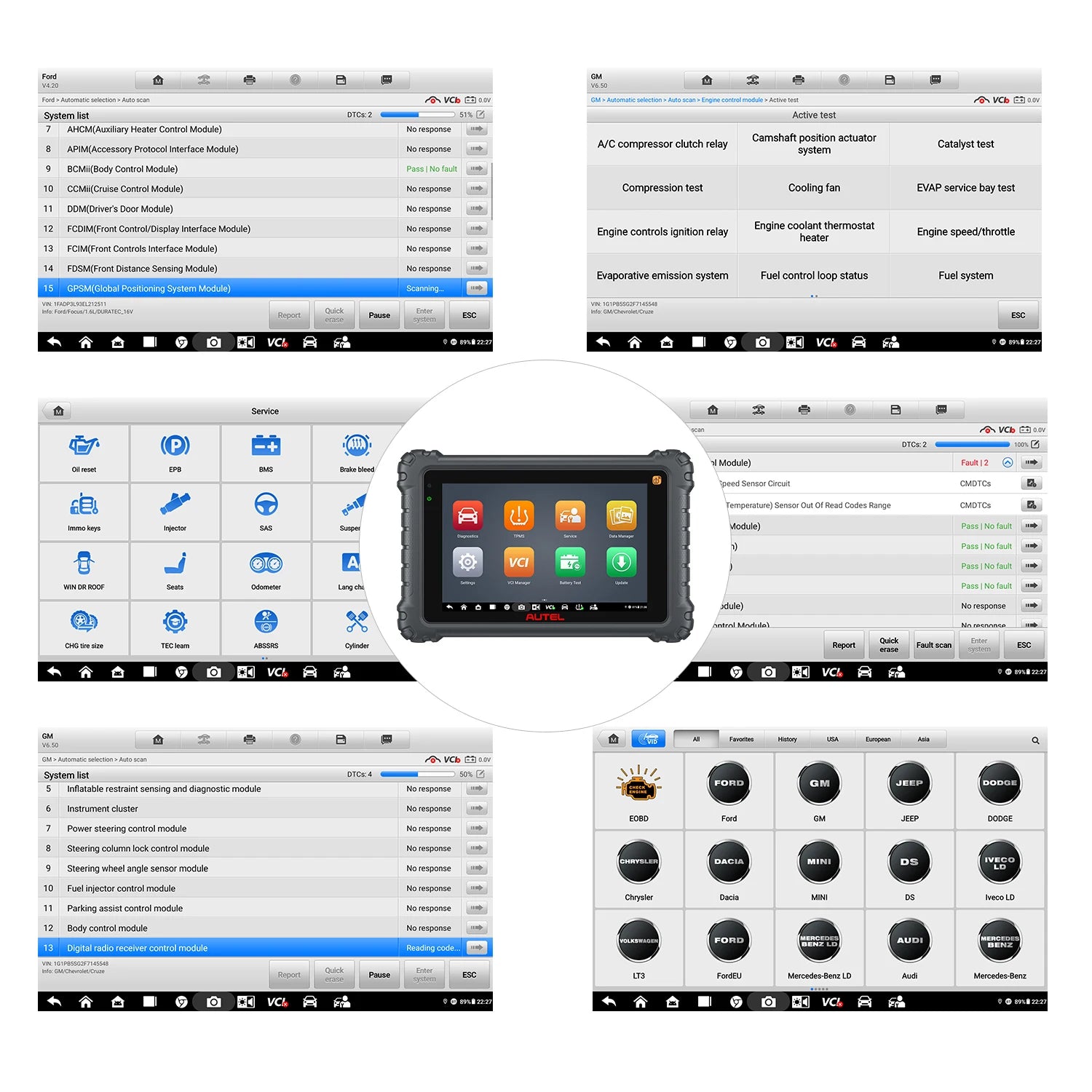

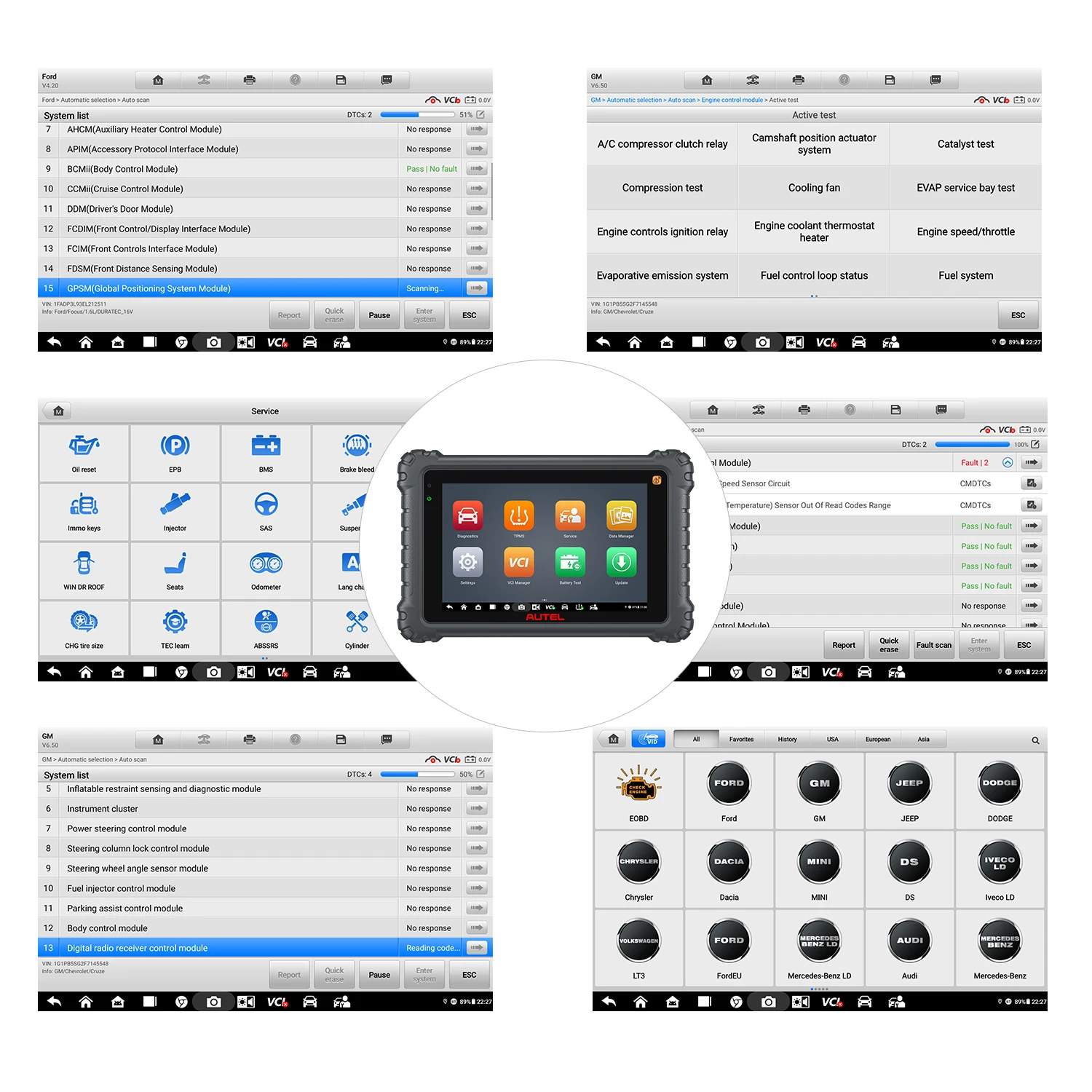

MaxiCOM MK906S Pro auto scanner reaches all available systems, such as Engine, Transmission, ABS, SRS, IC, BCM, TPMS, Air Conditioning, IMMO, Air Suspension, Airbags, Cruise Control, etc, to perform the same level of diagnostic and maintenance as the OEM dealer. The MS906 Pro diagnostic scanner examines all vehicle systems to read codes, clear codes, view live data, etc, which heightens the diagnostic efficiency and reduces the diagnostic fee.

For instance:

Engines/ Auto Transmission/ Airbags/ Immobilizer/ABS/ Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Parking Brake & Motor Assisted/ Power Steering/ Tyre Pressure / Rain Sensors / Stabilizer/ Intelligent Parking Assist/ Door Motors/ Audio Systems/ Air Conditioning/ Tiptronic/ Anti-Theft/ Soft Top/ Headlamp Leveling/ Automatic Clutch/ Headlights/Wash Wipe/ Cruise Control/ Multi Function Steering Wheel/ Aux Heating/ Clutch Electronics, etc.

150+ Brands Car Coverage:

Like the Autel MK908/ MK908P, this OBD1 OBD2 Autel diagnostic tool MK906 Pro is compatible with 150+ vehicle brands, 10000+ models worldwide, covering 99% of American, Asian, and European makes and models from 1996 to 2022. Note: For vehicle compatibility, please come to us with the make, model, year, and VIN before purchase.

Why Choose MaxiCOM MK906S PRO?

1. 100% Original Autel diagnostic scanner
2. Work for global 10000+ vehicle models, and Access FCA SGW vehicles
3. Advanced ECU coding activates high-level vehicle functions
4. 36+ reset functions repair 99% of common vehicle problems
5. Bi-directional control pinpoints problems within 5 minutes
6. VAG guided functions ease the complex diagnostics for you
7. Auto VIN for quickly automatic vehicle identification
8. OE-level system diagnostics for all available vehicle systems
9. Cloud data management keeps all the reports well-organized
10. Extended Functions: Videoscope, Battery Test

• Operating System: Android 10.0
• Processor: Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
• Memory: 4GB RAM & 128GB On-board Memory
• Display: 8 inch TFT-LCD with 1920*1200 resolution & capacitive touch screen
• Connectivity: WiFix2(802.11a/b/g/n/ac 2x2 MIMO); BT v.2.1 + EDR; GPS; USB 2.0 (Two USB HOST Type A, one USB mini device); HDMI 2.0; SD Card (Support up to 256GB)
• Camera: Rear: 16 Megapixel, Autofocus with Flashlight; Front:16 Megapixel
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio Input/Output: Microphone; Dual Speakers; 3-Band 3.5 mm stereo/standard headset jack
• Power and Battery: 11600mAh 3.8V lithium-polymer battery; Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
• Input Voltage: 12V/3A Adapter
• Operating Temp.: 0 to 50°C (32 to 122°F)
• Storage Temperature: -20 to 60°C (-4 to 140°F)
• Dimensions (WxHxD): 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
• Weight: 2.18kg (4.81 lb.)

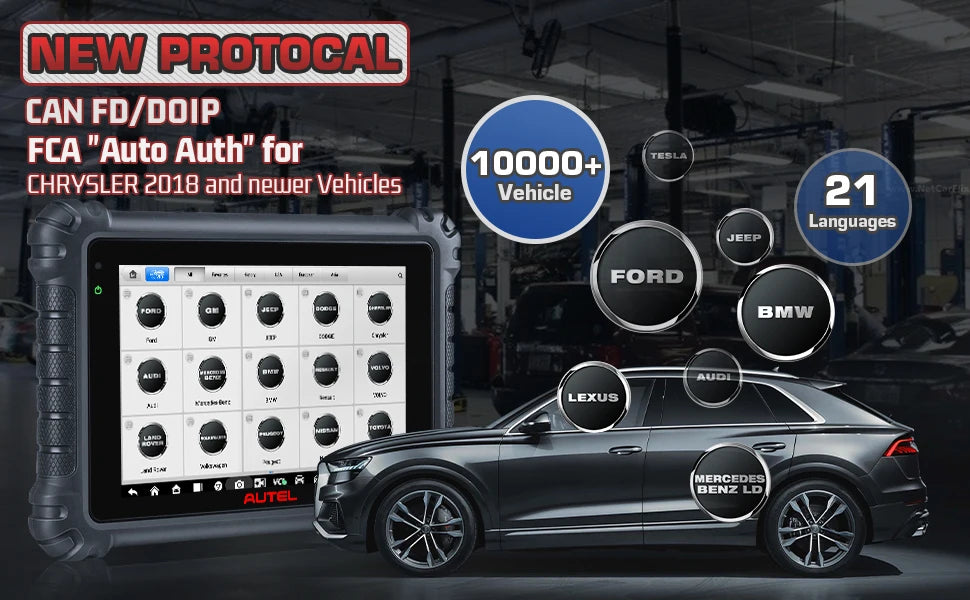

• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

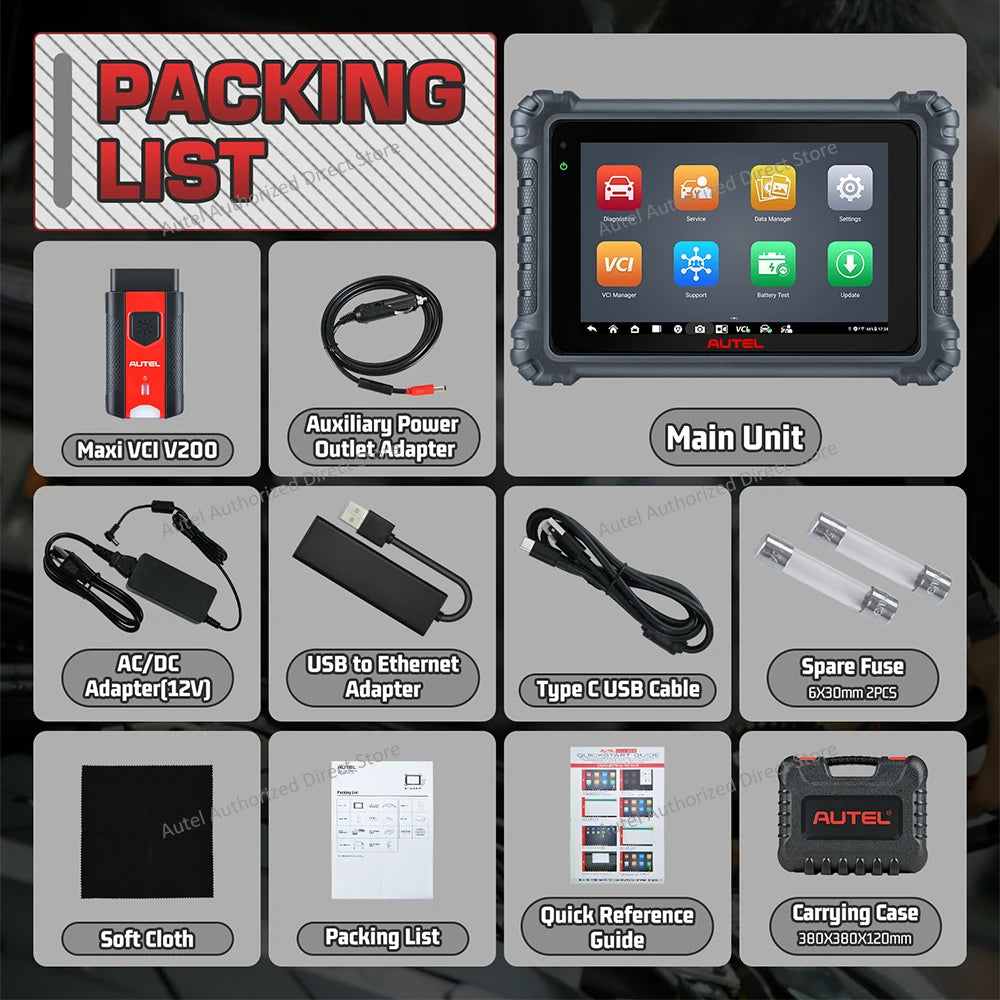

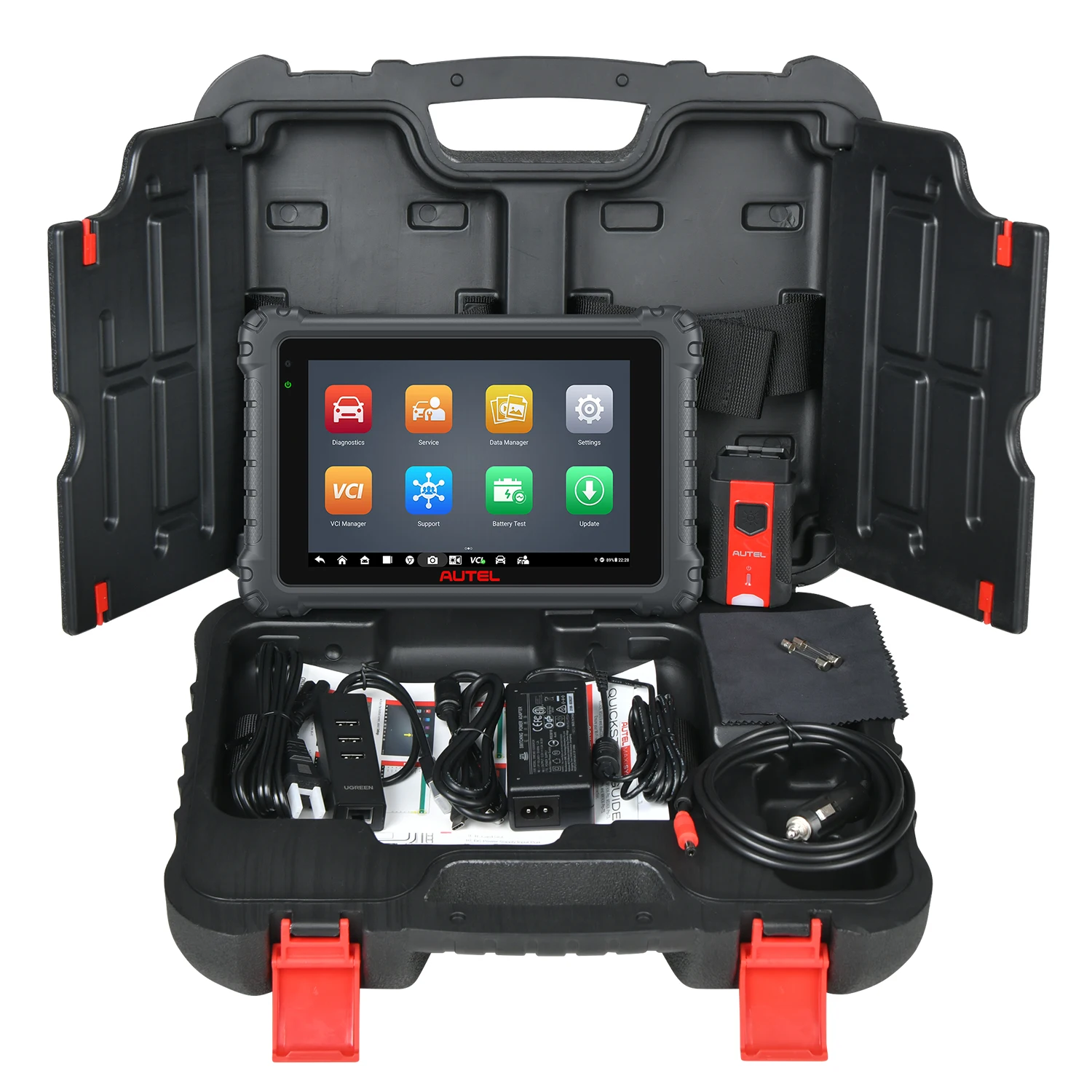

MK906S PRO Package List:

1 x Main Unit
1 x MaxiVCI V200
1 x AC/DC Adapter (12V)
1 x Type-C USB Cable
1 x Auxiliary Power Outlet Adapter
2 x Spare Fuse 6x30mm
1 x USB to Ethernet Adapter
1 x Quick Reference Guide
1 x Packing List
1 x Soft Cloth
1 x Carrying Case
