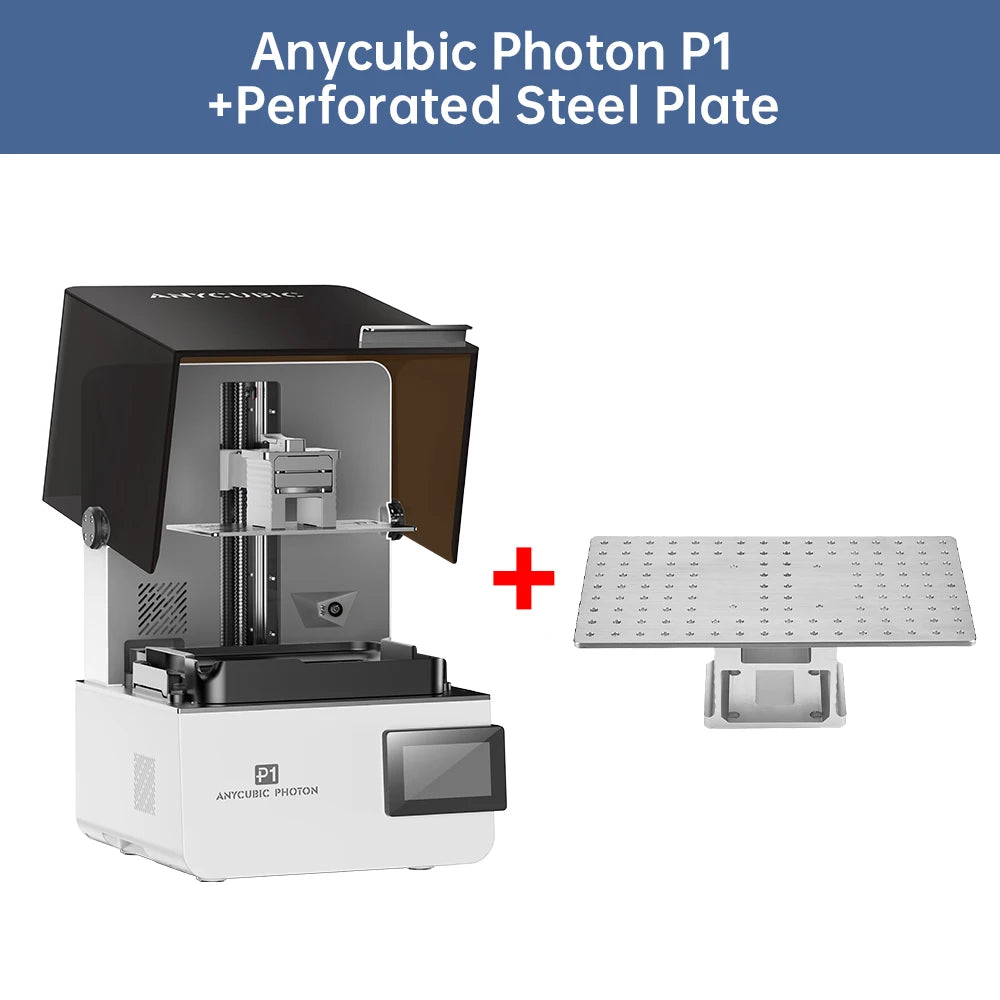

ANYCUBIC Photon P1 14K LCD 3D Printer Support Dual-Color Printing With Industrial-Grade Ball Screw Large jewelry 3d printer
SPECIFICATIONS
Air Purifier: Optional AirPure 2.0(Purchase separately)
Brand Name: ANYCUBIC
Build Plate: Precision Steel Platform
CE Certification: Yes
Certification: CE
File Transfer: USB 2.0/WiFi/LAN (2.4GHz)
High-concerned chemical: None
Interface Type: USB
LCD Screen: 10.1" Monochrome LCD
Language: English
Leveling System: Auto-Leveling 3.0 with Feedback
Light Source: COB + Fresnel
Material Compatibility: All Anycubic Resins(New: BJD/2-Part Elastic/High-Precision/Dental/Jewelry)
Maximum Print Size: 223x126x230mm
Molding Technology: LCD
Origin: Mainland China
Power Supply: 215W
Precision: 13312x5120px
Printing Accuracy: 14K 3d Printer
Printing Speed: 25-35mm/h
Release Film: NFEP
Release Technology: Wave Release Technology
Slice Software: Photon Workshop
Slice Thickness: 0.02-0.15mm
Vat Capacity: 1L
Wireless Connectivity: None
XY Resolution: 16.8x24.8μm
Z-Axis Mechanism: Dual Rail + Ball Screw
Pre sale in Brazil:
Photon P1 is expected to arrive on March 15th;

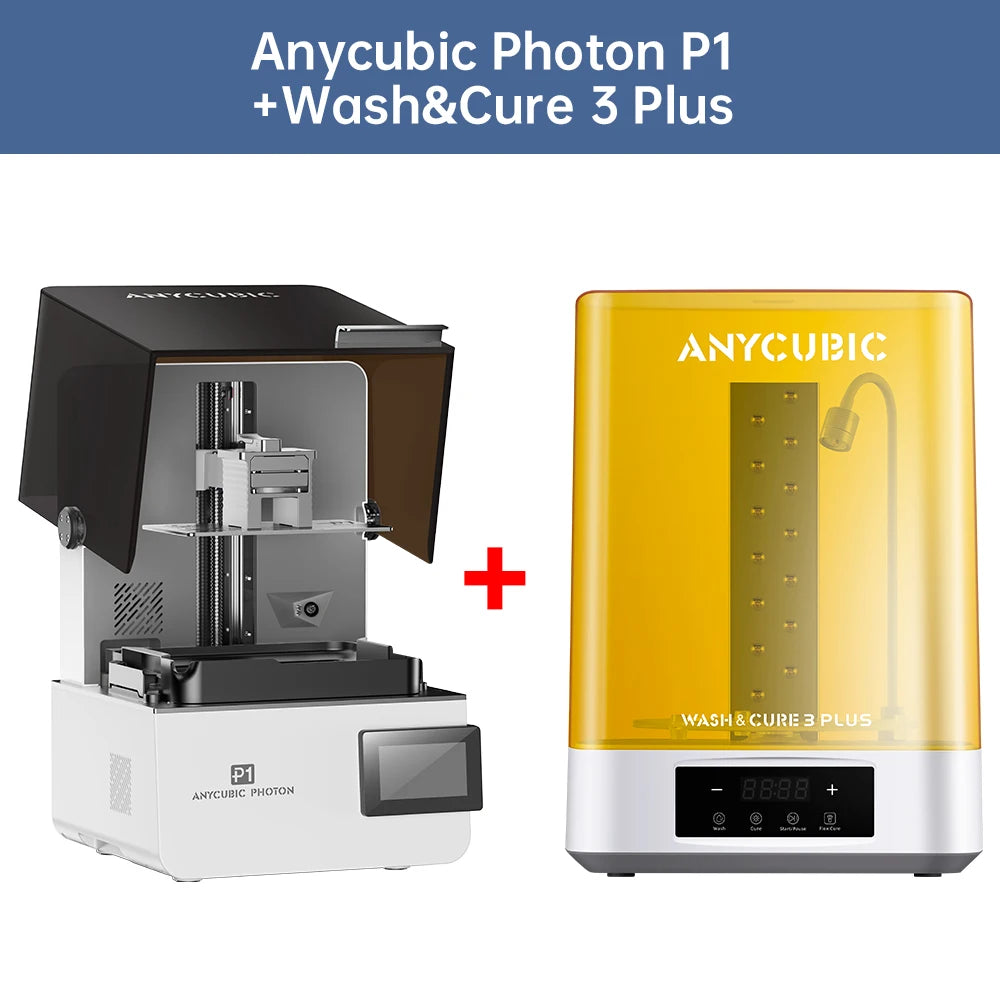

P1 Industrial Combo, P1 Dual Material Com, and P1 Clean Cure Combo are expected to arrive in May;
Once the goods arrive, we will arrange for shipment immediately;

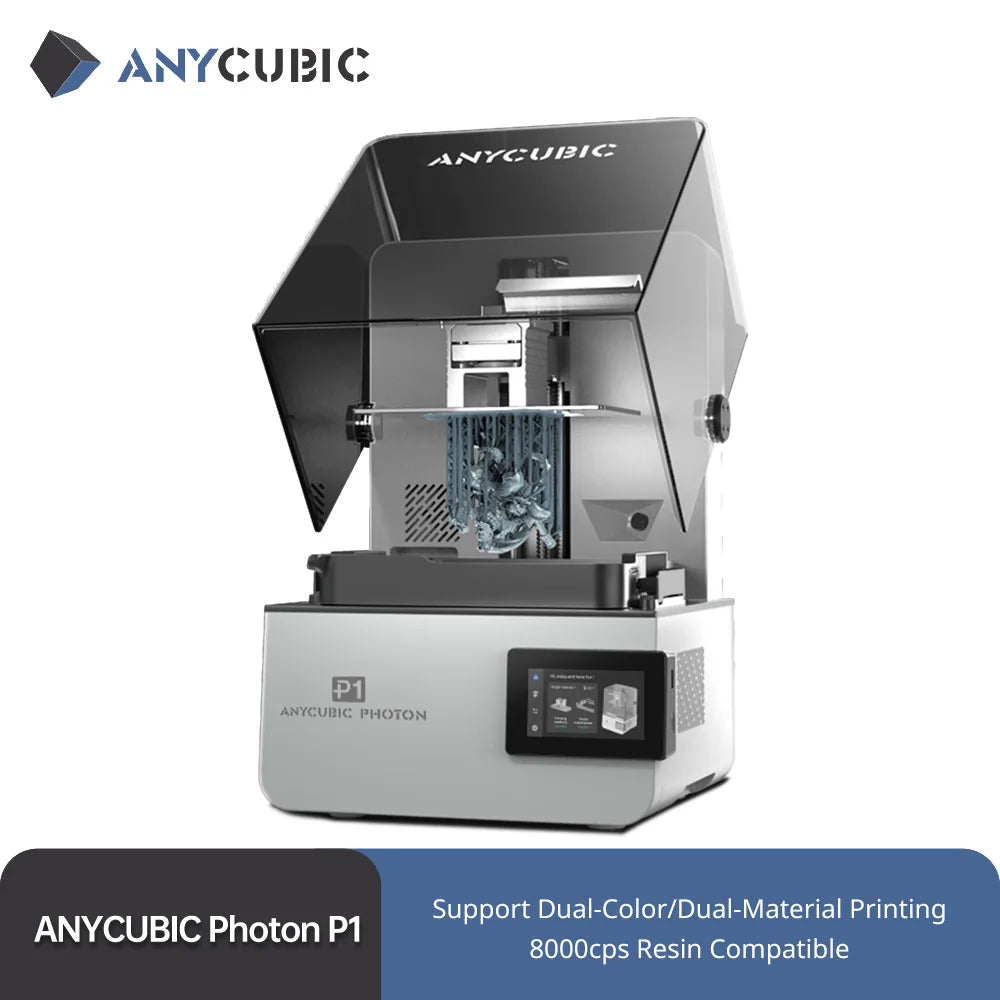

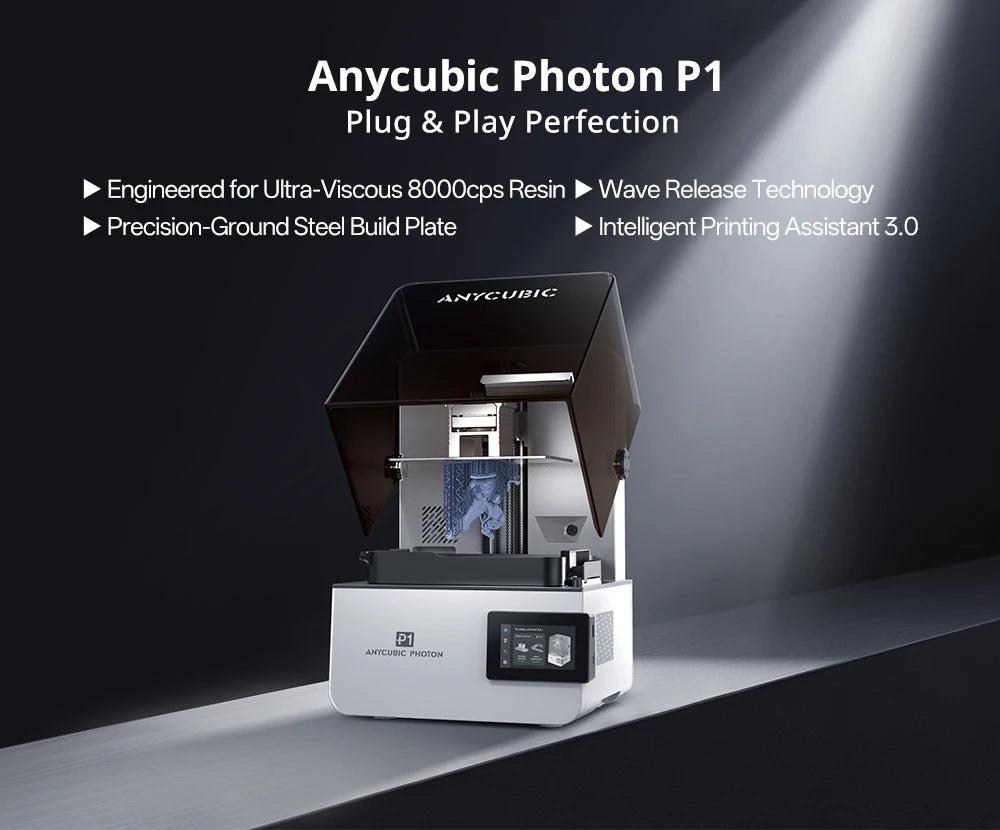

Anycubic Photon P1
Plug & Play Perfection
The Level of Precision that Defines Perfection

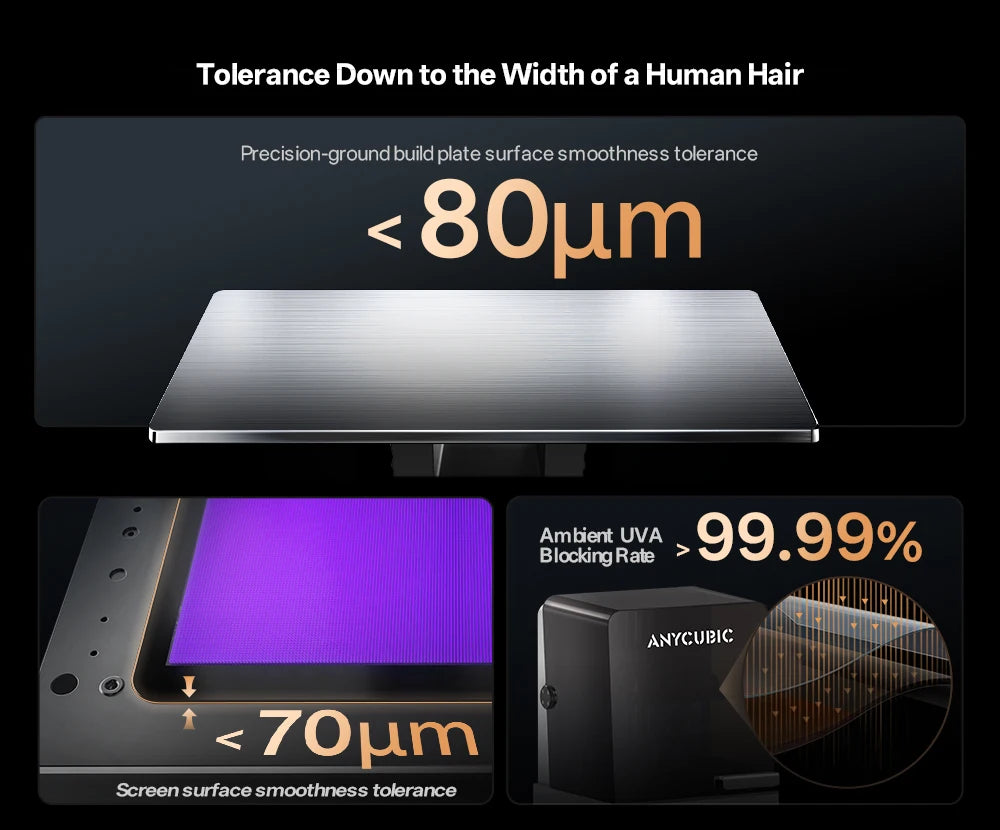

Tolerance Down to the Width of a Human Hair

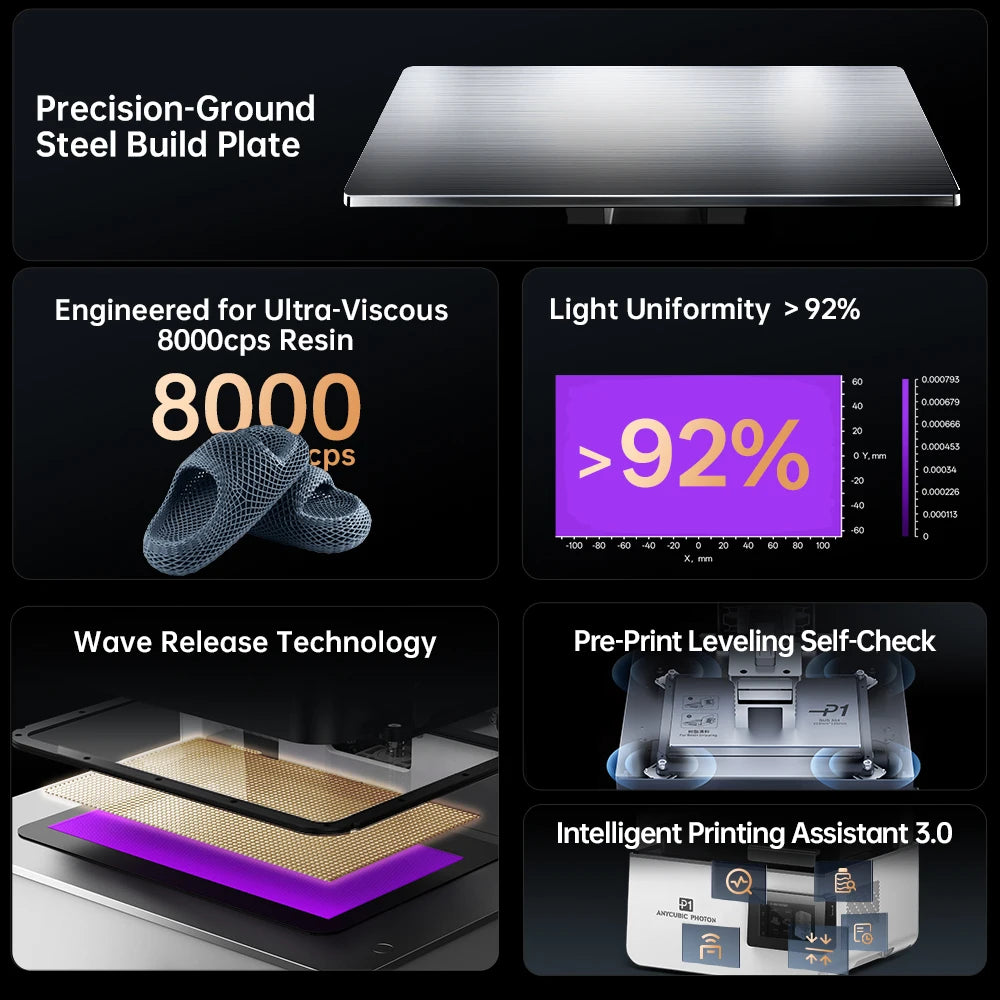

Precision-ground steel build plate surface roughness tolerance＜80μm
Screen surface roughness tolerance＜70μm
Ambient UVA Blocking Rate: ＞99.99%

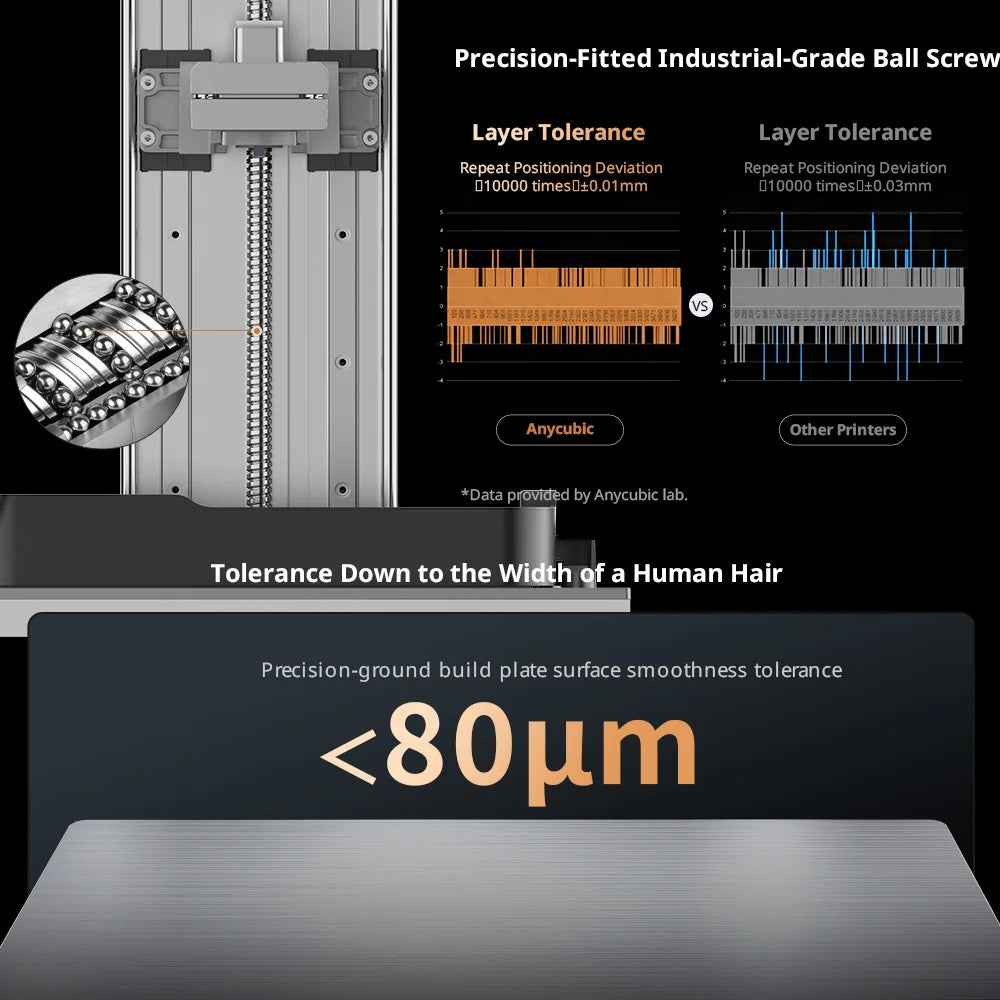

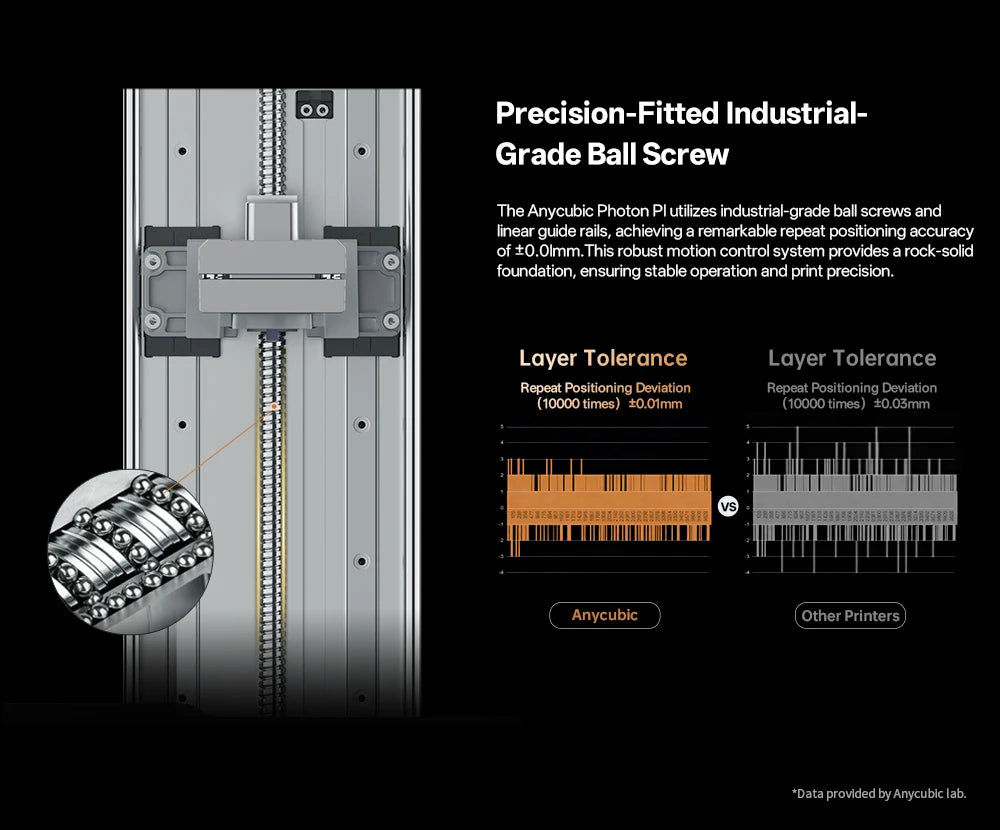

Precision-Fitted Industrial-Grade Ball Screw
The Anycubic Photon P1 utilizes industrial-grade ball screws and linear guide rails, achieving a remarkable repeat positioning accuracy of ±0.01mm. This robust motion control system provides a rock-solid foundation, ensuring stable operation and print precision.

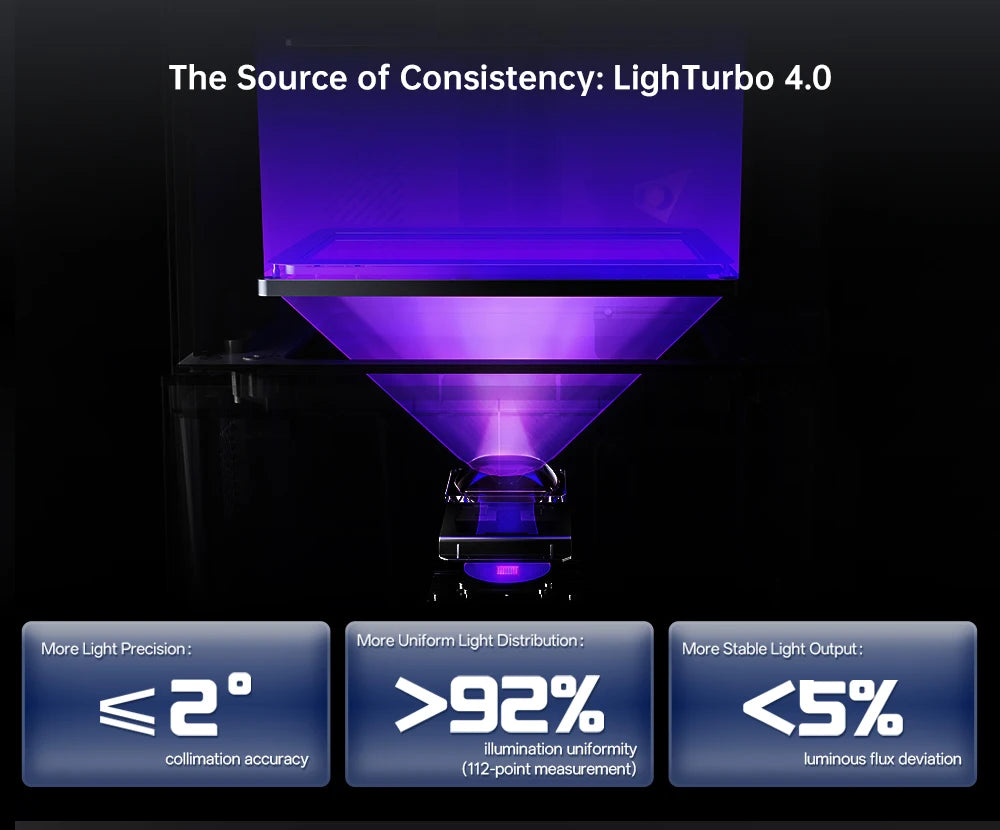

The Source of Consistency: LighTurbo 4.0

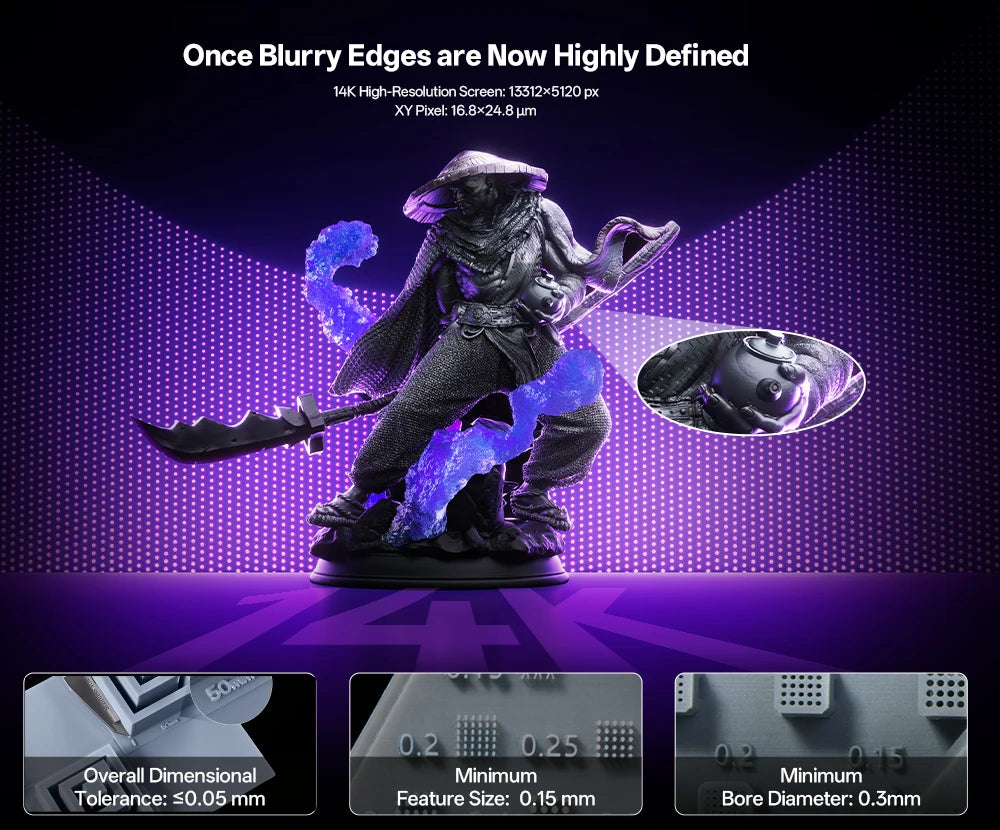

Once Blurry Edges are Now Highly Defined
14K High-Resolution Screen: 13312 × 5120 px

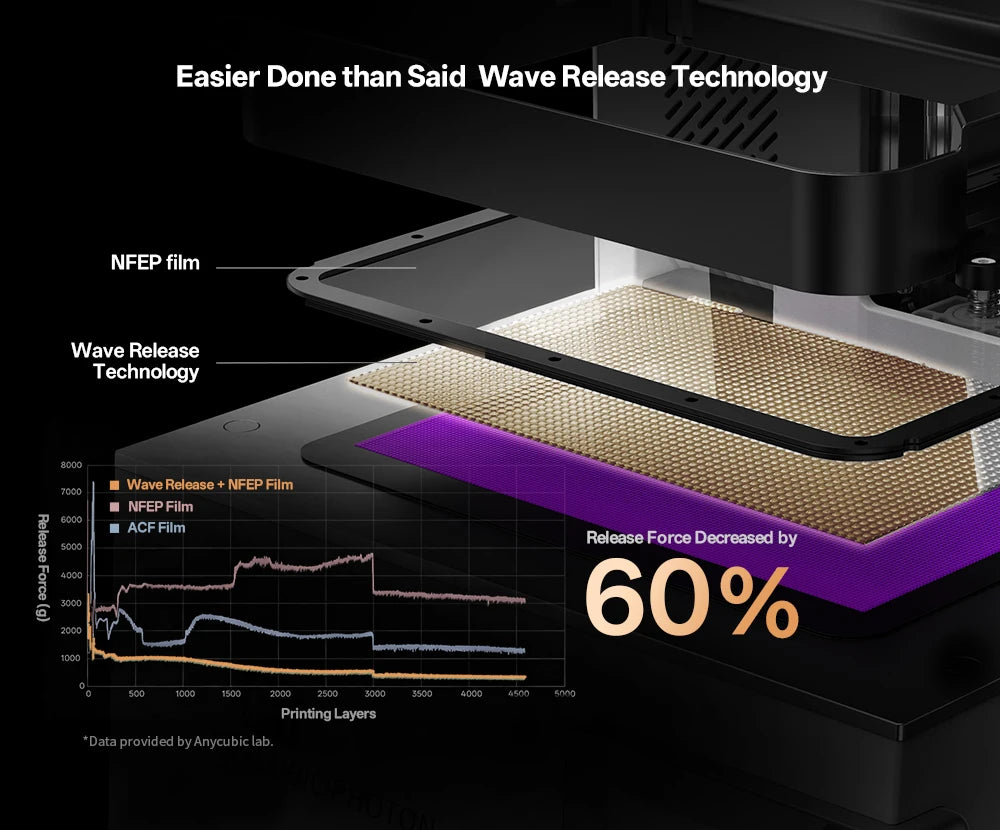

Easier Done than Said , Wave Release Technology
The Wave Release Technology reduces release force by a massive 60% compared to traditional smooth-surface NFEP film, ensuring superior print quality and consistency.

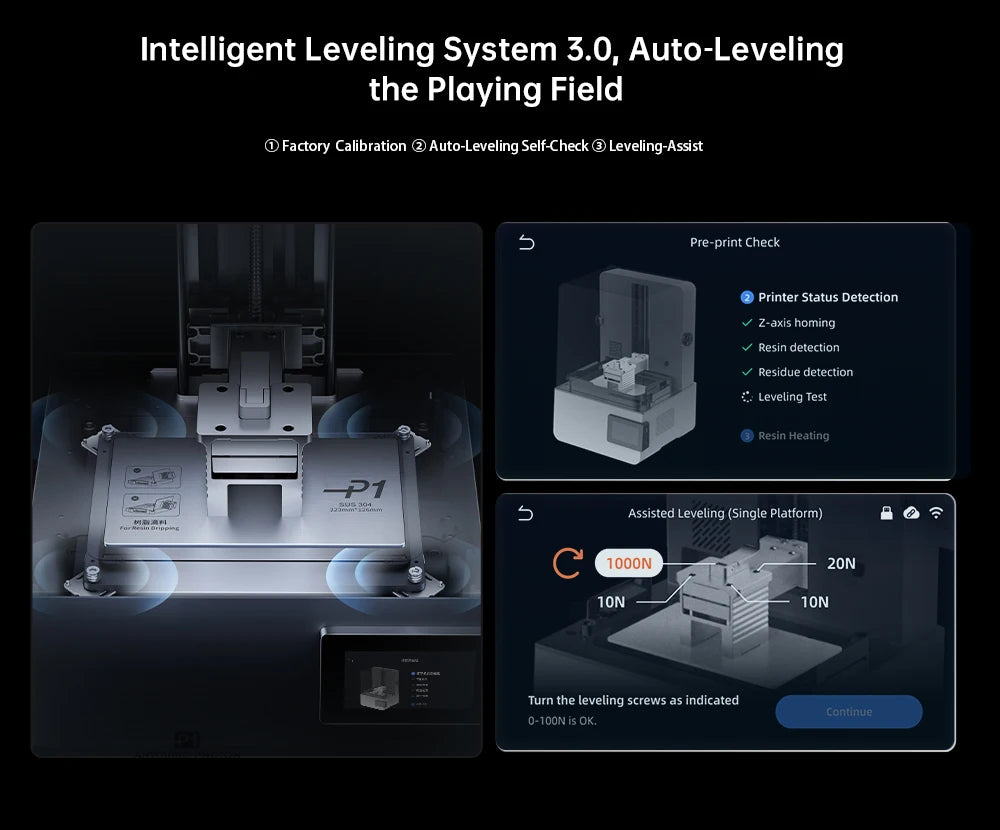

Intelligent Leveling System 3.0, Auto-Leveling the Playing Field

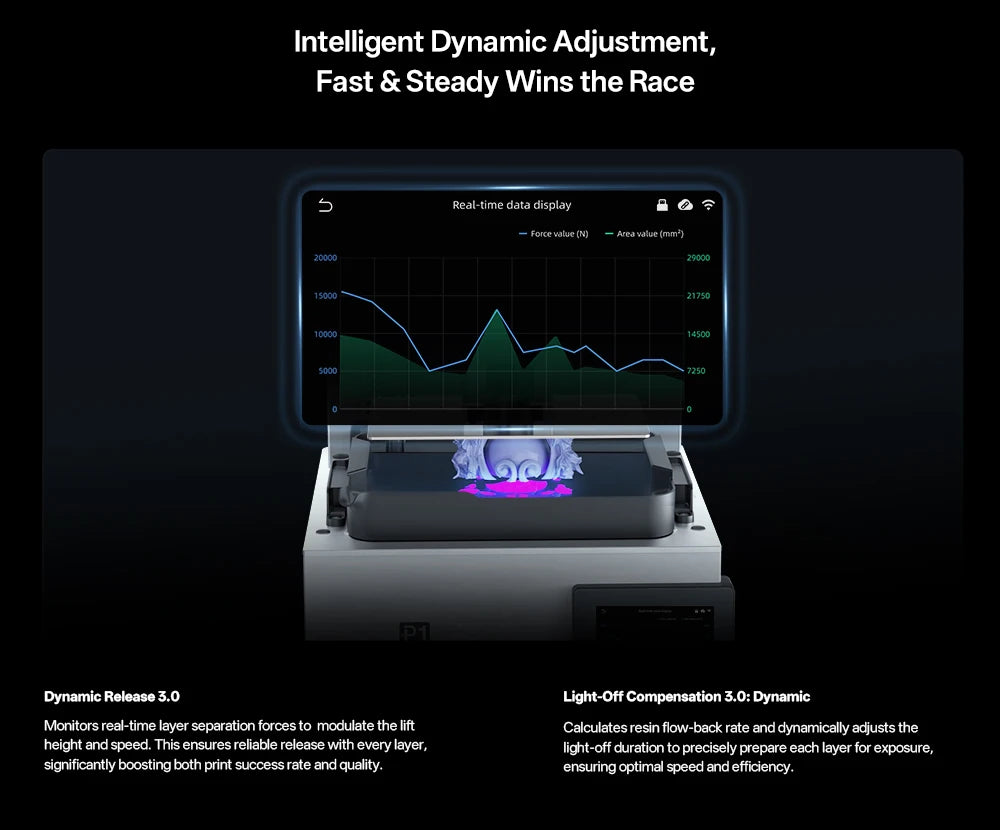

Intelligent Dynamic Adjustment, Fast & Steady Wins the Race

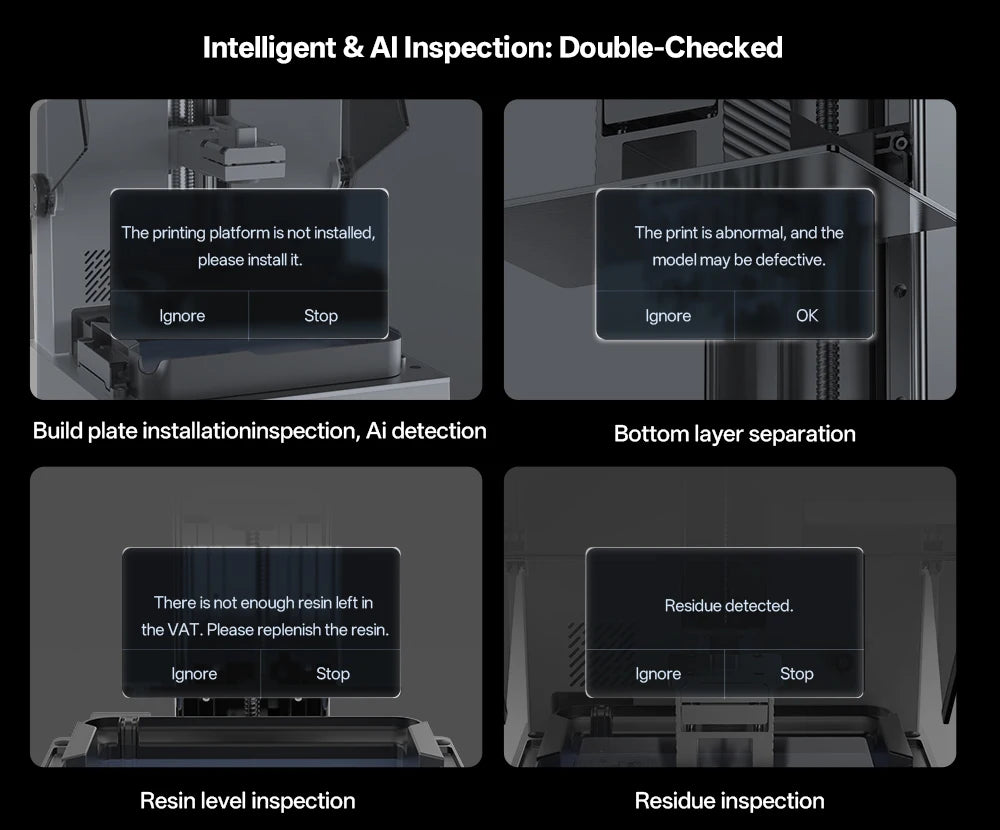

Intelligent & AI Inspection: Double-Checked
-Build plate installation inspection, Ai detection
-Bottom layer separation inspection, Ai detection
-Resin level inspection
-Residue inspection

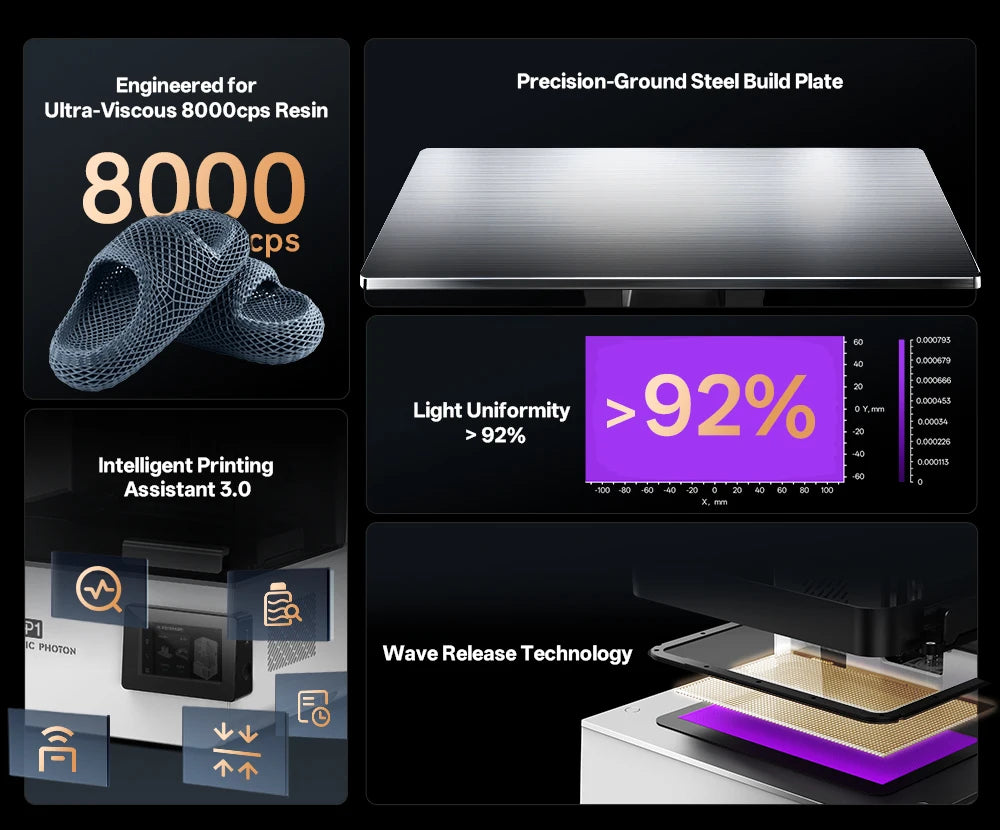

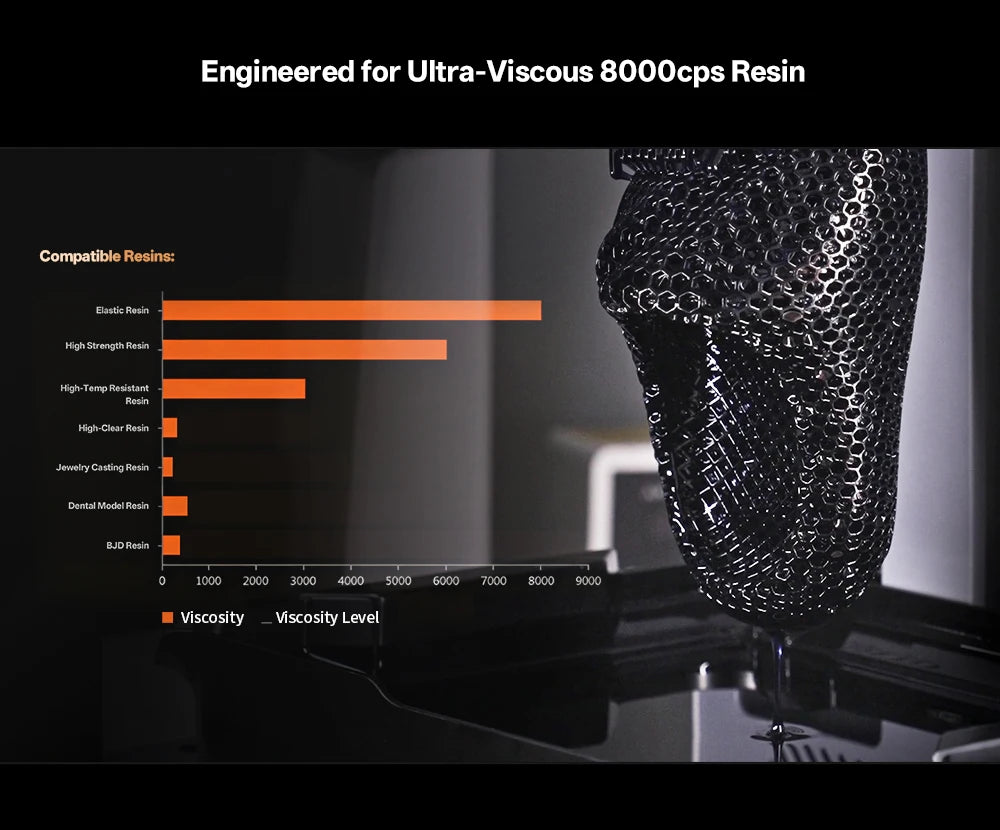

Engineered for Ultra-Viscous 8000cps Resin

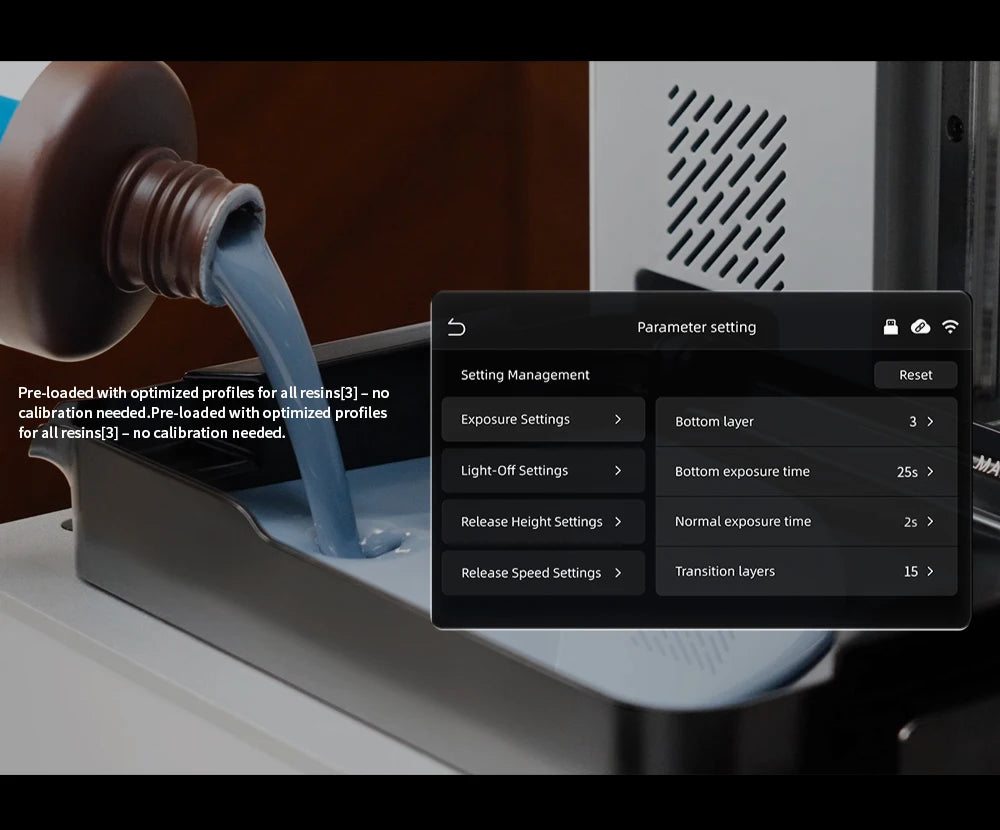

Pre-loaded with optimized profiles for all resins – no calibration needed.

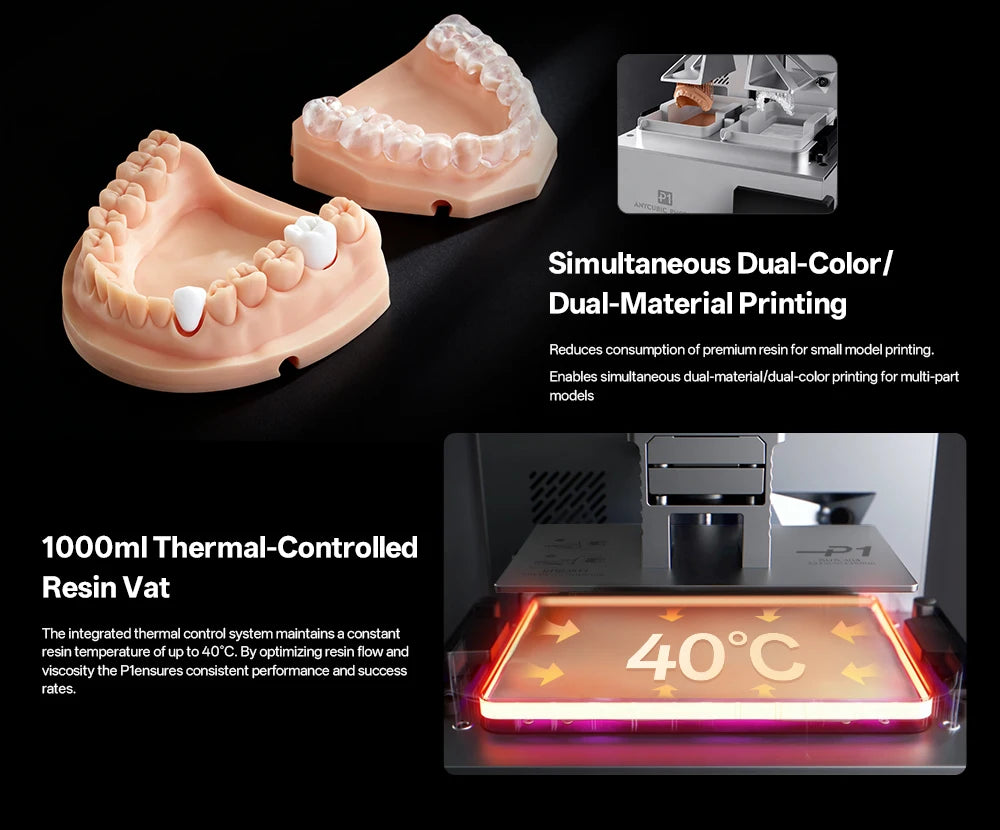

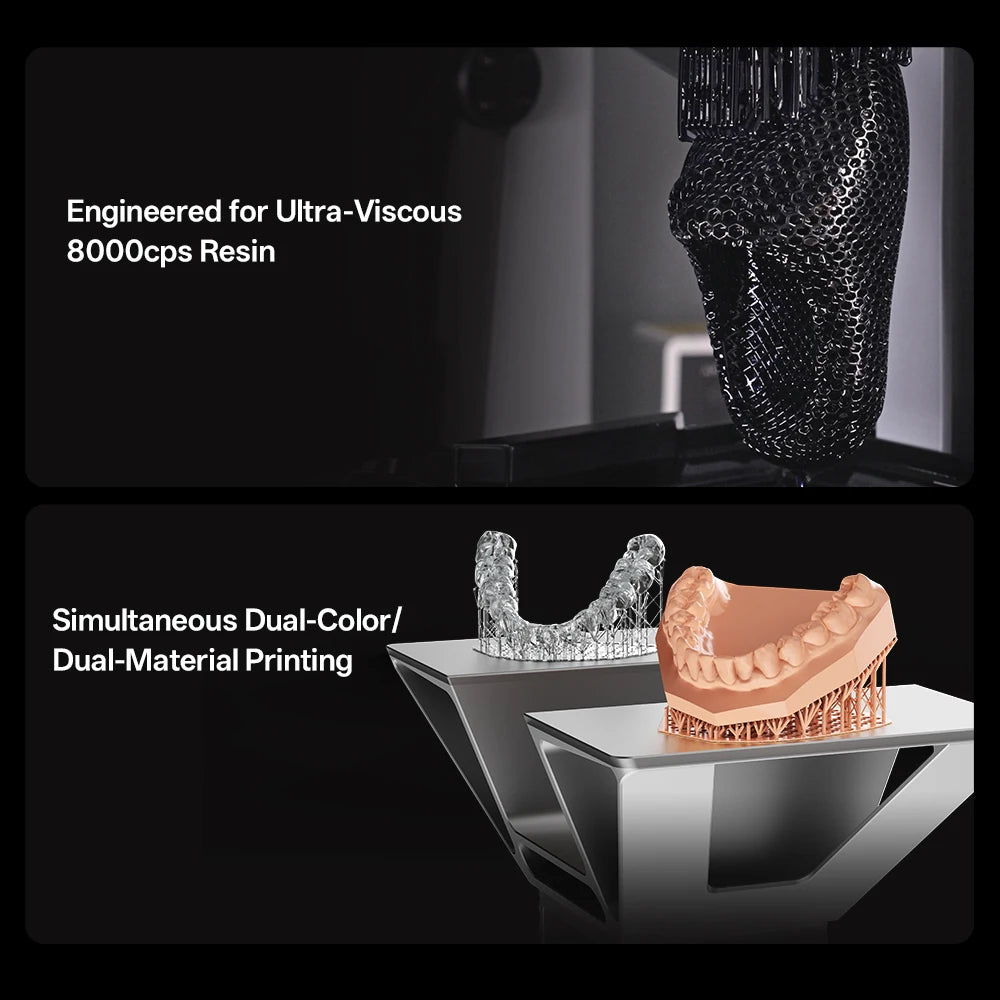

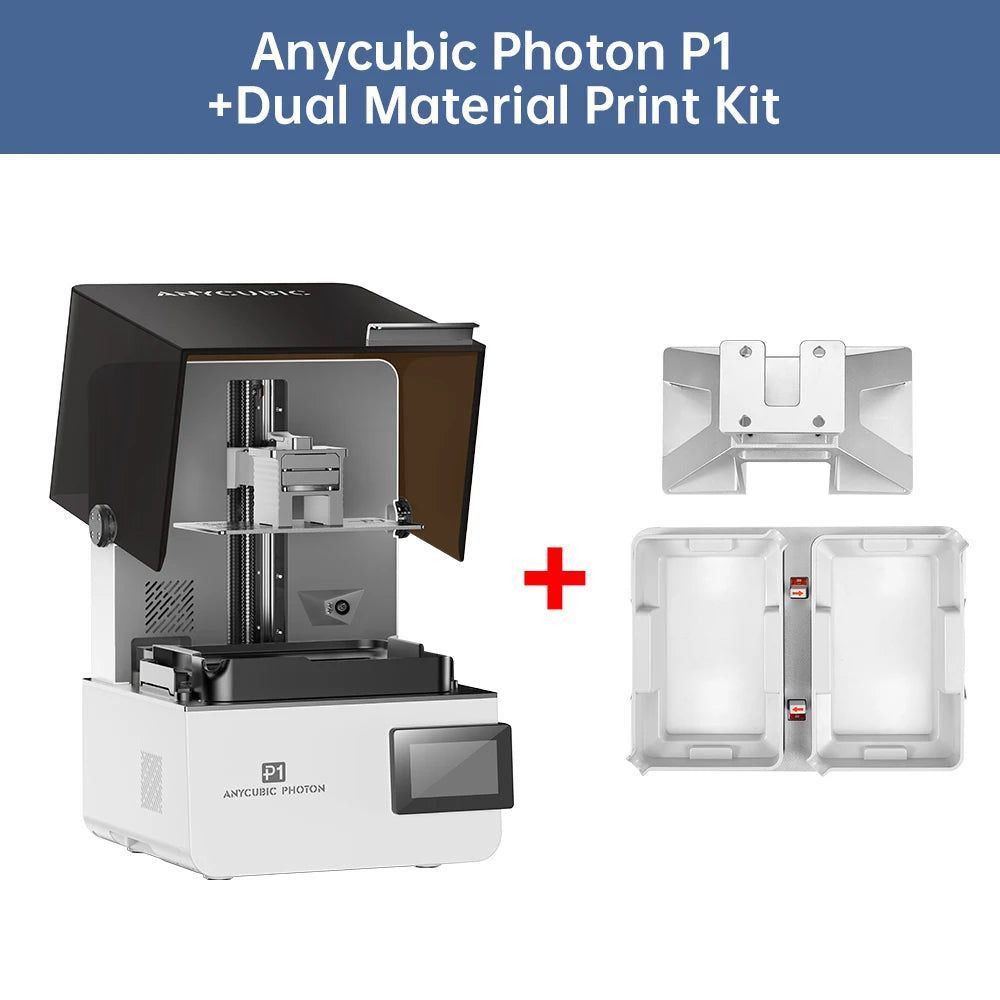

Simultaneous Dual-Color/Dual-Material Printing
①Reduces consumption of premium resin for small model printing.
②Enables simultaneous dual-material/dual-color printing for multi-part models.

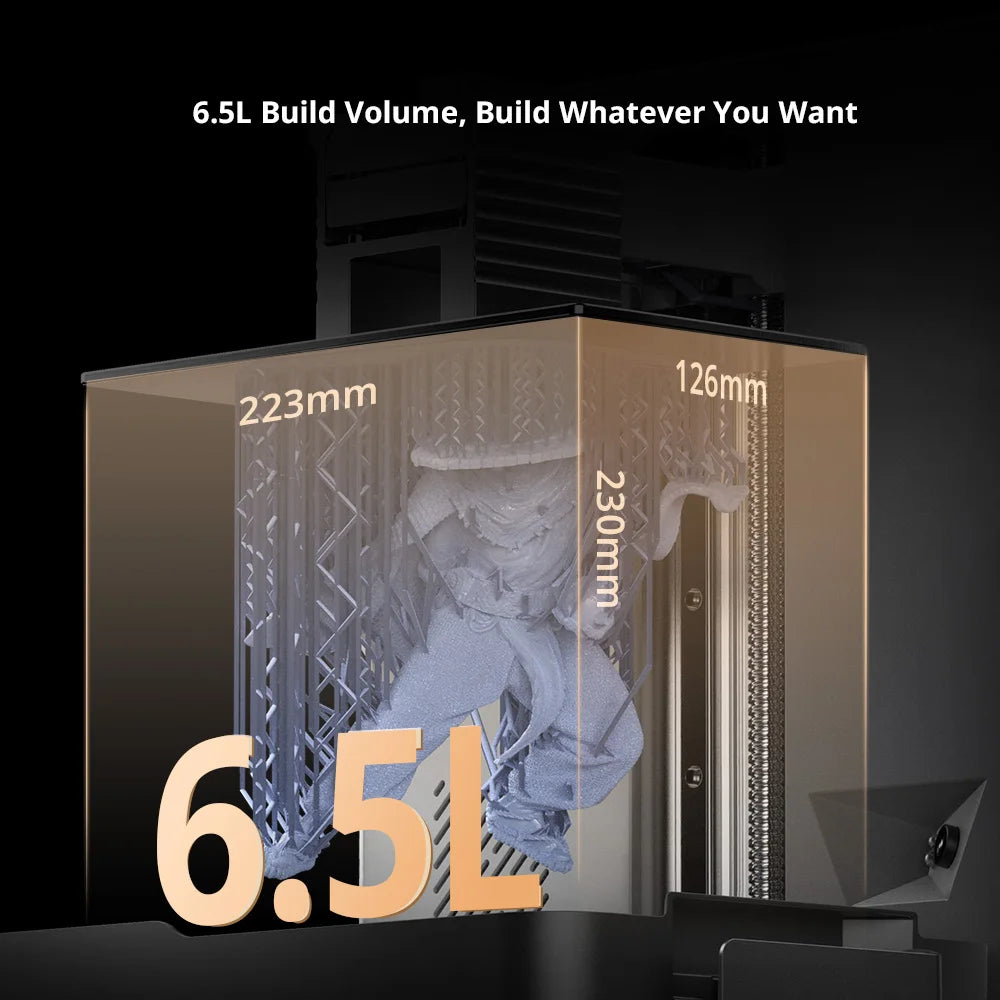

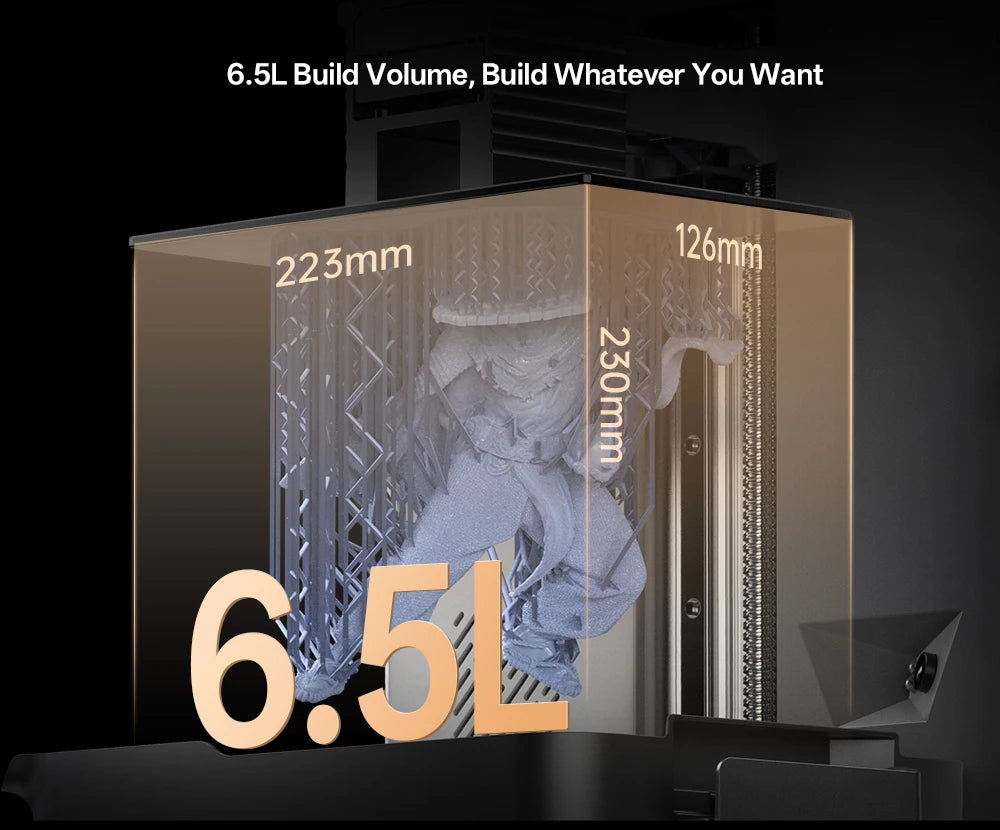

6.5L Build Volume, Build Whatever You Want

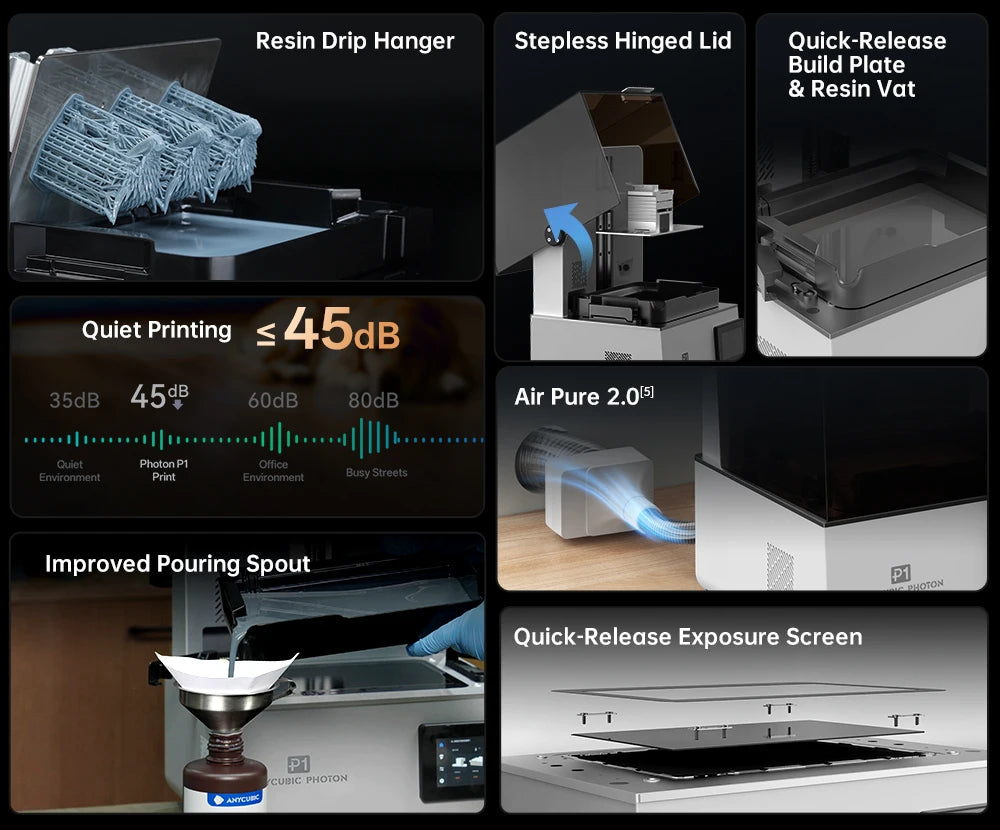

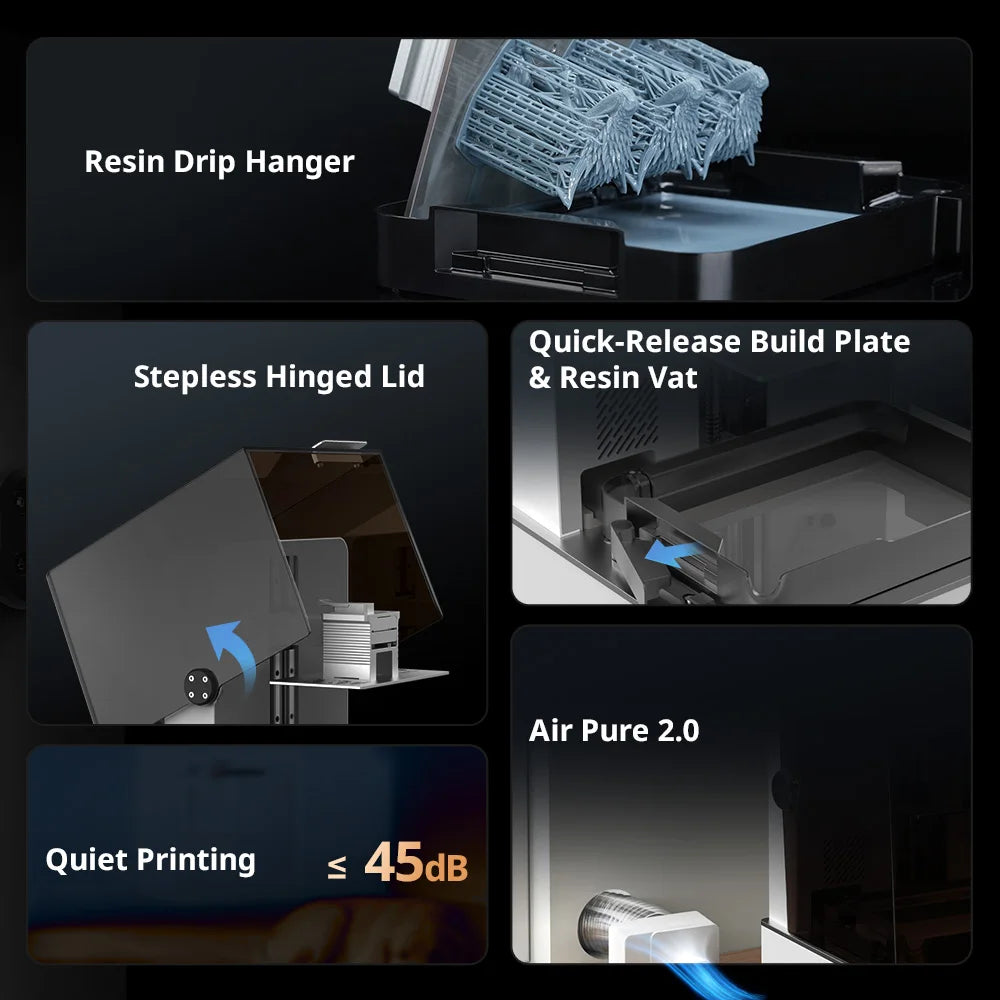

7 User-Friendly Upgrades, It's the Small Things that Matter
Resin Drip Hanger:Reduces resin waste.
Stepless Hinged Lid: Holds at any angle for effortless operation and workspace management.
Quick-Release Build Plate & Resin Vat: Minimal effort when it comes to swapping.
Quiet Printing: ≤45 dB noise level throughout the process, suitable for office or home environments.
Quick-Release Exposure Screen: More convenient customizations.
Improved Pouring Spout: Effortless resin recycling.

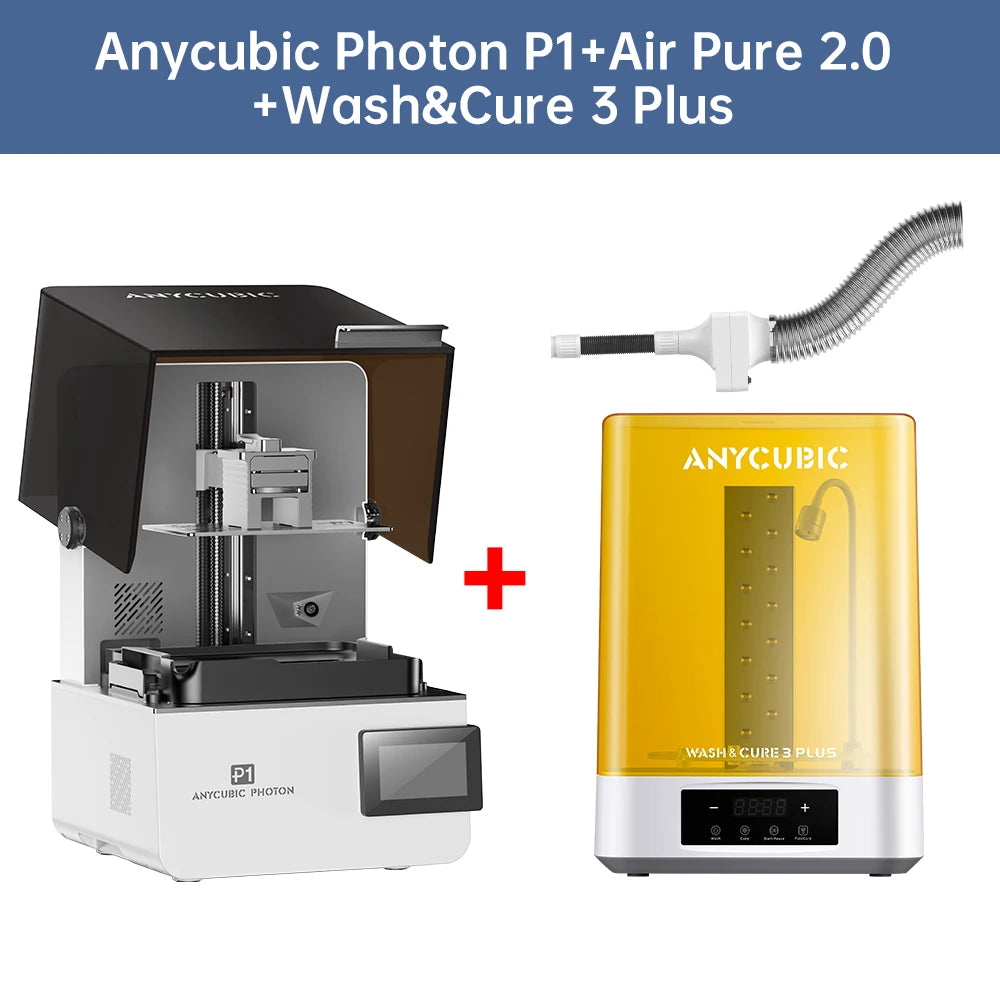

Air Pure 2.0[5]:Directly eliminates odors for a healthier printing environment.

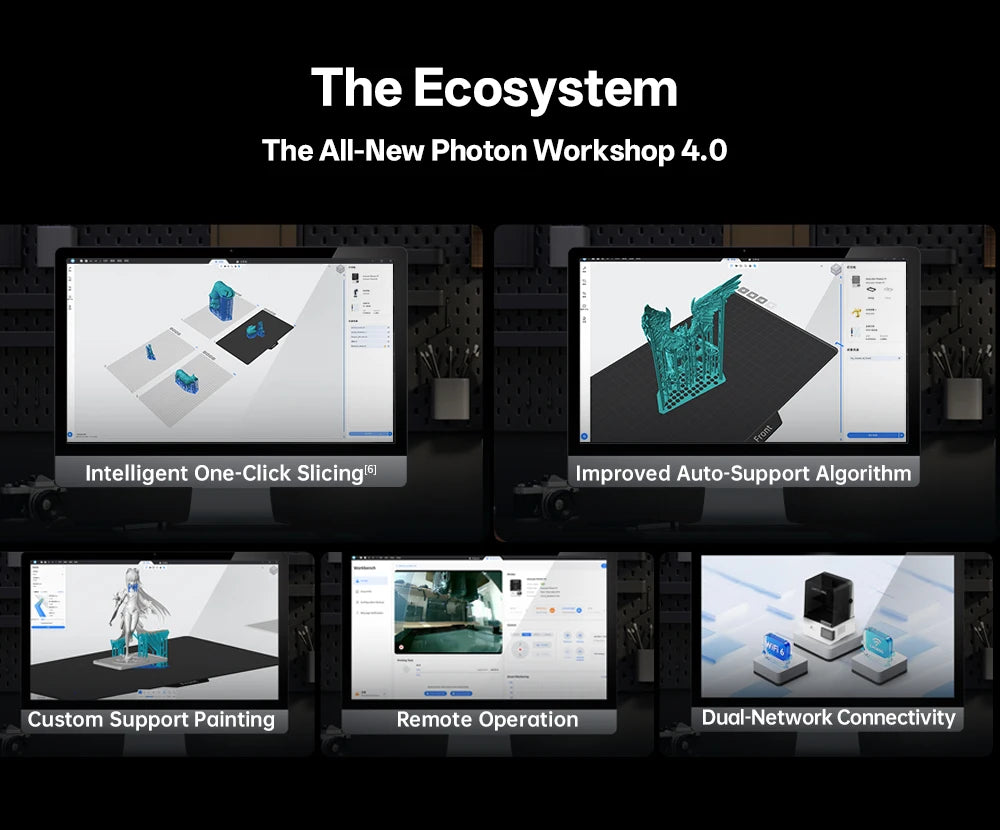

The All-New Photon Workshop 4.0
Intelligent One-Click Slicing:Pre-loaded printing parameters for all Anycubic resins. Supports multi-plate simultaneous slicing for efficient batch printing of multi-part models.
Improved Auto-Support Algorithm: AI identifies self-supporting structures and high-risk overhang areas. Generates precision supports that minimize residue while ensuring critical region stability and easy support removal.
Custom Support Painting: Apply different support densities to distinct regions (e.g., delicate surfaces vs. structural backs) to balance surface quality and success rates.
Remote Operation: Integrated camera enables remote printing submission and real-time progress monitoring via Anycubic App.
Dual-Network Connectivity: Wi-Fi + Ethernet support ensures secure file transfers and full privacy protection with LAN isolation mode.
Makeronline, One of the Biggest Online Model Libraries

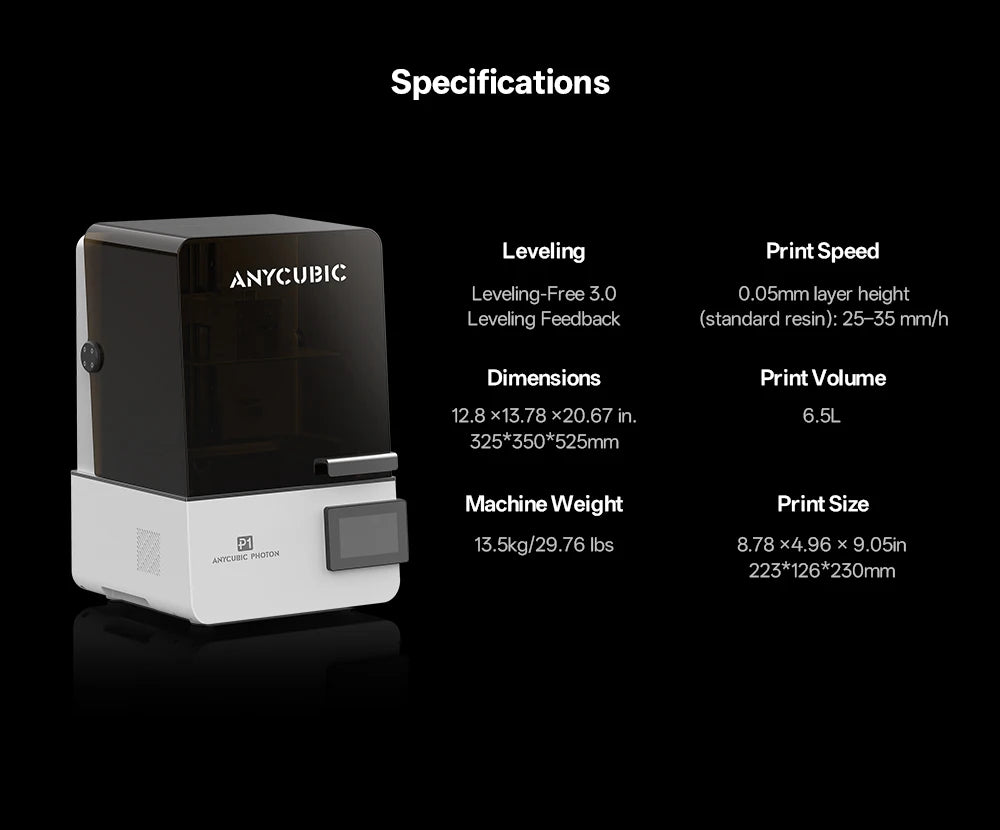

Specifications

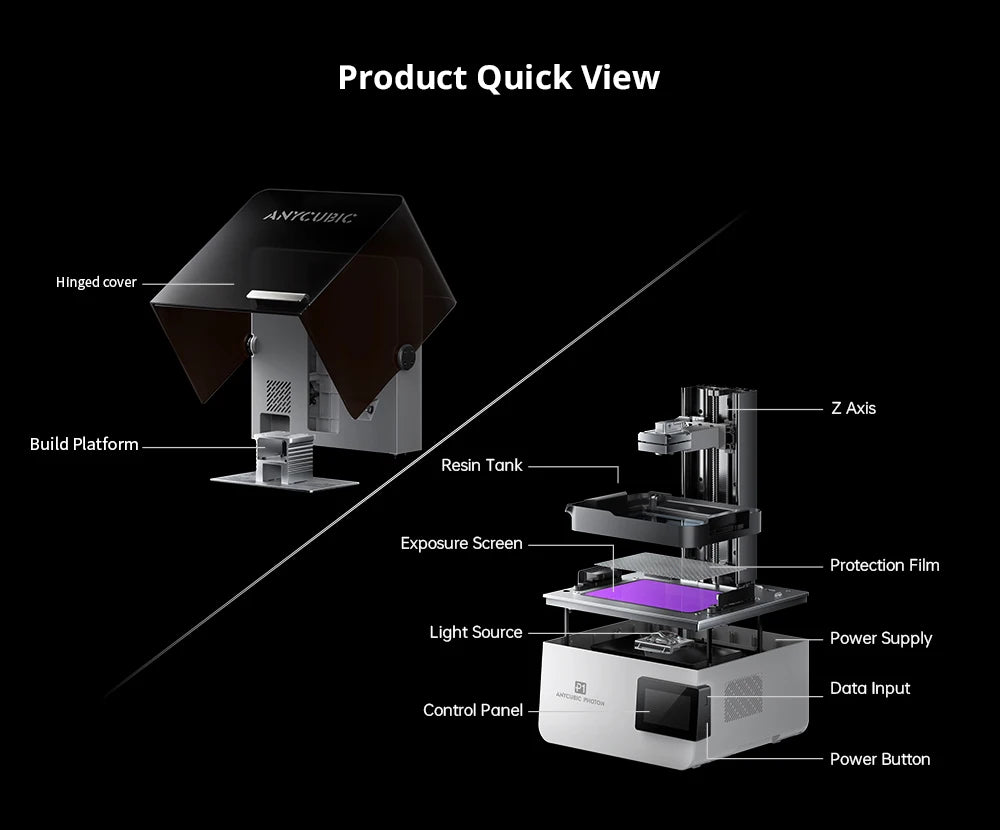

Product Quick View
