48V 100Ah 50Ah 120Ah 200Ah 300Ah LiFePO4 Battery 16S Built-in BMS 51.2V Lithium Iron Phosphate Batteries for RV Solar No VAT&TAX
SPECIFICATIONS
Brand Name: liemium
Cells: New Grade A 50Ah 100Ah 200Ah 300Ah
Certification: CE,RoHS
Features 1: 48V 50Ah Lifepo4 battery pack
Features 2: 48V 100Ah Lithium Iron Phosphate Battery
Features 3: 48V 120Ah LiFePO4 Battery Pack
Features 4: 48V 200Ah LiFePO4 Battery Pack
Features 5: 48V 300Ah LiFePO4 Battery Pack
Features 6: 48V Lithium Iron Phosphate Battery
Features 7: >6000 times Cycle Time
Features 8: Support max 32 parallel connection
Features 9: 16S 100A Built-in BMS
High-concerned chemical: None
Model Number: 48V 50Ah 100Ah 120Ah 200Ah 300Ah
Nominal Capacity: 50Ah-300Ah
Origin: Mainland China
Rated voltage: 48V
Support to Dropshipping: Yes
Type: Li-Ion
Voltage: 51.2v
Warranty: 10 Years
Weight: 28-135KG
3-7 Days Fast Delivery
Support Overseas Warehouse
US,DE,PL,CA,JP warehouse,support to 3-7 Days Delivery

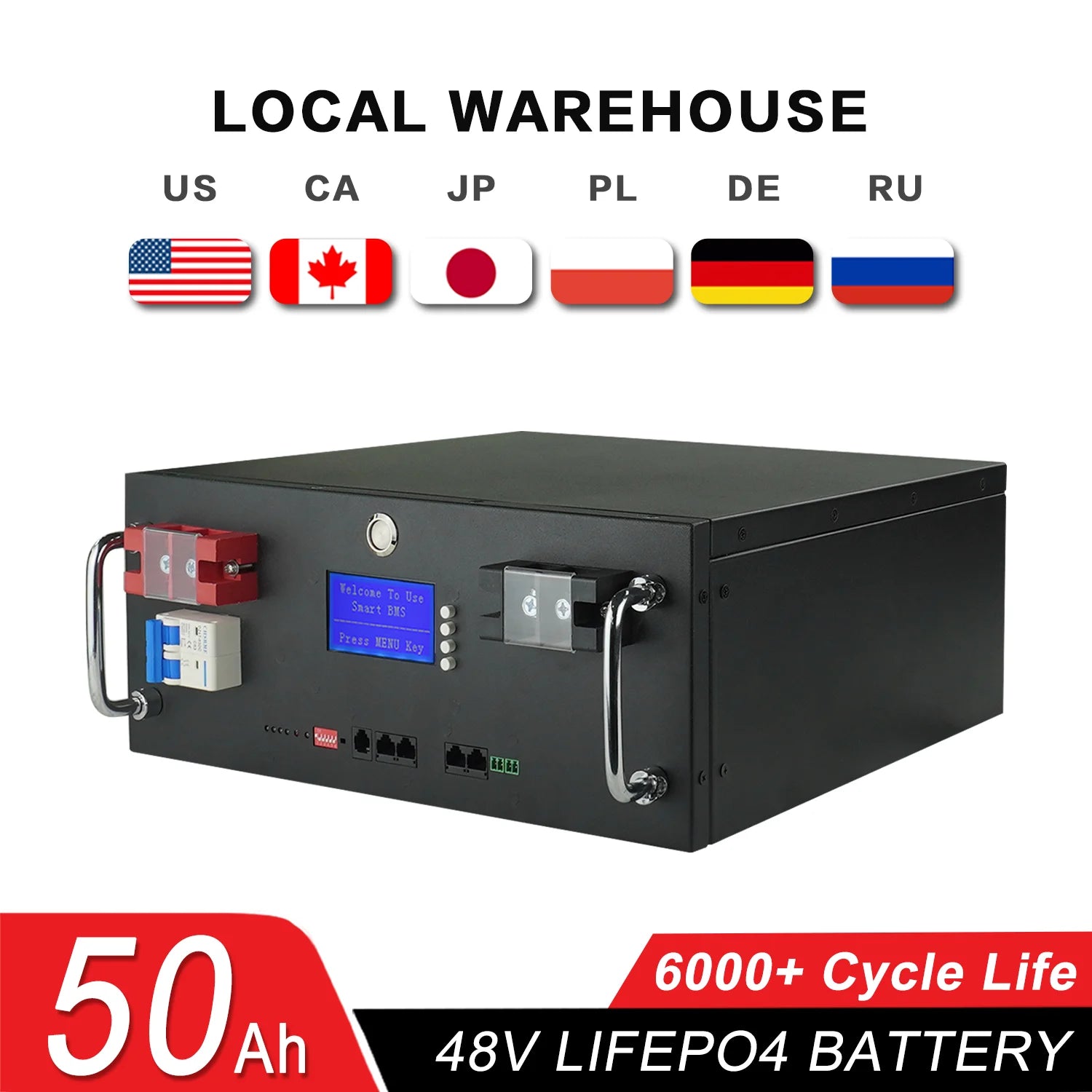

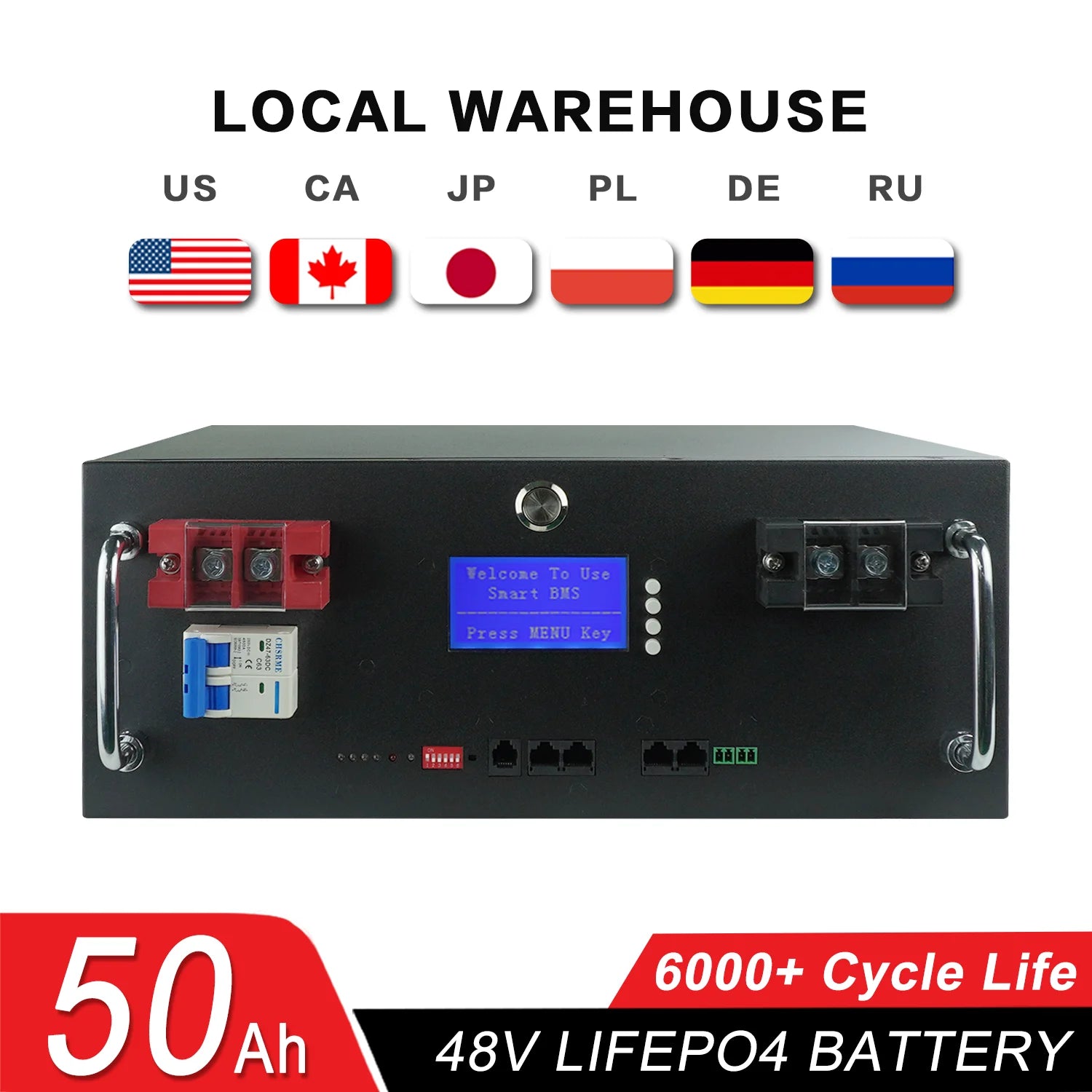

48V 50Ah Lifepo4 Battery
Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 50Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 2560Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 50A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal

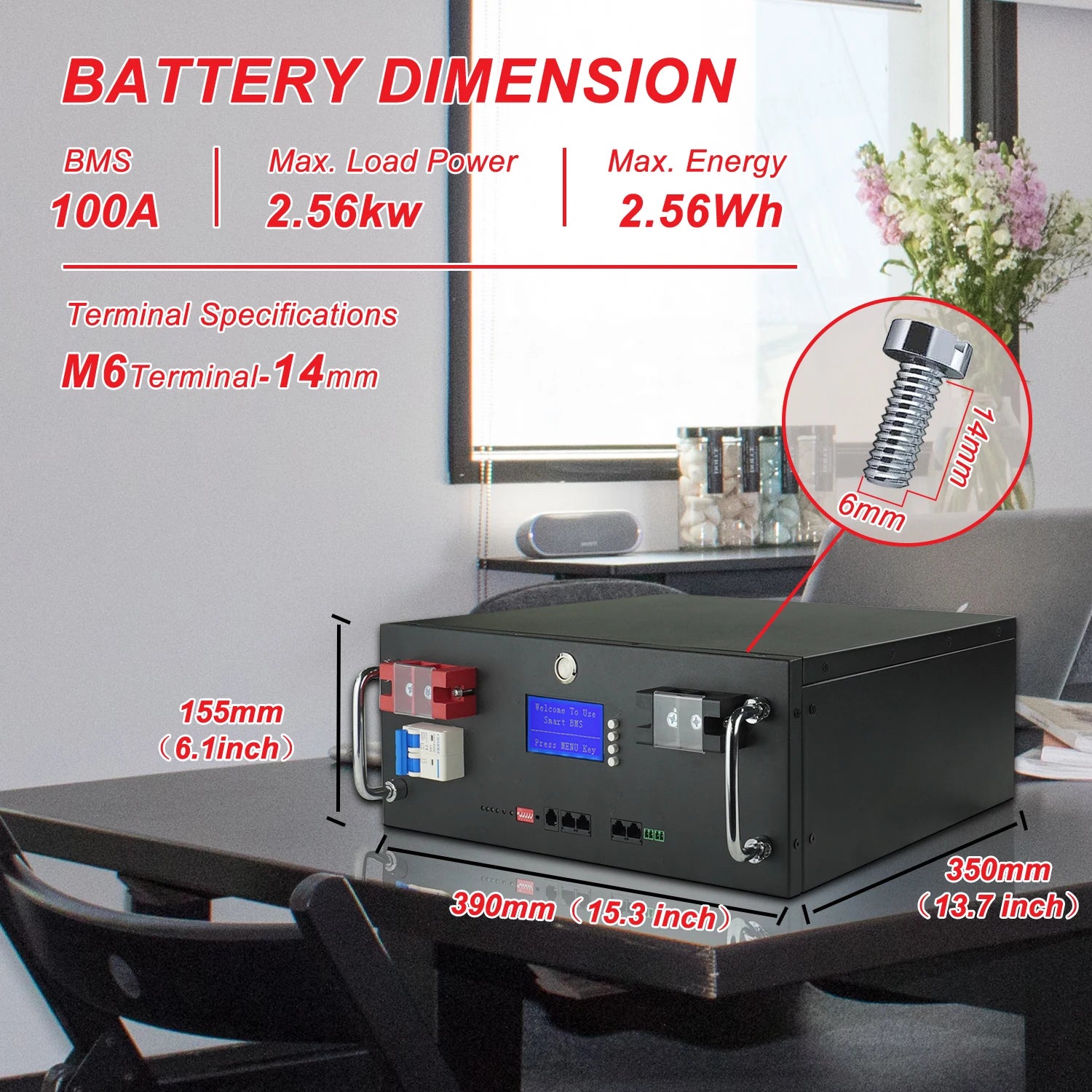

Dimension (L/W/H): 390*350*150mm /
Weight: Approx. 30kg
Terminal Type: Dual M6

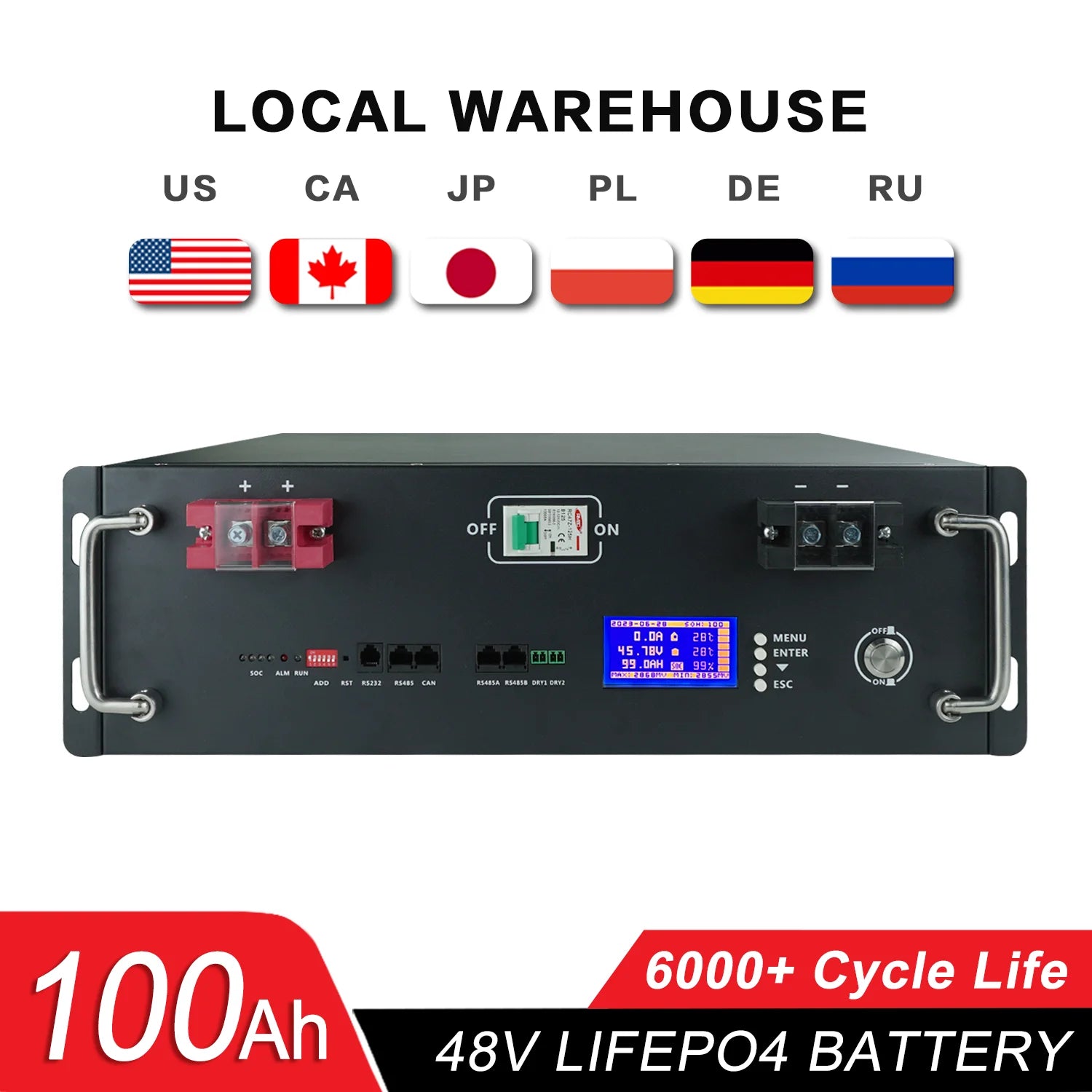

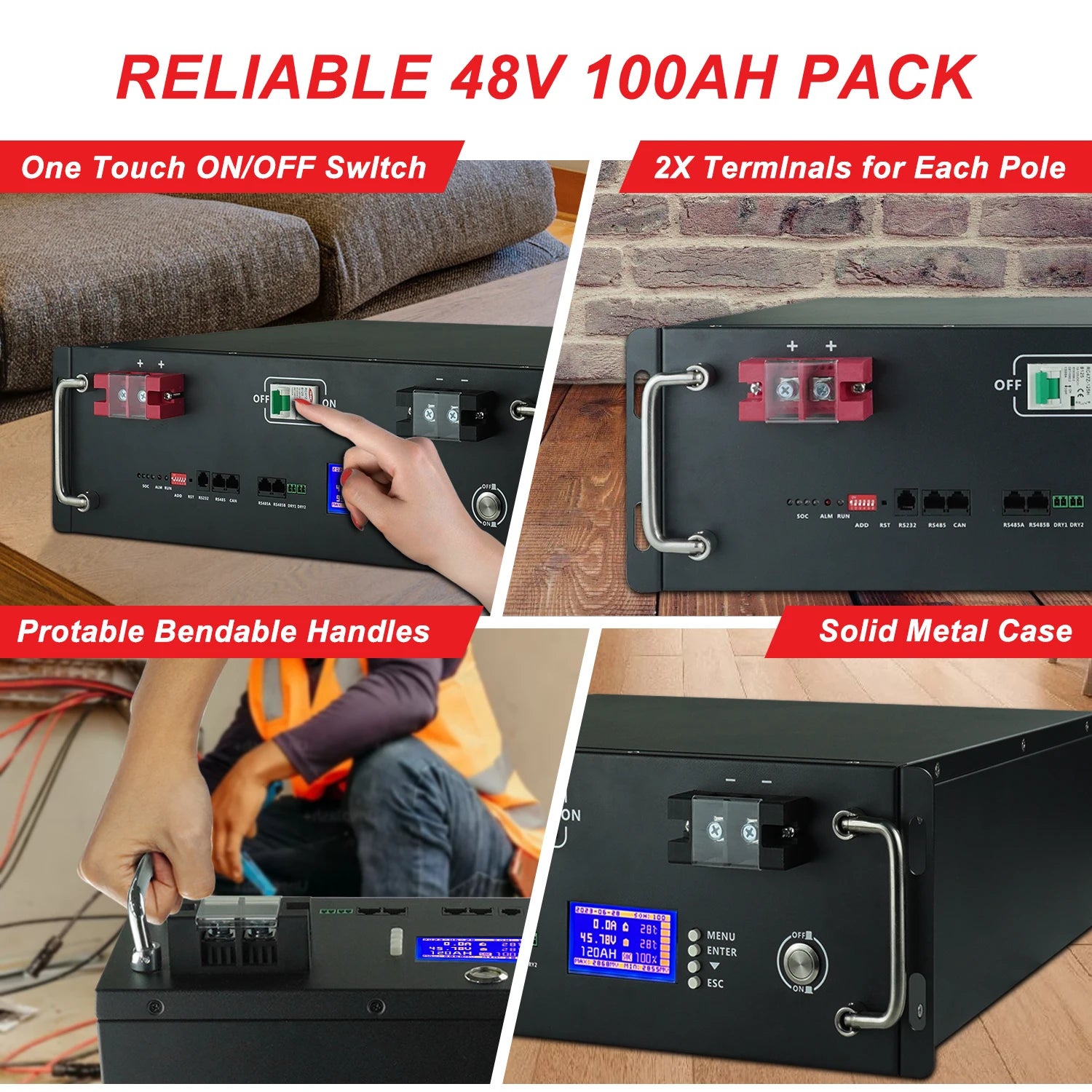

48V 100Ah Lifepo4 Battery
Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 5120Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm /
Weight: Approx. 42kg
Terminal Type: Dual M6

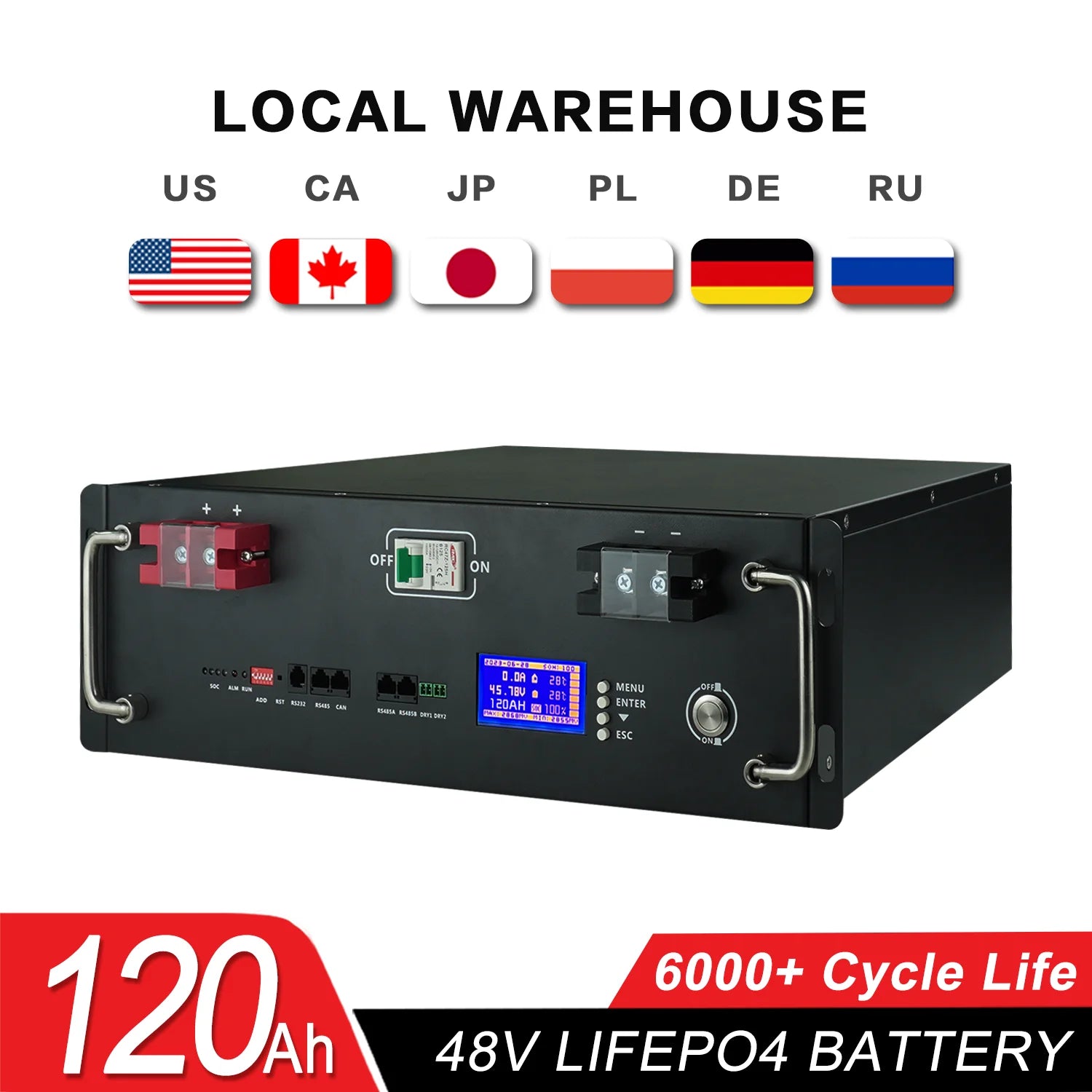

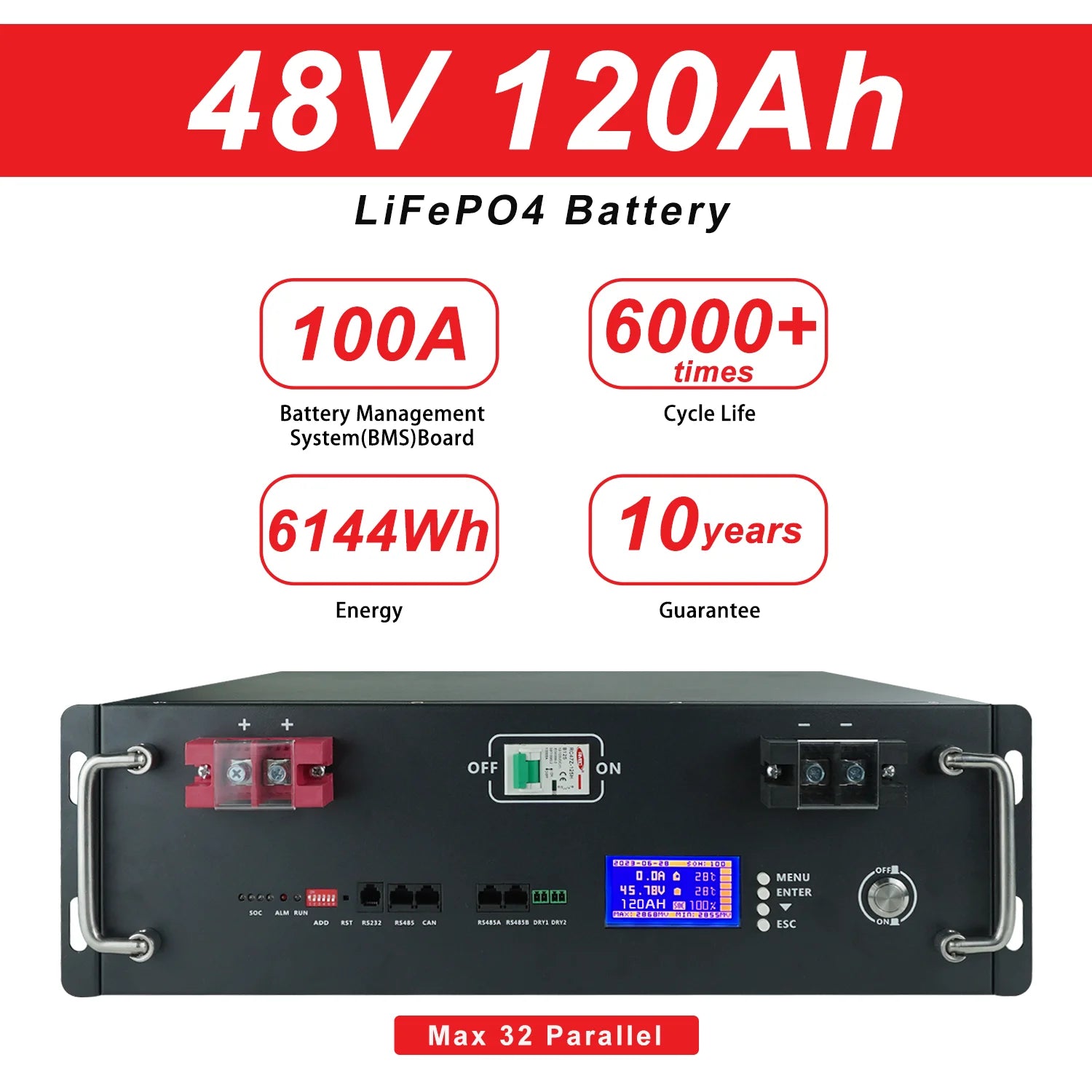

48V 120Ah Lifepo4 Battery
Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 120Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 100A Max 32 Parallel
Energy: 6144Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 100A
Max Discharging Current: 100A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 455*480*160mm /
Weight: Approx. 44kg
Terminal Type: Dual M6

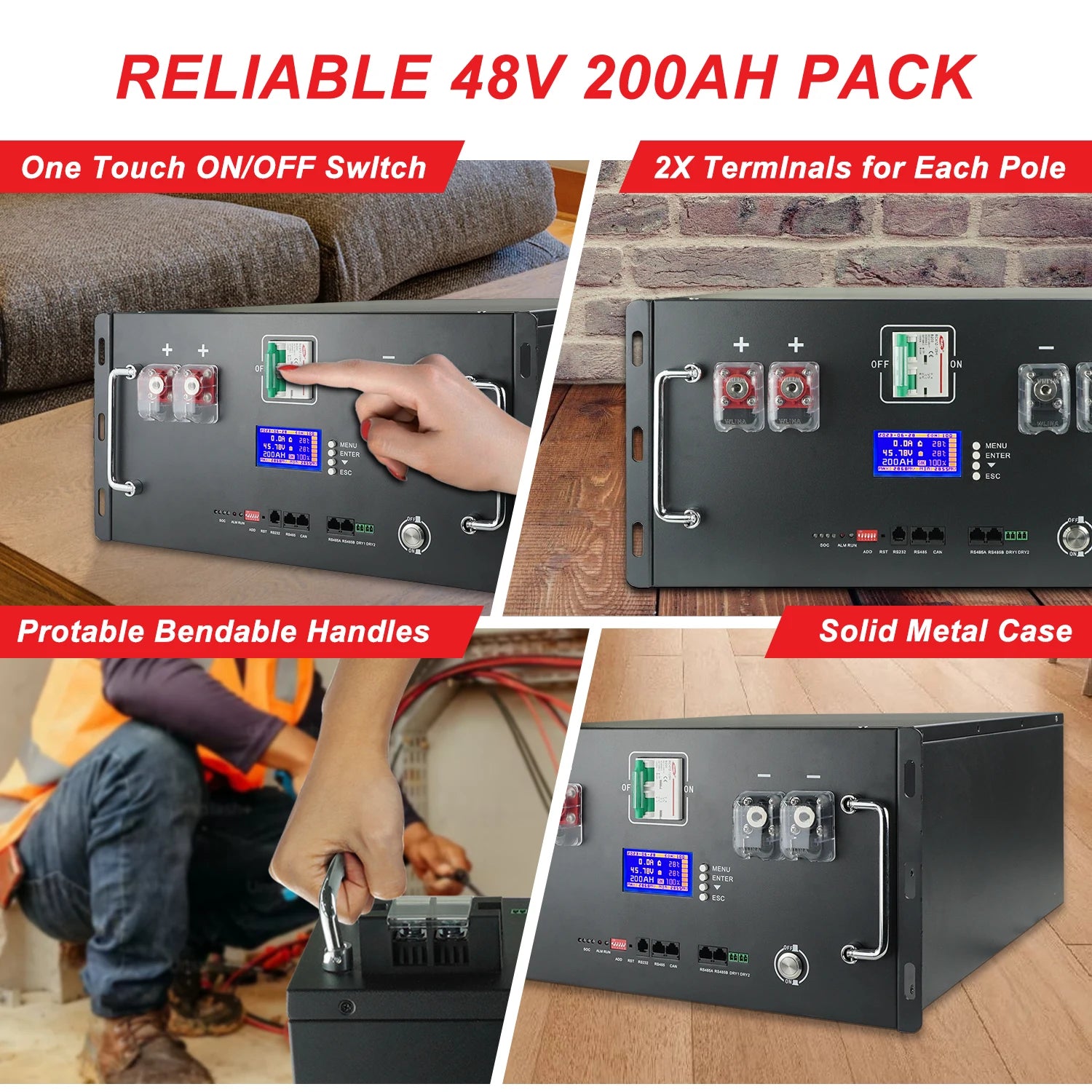

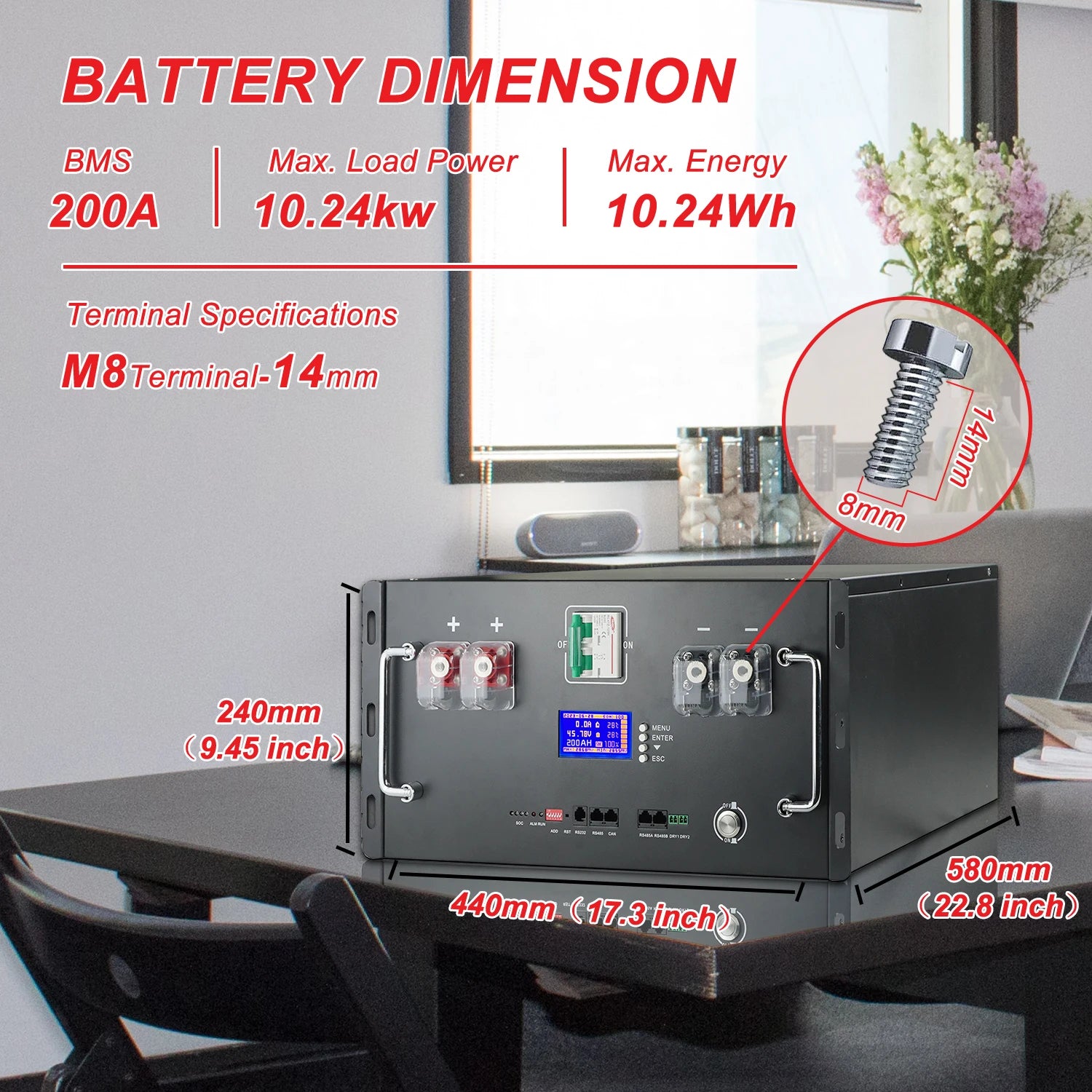

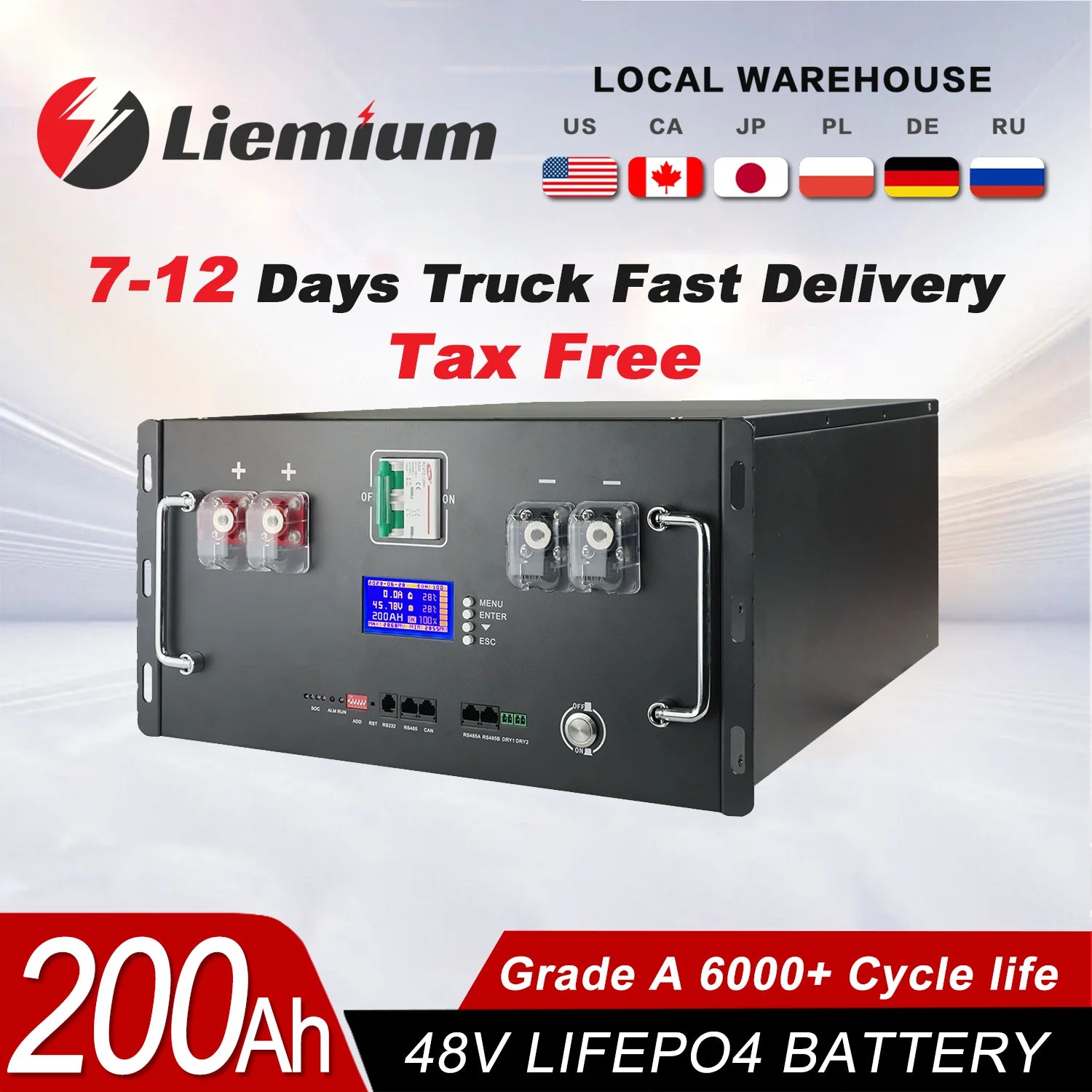

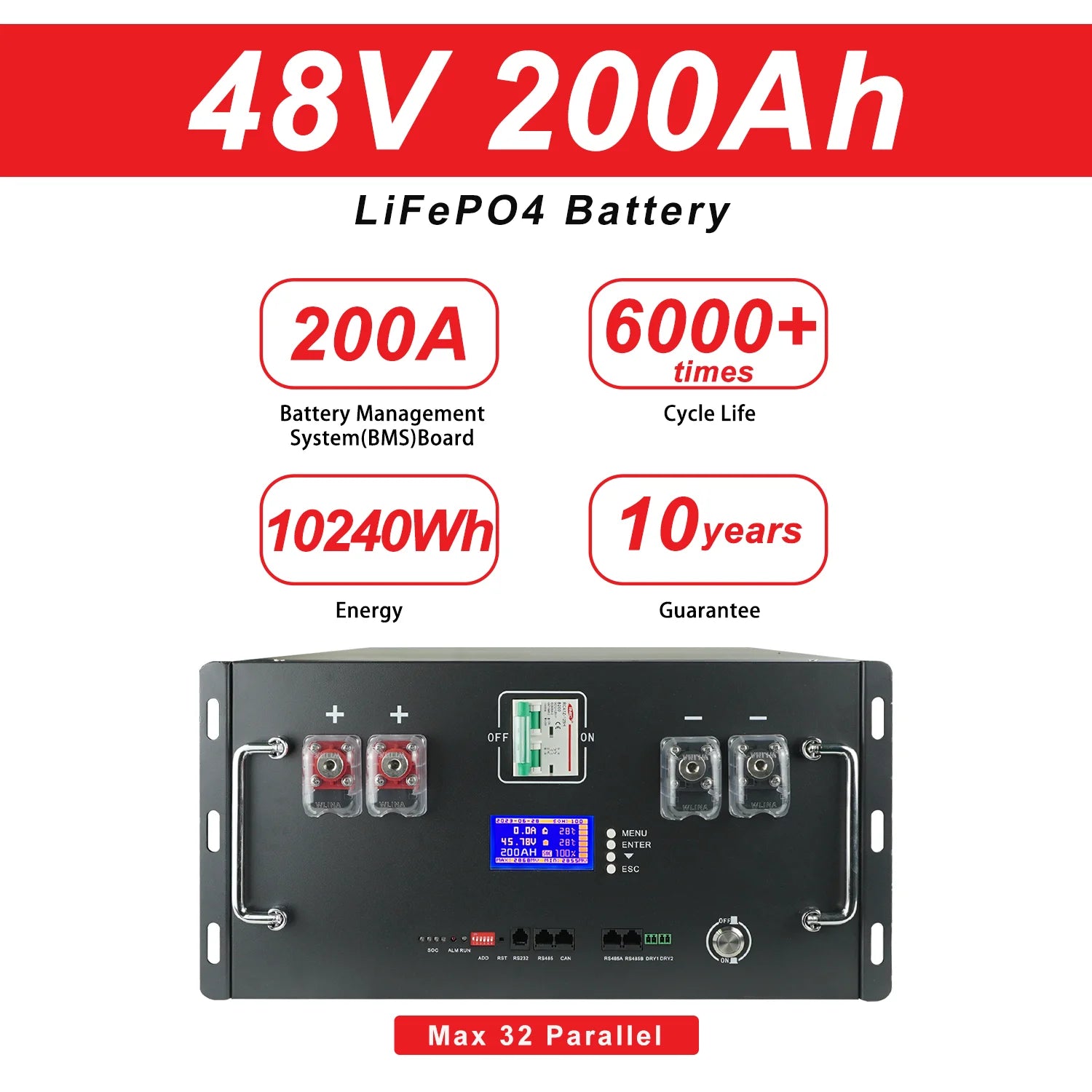

48V 200Ah Lifepo4 Battery
Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah 0.2C
Communication Protocol: CAN RS485
Built-in BMS : 16S 200A Max 32 Parallel
Energy: 10240Wh
Cycle Life: ＞6000 cycles at 0.2C; End of life 80% capacity.
Charge Voltage: 58.4±0.4V
Max Charging Current: 200A
Max Discharging Current: 200A
Discharge Cut-off Voltage: 40.0V
Water Dust Resistance: IP5
Case Material: Metal
Dimension (L/W/H): 440*580*240mm /
Weight: Approx. 90kg
Terminal Type: Dual M8

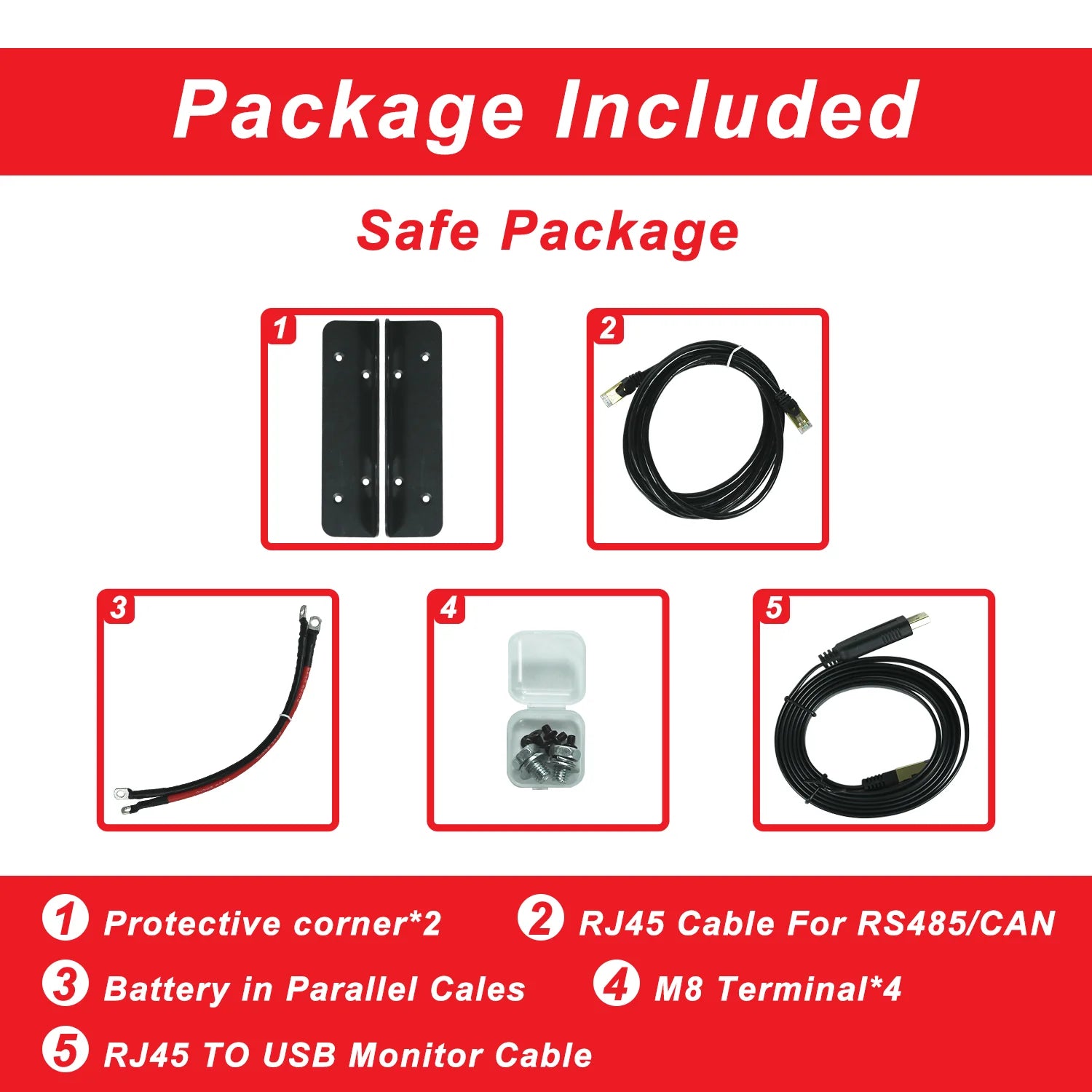

Package Included
1.protective corner*2
2.RJ45 Cable for RS485/CAN
3.Battery in Parallel Cables

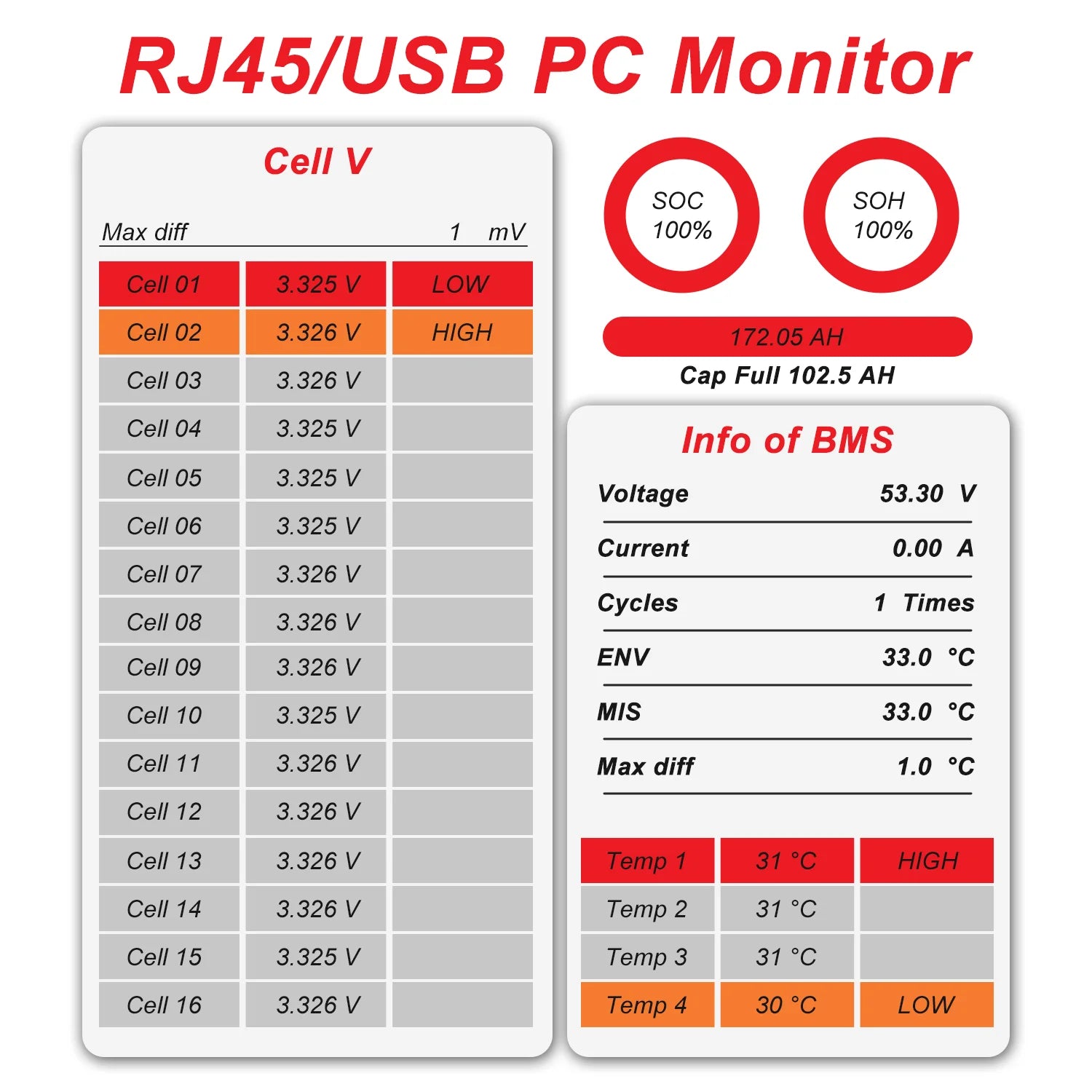

4.RJ45 TO USB Monitor Cable

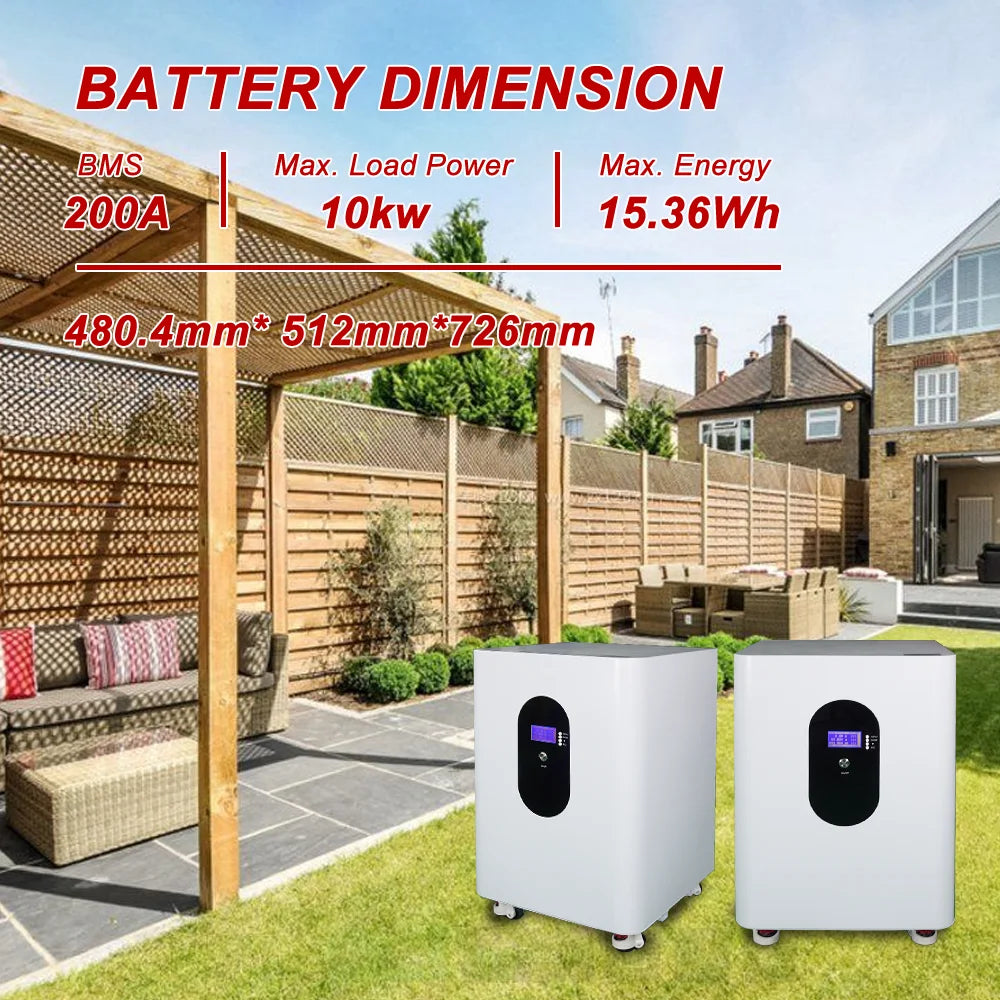

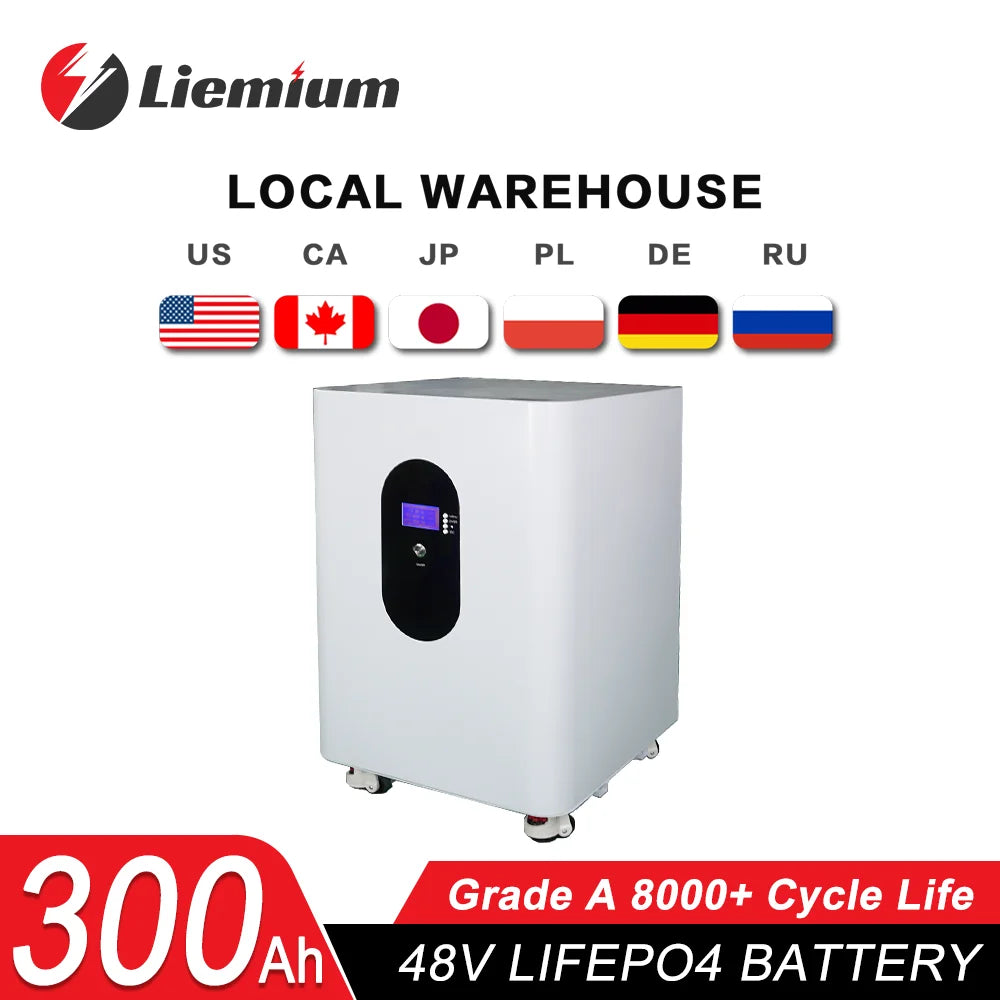

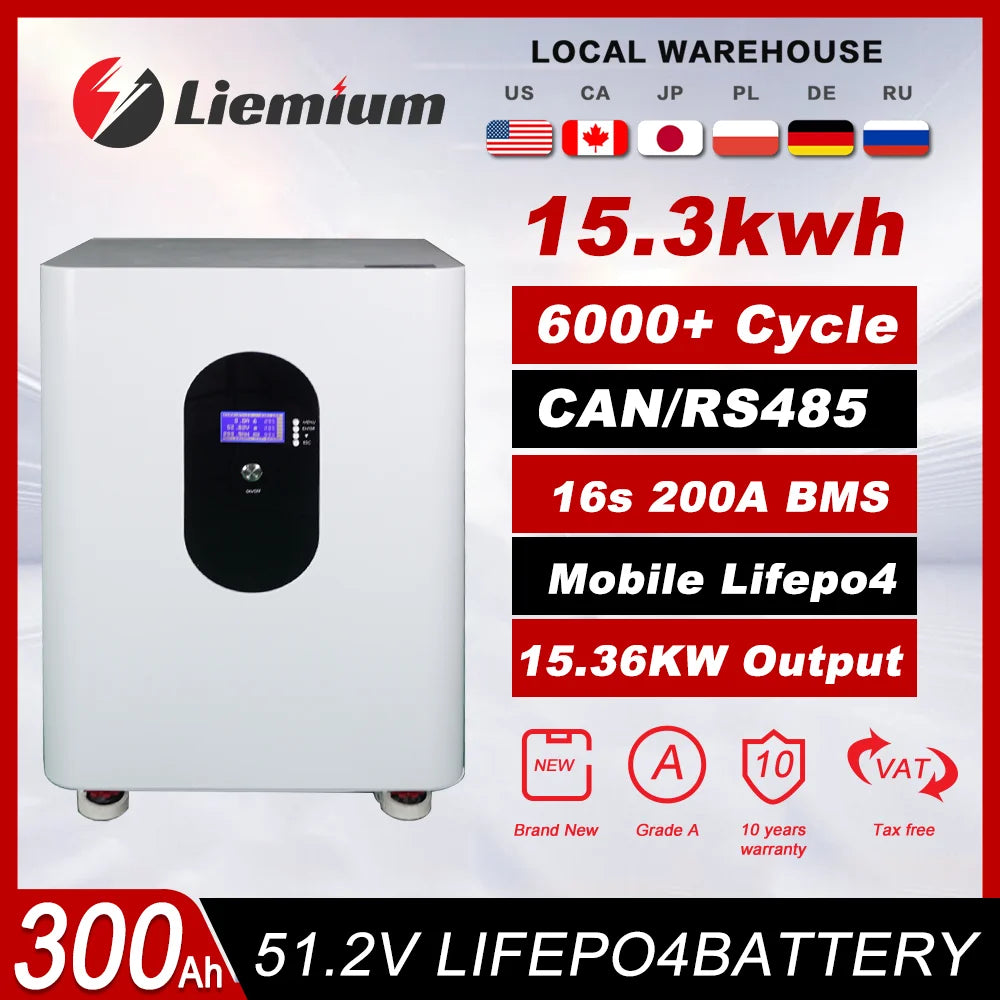

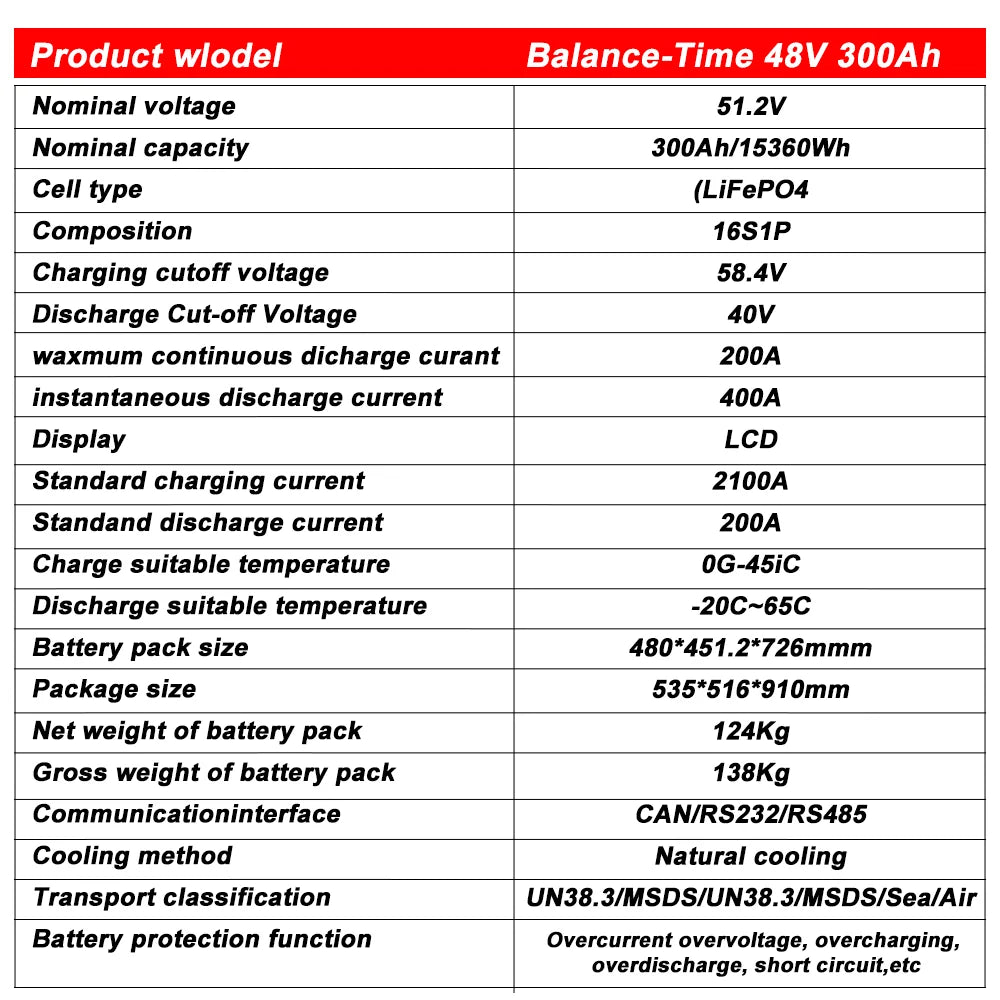

48V 300Ah Lifepo4 Battery
Specifications
Nominal Voltage: 51.2V
Nominal Capacity:300Ah/15360Wh
Built-in BMS : 16S 200A Max 32 Parallel
Charging Cutoff Voltage:58.4V
Discharge Cut-off Voltage:40V
Max Charging Current: 200A
Instantaneous Discharge Current:400A
Display:LCD
Standard Charging Current:＜100A
Standard Discharge Current:200A
Charge Suitable Temperature:0℃~45℃
Discharge Suitable Temperature:-20℃~65℃
Battery Pack Size:480*451.2*726mm
Package Size:535*516*910mm
Net Weight of Battery Pack:124kg
Gross Weight of Battery Pack:138kg
Communication Interface:CAN/RS232/RS485
